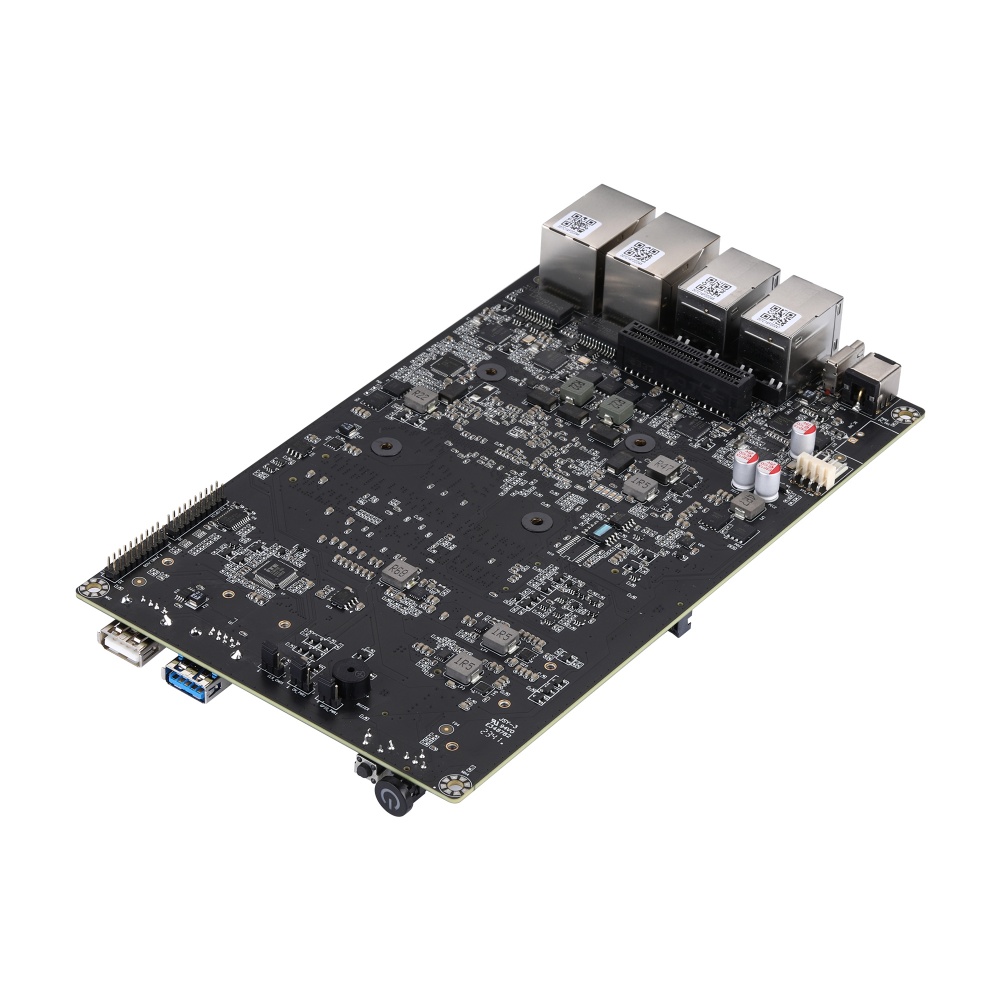

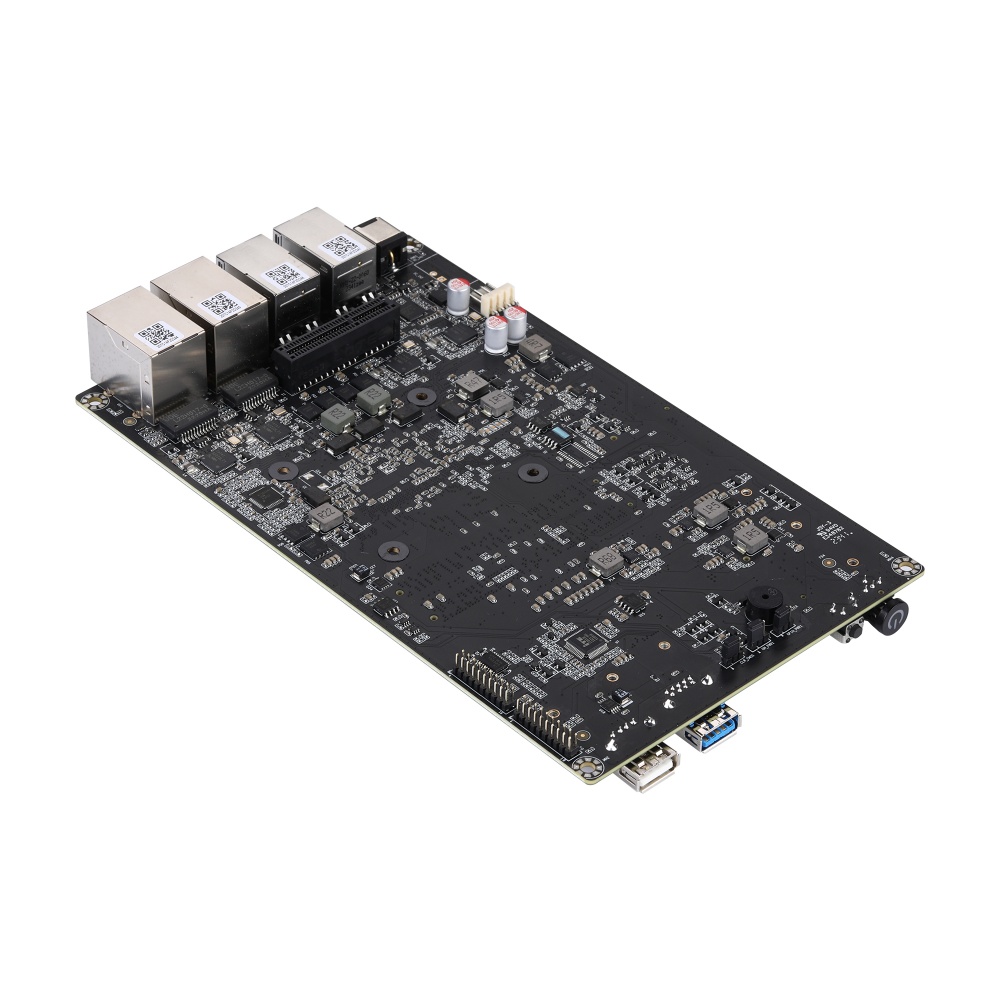

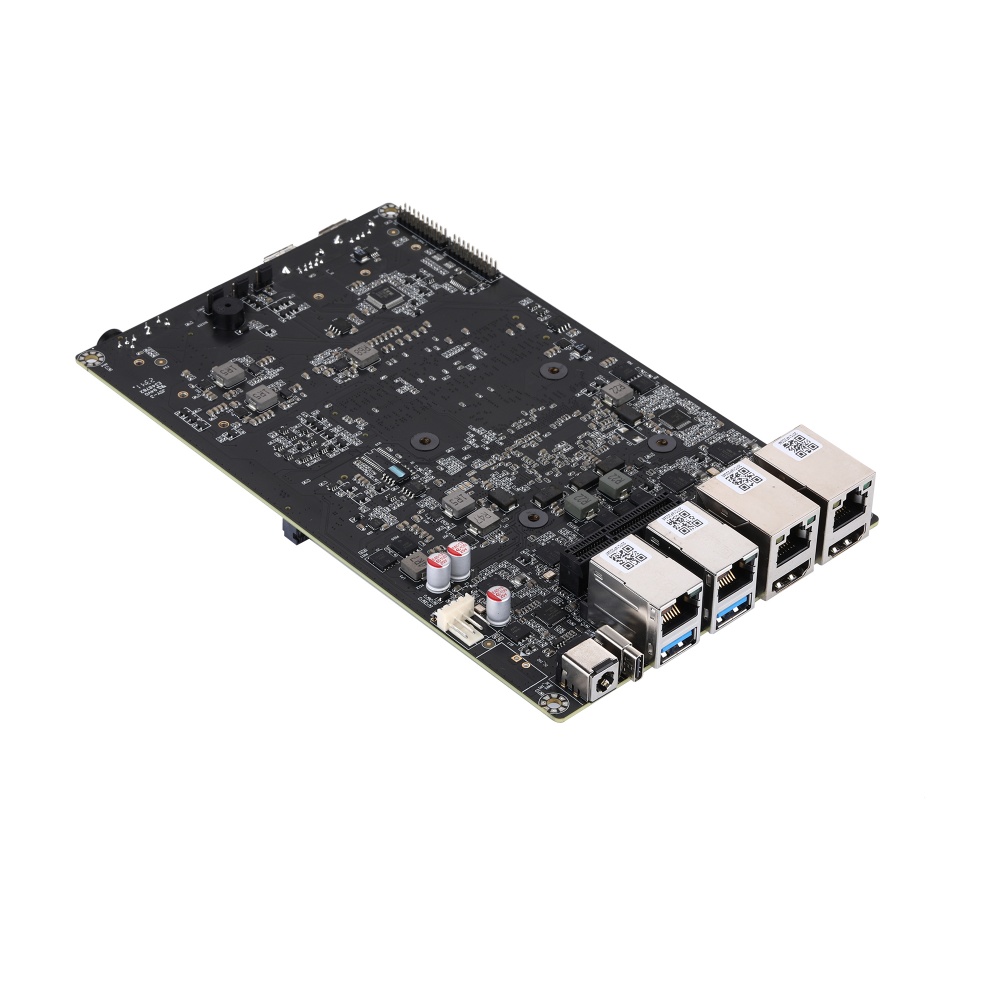

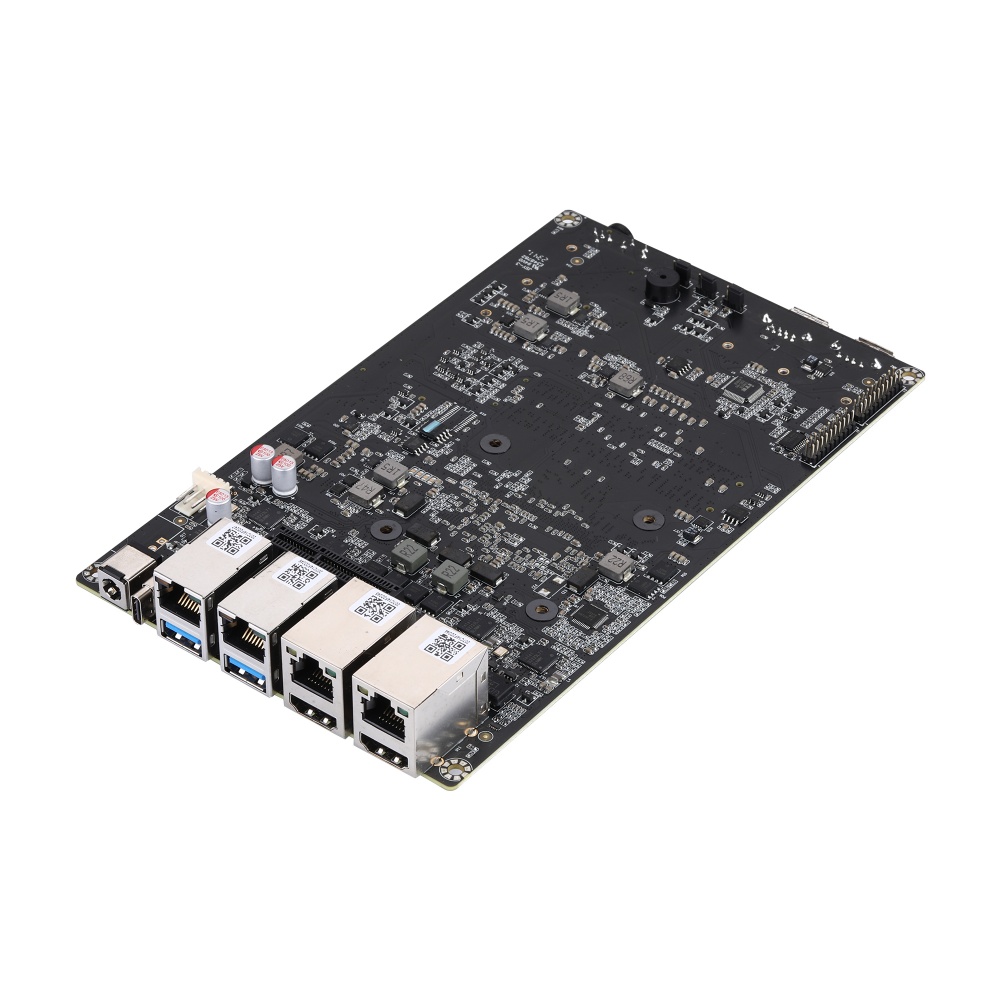

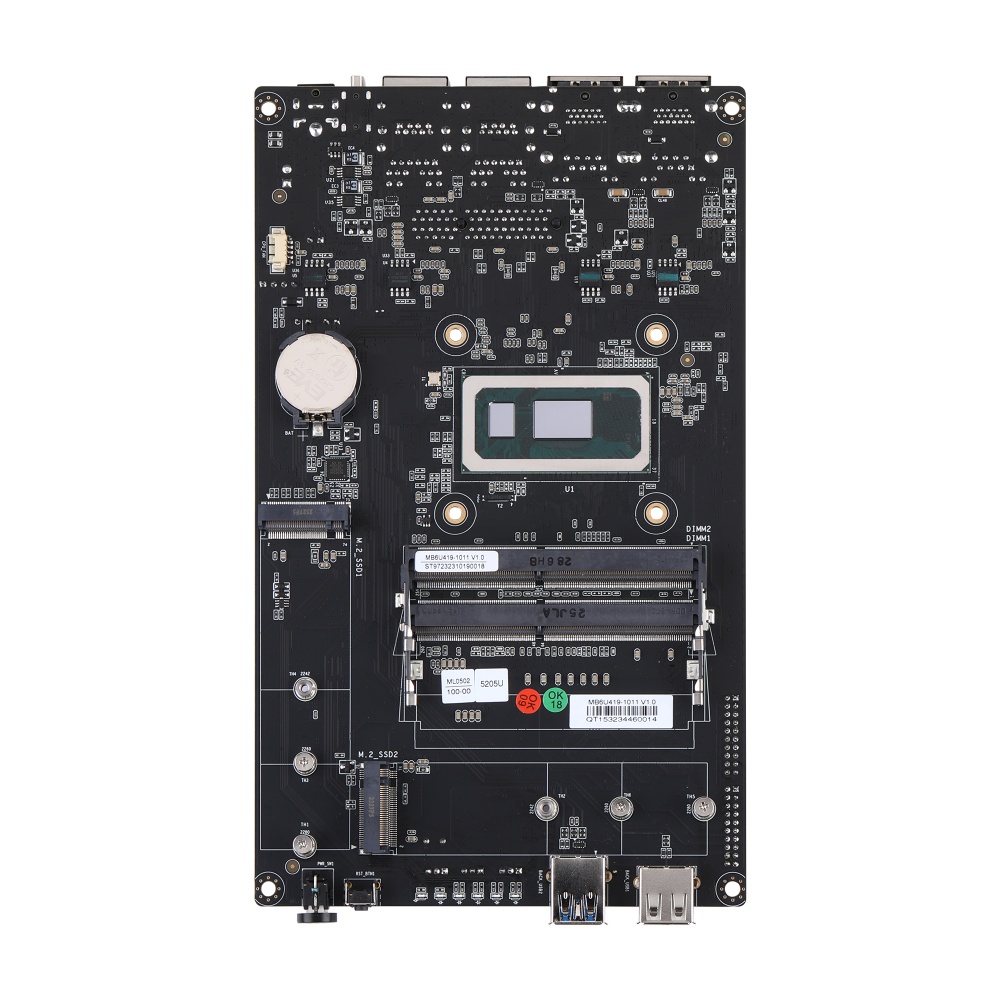

Bundkort MB6U419-0900 Serie

Name: Bundkort MB6U419-0900 Serie
Brand: Qotom
SKU: MB6U419-0900
Availability: InStock

Model: MB6U419-0900

Samlet LAN4

LAN-hastighed2.5G RJ45

Nøglespecifikationer

CPU: Whiskey Lake / Coffee Lake / Comet lake
Hukommelse: DDR4 SO-DIMM · Maks 64GB
LAN: 4
Lagring: M.2 Mkey, SATA
Kortstørrelse: 120x200

Kompatible systemer

Q30900DS-S14

Dette produkt fås via forespørgsel og OEM/ODM-tilpasning.

Send forespørgsel

Main Features

Intel 8 th Whiskey Lake-U Processor
Intel 8 th Coffee Lake-U Processor
Intel 10 th Comet lake-U Processor
2 × HDMI
3 × USB 3.0, 1 × USB 2.0, 1 × Type C
2 × M.2
4 × Intel I225-V/I226-V 2.5G LAN

Relaterede produkter

NAS Q30900DS S14 serie

Q30900DS-S14

Mini-PC Q30900SE S23 Serie

Q30900SE-S23

Mini-PC Q30900GE S20 Serie

Q30900GE-S20

Mini-PC Q30900GER S10 Serie

Q30900GER-S10

Mini-PC Q30900GP S20 Serie

Q30900GP-S20

Mini-PC Q30900GPR S20 Serie

Q30900GPR-S20

CPU	• Intel 8 th Whiskey Lake-U Processor • Intel 8 th Coffee Lake-U Processor • Intel 10 th Comet lake-U Processor
Chipsæt	By CPU
Dimension	120 × 200mm
Antal kerner	By CPU
Maks. Hastighed	By CPU
L2 Cache	By CPU
BIOS	UEFI

Teknologi	DDR4 2133/2400MHz SDRAM
Maks.	64GB
Socket	2 × SO-DIMMs

Controller	By CPU
VRAM	Shared Memory
DisplayPort	0
HDMI	2 (Support HDMI 1.4a)
Multi Skærm	Yes

Grænseflade	100/1000/2500Mbps
Controller	4 × Intel I225-V/I226-V 2.5G LAN
Connector	4 × RJ-45

Tænd/sluk-knap	1 × Power Button, 1 × Reset Button
LED	1 × Power LED, 1 × HDD LED
LED	1 × LAN LED
USB	2 × USB 3.0
USB	1 × USB 3.0, 1 × USB 2.0
DC-indgang	1
Type C	1, USB 3.0 and Display Port
HDMI	2
Ethernet	4

Mini PC-serien

Bundkortserien

NAS-lageringsserien

OPS-serien

Panel PC-serien

Tilbehør

Bundkort MB6U419-0900 Serie

Nøglespecifikationer

Kompatible systemer

Main Features

Processorsystem

Hukommelse

Grafik

Ethernet

Audio

Front I/O

Lagring

Udvidelse

Intern Stik

Watchdog-timer

Power

Miljø

Tilbehør

OS Support

Pakkeindhold

Ordre- & specifikationsvalg

Driverdownloads

Relaterede produkter

M.2	1 × M.2 for SSD (M key, Type: 2280, PCIe 3.0 × 4)
M.2	1 × M.2 for SSD (M key, Type: 2280, PCIe 3.0 × 1)

TPM	1 (Option)
PCIe	1, PCIe slot (Type: X4,PCIe 3.0 × 1, SATA 3.0 × 2)
Seriel port	1, 2 × 5Pin, Pitch 2.0mm (Option)
AutoStart-jumper	Yes, 1 × 3Pin, Pitch 2.54mm
CMOS-ryddejumper	Yes, 1 × 3Pin, Pitch 2.0mm
GPIO Header	1, 2 × 5Pin, Pitch 2.0mm
GPIO Strømforsyning	Yes, 1 × 3Pin, Pitch 2.0mm
USB 2.0-header	2, 2 × 5Pin, Pitch 2.0mm
Front Panel Header	1, 2 × 5Pin, Pitch 2.0mm
Strømheader	1, 1 × 2Pin, Pitch 3.5mm, Phoenix 2Pin (Option)

Udgang	From Super I/O to Drag RESETCON#
Interval	256 Segments,0,1,2,3,,,255 sec/min

Ordering Code	Legacy Model	Code Name	Processor Type	Processor Number	Cores / Threads	Frequency	Cache	Graphics	TDP
6-0900	MB	Whiskey Lake	Celeron	4305U	2 / 2	2.2GHz	2M	Intel UHD Graphics	15W
6-0900	MB	Whiskey Lake	Pentium	5405U	2 / 4	2.3GHz	2M	Intel UHD Graphics	15W
6-0900	MB	Whiskey Lake	Core i3	8145U	2 / 4	2.1GHz ~ 3.9GHz	4M	Intel UHD Graphics	15W
6-0900	MB	Whiskey Lake	Core i5	8265U	4 / 8	1.6GHz ~ 3.9GHz	6M	Intel UHD Graphics	15W
6-0900	MB	Whiskey Lake	Core i7	8565U	4 / 8	1.8GHz ~ 4.6GHz	8M	Intel UHD Graphics	15W
6-0900	MB	Coffee Lake	Core i5	8260U	4 / 8	1.6GHz ~ 3.9GHz	6M	Intel UHD Graphics 620	15W
6-0900	MB	Comet Lake	Celeron	5205U	2 / 2	1.9GHz	2M	Intel UHD Graphics	15W
6-0900	MB	Comet Lake	Celeron	5305U	2 / 2	2.3GHz	2M	Intel UHD Graphics	15W
6-0900	MB	Comet Lake	Pentium	6405U	2 / 4	2.4GHz	2M	Intel UHD Graphics	15W
6-0900	MB	Comet Lake	Core i3	10110U	2 / 4	2.1GHz ~ 4.1GHz	4M	Intel UHD Graphics	15W
6-0900	MB	Comet Lake	Core i5	10210U	4 / 8	1.6GHz ~ 4.2GHz	6M	Intel UHD Graphics	15W
6-0900	MB	Comet Lake	Core i7	10610U	4 / 8	1.8GHz ~ 4.9GHz	8M	Intel UHD Graphics	15W
6-0900	MB	Comet Lake	Core i7	10810U	6 / 12	1.1GHz ~ 4.9GHz	12M	Intel UHD Graphics	15W
6U419-1073	MB	Comet Lake	Core i7	10710U	6 / 12	1.1GHz ~ 4.7GHz	12M	Intel UHD Graphics	15W
2U419-1074	MB	Comet Lake	Core i7	10510U	4 / 8	1.8GHz ~ 4.9GHz	8M	Intel UHD Graphics	15W
