Mini PC Q10800XPG S04 serie

Model: Q10800XPG-S04

Samlet LAN2
LAN-hastighed1G RJ45
Serielle porte6

Nøglespecifikationer

CPU
Elkhart Lake
Hukommelse
DDR4 SO-DIMM · Maks 32GB
LAN
2
Lagring
mSATA, SATA

Kompatibelt bundkort

MB3J263-0800MB3J263-0800

Dette produkt fås via forespørgsel og OEM/ODM-tilpasning.

Send forespørgsel
Q780XPGQ790XPGQ10811XPGQ10821XPGIntelElkhart LakePentiumCeleronATOMN6210N6211J6412J6413J6415J6426

Main Features

  • Intel Elkhart Lake Processor
  • 1 × HDMI
  • 2 × USB 3.0, 6 × USB 2.0, 6 × RS-232
  • 2 × M.2, 1 × mSATA, 1 × SATA 3.0
  • 2 × Realtek Gigabit LAN

Processorsystem

CPUIntel Elkhart Lake Processor
CPU TDPBy CPU
Hukommelse1 × DDR4 SO-DIMM Socket (Up to 32G)
ChipsætBy CPU
GrafikBy CPU
AudioRealtek HD Audio
WatchdogYes

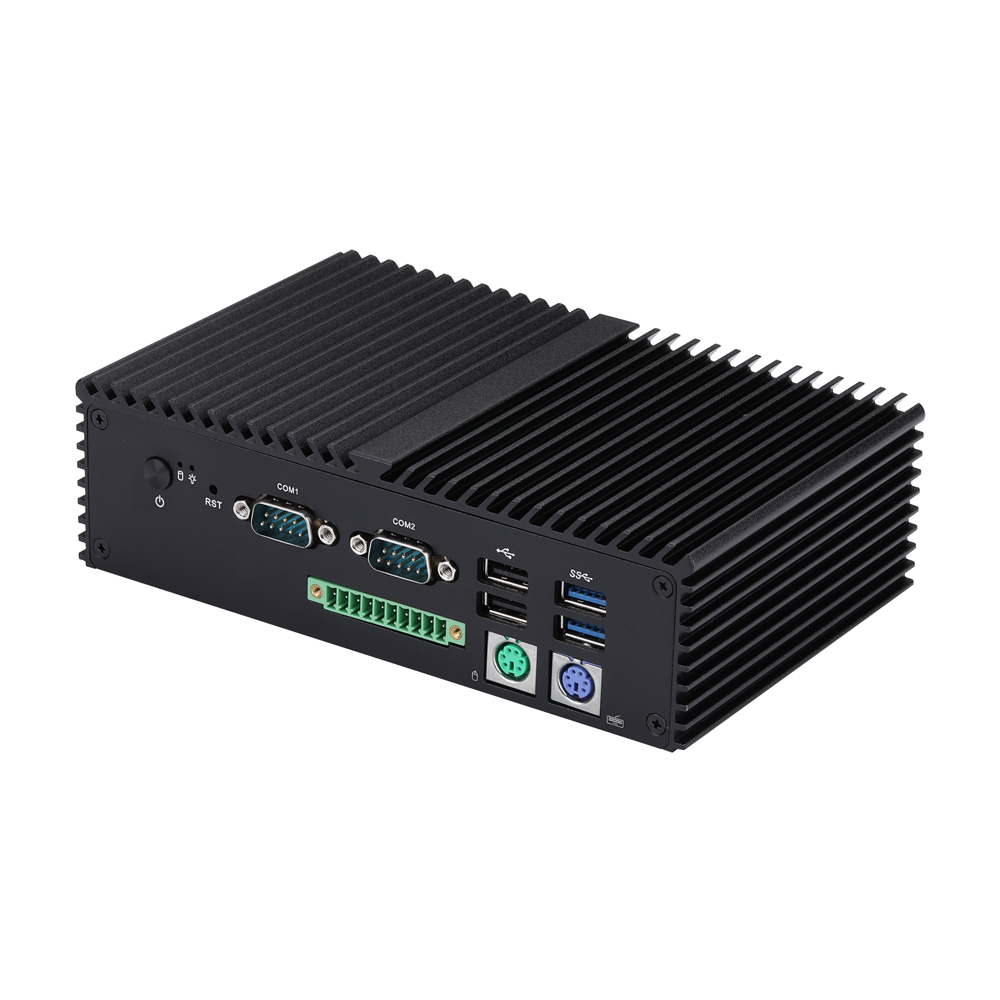

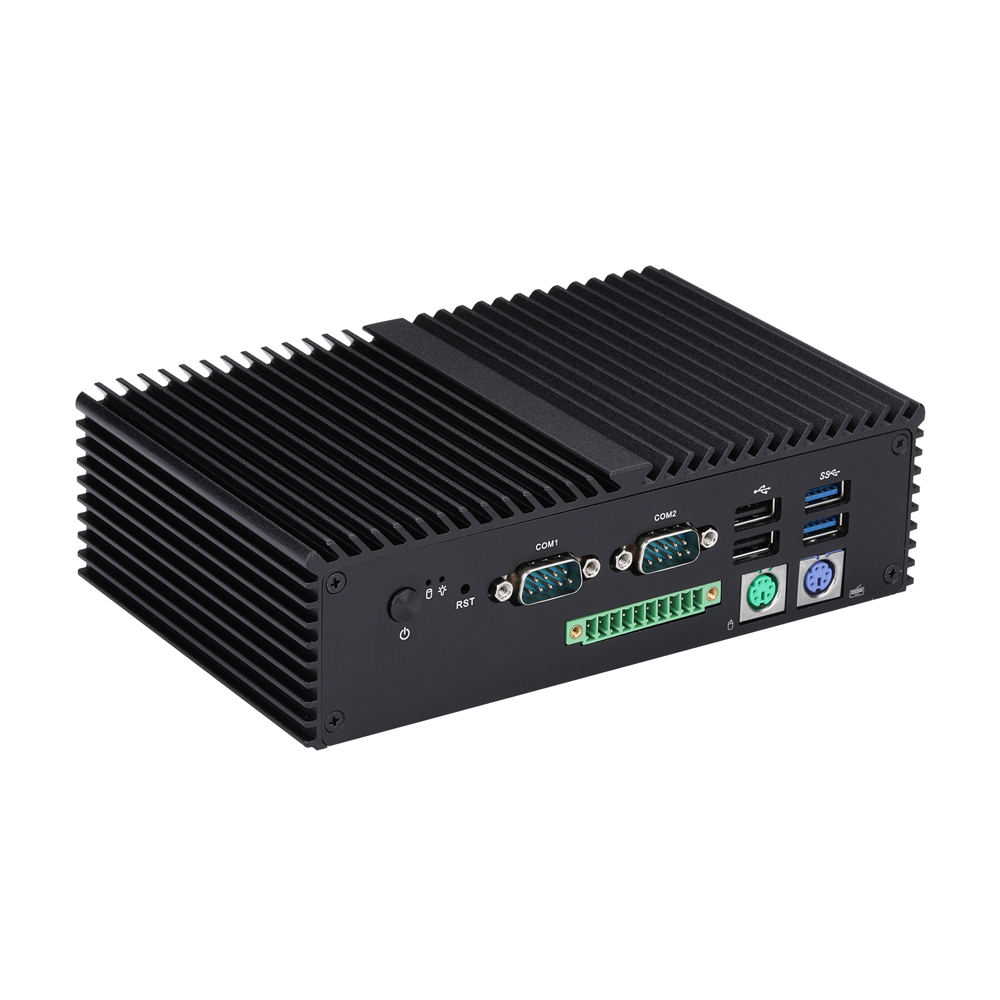

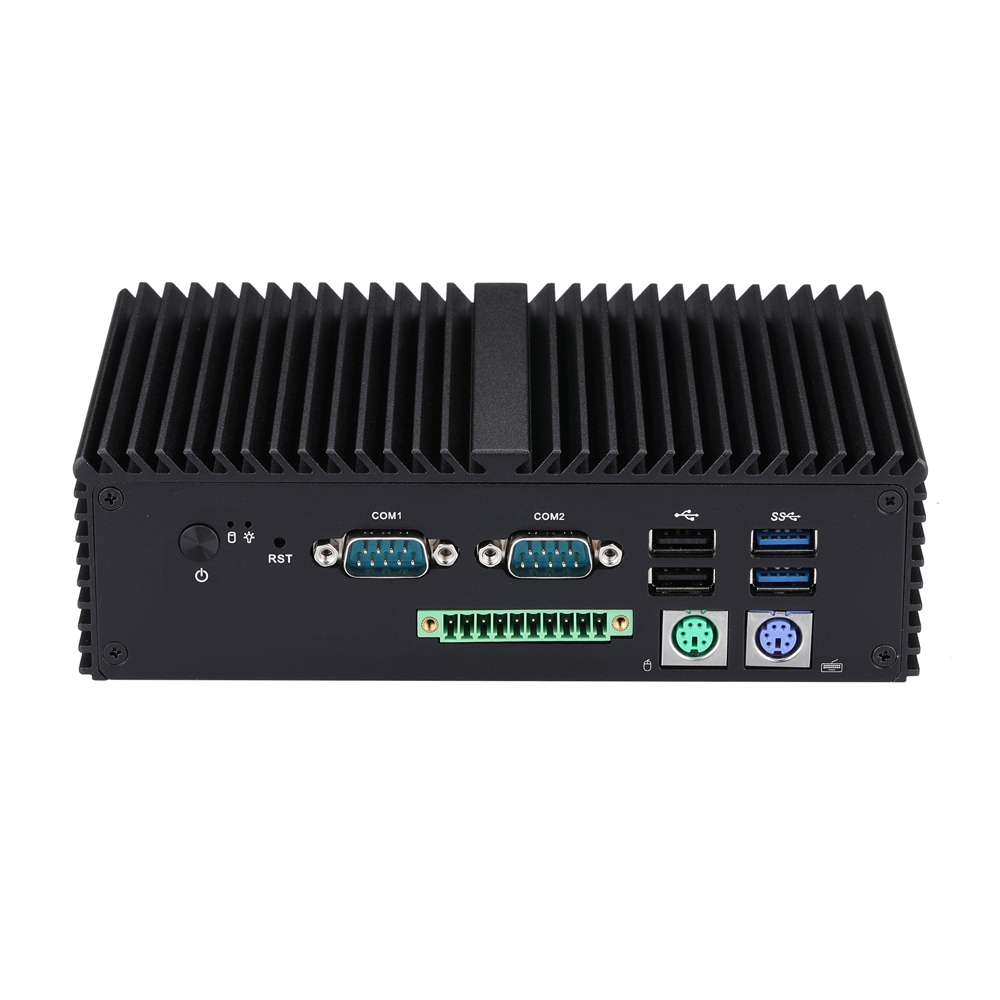

Front I/O

Tænd/sluk-knap1 × Power Button,1 × Reset Button
LED1 × Power LED,1 × HDD LED
USB2 × USB 2.0,2 × USB 3.0
Seriel port2 × RS-232 (COM1/2 can be set up as RS-485)
PS/22
GPIO4 DIs/4DOs

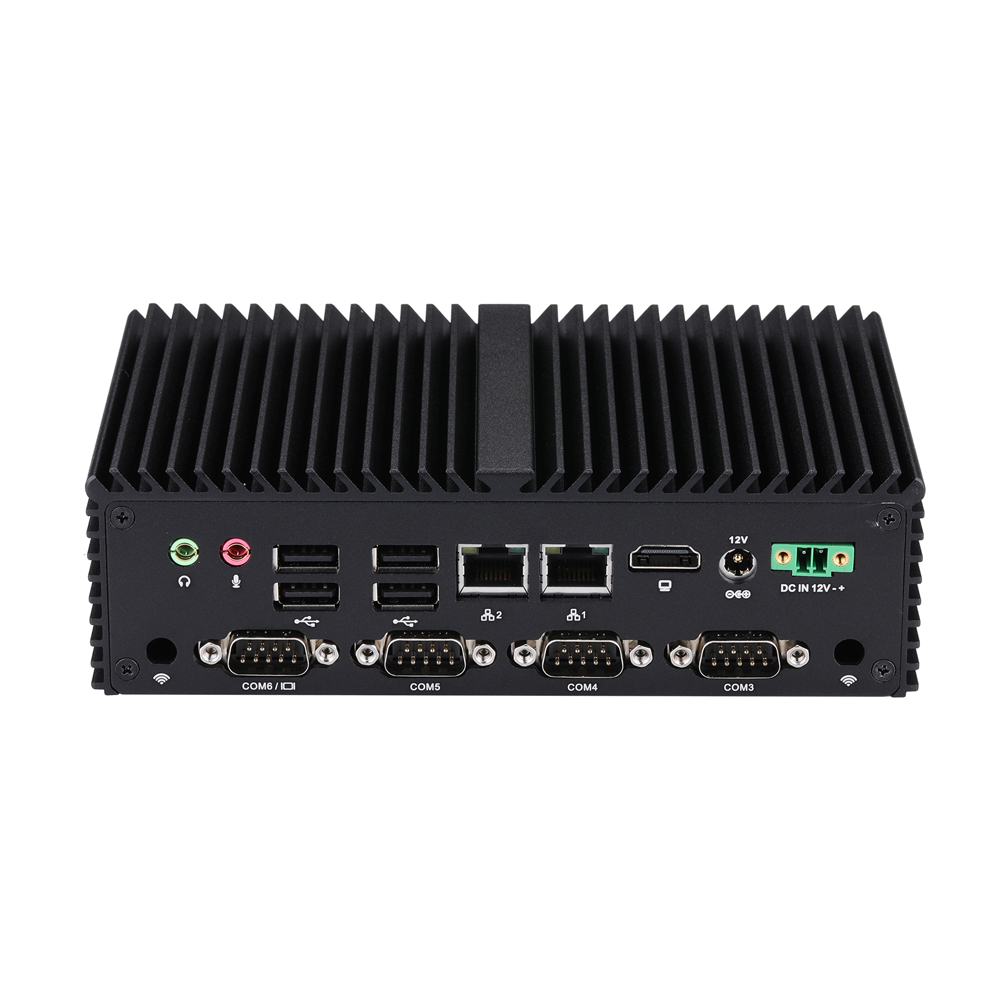

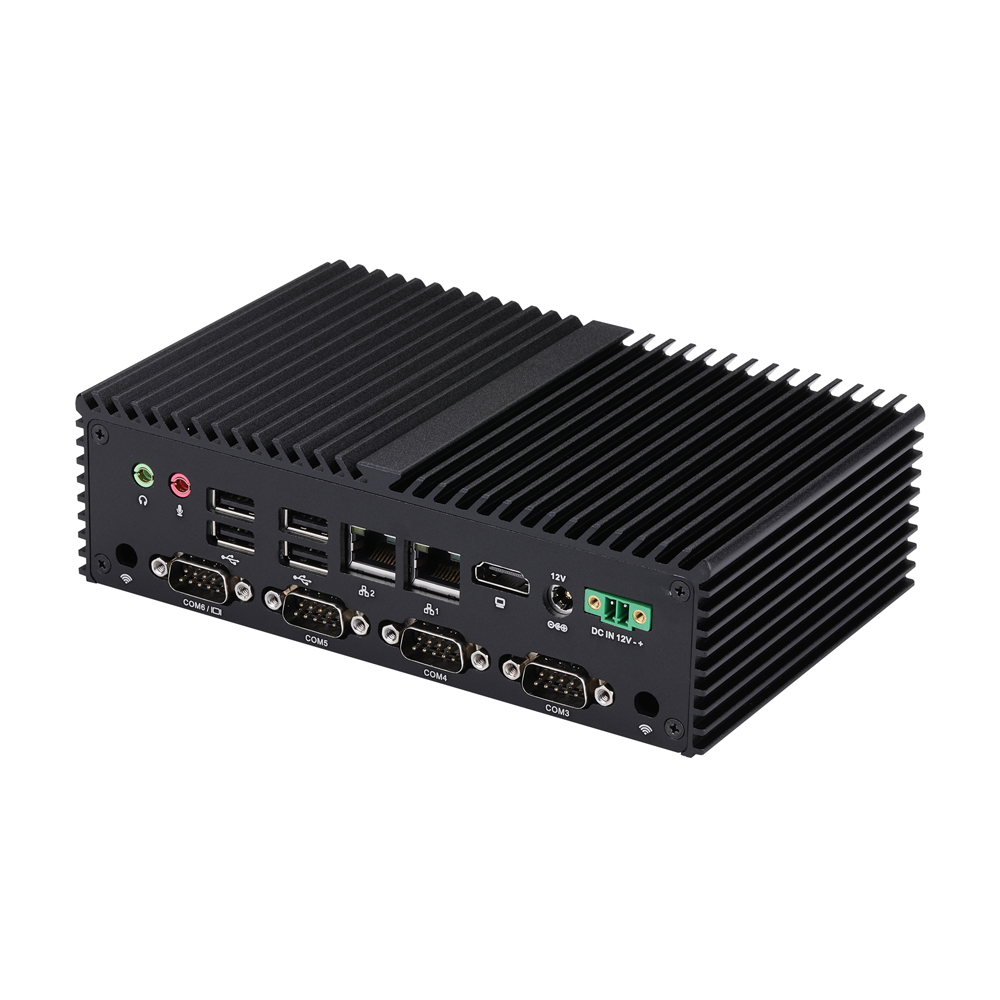

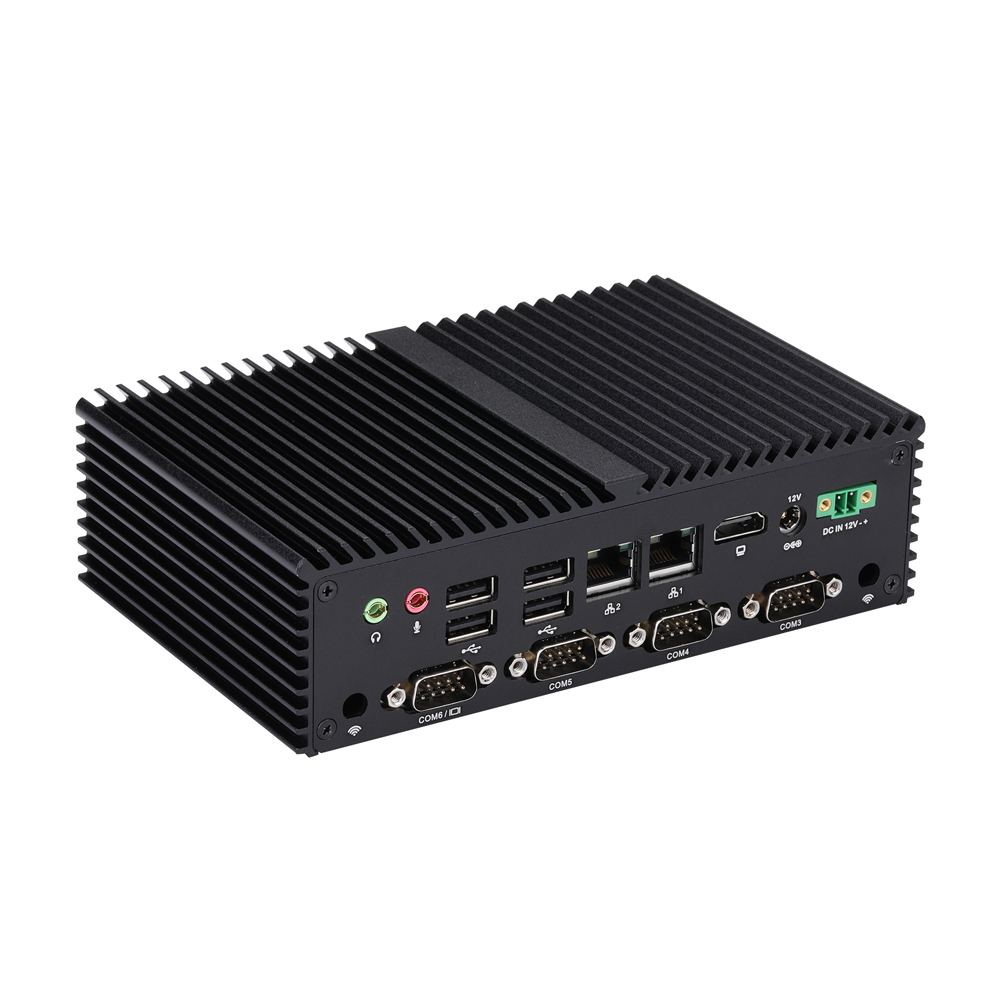

Bag-I/O

Power1 × DC Jack
LAN2 × Realtek Gigabit LAN
USB4 × USB 2.0
Audio1 × Mic-in, 1 × Line-out
Phoenix1 × 2Pin
Skærm1 × HDMI
Seriel port4 × RS-232

Lagring

Type1 × 2.5-inch HDD/SSD
Type1 × Mini PCIe for mSATA SSD

Udvidelse

mSATA1 × mSATA for SSD
M.21 × M.2 for 4G/5G (B key, Type: 3042/3052) 5G Defaults to PCIe Mode, USB 3.0 Mode Requires Customization
M.21 × M.2 for Wi-Fi (E key, Type: 2230)
SIM-kortslot1
AutoStart-jumperYes,1 × 3Pin, Pitch 2.54mm
GPIO1,2 × 5Pin, Pitch 2.0mm
VGA0
Seriel port0
CMOS-ryddejumperYes,1 × 3Pin, Pitch 2.54mm
Front Panel Header1,2 × 5Pin, Pitch 2.0mm

Power

Strømadapter12V3A
DC-stik5.5mm, 2.5mm

Miljø

Driftstemp.0°C~50°C
Ikke-driftstemperatur-20°C~80°C
Fugtighed10%~90%

Mekanisk

MaterialeAluminium Alloy
Dimension178 × 111 × 52mm
Vægt0.85kg
MonteringVESA Mounting Bracket
Emballagemål261 × 218 × 75mm
Kensington LåsNo
KølemetodeFanless Design

OS Support

OSUEFI Windows 10, UEFI Linux

Pakkeindhold

  • Mini PC × 1
  • Power Adapter × 1
  • AC Power Cable × 1
  • VESA Mount × 1
  • SATA Combo Cable × 1
  • Screw Kit × 1

* Faktisk pakkeindhold kan variere. Kan ændres uden varsel.

Ordre- & specifikationsvalg

Ordering CodeLegacy ModelCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPDatablad
Q10811XPG-S04 Q780XPG Elkhart Lake Celeron N6210 2 / 2 1.20Ghz ~ 2.6Ghz 1.5M Intel UHD Graphics 6.5W
Q10821XPG-S04 Q790XPG Elkhart Lake Celeron J6412 4 / 4 2.00Ghz ~ 2.60Ghz 1.5M Intel UHD Graphics 10W
