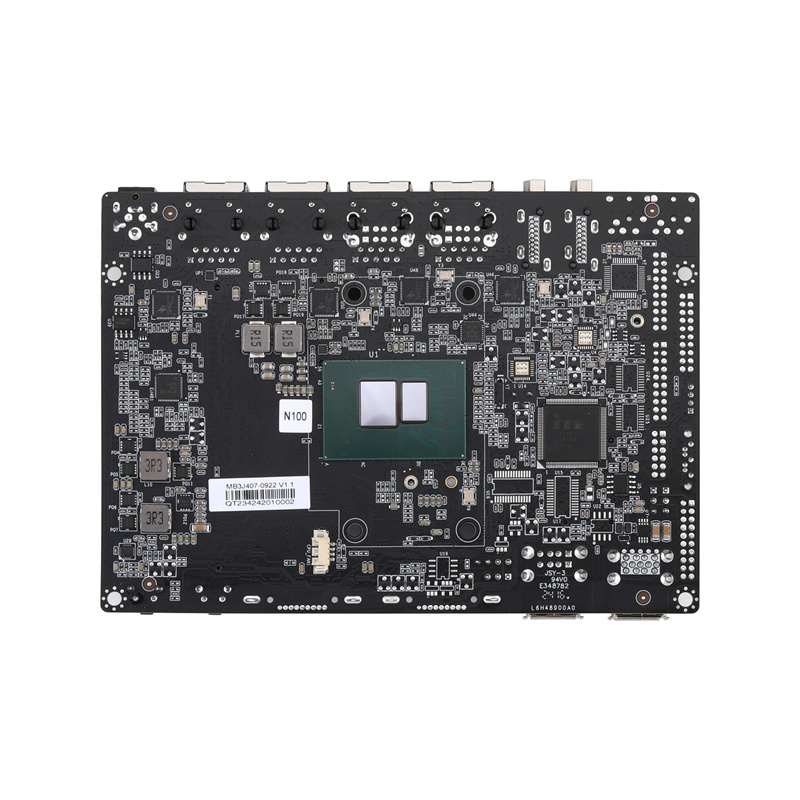

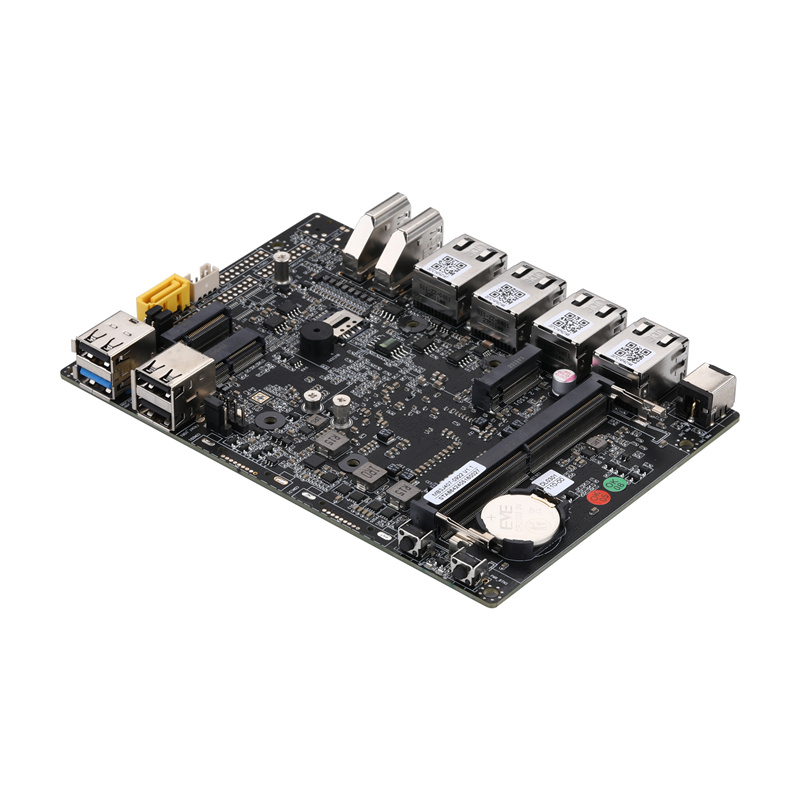

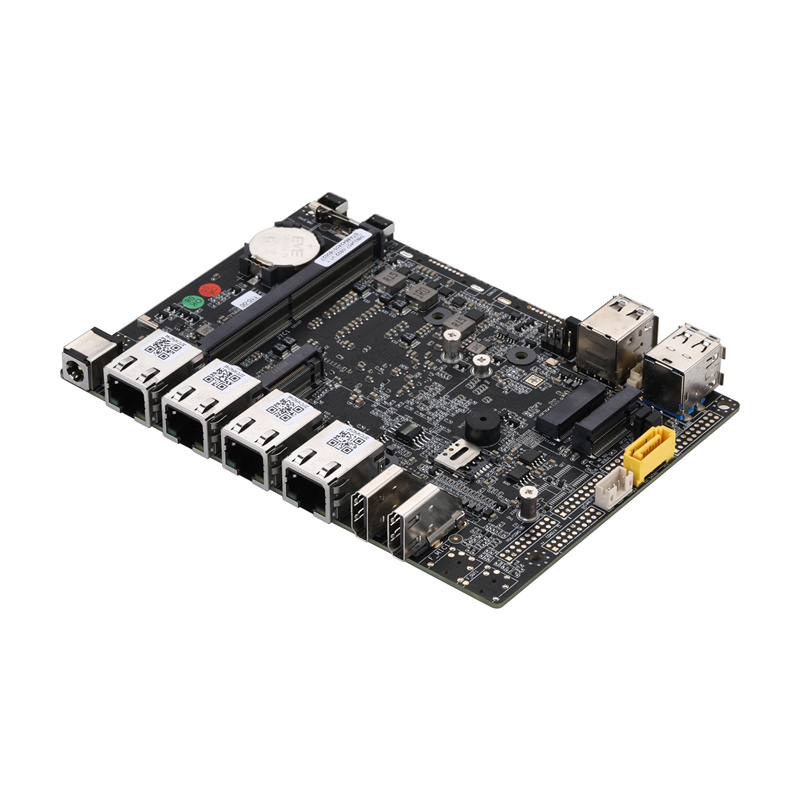

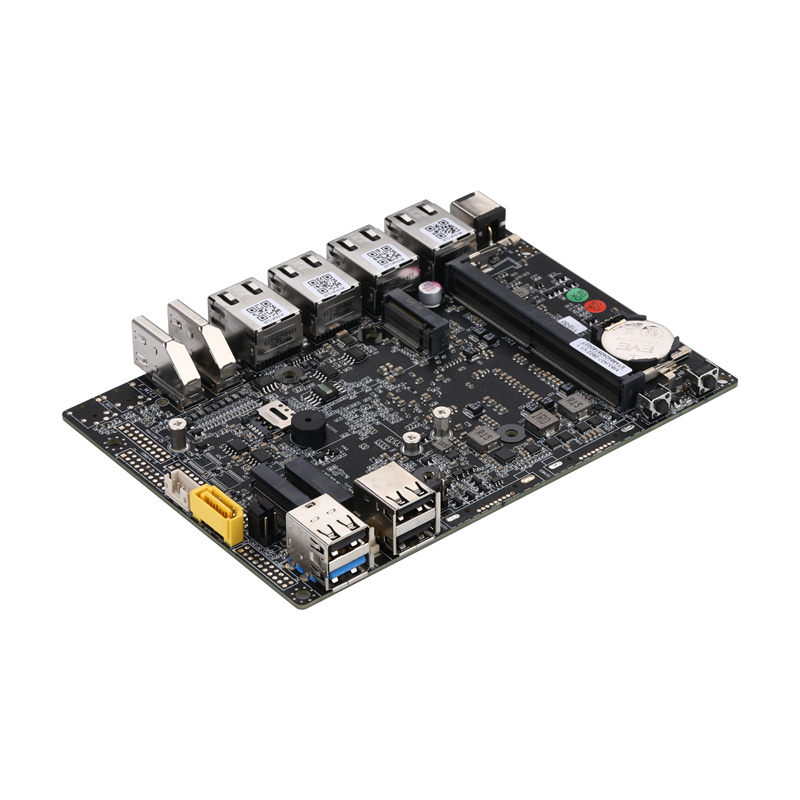

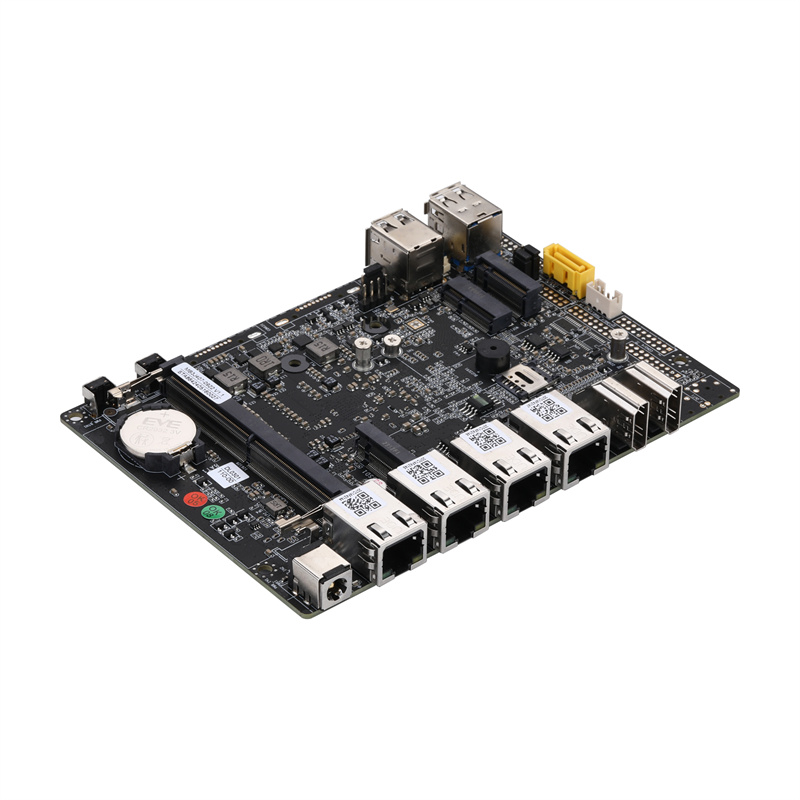

Motherboard Seri MB3J407-0900

Name: Motherboard Seri MB3J407-0900
Brand: Qotom
SKU: MB3J407-0900
Availability: InStock

Model: MB3J407-0900

Total LAN4

Kecepatan LAN2.5G RJ45

Spesifikasi Utama

CPU: Alder lake N / Twin Lake
Memori: DDR5 SO-DIMM · Maks 48GB
LAN: 4
Penyimpanan: M.2 Mkey, SATA
Ukuran Board: 148x104

Sistem yang Kompatibel

Q10900G4-S04

Produk ini tersedia melalui permintaan dan kustomisasi OEM/ODM.

Kirim Pertanyaan

Main Features

Intel Alder Lake-N Processor
Intel Twin Lake-N Processor
2 × HDMI
1 × USB 3.0, 3 × USB 2.0
3 × M.2, 1 × SATA 3.0
4 × Realtek 2.5G LAN

Produk Terkait

Mini PC Q10900XPG S04 Series

Q10900XPG-S04

Mini PC Q10900XPV S04 Series

Q10900XPV-S04

Mini PC Q10900H6 Seri S23

Q10900H6-S23

Mini PC Q10900V6 Seri 1U13

Q10900V6-1U13

Mini PC Q10900XPGV S04 Series

Q10900XPGV-S04

Mini PC Q10900V6 Seri S23

Q10900V6-S23

CPU	Intel Alder Lake-N Processor Intel Twin Lake-N Processor
Chipset	By CPU
Dimensi	148 × 104mm
Jumlah Inti	By CPU
Kecepatan	By CPU
Cache L2	By CPU
BIOS	UEFI

Teknologi	DDR5 4800MHz SDRAM
Maks.	48GB
Socket	1 × SO-DIMM

Kontroler	By CPU
VRAM	Shared Memory
VGA	0
HDMI	2 (Support HDMI 1.4a)
Multi Display	Yes

Antarmuka	100/1000/2500Mbps
Kontroler	4 × Realtek 2.5G LAN
Connector	4 × RJ-45

Tombol Daya	1 × Power Button, 1 × Reset Button
LED	1 × Power LED, 1 × HDD LED
USB	1 × USB 3.0, 3 × USB 2.0
DC-IN	1
HDMI	2
Ethernet	4

Seri Mini PC

Seri Motherboard

Seri Penyimpanan NAS

Seri OPS

Seri Panel PC

Aksesori

Motherboard Seri MB3J407-0900

Spesifikasi Utama

Sistem yang Kompatibel

Main Features

Sistem Prosesor

Memori

Grafis

Ethernet

Audio

I/O Depan

Penyimpanan

Ekspansi

Konektor Internal

Watchdog Timer

Power

Lingkungan

Aksesori

Dukungan OS

Isi Kemasan

Pemesanan & Seleksi Spesifikasi

Unduhan Driver

Produk Terkait

M.2	1 × M.2 for SSD (M key, Type:2280,PCIe 3.0 × 1)
M.2	1 × M.2 for 4G/5G (B key, Type: 3042/3052)
M.2	1 × M.2 for Wi-Fi (E key, Type: 2230)

PS/2	1, 2 × 5Pin, Pitch 2.0mm
Header USB 2.0	1, 1 × 4Pin, Pitch 2.54mm
SATA	1, SATA 3.0 (6.0Gb/S)
Konektor Daya SATA	1, 1 × 4Pin, Pitch PH2.0mm
Slot SIM	1
Jumper AutoStart	Yes, 1 × 3Pin, Pitch 2.54mm
Jumper Hapus CMOS	Yes, 1 × 3Pin, Pitch 2.54mm
Header GPIO	1, 2 × 5Pin, Pitch 2.0mm
Pemilih Daya GPIO	Yes, 1 × 3Pin, Pitch 2.54mm
Header Panel Depan	1, 2 × 5Pin, Pitch 2.0mm
Header Daya	1, 1 × 2Pin, Pitch 3.5mm, Phoenix 2Pin (Option)
Konektor Kipas CPU	1, 1 × 4Pin, Pitch PH 1.25mm
Konektor Kipas SISTEM	1, 1 × 4Pin, Pitch PH 1.25mm

Output	From Super I/O to Drag RESETCON#
Interval	256 Segments,0,1,2,3,,,255 sec/min

Ordering Code	Code Name	Processor Type	Processor Number	Cores / Threads	Frequency	Cache	Graphics	TDP
MB3J407-0911	A lder lake-N	-	N50	2 / -	3.4GHz	6M	Intel UHD Graphics	6W
MB3J407-0921	Alder lake-N	-	N97	4 / -	3.6GHz	6M	Intel UHD Graphics	12W
MB3J407-0922	Alder lake-N	-	N100	4 / 4	3.4GHz	6M	Intel UHD Graphics	6W
MB3J407-0923	Alder lake-N	-	N200	4 / 4	3.7GHz	6M	Intel UHD Graphics	6W
MB3J407-0924	Alder lake-N	Atom	X7425E	4 / 4	3.4GHz	6M	Intel UHD Graphics	12W
MB3J407-0931	Alder lake-N	Core i3	N300	8 / 8	3.8GHz	6M	Intel UHD Graphics	7W
MB3J407-0932	Alder lake-N	Core i3	N305	8 / 8	3.8GHz	6M	Intel UHD Graphics	15W
MB3J407-1022	Twin Lake-N	-	N150	4 / 4	3.6GHz	6M	Intel Graphics	6W
MB3J407-1023	Twin Lake-N	-	N250	4 / 4	3.8GHz	6M	Intel Graphics	6W
MB3J407-1031	Twin Lake-N	Core i3	N350	8 / 8	3.9GHz	6M	Intel Graphics	7W
MB3J407-1032	Twin Lake-N	Core i3	N355	8 / 8	3.9GHz	6M	Intel Graphics	15W
