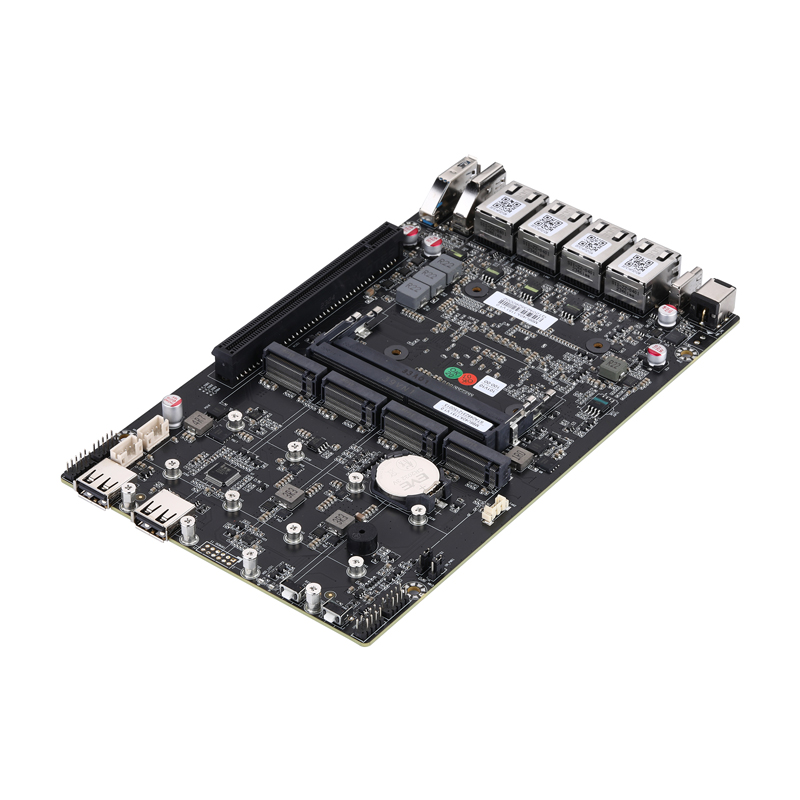

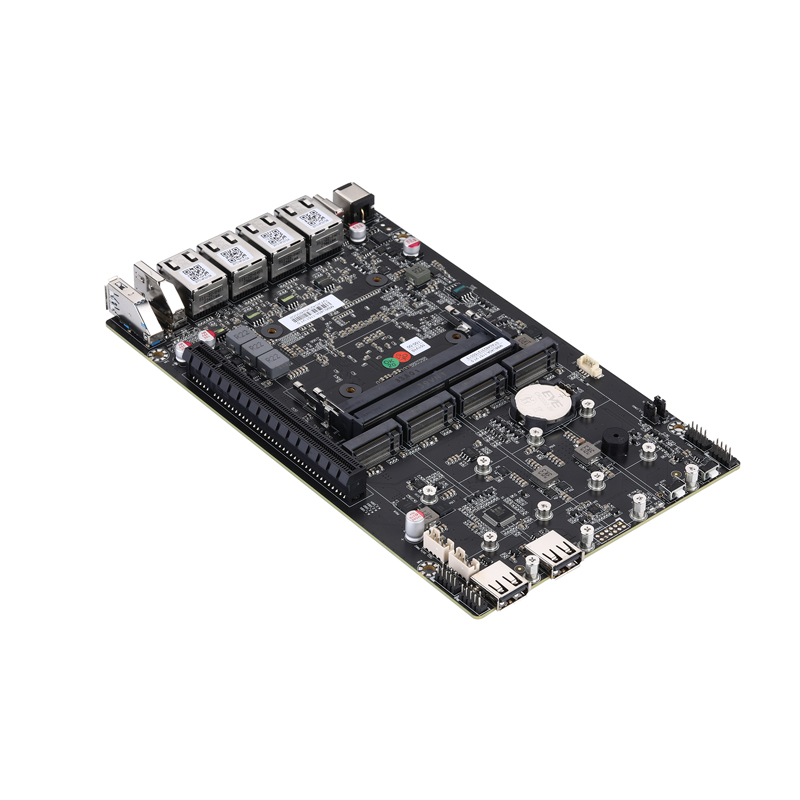

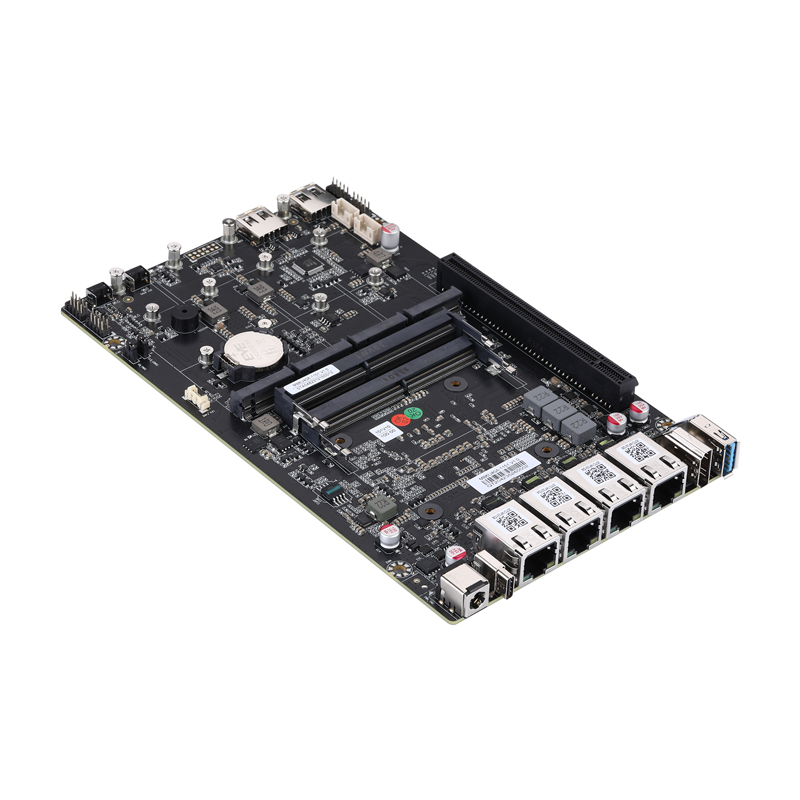

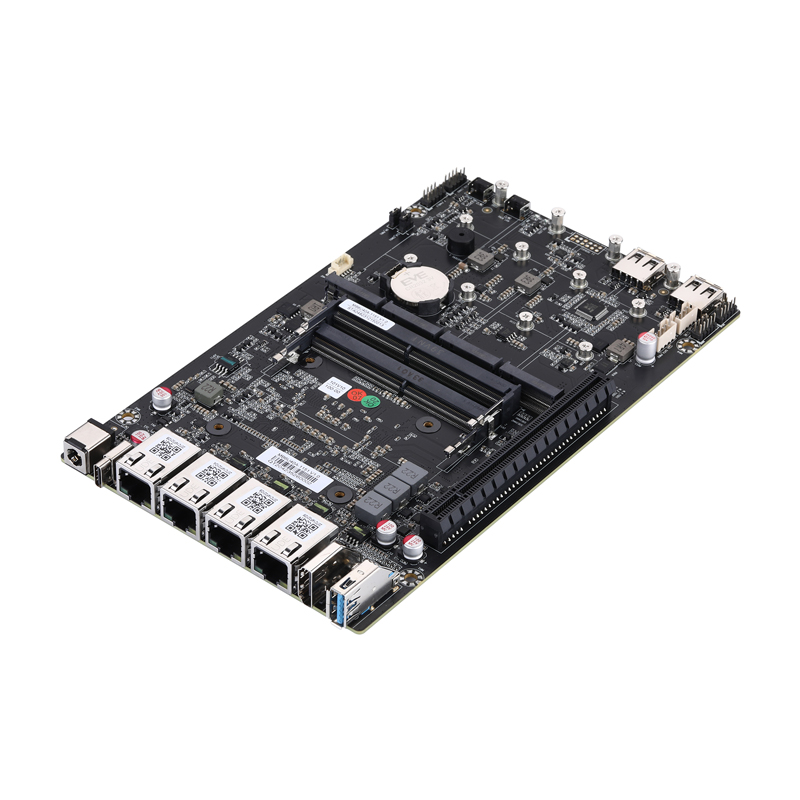

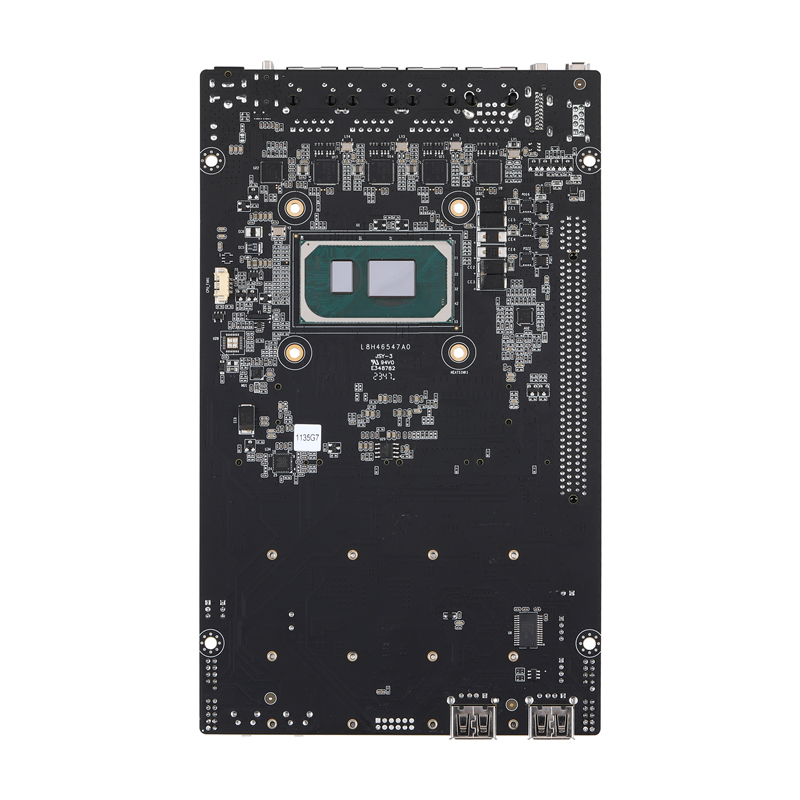

Motherboard Seri MB6U40A-1100

Name: Motherboard Seri MB6U40A-1100
Brand: Qotom
SKU: MB6U40A-1100
Availability: InStock

Model: MB6U40A-1100

Total LAN4

Kecepatan LAN2.5G RJ45

Spesifikasi Utama

CPU: Tiger Lake
Memori: DDR4 SO-DIMM · Maks 64GB
LAN: 4
Penyimpanan: M.2 Mkey
Ukuran Board: 120x200

Sistem yang Kompatibel

Q31100G4-S17

Produk ini tersedia melalui permintaan dan kustomisasi OEM/ODM.

Kirim Pertanyaan

Main Features

Intel 11 th Tiger Lake Processor
1 × HDMI
1 × USB 3.0, 6 × USB 2.0, 1 × Type C
4 × M.2
4 × Intel I225-V/I226-V 2.5G LAN

Produk Terkait

Motherboard Seri MB4J61X-090U

MB4J61X-090U

Motherboard Seri MB7UT1X-150U

MB7UT1X-150U

Motherboard Seri MB7UT1X-1500

MB7UT1X-1500

NAS Seri Q31100G4 S17

Q31100G4-S17

Mini PC Q31100GT 1U18 Series

Q31100GT-1U18

Motherboard Seri MB2J400-0700

MB2J400-0700

CPU	Intel 11 th Tiger Lake Processor
Chipset	By CPU
Dimensi	120 × 200mm
Jumlah Inti	By CPU
Kecepatan Maks.	By CPU
Cache L2	By CPU
BIOS	UEFI

Teknologi	DDR4 3200MHz SDRAM
Maks.	64GB
Socket	2 × SO-DIMMs

Kontroler	By CPU
VRAM	Shared Memory
Display Port	Display Port (Type C)
HDMI	1 (Support HDMI 1.4a)
Multi Display	Yes

Antarmuka	100/1000/2500Mbps
Kontroler	4 × Intel I225-V/I226-V 2.5G LAN
Connector	4 × RJ-45

Tombol Daya	1 × Power Button, 1 × Reset Button
LED	1 × Power LED, 1 × HDD LED
USB	1× USB 3.0
USB	2 × USB 2.0
DC-IN	1
Type C	1, USB 3.0 and Display Port
HDMI	1
Ethernet	4

Seri Mini PC

Seri Motherboard

Seri Penyimpanan NAS

Seri OPS

Seri Panel PC

Aksesori

Motherboard Seri MB6U40A-1100

Spesifikasi Utama

Sistem yang Kompatibel

Main Features

Sistem Prosesor

Memori

Grafis

Ethernet

Audio

I/O Depan

Penyimpanan

Ekspansi

Konektor Internal

Watchdog Timer

Power

Lingkungan

Aksesori

Dukungan OS

Isi Kemasan

Pemesanan & Seleksi Spesifikasi

Unduhan Driver

Produk Terkait

M.2	2 × M.2 for SSD (M key, Type: 2280, PCIe 3.0 × 2)
M.2	2 × M.2 for SSD (M key, Type: 2280, PCIe 3.0 × 1)

M.2	2 × M.2 for SSD, PCIe 3.0 × 2 (M key, Type: 2242/2260/2280)
M.2	2 × M.2 for SSD, PCIe 3.0 × 1 (M key, Type: 2242/2260/2280) (NGFF for Core i5/i7)
PCIe	1, PCIe slot (Type:X16, PCIe 4.0 × 4)
Jumper AutoStart	1, 1 × 3Pin, Pitch 2.0mm
Jumper Hapus CMOS	1, 1 × 3Pin, Pitch 2.0mm
Panel Depan	1, 2 × 5Pin, Pitch 2.0mm
Header USB 2.0	4, 2 × 5Pin, Pitch 2.0mm
Port Serial	1 × RS-232,1, 2 × 5Pin, Pitch 2.0mm
Header Daya	1, 1 × 2Pin, Pitch 3.5mm, Phoenix 2Pin (Option)

Output	From Super I/O to Drag RESETCON#
Interval	256 Segments,0,1,2,3,,,255 sec/min

Ordering Code	Code Name	Processor Type	Processor Number	Cores / Threads	Frequency	Cache	Graphics	TDP
MB6U40A-1111	Tiger Lake	Celeron	6305	2 / 2	1.80 GHz	4M	Intel UHD Graphics	15W
MB6U40A-1121	Tiger Lake	Pentium	7505	2 / 4	2.00 GHz ~ 3.50 GHz	4M	Intel UHD Graphics	15W
MB6U40A-1131	Tiger Lake	Core i3	1115G4	2 / 4	3.00 GHz ~ 4.10 GHz	6M	Intel UHD Graphics	12-28W
MB6U40A-1132	Tiger Lake	Core i3	1125G4	4 / 8	2.00 GHz ~ 3.70 GHz	8M	Intel UHD Graphics	12-28W
MB6U40A-1151	Tiger Lake	Core i5	1135G7	4 / 8	2.40 GHz ~ 4.20 GHz	8M	Intel Iris Xe Graphics	12-28W
MB6U40A-1152	Tiger Lake	Core i5	1145G7	4 / 8	2.60 GHz ~ 4.40 GHz	8M	Intel Iris Xe Graphics	12-28W
MB6U40A-1153	Tiger Lake	Core i5	1155G7	4 / 8	2.50 GHz ~ 4.50 GHz	8M	Intel Iris Xe Graphics eligible	12-28W
MB6U40A-1171	Tiger Lake	Core i7	1165G7	4 / 8	2.80 GHz ~ 4.70 GHz	12M	Intel Iris Xe Graphics	12-28W
MB6U40A-1172	Tiger Lake	Core i7	1185G7	4 / 8	3.00 GHz ~ 4.80 GHz	12M	Intel Iris Xe Graphics	12-28W
MB6U40A-1173	Tiger Lake	Core i7	1195G7	4 / 8	2.90 GHz ~ 5.00 GHz	12M	Intel Iris Xe Graphics eligible	12-28W
MB6H40A-1151	Tiger Lake	Core i5	11300H	4 / 8	2.60 GHz ~ 4.40 GHz	8M	Intel Iris Xe Graphics	28-35W
MB6H40A-1152	Tiger Lake	Core i5	11320H	4 / 8	2.50 GHz ~ 4.50 GHz	8M	Intel Iris Xe Graphics eligible	28-35W
MB6H40A-1171	Tiger Lake	Core i7	11370H	4 / 8	3.00 GHz ~ 4.80 GHz	12M	Intel Iris Xe Graphics	28-35W
MB6H40A-1172	Tiger Lake	Core i7	11375H	4 / 8	3.00 GHz ~ 5.00 GHz	12M	Intel Iris Xe Graphics	28-35W
MB6H40A-1173	Tiger Lake	Core i7	11390H	4 / 8	2.90 GHz ~ 5.00 GHz	12M	Intel Iris Xe Graphics eligible	28-35W
