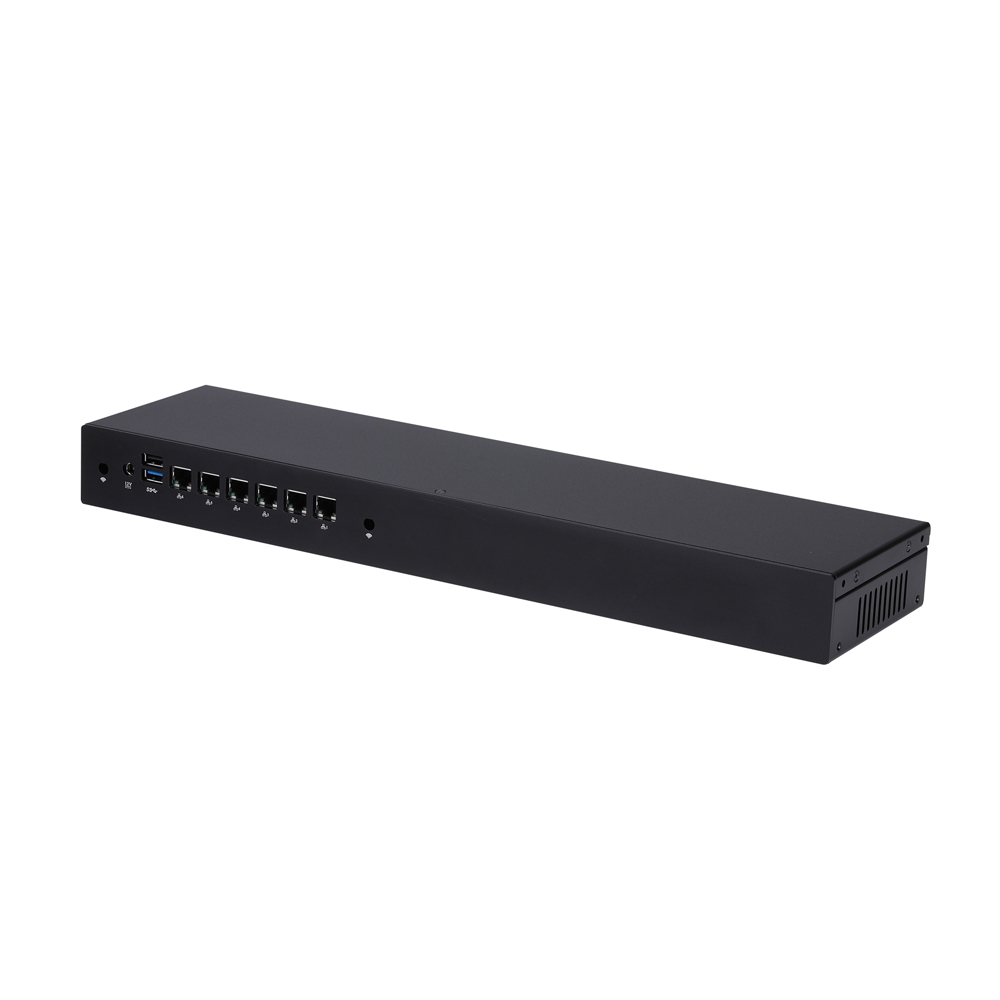

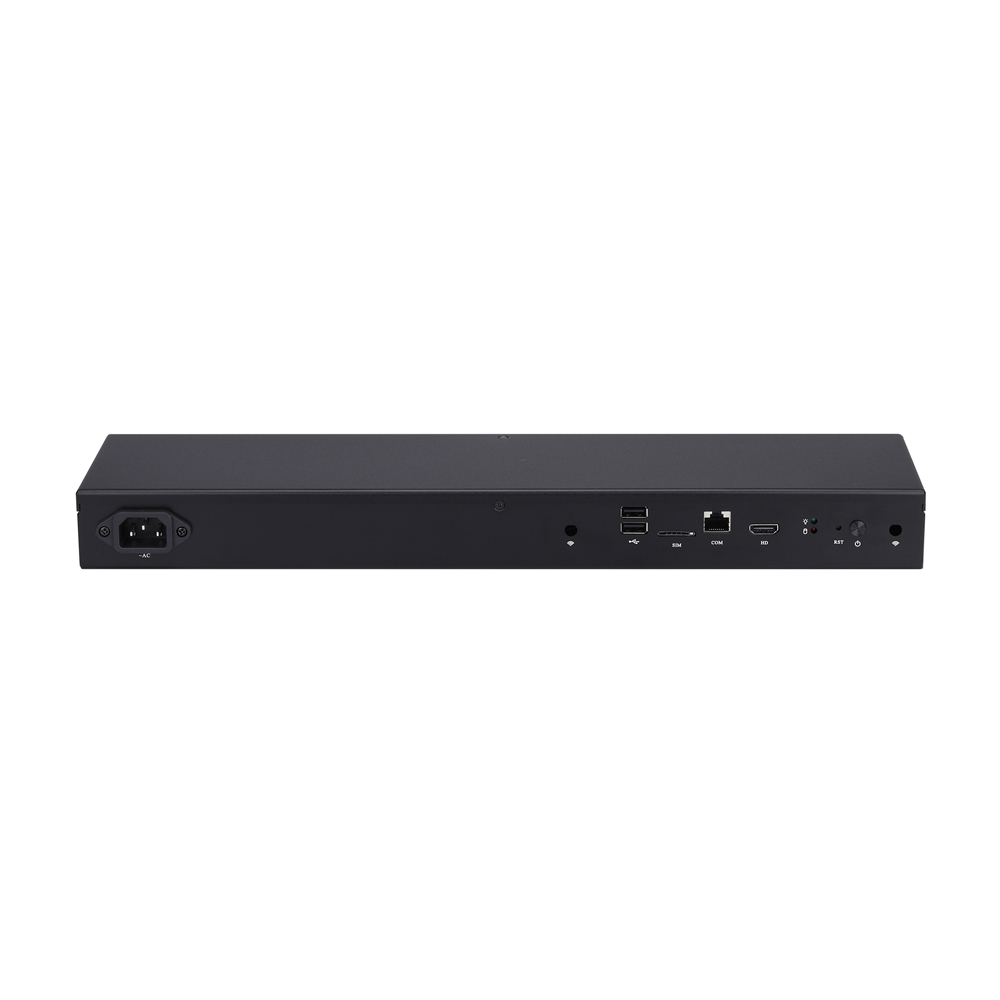

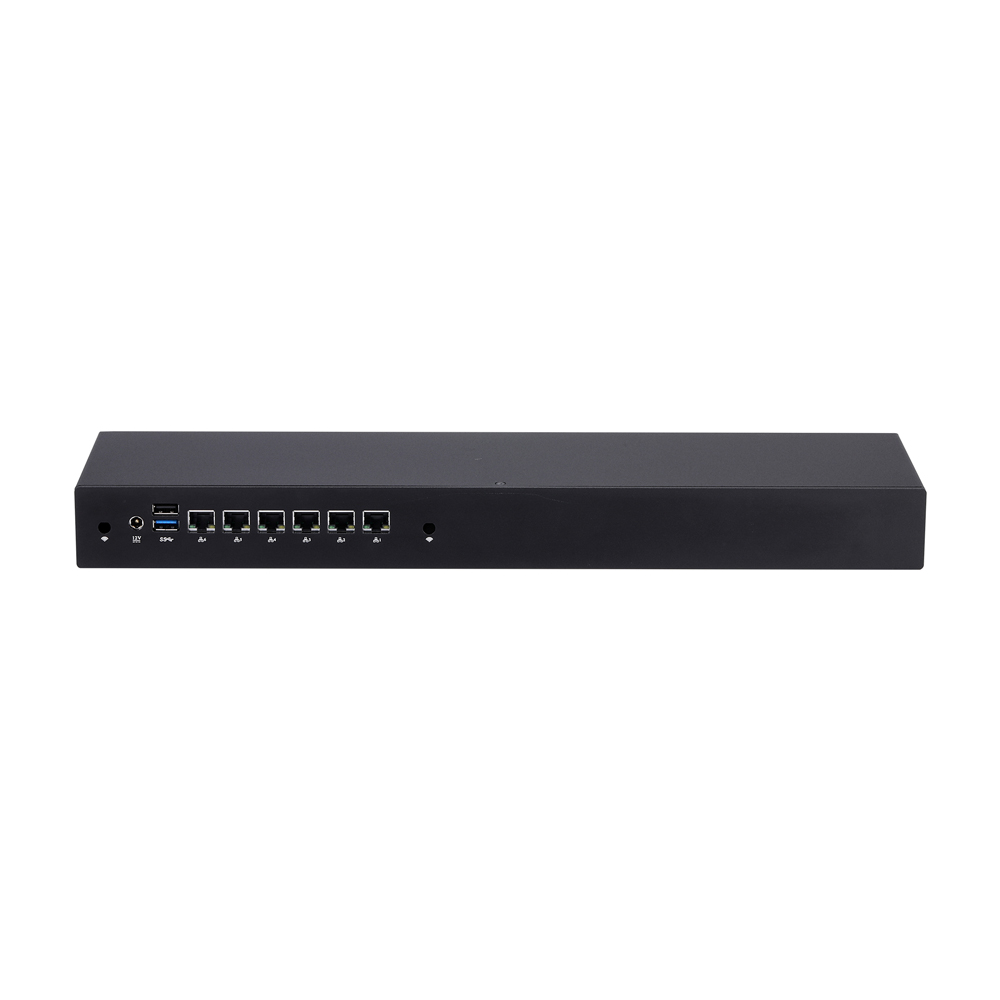

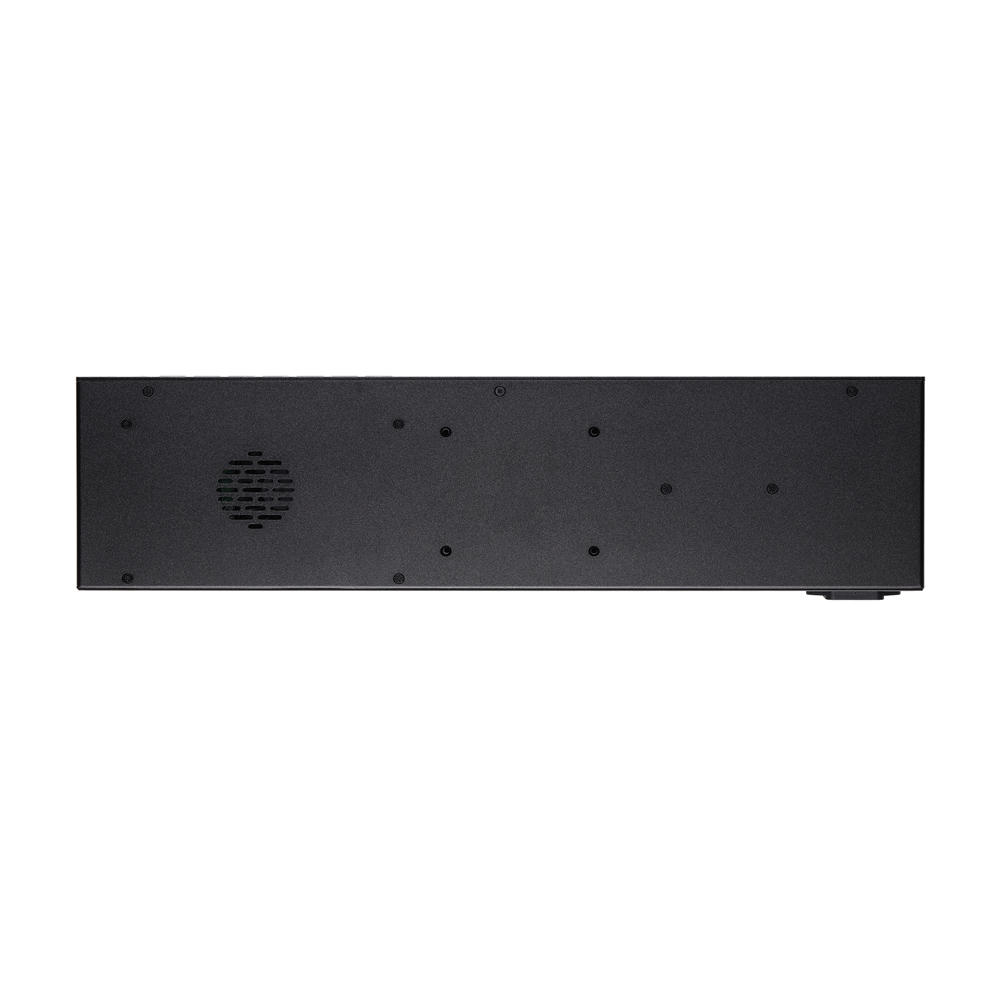

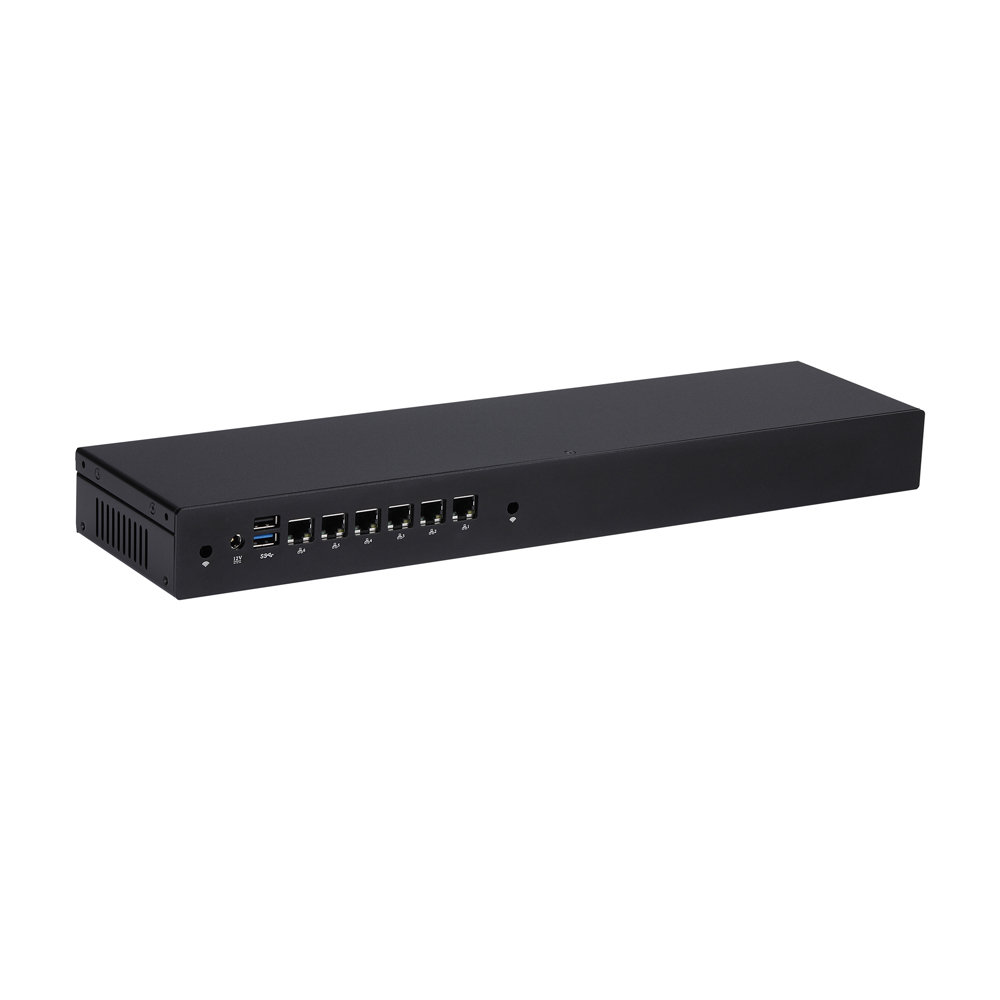

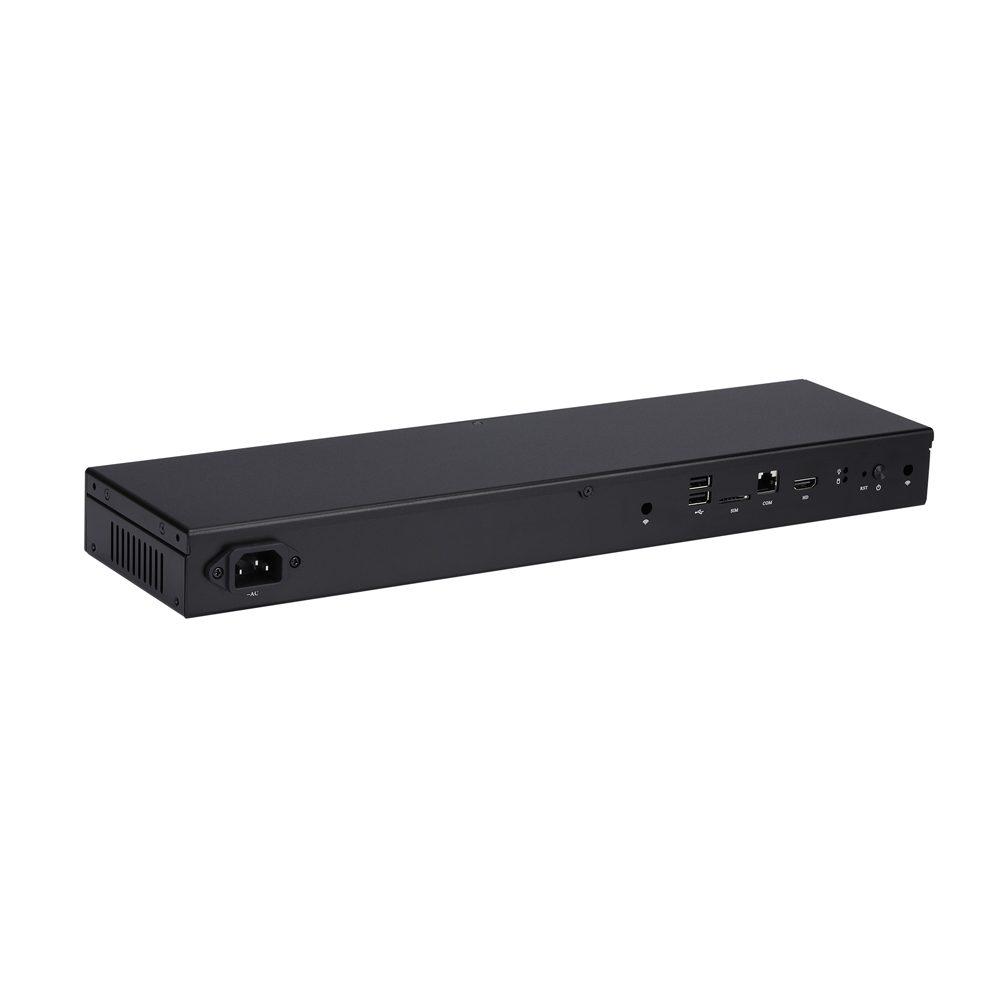

Q10100G6-1U10 image 11 / 8

Mini PC Q10100G6 1U10 Series

Model: Q10100G6-1U10

Jumlah LAN6
Kelajuan LAN1G RJ45
Port Serial1

Spesifikasi Utama

CPU
Bay Trail
Memori
DDR3L SO-DIMM · Maks 8GB
LAN
6
Storan
mSATA, SATA

Papan Induk Serasi

MB3J613-0100MB3J613-0100

Produk ini tersedia melalui pertanyaan dan penyesuaian OEM/ODM.

Hantar Pertanyaan
Q180G6Q190G6Q192G6Q193G6Q195G6Q10111G6Q10121G6Q10122G6Q10123G6Q10134G6IntelBay TrailPentiumCeleronATOMN2840J1800J1900N2920N2930N3540

Main Features

  • Intel Bay Trail Processor
  • 1 × HDMI,1 × RS-232 (RJ-45)
  • 1 × USB 3.0,3 × USB 2.0,1 × SATA 3.0
  • 1 × Mini PCIe,1 × mSATA,1 × M.2
  • 6 × Intel I211-AT/I210-AT Gigabit LAN

Sistem Pemproses

CPUIntel Bay Trail Processor
TDP CPUBy CPU
Memori1 × DDR3L SO-DIMM Socket (Up to 8G, 1333/1600MHz)
ChipsetBy CPU
GrafikBy CPU
Set Cip LAN6 × Intel I211-AT/I210-AT Gigabit LAN
AudioNo
Watch DogYes

I/O Hadapan

Butang Kuasa1 × Power Button,1 × Reset Button
LED1 × Power LED,1 × HDD LED
USB2 × USB 2.0
Port Serial1 × RS-232 (RJ-45)
Keluaran Video1 × HDMI
Slot SIM1

I/O Belakang

Power1 × DC Jack
LAN6 × Intel I211-AT/I210-AT Gigabit LAN
LED1 × USB2.0,1 × USB3.0

Storan

Jenis1 × 2.5-inch HDD/SSD 1 × Mini PCIe for mSATA SSD

Pengembangan

mSATA1 × Full-length Mini PCIe for SSD
Mini PCIe1 × Mini PCIe Full-length for 4G, Half-length for Wi-Fi (Default Only Support USB Device)
M.21 × M.2 for Wi-Fi (E key, Type: 2230)
Jumper AutoStartYes,1 × 3Pin, Pitch 2.54mm
GPIO1,2 × 5Pin, Pitch 2.0mm
Port Serial0
USB 2.01,2 × 5Pin, Pitch 2.54mm
Pengepala Panel Hadapan1, 2 × 5Pin, Pitch 2.54mm

Power

Input ACAC 100-240V by Default
Penyesuai KuasaDC 12V (5.5mm, 2.5mm)

Persekitaran

Suhu Operasi0°C~50°C
Suhu Bukan Operasi-20°C~80°C
Kelembapan10%~90%

Mekanikal

BahanAluminium Alloy
Dimensi440 × 112 × 44mm
Berat1.11 kg
PemasanganN o
Dimensi Pembungkusan545 × 180 × 90mm
Kunci KensingtonNo
Mod PenyejukanFan

Sokongan OS

OSWindows 7, Windows 10, Linux

Kandungan Pakej

  • Mini PC × 1
  • AC Power Cable × 1
  • VESA Mount × 1
  • SATA Combo Cable × 1
  • Screw Kit × 1

* Kandungan pakej sebenar mungkin berbeza. Tertakluk kepada perubahan tanpa notis.

Pesanan & Pemilihan Spesifikasi

Ordering CodeLegacy ModelCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPLembaran Data
Q10121G6-1U10 Q190G6 Bay trail Celeron J1900 4 / 4 2.00Ghz ~ 2.42Ghz 2M Intel HD Graphics 10W
Q10122G6-1U10 Q192G6 Bay trail Celeron N2920 4 / 4 1.86Ghz ~ 2.00Ghz 2M Intel HD Graphics 7.5W
