Mini PC Q10500P S08 Series

Model: Q10500P-S08

Jumlah LAN2
Kelajuan LAN1G RJ45
Port Serial4

Spesifikasi Utama

CPU
Gemini Lake / Gemini Lake-R
Memori
DDR4 SO-DIMM · Maks 16GB
LAN
2
Storan
mSATA, SATA

Papan Induk Serasi

MB2J240-0500MB2J240-0500

Produk ini tersedia melalui pertanyaan dan penyesuaian OEM/ODM.

Hantar Pertanyaan
Q720PQ730PQ740PQ750PQ10511PQ10512PQ10521PQ10612PQ10621PIntelGemini LakeGemini Lake-RPentiumCeleronATOMN4000N4100J4005J4105N5000J5005N4020N4120J4025J4125N5030J5040

Main Features

  • Intel Gemini Lake Processor
  • Intel Gemini Lake-R Processor
  • 1 × HDMI,1 × Display Port
  • 4 × RS-232
  • 4 × USB 3.0,2 × USB 2.0,1 × SATA 3.0
  • 1 × M.2,1 × mSATA,1 × Mini PCIe
  • 2 × Realtek Gigabit LAN

Sistem Pemproses

CPU• Intel Gemini Lake Processor • Intel Gemini Lake-R Processor
TDP CPUBy CPU
Memori1 × DDR4 SO-DIMM Socket (Up to 16G) Only Supports a Single 1G Memory Chip
ChipsetBy CPU
GrafikBy CPU
Set Cip LAN2 × R ealtek Gigabit LAN
AudioRealtek HD Audio
Watch DogYes

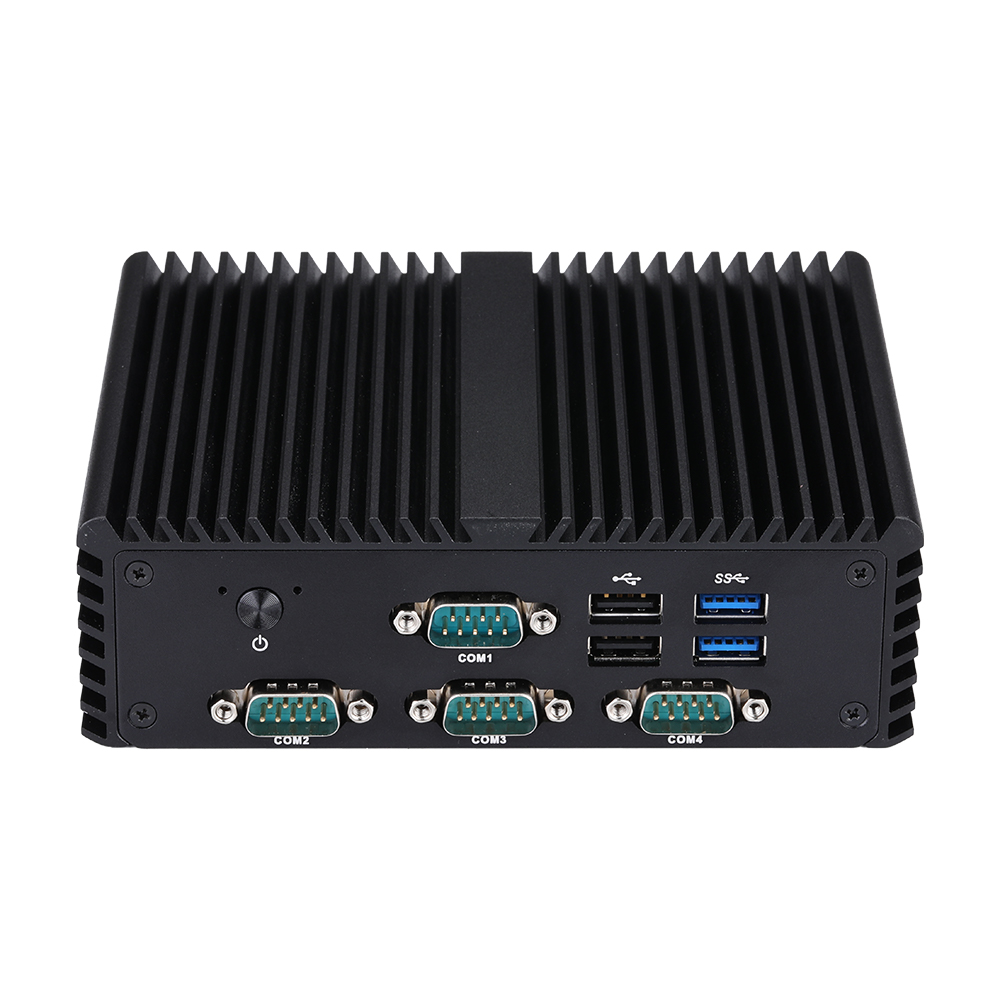

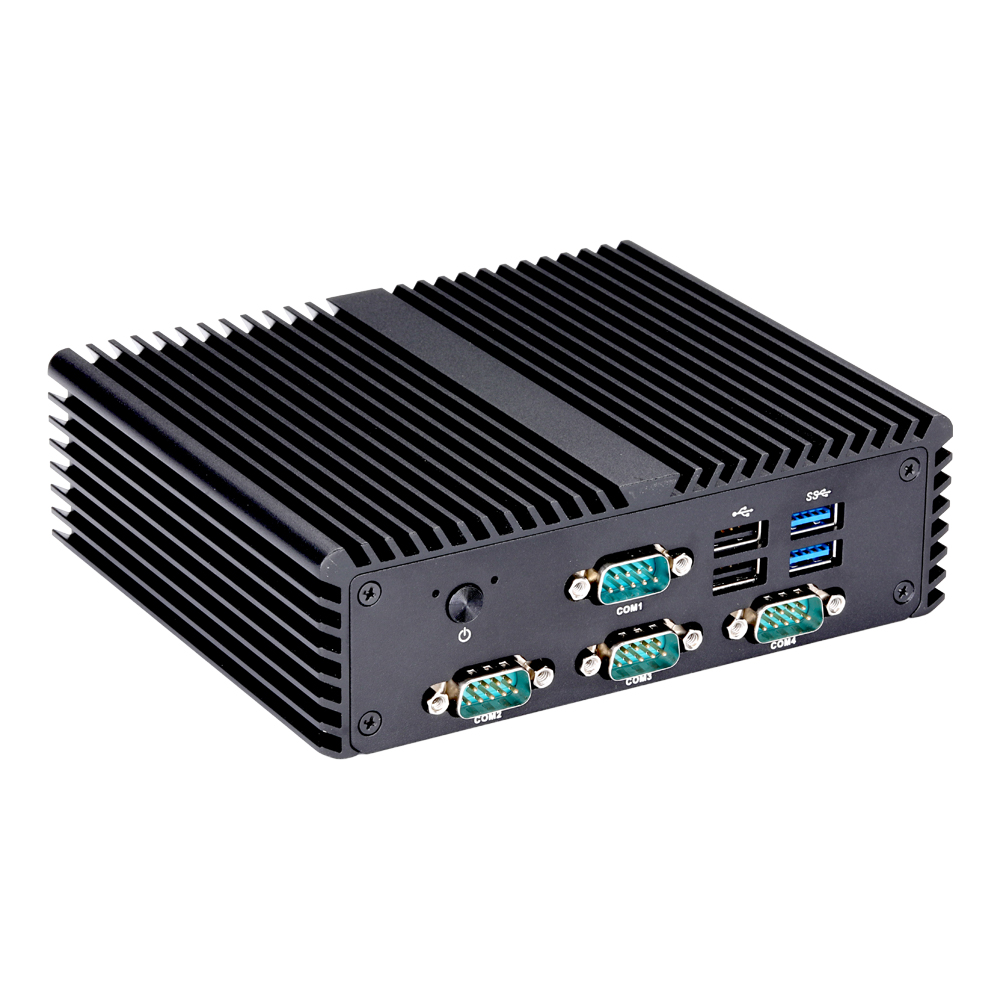

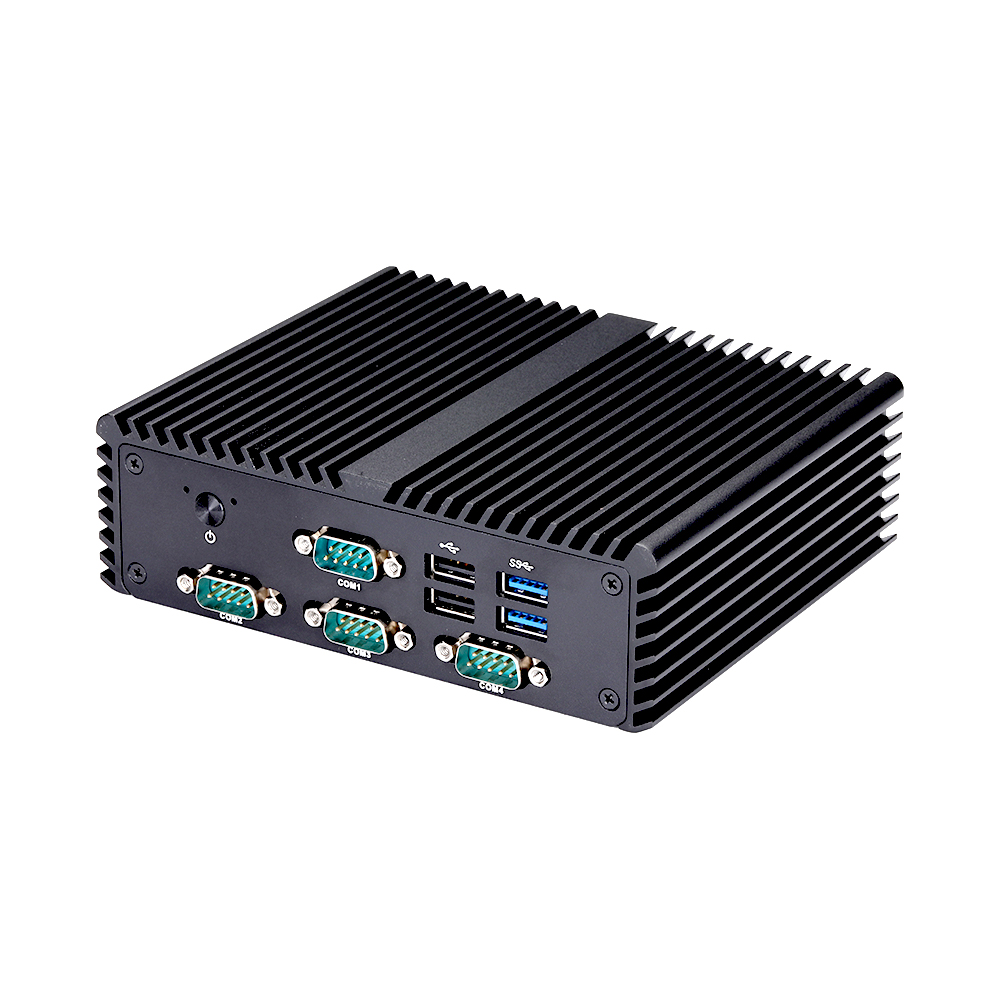

I/O Hadapan

Butang Kuasa1
LED1 × Power LED,1 × HDD LED
USB2 × USB2.0,2 × USB3.0
Port Serial4 × RS-232 -COM3/4 can be set up as RS-485 -Pin 9 Factory Setting Support s 5V/12V)

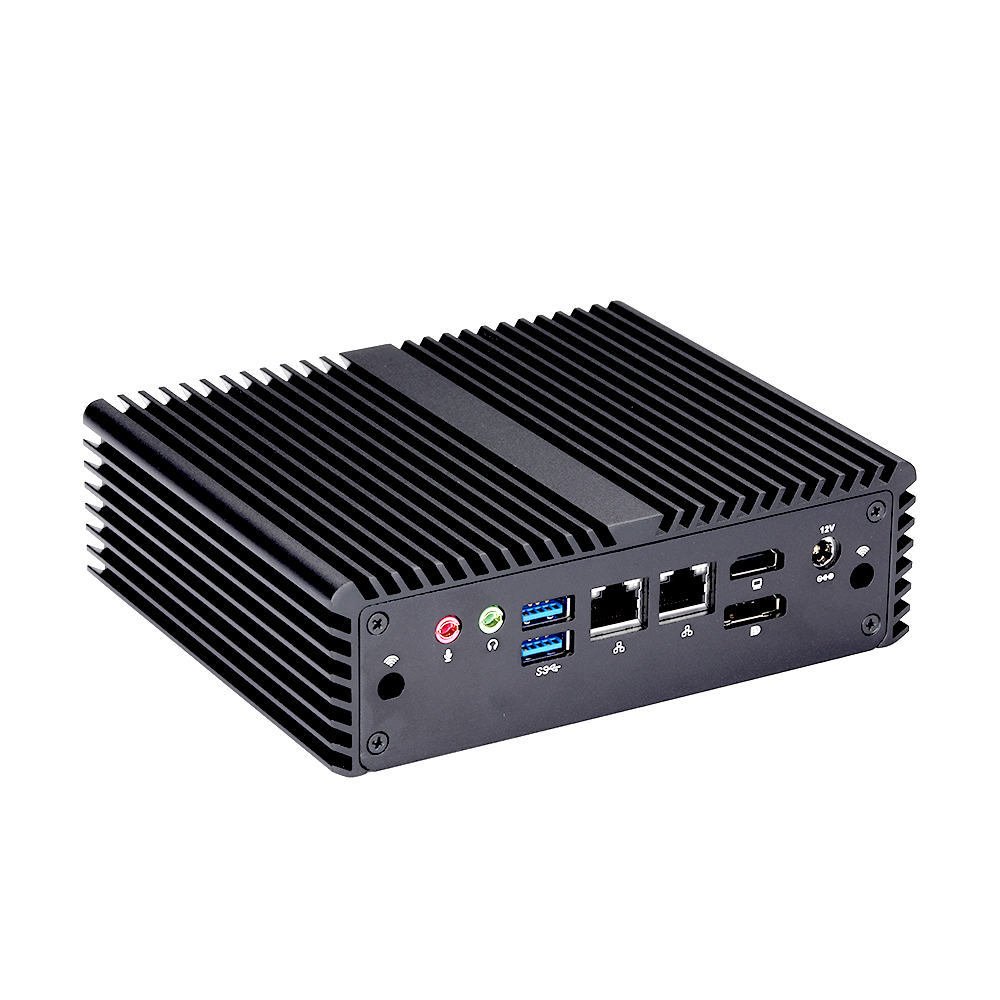

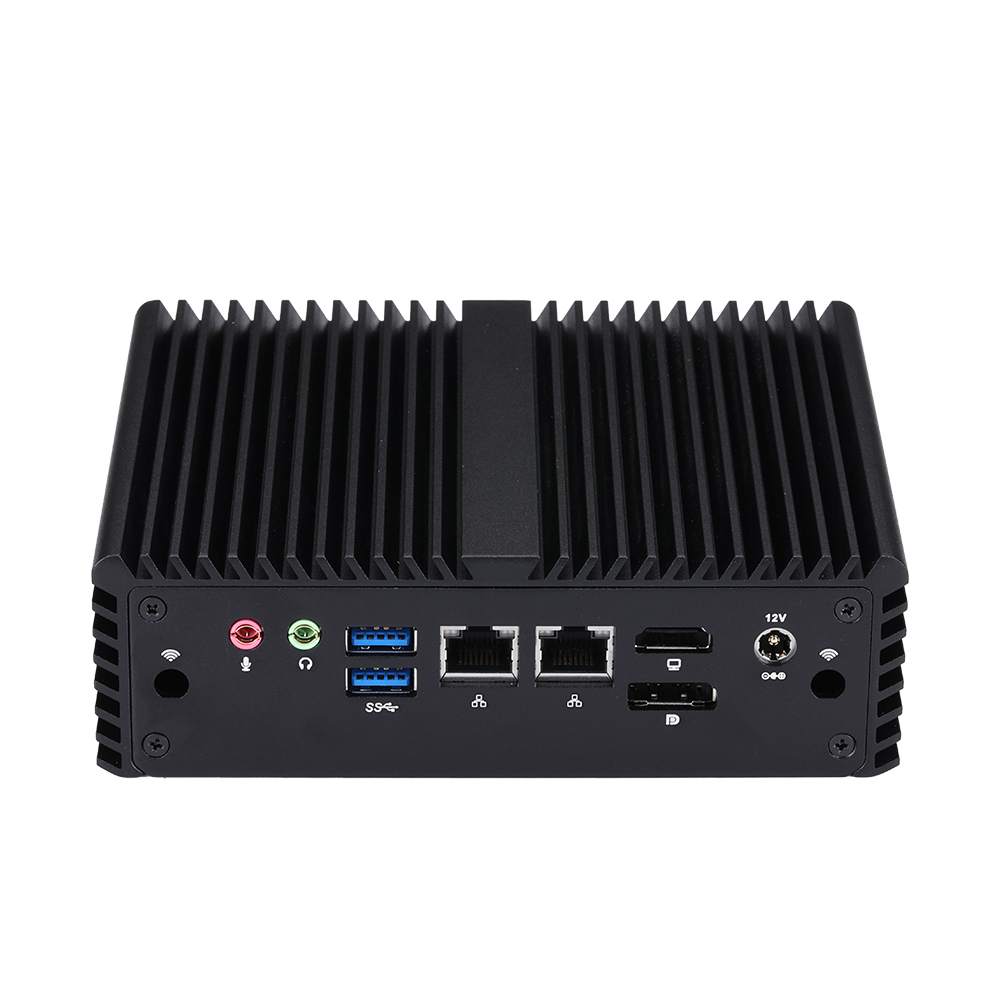

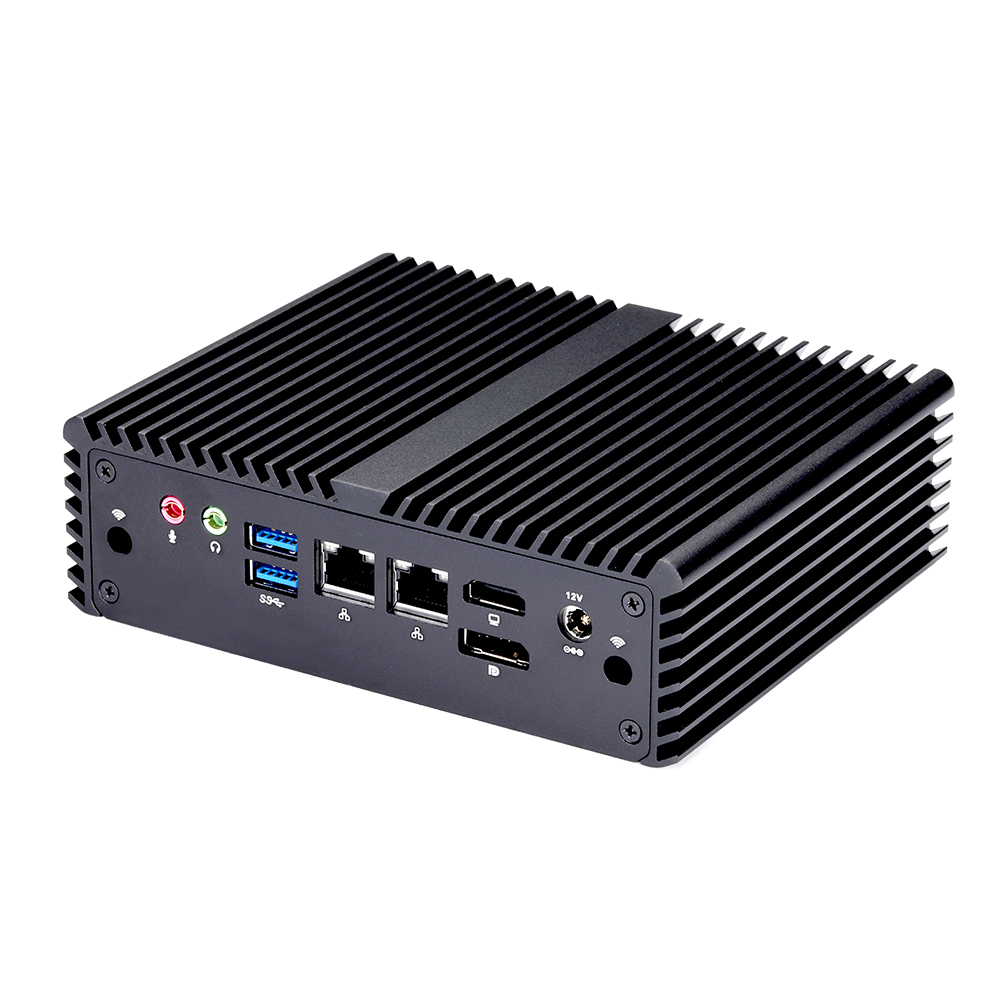

I/O Belakang

Power1 × DC Jack
Keluaran Video1 × HDMI,1 × Display Port
LAN2 × Realtek Gigabit LAN
USB2 × USB 3.0
Audio1 × Mic-in,1 × Line-out

Storan

Jenis1 × 2.5-inch HDD/SSD
Jenis1 × Mini PCIe for mSATA SSD

Pengembangan

mSATA1 × Full-length Mini PCIe for SSD
Mini PCIe1 × Mini PCIe Full-length for 4G, Half-length for Wi-Fi
M.21 × M.2 for Wi-Fi (E key, Type: 2230)
Slot Kad SIM1
Jumper AutoStartYes,1 × 3Pin, Pitch 2.0mm
GPIO1,2 × 5Pin, Pitch 2.0mm
VGA0
Jumper Clear CMOSYes,1 × 3Pin, Pitch 2.0mm

Power

Penyesuai Kuasa12V3A
Jack DC5.5mm, 2.5mm

Persekitaran

Suhu Operasi0°C~50°C
Suhu Bukan Operasi-20°C~80°C
Kelembapan10%~90%

Mekanikal

BahanAluminium Alloy
Dimensi155 × 127 × 48mm
Berat0.85kg
PemasanganVESA Mounting Bracket
Dimensi Pembungkusan261 × 218 × 75mm
Kunci KensingtonNo
Mod PenyejukanFanless Design

Sokongan OS

OSWindows 10, Linux

Kandungan Pakej

  • Mini PC × 1
  • Power Adapter × 1
  • AC Power Cable × 1
  • VESA Mount × 1
  • SATA Combo Cable × 1
  • Screw Kit × 1

* Kandungan pakej sebenar mungkin berbeza. Tertakluk kepada perubahan tanpa notis.

Pesanan & Pemilihan Spesifikasi

Ordering CodeCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPLegacy ModelLembaran Data
Q10511P-S08 Gemini Lake Celeron J4005 2 / 2 2.0GHz ~ 2.7GHz 4M Intel UHD Graphics 600 10W -
Q10512P-S08 Gemini Lake Celeron N4000 2 / 2 1.1GHz ~ 2.6GHz 4M Intel UHD Graphics 600 6W Q720P
Q10521P-S08 Gemini Lake Celeron J4105 4 / 4 1.5GHz ~ 2.5GHz 4M Intel UHD Graphics 600 10W Q730P
Q10612P-S08 Gemini Lake Refresh Celeron N4020 2 / 2 1.1GHz ~ 2.8GHz 4M Intel UHD Graphics 600 6W Q740P
Q10621P-S08 Gemini Lake Refresh Celeron J4125 4 / 4 2.0GHz ~ 2.7GHz 4M Intel UHD Graphics 600 10W Q750P
