Q10800C-S04 image 11 / 8

Mini PC Siri Q10800C S04

Model: Q10800C-S04

Jumlah LAN2
Kelajuan LAN1G RJ45
Port Serial2

Spesifikasi Utama

CPU
Elkhart Lake
Memori
DDR4 SO-DIMM · Maks 32GB
LAN
2
Storan
mSATA, SATA

Papan Induk Serasi

MB3J263-0800MB3J263-0800

Produk ini tersedia melalui pertanyaan dan penyesuaian OEM/ODM.

Hantar Pertanyaan
Q780CQ790CQ10811CQ10821CIntelElkhart LakePentiumCeleronATOMN6210N6211J6412J6413J6415J6426

Main Features

  • Intel Elkhart Lake Processor
  • 1 × HDMI
  • 2 × USB 3.0,6 × USB 2.0,2 × RS-232
  • 2 × M.2,1 × mSATA,1 × SATA3.0
  • 2 × Realtek Gigabit LAN

Sistem Pemproses

CPUIntel Elkhart Lake Processor
TDP CPUBy CPU
Memori1 × DDR4 SO-DIMM Socket (Up to 32G)
ChipsetBy CPU
GrafikBy CPU
AudioRealtek HD Audio
Watch DogYes

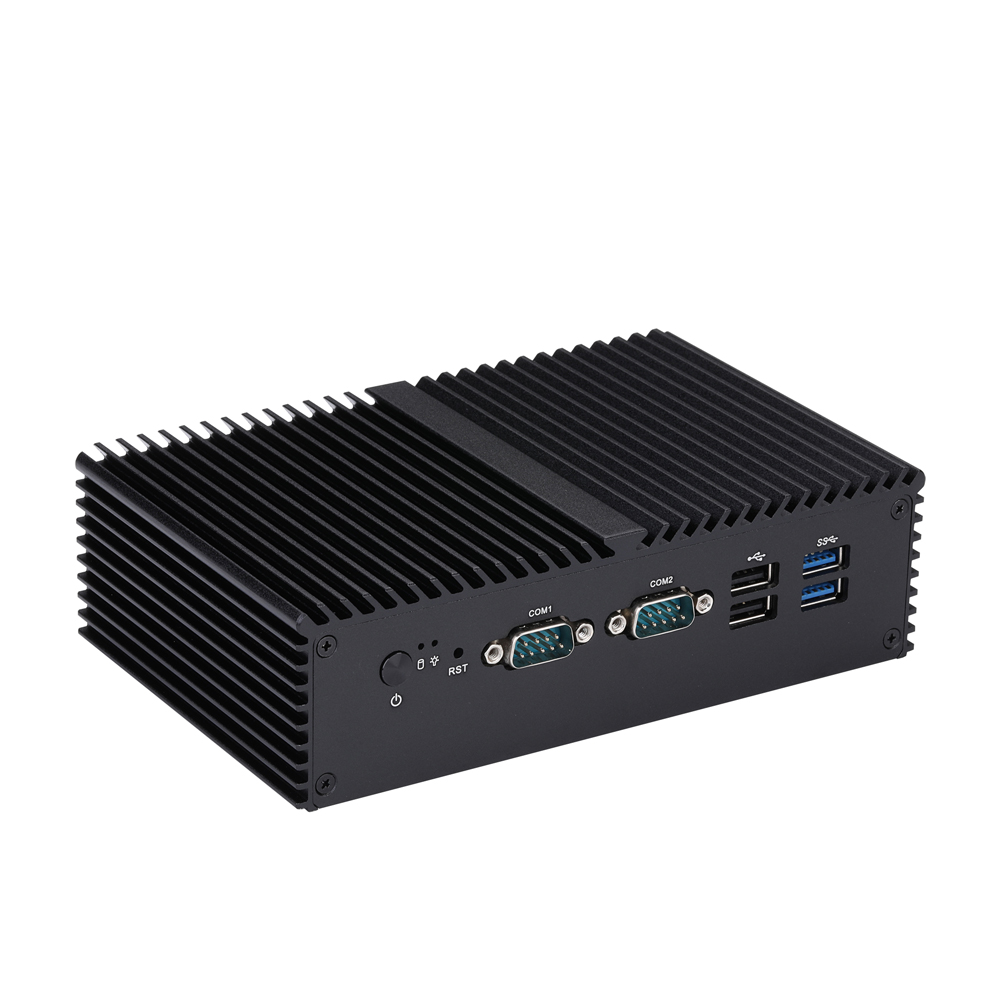

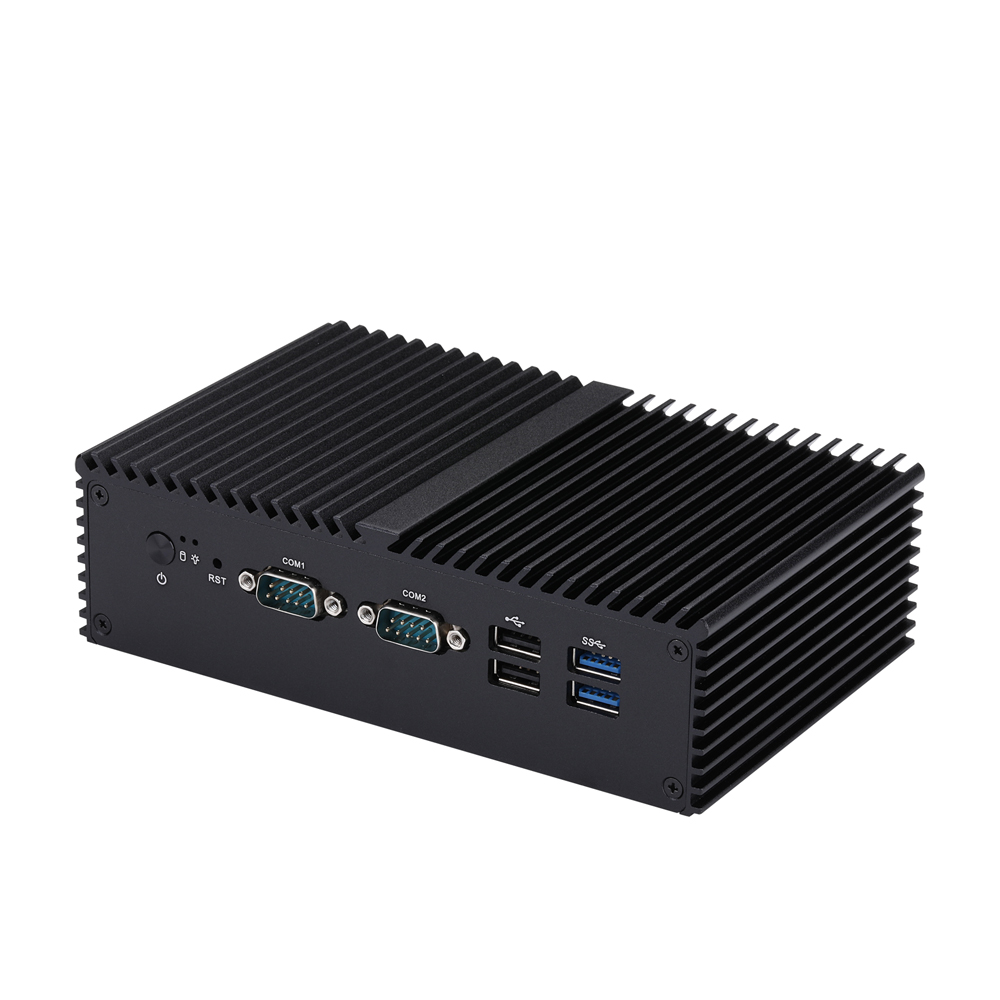

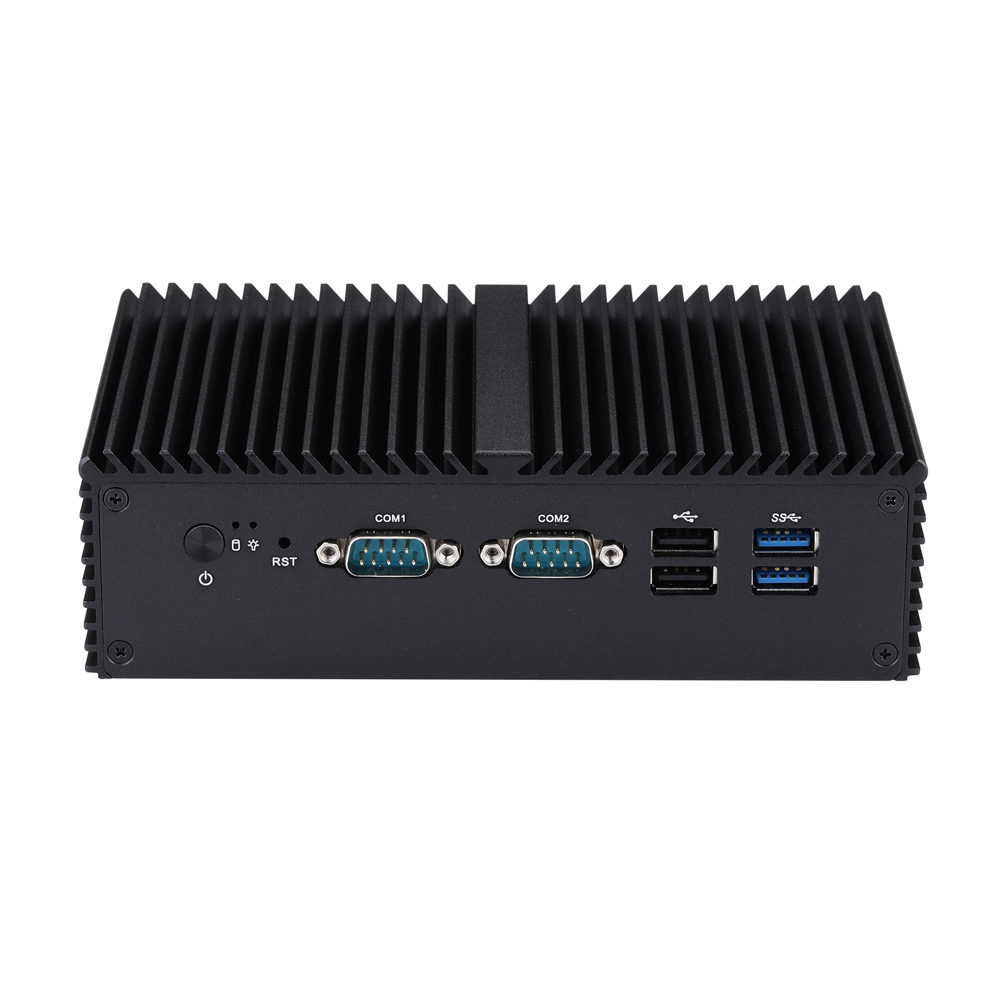

I/O Hadapan

Butang Kuasa1 × Power Button,1 × Reset Button
LED1 × Power LED,1 × HDD LED
USB2 × USB 2.0,2 × USB 3.0
Port Serial2 × RS-232 (COM1/2 can be set up as RS-485)

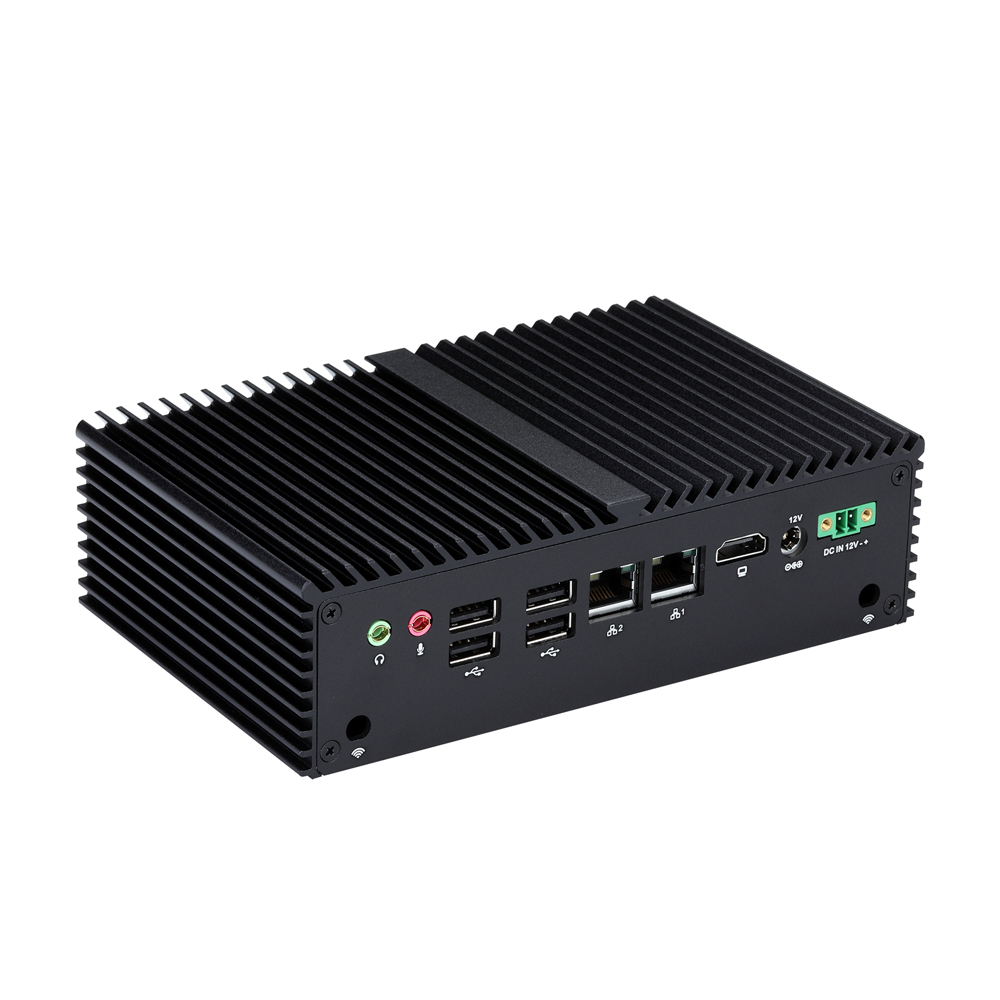

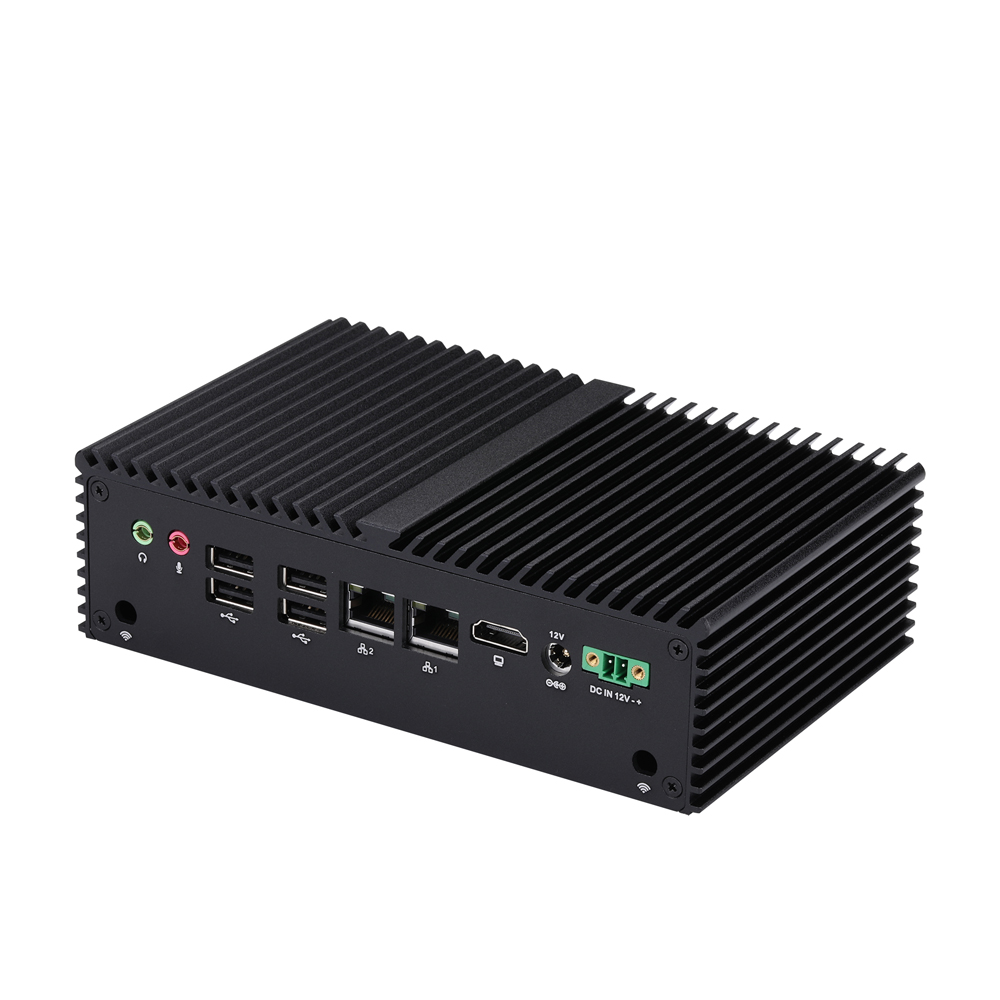

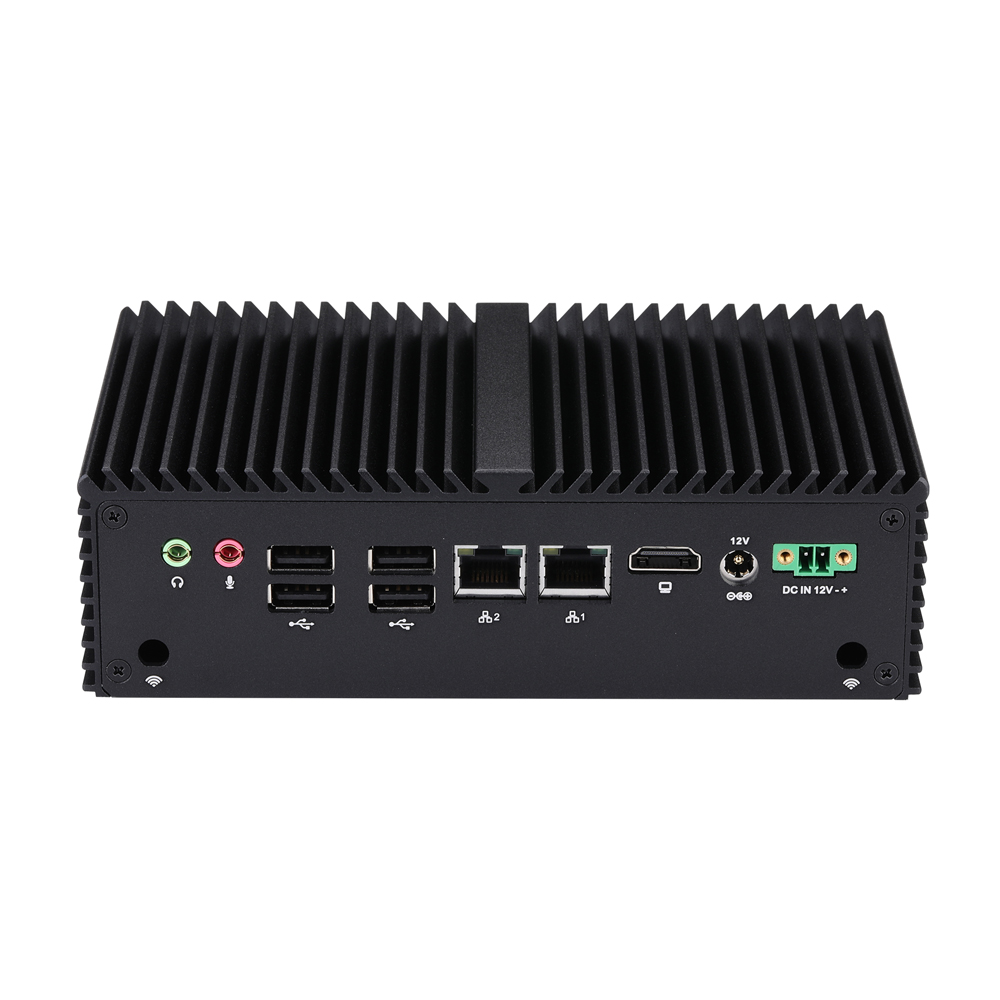

I/O Belakang

Power1 × DC Jack
LAN2 × Realtek Gigabit LAN
USB4 × USB 2.0
Audio1 × Mic-in,1 × Line-out
Phoenix1 × 2Pin
Paparan1 × HDMI

Storan

Jenis1 × 2.5-inch HDD/SSD
Jenis1 × Mini PCIe for mSATA SSD

Pengembangan

mSATA1 × mSATA for SSD
M.21 × M.2 for 4G/5G (B key, Type: 3042/3052) 5G Defaults to PCIe Mode, USB 3.0 Mode Requires Customization
M.21 × M.2 for Wi-Fi (E key, Type: 2230)
Slot Kad SIM1
Jumper AutoStartYes,1 × 3Pin, Pitch 2.54mm
GPIO1,2 × 5Pin, Pitch 2.0mm
VGA0
Port Serial0
Jumper Clear CMOSYes,1 × 3Pin, Pitch 2.54mm
Pengepala Panel Hadapan1,2 × 5Pin, Pitch 2.0mm

Power

Penyesuai Kuasa12V3A
Jack DC5.5mm, 2.5mm

Persekitaran

Suhu Operasi0°C~50°C
Suhu Bukan Operasi-20°C~80°C
Kelembapan10%~90%

Mekanikal

BahanAluminium Alloy
Dimensi178 × 111 × 52mm
Berat0.78kg
PemasanganVESA Mounting Bracket
Dimensi Pembungkusan261 × 218 × 75mm
Kunci KensingtonNo
Mod PenyejukanFanless Design

Sokongan OS

OSUEFI Windows 10, UEFI Linux

Kandungan Pakej

  • Mini PC × 1
  • Power Adapter × 1
  • AC Power Cable × 1
  • VESA Mount × 1
  • SATA Combo Cable × 1
  • Screw Kit × 1

* Kandungan pakej sebenar mungkin berbeza. Tertakluk kepada perubahan tanpa notis.

Pesanan & Pemilihan Spesifikasi

Ordering CodeLegacy ModelCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPLembaran Data
Q10811C-S04 Q780C Elkhart Lake Celeron N6210 2 / 2 1.20Ghz ~ 2.6Ghz 1.5M Intel UHD Graphics 6.5W
Q10821C-S04 Q790C Elkhart Lake Celeron J6412 4 / 4 2.00Ghz ~ 2.60Ghz 1.5M Intel UHD Graphics 10W
