Mini PC Q31100GT Siri S23

Name: Mini PC Q31100GT Siri S23
Brand: Qotom
SKU: Q31100GT-S23
Availability: InStock

Model: Q31100GT-S23

Jumlah LAN10

Kelajuan LAN2.5G RJ45

Spesifikasi Utama

CPU: Tiger Lake
Memori: DDR4 SO-DIMM · Maks 64GB
LAN: 10
Storan: M.2 Mkey, SATA

Papan Induk Serasi

MB4HT1C-1100

Produk ini tersedia melalui pertanyaan dan penyesuaian OEM/ODM.

Hantar Pertanyaan

Main Features

Intel 11 th Tiger Lake Processor
1 × Display Port, 1 × HDMI
2 × USB 3.0
3 × M.2, 1 × SATA 3.0
1 × RS-232 (RJ-45)
10 × Intel I226-V 2.5G LAN

Produk Berkaitan

Mini PC Q30400GE S20 Series

Q30400GE-S20

Mini PC Q30400GEX S10 Series

Q30400GEX-S10

Mini PC Q10800G5 S08 Series

Q10800G5-S08

Mini PC Q10900H6 S23 Series

Q10900H6-S23

Mini PC Q30400GE S10 Series

Q30400GE-S10

Mini PC Q10900V6 1U13 Series

Q10900V6-1U13

CPU	Intel 11th Tiger Lake Processor
TDP CPU	By CPU
Memori	2 × DDR 4 SO-DIMM Sockets (Up to 64G,21 33/24 00MHz)
Chipset	By CPU
Grafik	By CPU
Set Cip LAN	10 × Intel I226-V 2.5G LAN
Watch Dog	Yes

Butang Kuasa	1 × Power Button,1 × CMOS Clear Button
LED	1 × Power LED, 1 × HDD LED

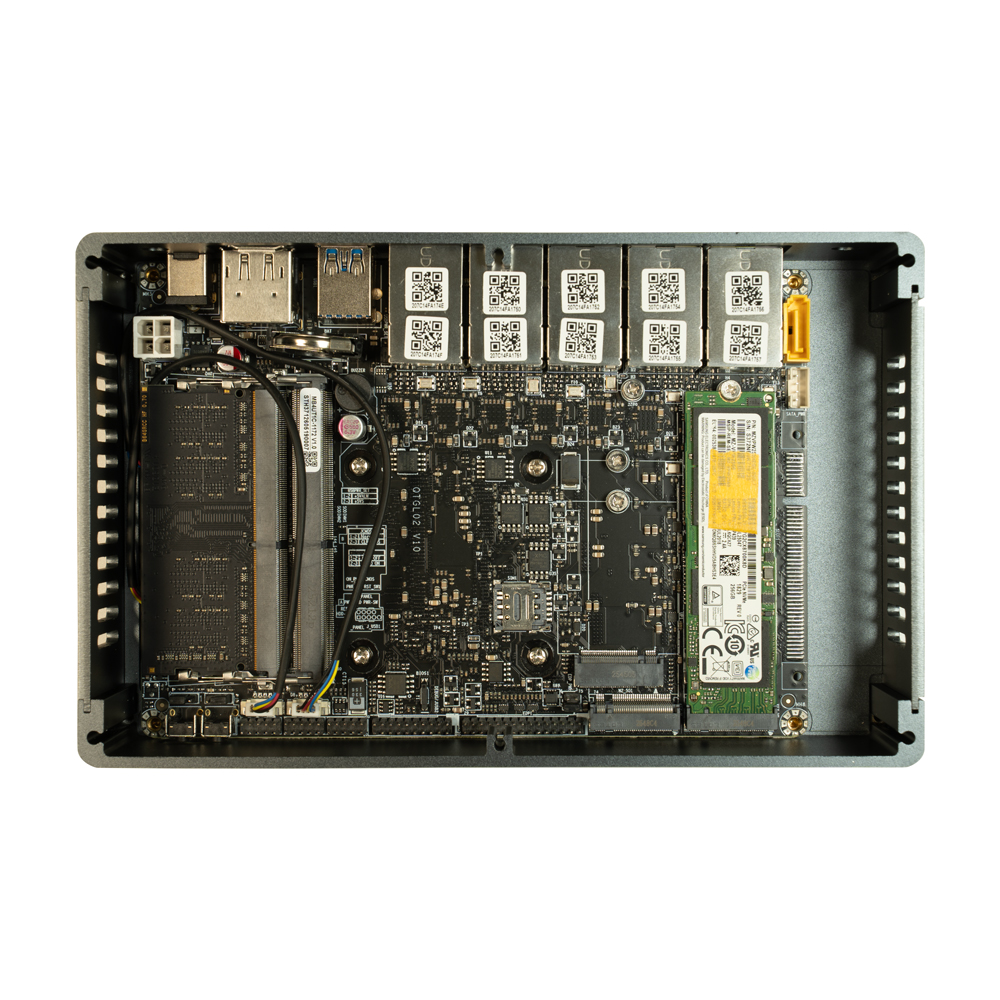

Jenis	1 × M.2 for SSD (M key, Type: 2280, PCIe 4.0 × 4)
Jenis	1 × M.2 for SSD (M key, Type: 2280, PCIe 3.0 × 1)
Jenis	1 × 2.5-inch HDD/SSD

M.2	1 × M.2 for SSD (M key, Type: 2280, PCIe 4.0 × 4) 1 × M.2 for 4G/5G (B key, Type: 3042/3052)
M.2	1 × M.2 for SSD (Option 2) (M key, Type: 2280, PCIe 3.0 × 1)
M.2	1 × M.2 for Wi-Fi (E key, Type: 2230) (Option 1, Preferred)
Slot Kad SIM	1
Jumper AutoStart	Yes, 1 × 3Pin, Pitch 2.0mm
Jumper CMOS Clear	Yes,1 × 3Pin, Pitch 2.0mm
GPIO	1, 2 × 5Pin, Pitch 2.0mm

Penyesuai Kuasa	12V7A
Jack DC	5.5mm, 2.5mm

Siri Mini PC

Siri Papan Induk

Siri Storan NAS

Siri OPS

Siri Panel PC

Aksesori

Mini PC Q31100GT Siri S23

Spesifikasi Utama

Papan Induk Serasi

Main Features

Sistem Pemproses

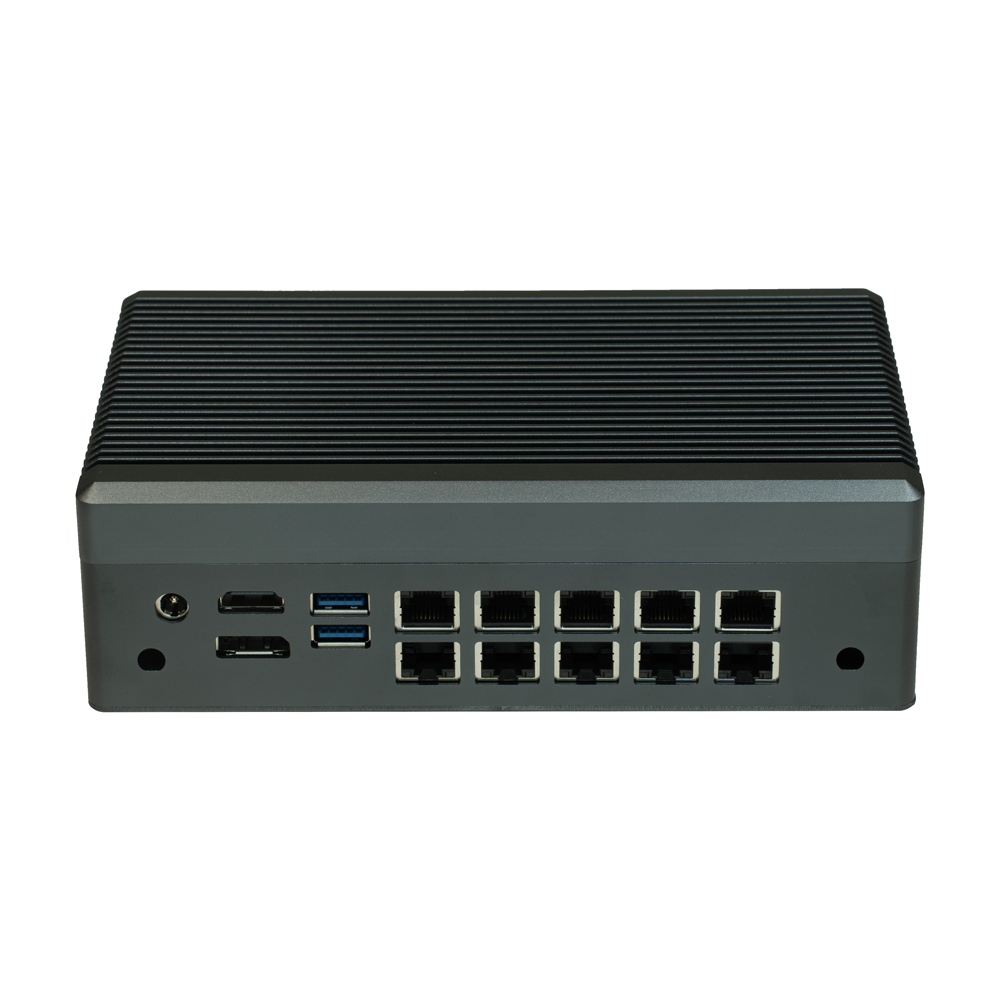

I/O Hadapan

I/O Belakang

Storan

Pengembangan

Power

Persekitaran

Mekanikal

Sokongan OS

Kandungan Pakej

Pesanan & Pemilihan Spesifikasi

Muat Turun Pemacu

Produk Berkaitan

Power	1 × DC Jack
Keluaran Video	1 × HDMI,1 × Display Port
LAN	10 × Intel I226-V 2.5G LAN
USB	2 × USB 3.0

Suhu Operasi	0°C~50°C
Suhu Bukan Operasi	-20°C~80°C
Kelembapan	10%~90%

Bahan	Aluminium Alloy
Dimensi	196 × 122 × 59mm
Berat	1.5kg
Pemasangan	VESA Mounting Bracket
Dimensi Pembungkusan	285 × 260 × 93mm
Kunci Kensington	No

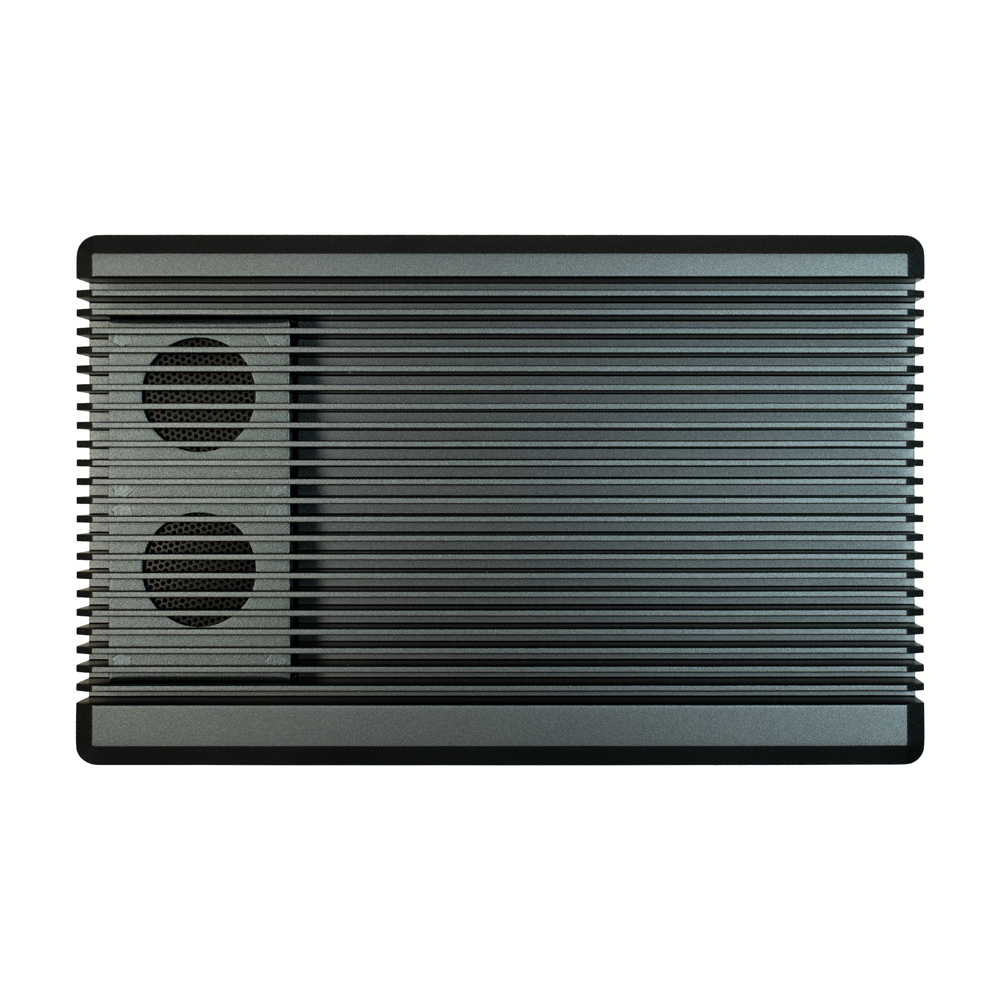

Mod Penyejukan	Fanless Design, Fan-assisted Cooling

Ordering Code	Code Name	Processor Type	Processor Number	Cores / Threads	Frequency	Cache	Graphics	TDP	Legacy Model
Q31111GT-S23	Tiger Lake	Celeron	6305	2 / 2	1.80 GHz	4M	Intel UHD Graphics	15W	-
GT-S23	Tiger Lake	Pentium	7505	2 / 4	2.00 GHz ~ 3.50 GHz	4M	Intel UHD Graphics	15W	Q31121
GT-S23	Tiger Lake	Core i3	1115G4	2 / 4	3.00 GHz ~ 4.10 GHz	6M	Intel UHD Graphics	12-28W	Q31131
GT-S23	Tiger Lake	Core i3	1125G4	4 / 8	2.00 GHz ~ 3.70 GHz	8M	Intel UHD Graphics	12-28W	Q31132
GT-S23	Tiger Lake	Core i5	1135G7	4 / 8	2.40 GHz ~ 4.20 GHz	8M	Intel Iris Xe Graphics	12-28W	Q31151
GT-S23	Tiger Lake	Core i5	1145G7	4 / 8	2.60 GHz ~ 4.40 GHz	8M	Intel Iris Xe Graphics	12-28W	Q31152
GT-S23	Tiger Lake	Core i5	1155G7	4 / 8	2.50 GHz ~ 4.50 GHz	8M	Intel Iris Xe Graphics eligible	12-28W	Q31153
GT-S23	Tiger Lake	Core i7	1165G7	4 / 8	2.80 GHz ~ 4.70 GHz	12M	Intel Iris Xe Graphics	12-28W	Q31171
GT-S23	Tiger Lake	Core i7	1185G7	4 / 8	3.00 GHz ~ 4.80 GHz	12M	Intel Iris Xe Graphics	12-28W	Q31172
GT-S23	Tiger Lake	Core i7	1195G7	4 / 8	2.90 GHz ~ 5.00 GHz	12M	Intel Iris Xe Graphics eligible	12-28W	Q31173
Q51151GT-S23	Tiger Lake	Core i5	11300H	4 / 8	2.60 GHz ~ 4.40 GHz	8M	Intel Iris Xe Graphics	28-35W	-
Q51152GT-S23	Tiger Lake	Core i5	11320H	4 / 8	2.50 GHz ~ 4.50 GHz	8M	Intel Iris Xe Graphics eligible	28-35W	-
Q51171GT-S23	Tiger Lake	Core i7	11370H	4 / 8	3.00 GHz ~ 4.80 GHz	12M	Intel Iris Xe Graphics	28-35W	-
Q51172GT-S23	Tiger Lake	Core i7	11375H	4 / 8	3.00 GHz ~ 5.00 GHz	12M	Intel Iris Xe Graphics	28-35W	-
Q51173GT-S23	Tiger Lake	Core i7	11390H	4 / 8	2.90 GHz ~ 5.00 GHz	12M	Intel Iris Xe Graphics eligible	28-35W	-
