Qotom
Q10100G4-S07 image 11 / 7

Mini PC Q10100G4 S07 Seria

Model: Q10100G4-S07

Total LAN4
Viteză LAN1G RJ45

Specificații cheie

CPU
Bay Trail
Memorie
DDR3L SO-DIMM · Max 8GB
LAN
4
Stocare
mSATA, SATA

Placă de bază compatibilă

MB2J401-0100MB2J401-0100
Q180G4NQ190G4NQ192G4NQ193G4NQ195G4NQ10111G4NQ10121G4NQ10122G4NQ10123G4NQ10134G4NIntelBay TrailPentiumCeleronATOMN2840J1800J1900N2920N2930N3540

Main Features

  • Intel Bay Trail Processor
  • 1 × VGA
  • 1 × USB 3.0,3 × USB 2.0
  • 1 × Mini PCIe,1 × mSATA
  • 4 × Intel I211-AT/I210-AT Gigabit LAN

Sistem procesor

CPUIntel Bay Trail Processor
TDP CPUBy CPU
Memorie1 × DDR3L SO-DIMM Socket (Up to 8G, 1333/1600MHz)
ChipsetBy CPU
GraficăBy CPU
Chipset LAN4 × Intel I211-AT/I210-AT Gigabit LAN
AudioNo
Watch DogNo

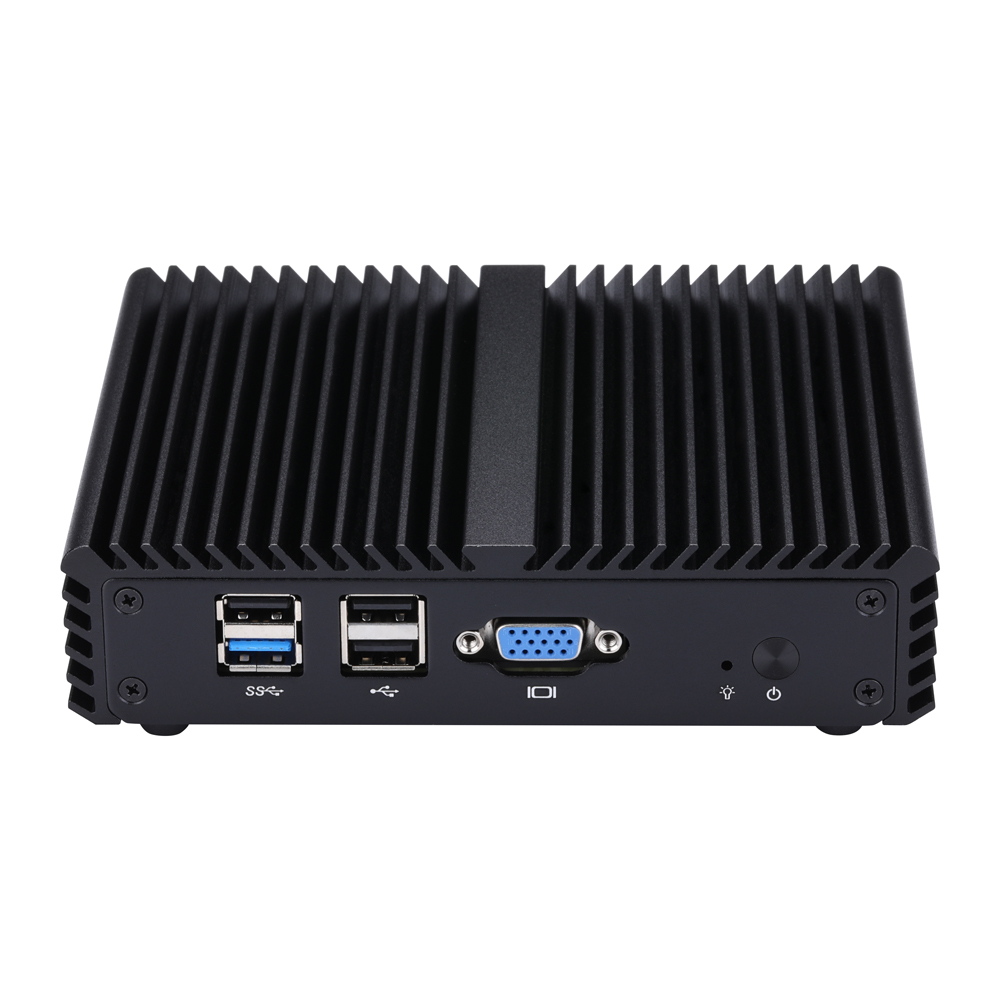

I/O Față

Buton de pornire1
LED1 × Power LED
VGA1
USB1 × USB 3.0, 3 × USB 2.0
AudioNo

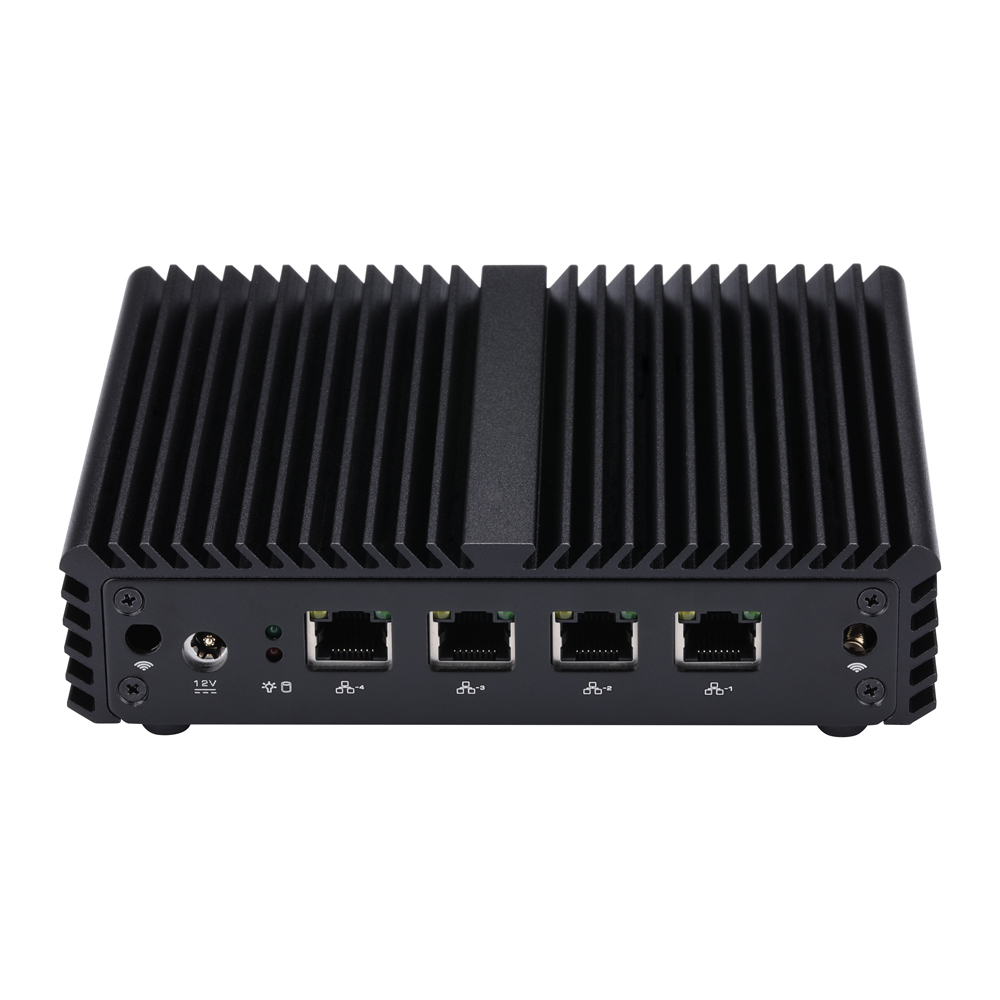

I/O spate

Power1 × DC Jack
LAN4 × Intel I211-AT/I210-AT Gigabit LAN
LED1 × Power LED,1 × HDD LED

Stocare

Tip1 × Mini PCIe for mSATA SSD

Extindere

mSATA1 × Full-length Mini PCIe for SSD
Mini PCIe1 × Mini PCIe Full-length for 4G, Half-length for Wi-Fi (Default Only Support USB Device)
Slot card SIM1
Jumper AutoStartYes,1 × 3Pin, Pitch 2.54mm
DC-INNo

Power

Adaptor de alimentare12V3A
Conector DC5.5mm, 2.5mm

Mediu

Temp. de operare0°C~50°C
Temperatură nefuncționare-20°C~80°C
Umiditate10%~90%

Mecanic

MaterialAluminium Alloy
Dimensiune155 × 127 × 36mm
Greutate0.82kg
MontareVESA Mounting Bracket
Dimensiuni ambalaj261 × 218 × 75mm
Blocare KensingtonNo
Mod RăcireFanless Design

Suport OS

OSWindows 7, Windows 8, Windows 10, Linux

Conținutul pachetului

  • Mini PC × 1
  • Power Adapter × 1
  • AC Power Cable × 1
  • VESA Mount × 1
  • Screw Kit × 1

* Conținutul real al pachetului poate varia. Subiect la modificări fără notificare prealabilă.

Selectare Comandă și Specificații

Cod de ComandătdpcachecoresthreadscodeNamelegacyCodebaseFrequencyprocessorTypeprocessorNumbermaxTurboFrequencyprocessorGraphicsFișă Tehnică
Q180X Q10111X-S07 10W1M22Bay trail-2.41GhzCeleronJ18002.58GhzIntel HD Graphics
Q190X Q10121X-S07 10W2M44Bay trail-2.00GhzCeleronJ19002.42GhzIntel HD Graphics
Q192X Q10122X-S07 7.5W2M44Bay trail-1.86GhzCeleronN29202.0GhzIntel HD Graphics
Q193X Q10123X-S07 7.5W2M44Bay trail-1.83GhzCeleronN29302.16GhzIntel HD Graphics
