Qotom
Q30300N-S02 image 11 / 7

Mini PC Q30300N S02 Series

Model: Q30300N-S02

Ukupno LAN1
Brzina LAN-a1G RJ45
Serijski portovi1

Ključne specifikacije

CPU
Ivy Bridge
Memorija
DDR3L SO-DIMM · Maks. 8GB
LAN
1
Skladište
mSATA, SATA

Kompatibilna matična ploča

MB2U113-0300MB2U113-0300

Ovaj proizvod je dostupan putem upita i OEM/ODM prilagođavanja.

Pošalji upit
Q107NQ100NQ210NQ220NQ30311NQ30312NQ30331NQ30351NIntelIvy BridgeCeleronPentiumCore i3Core i5Core i71007U1017U1037U3217U3227U3317U3427U3337U3537U

Main Features

  • Intel 3 rd Ivy Bridge Processor
  • 1 × VGA,1 × HDMI,1 × RS-232
  • 5 × USB 2.0,1 × SATA 3.0
  • 1 × Mini PCIe,1 × mSATA
  • 1 × Realtek Gigabit LAN

Procesorski sistem

CPUIntel 3 rd Ivy Bridge Processor
CPU TDPBy CPU
Memorija1 × DDR3 SO-DIMM Socket (Up to 8G, 1333/1600MHz)
ChipsetBy CPU
GrafikaBy CPU
LAN čipset1 × Realtek Gigabit LAN
AudioRealtek HD Audio
Watch DogNo

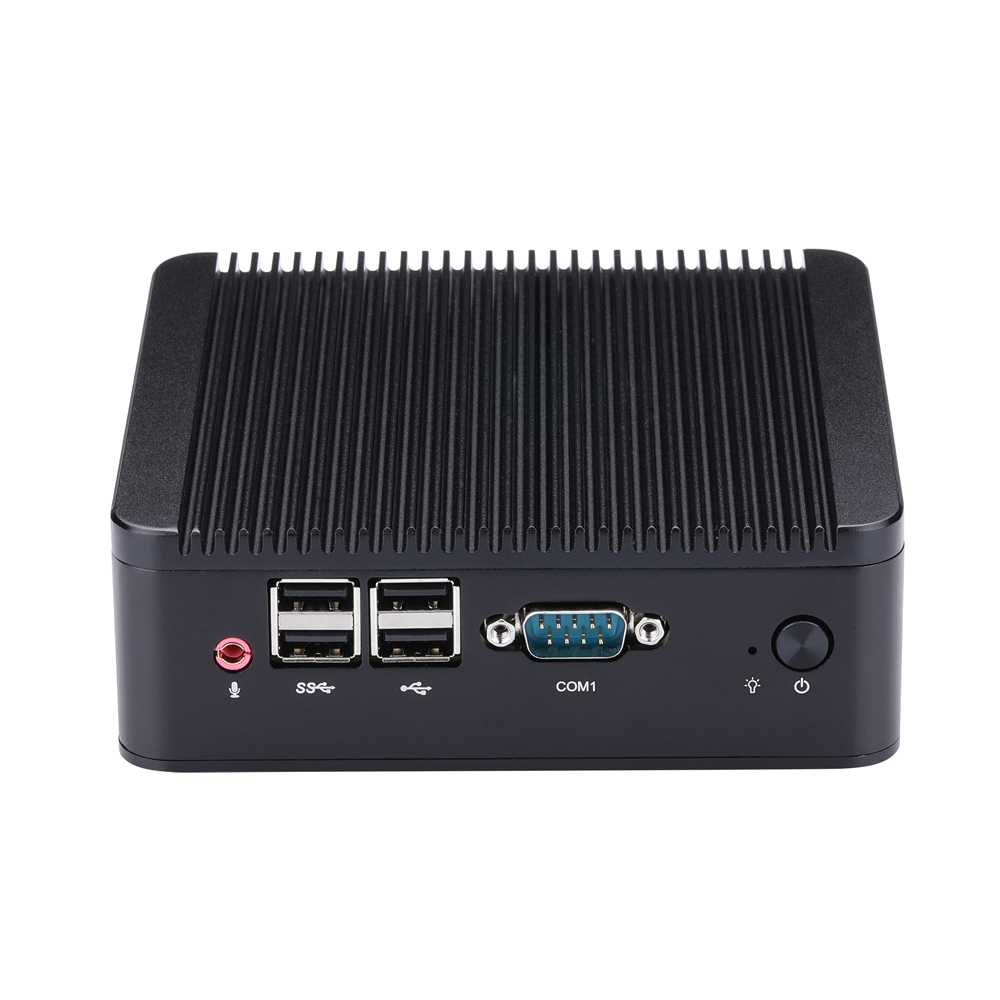

Prednji I/O

Dugme za napajanje1
LED1 × Power LED
USB4 × USB 2.0
Serijski port1 × RS-232
Audio1 (Mic-in)

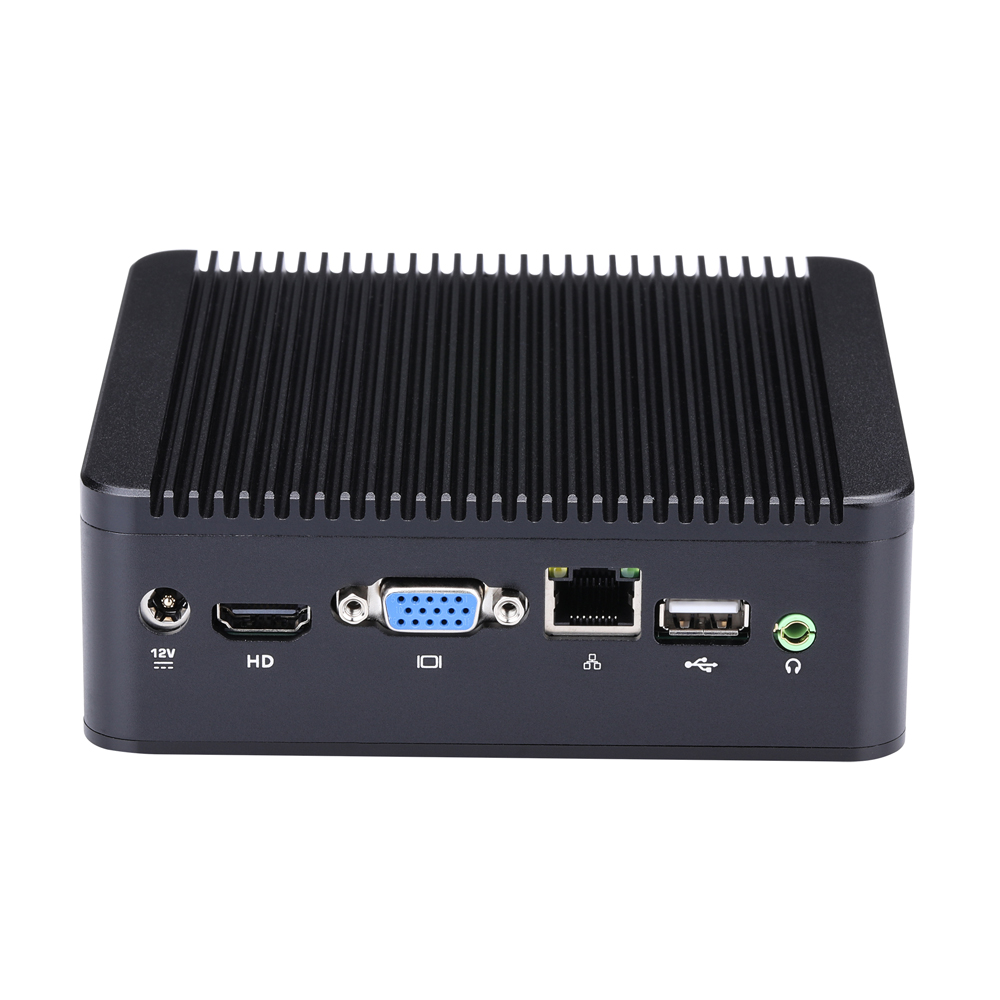

Zadnji I/O

Power1 × DC Jack
LAN1 × Realtek Gigabit LAN
USB1 × USB 2.0
Audio1 (Line-out)
Video izlaz1 × HDMI,1 × VGA
Serijski port0

Skladište

Tip1 × 2.5-inch HDD/SSD 1 × Mini PCIe for mSATA SSD

Proširenje

mSATA1 × Full-length Mini PCIe for SSD
Mini PCIe1 × Half-length Mini PCIe for Wi-Fi
Slot za SIM karticu0
Jumper za automatsko pokretanjeNo
DC-INNo
VGA0
GPIONo

Power

Adapter za napajanje12V4A
DC Priključak5.5mm, 2.5mm

Uslovi okoline

Radna temp0°C~50°C
Temperatura van rada-20°C~80°C
Vlažnost10%~90%

Mehanički

MaterijalAluminium Alloy
Dimenzije134 × 127 × 46mm
Težina0.69kg
MontažaVESA Mounting Bracket
Dimenzije pakovanja261 × 218 × 75mm
Kensington bravaSupport
Način hlađenjaFan

Podrška za OS

OSWindows XP, Windows 7, Windows 8, Windows 10, Linux

Sadržaj pakovanja

  • Mini PC × 1
  • Power Adapter × 1
  • AC Power Cable × 1
  • VESA Mount × 1
  • SATA Combo Cable × 1
  • Screw Kit × 1

* Stvarni sadržaj paketa može varirati. Može se menjati bez prethodne najave.

Izbor porudžbine i specifikacije

Ordering CodeLegacy ModelCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPTehnički list
Q30311N-S02 Q107N Ivy Bridge Celeron 1007U 2 / 2 1.5GHz 2M Intel HD Graphics 17W
Q30312N-S02 Q100N Ivy Bridge Celeron 1037U 2 / 2 1.8GHz 2M Intel HD Graphics 17W
Q30331N-S02 Q210N Ivy Bridge Core i3 3217U 2 / 4 1.8GHz 3M Intel HD Graphics 4000 17W
Q30351N-S02 Q220N Ivy Bridge Core i5 3317U 2 / 4 1.7GHz ~ 2.6GHz 3M Intel HD Graphics 4000 17W
