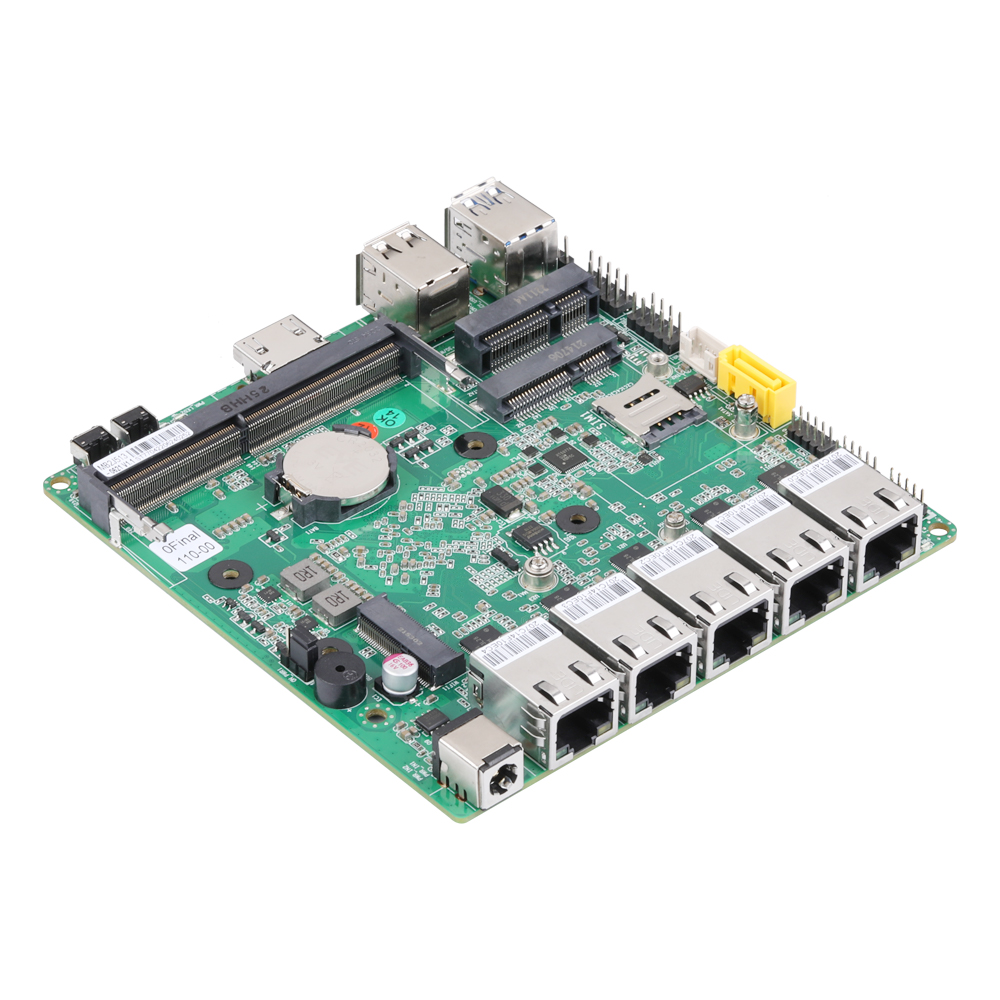

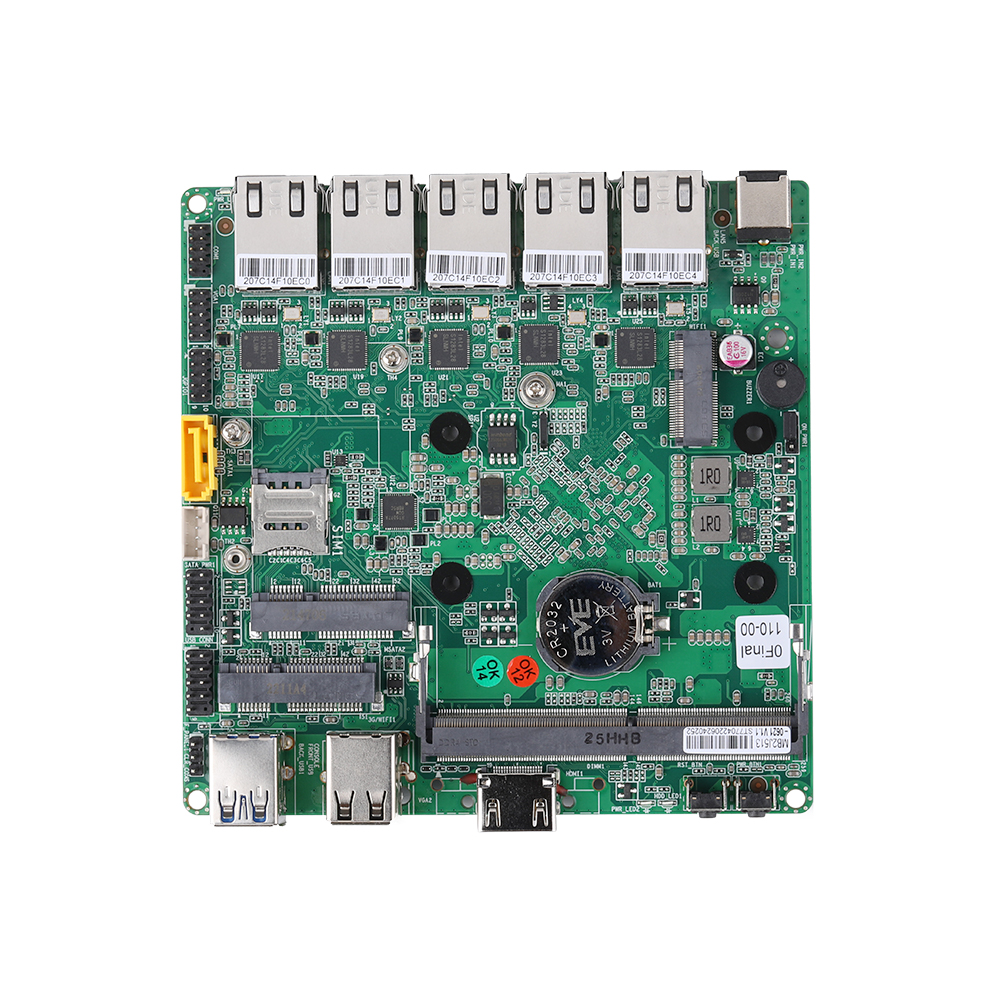

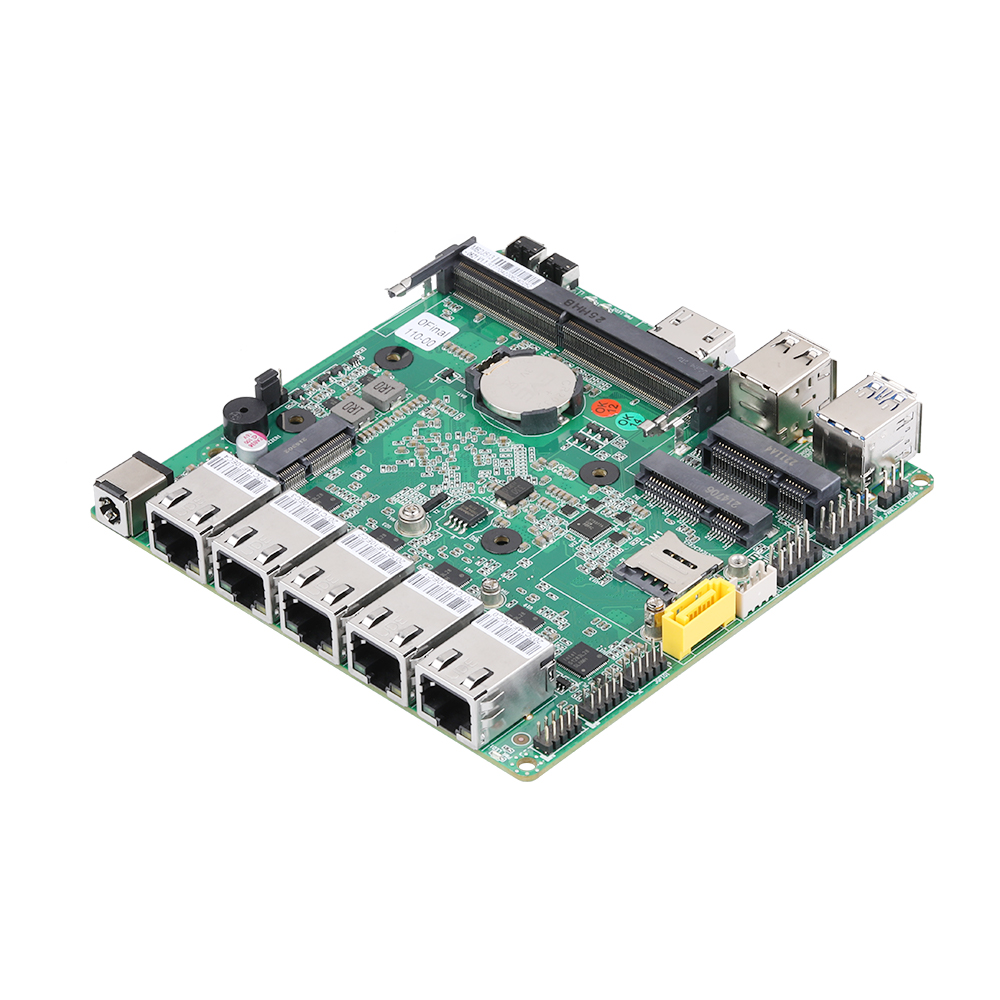

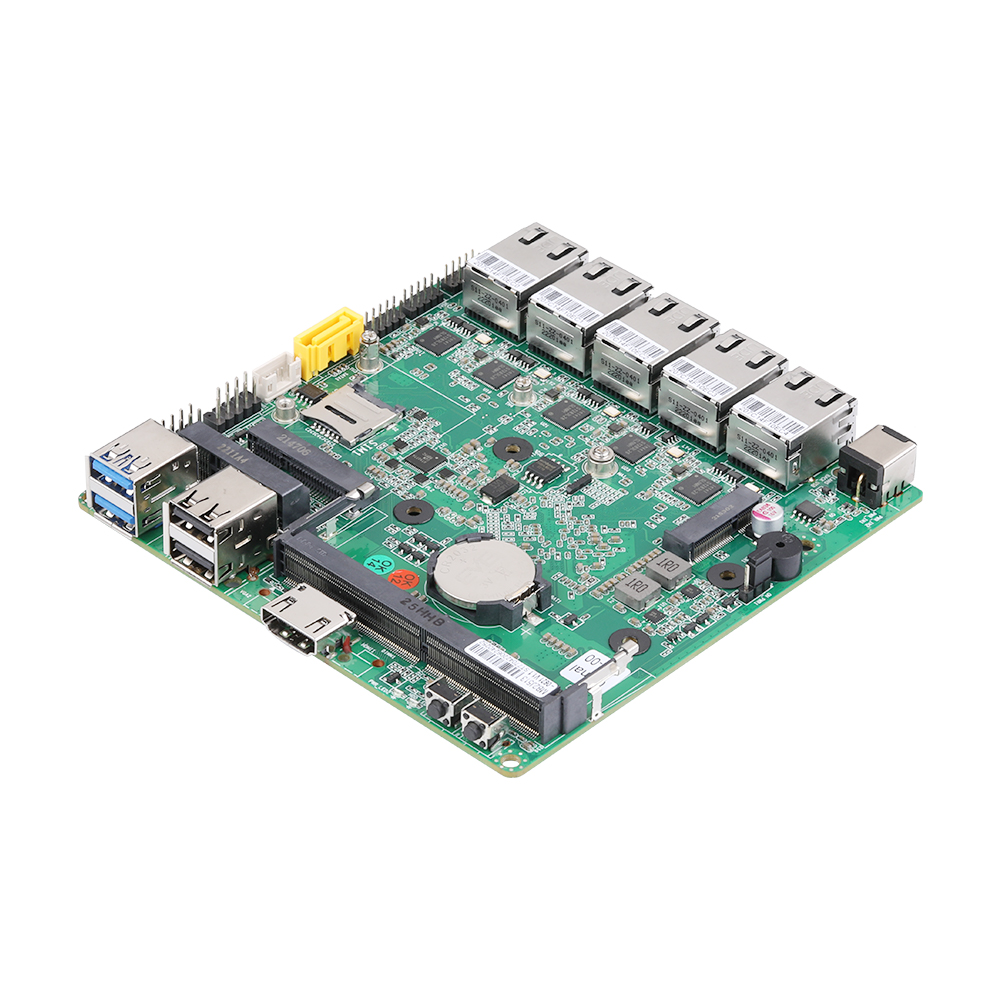

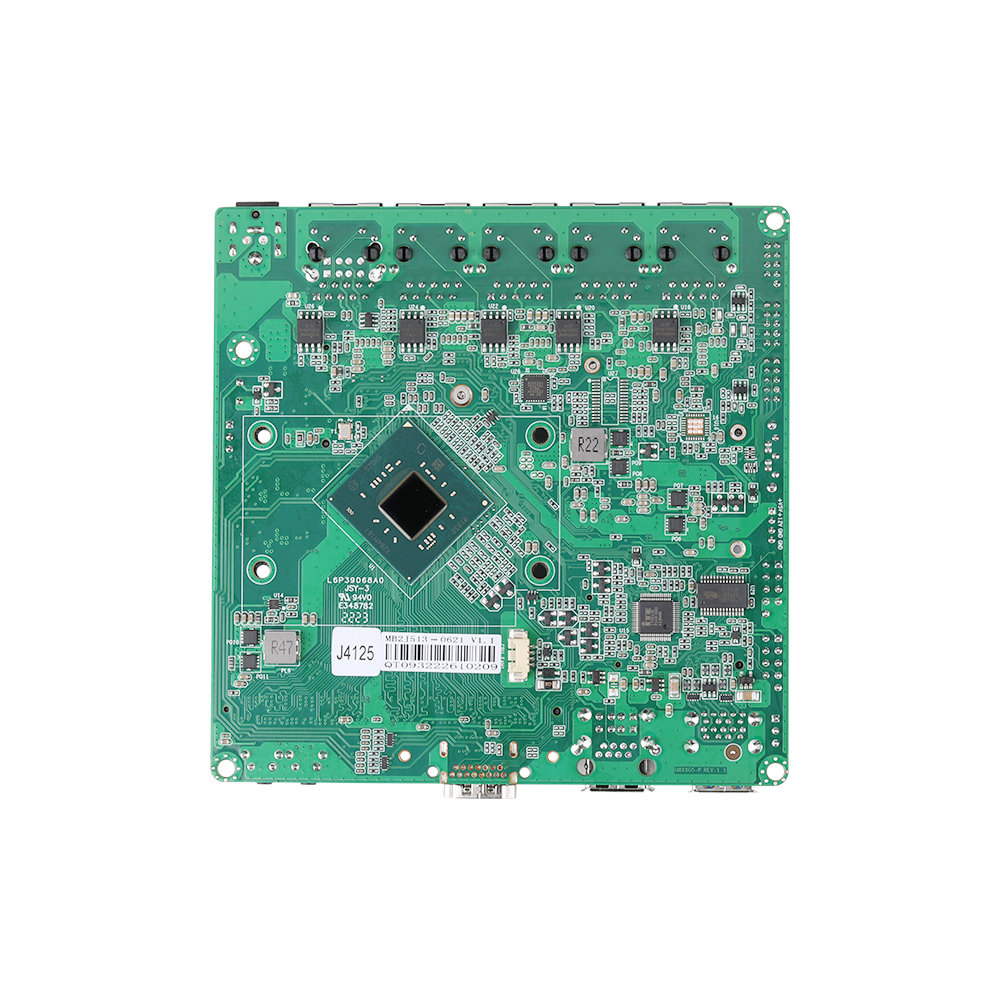

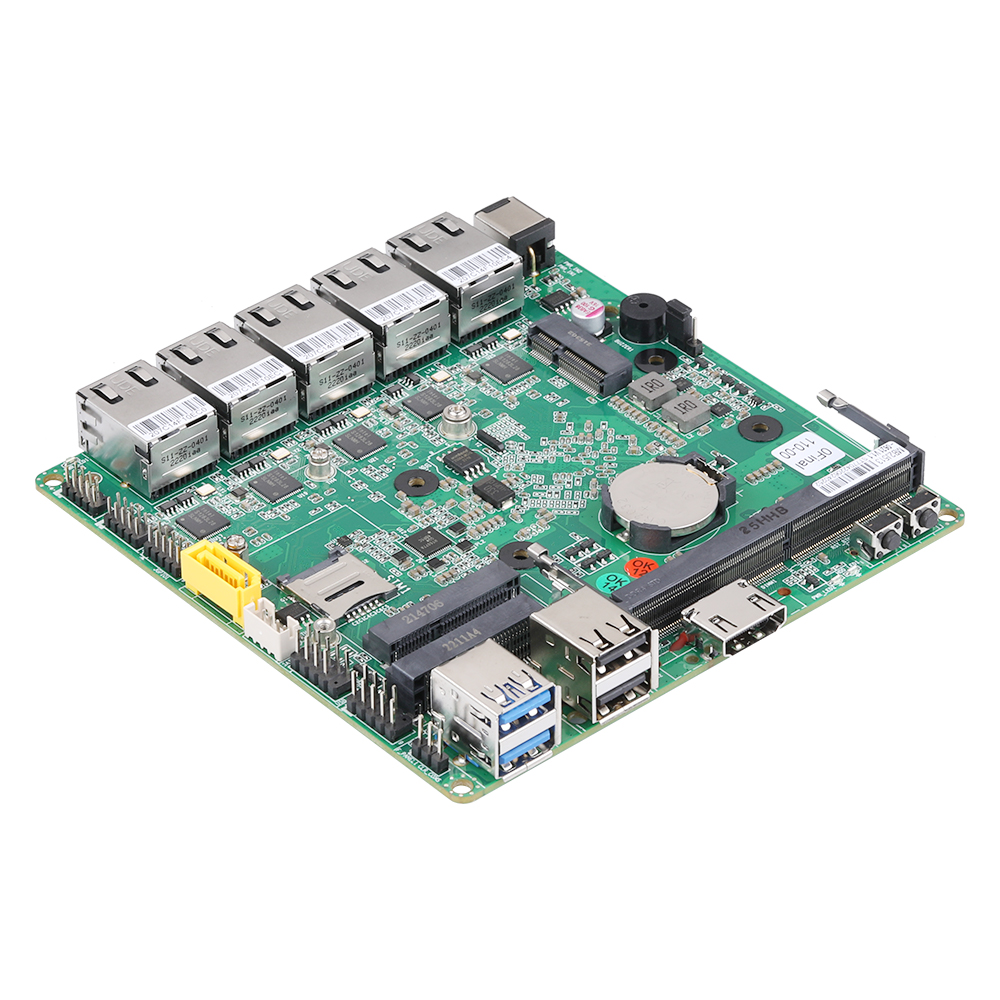

Motherboard MB2J513-0500 Series

Model: MB2J513-0500

Total LAN5
LAN Speed2.5G RJ45

Key Specs

CPU
Gemini Lake / Gemini Lake-R
Memory
DDR4 SO-DIMM · Max 16GB
LAN
5
Storage
mSATA, SATA
Board Size
120x120

Compatible Systems

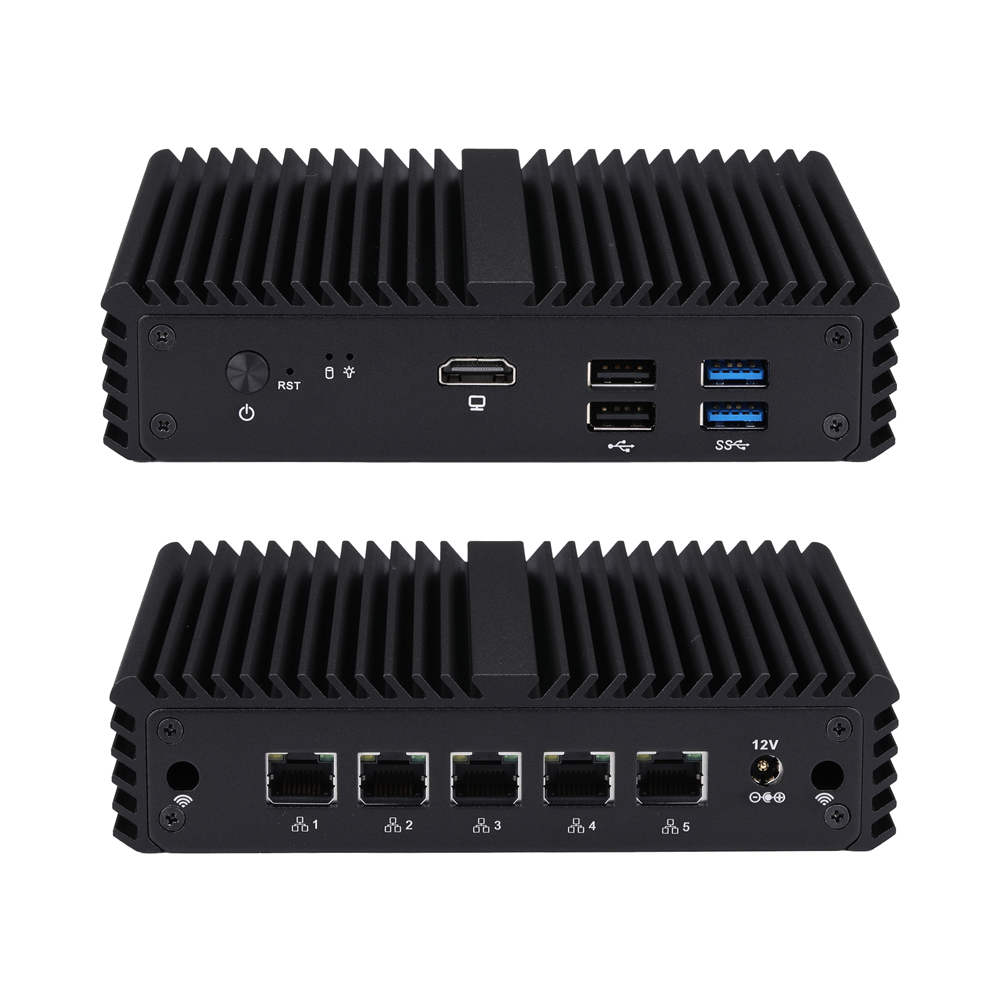

Q10500G5-S08Q10500G5-S08Q10500G5-1U06Q10500G5-1U06Q10500G5C-S08Q10500G5C-S08Q10500G5-S07Q10500G5-S07

This product is available via inquiry and OEM/ODM customization.

Send Inquiry
MB2J513-0511MB2J513-0512MB2J513-0521MB2J513-0611MB2J513-0621IntelGemini LakeGemini Lake-RPentiumCeleronATOMN4000N4100J4005J4105N5000J5005N4020N4120J4025J4125N5030J5040

Main Features

  • Intel Gemini Lake Processor
  • Intel Gemini Lake-R Processor
  • 1 × HDMI
  • 2 × USB 3.0, 2 × USB 2.0
  • 1 × M.2,1× mSATA,1× Mini PCIe
  • 5 × Intel I225-V/I226-V 2.5G LAN

Processor System

CPU• Intel Gemini Lake Processor • Intel Gemini Lake-R Processor
ChipsetBy CPU
Dimension120 × 120mm
Core NumberBy CPU
Max. SpeedBy CPU
L2 CacheBy CPU
BIOSUEFI

Memory

TechnologyDDR4 2133/2400MHz SDRAM Only Supports a Single 1G Memory Chip
Max.16GB
Socket1 × SO-DIMM

Graphics

ControllerBy CPU
VGA1 (Option)
HDMI1
Multi DisplayY es

Ethernet

Interface100/1000/2500Mbps
Controller5 × Intel I225-V/I226-V 2.5G LAN
Connector5 × RJ-45

Audio

ControllerNo

Front I/O

Power Button1 × Power Button, 1 × Reset Button
LED1 × Power LED,1 × HDD LED
USB2 × USB 3.0,2 × USB 2.0
Display1 × Connector, HDMI by Default VGA (Option)

Rear I/O

DC-IN1
Ethernet5

Storage

Max. Data Transfer RateSATA 3.0 (6.0Gb/S)

Expansion

mSATA1 × Full-length Mini PCIe for SSD
M.21 × M.2 for Wi-Fi (E key, Type: 2230)
Mini PCIe1 × Full-length Mini PCIe for 4G

Internal Connector

VGA Header1, 2 × 5Pin, Pitch 2.0mm (Option)
Serial Port1, 2 × 5Pin, Pitch 2.0mm (Option)
SATA1, SATA 3.0 (6.0Gb/S)
SATA PWR Connector1, 1 × 4Pin, Pitch PH2.0mm
SIM Slot1
AutoStart JumperYes, 1 × 3Pin, Pitch 2.54mm
Clear CMOS JumperYes, 1 × 3Pin, Pitch 2.54mm
GPIO Header1, 2 × 5Pin, Pitch 2.0mm
USB 2.0 Header2, 2 × 5Pin, Pitch 2.54mm
Front Panel Header1, 2 × 5Pin, Pitch 2.54mm
Power Header1, 1 × 2Pin, Pitch 3.5mm, Phoenix 2Pin (Option)

Watchdog Timer

OutputFrom Super I/O to Drag RESETCON#
Interval256 Segments,0,1,2,3,,,255 sec/min

Power

Input PWR12V DC in, 5.5mm/2.5mm

Environmental

Operating Temperature0-50℃

Accessories

AccessoriesCable for HDD

OS Support

OSWindows 10, Linux

Package Contents

  • Motherboard × 1
  • SATA Combo Cable × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPDatasheet
MB2J513-0511 Gemini Lake Celeron J4005 2 / 2 2.0GHz ~ 2.7GHz 4M Intel UHD Graphics 600 10W
MB2J513-0512 Gemini Lake Celeron N4000 2 / 2 1.1GHz ~ 2.6GHz 4M Intel UHD Graphics 600 6W
MB2J513-0521 Gemini Lake Celeron J4105 4 / 4 1.5GHz ~ 2.5GHz 4M Intel UHD Graphics 600 10W
MB2J513-0611 Gemini Lake Refresh Celeron N4020 2 / 2 1.1GHz ~ 2.8GHz 4M Intel UHD Graphics 600 6W
MB2J513-0621 Gemini Lake Refresh Celeron J4125 4 / 4 2.0GHz ~ 2.7GHz 4M Intel UHD Graphics 600 10W
