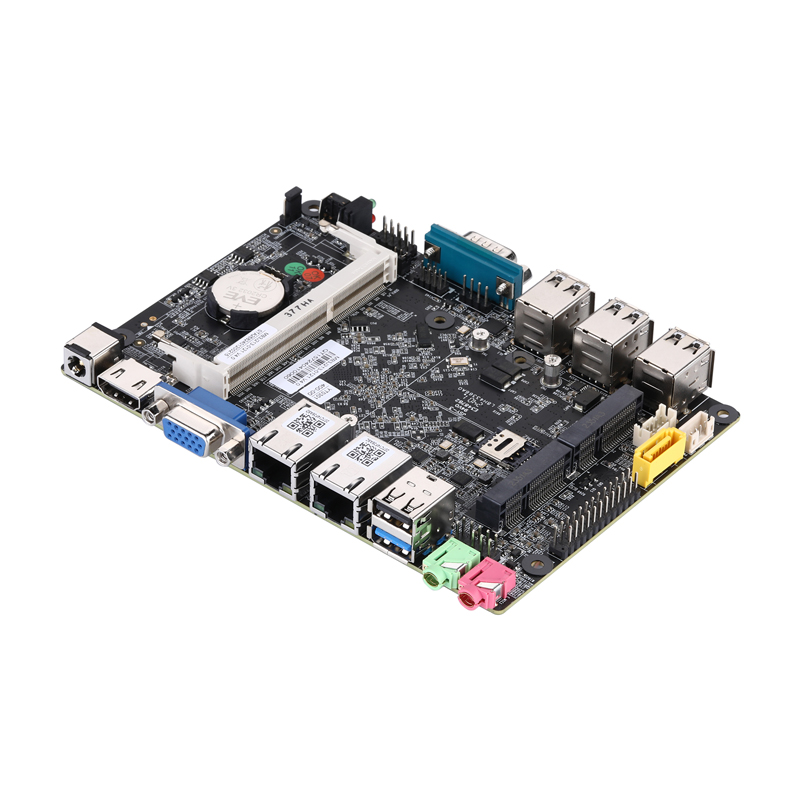

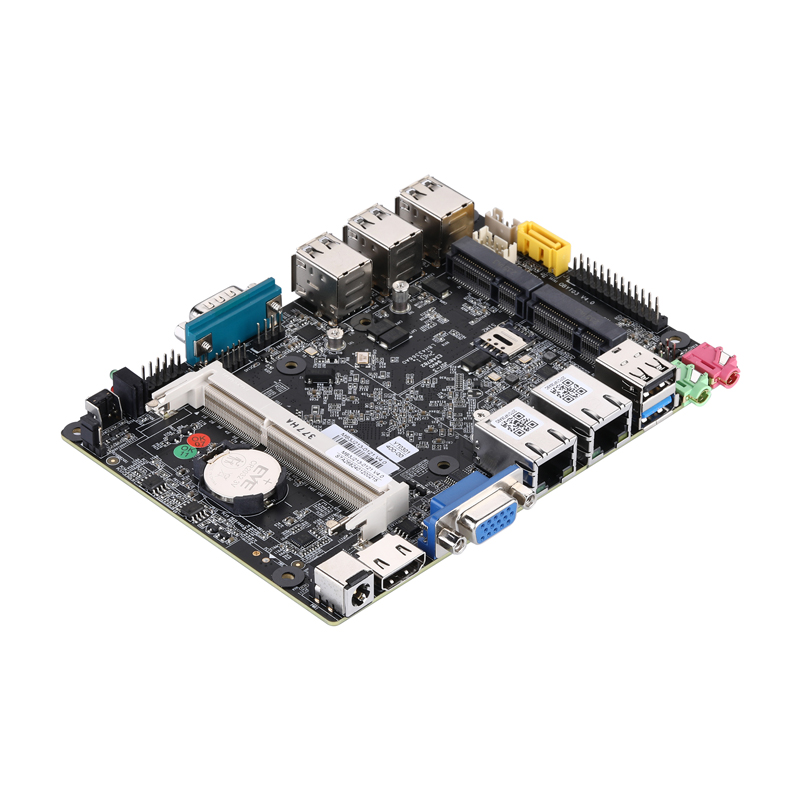

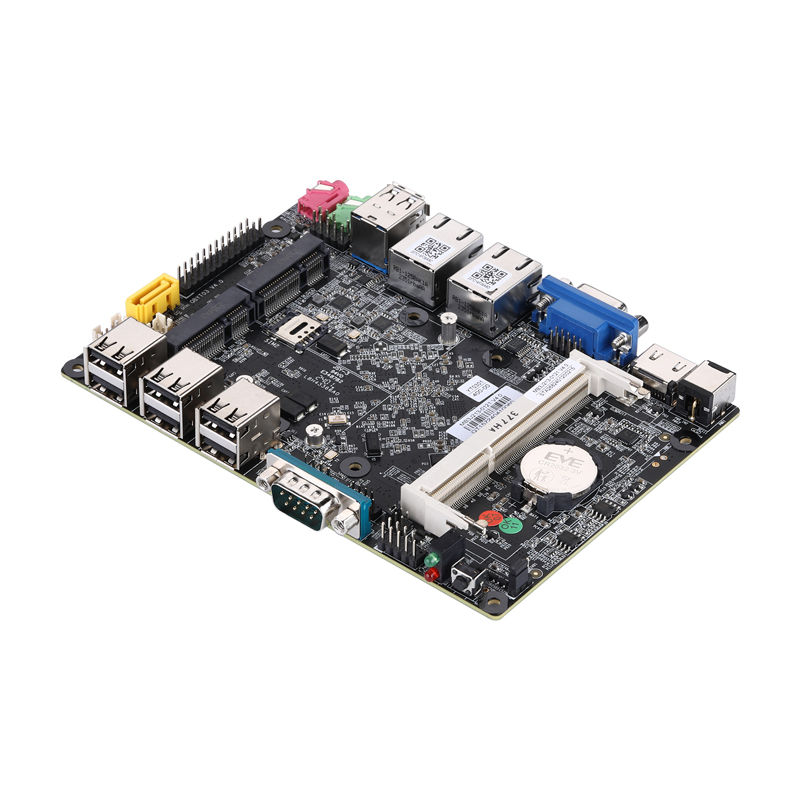

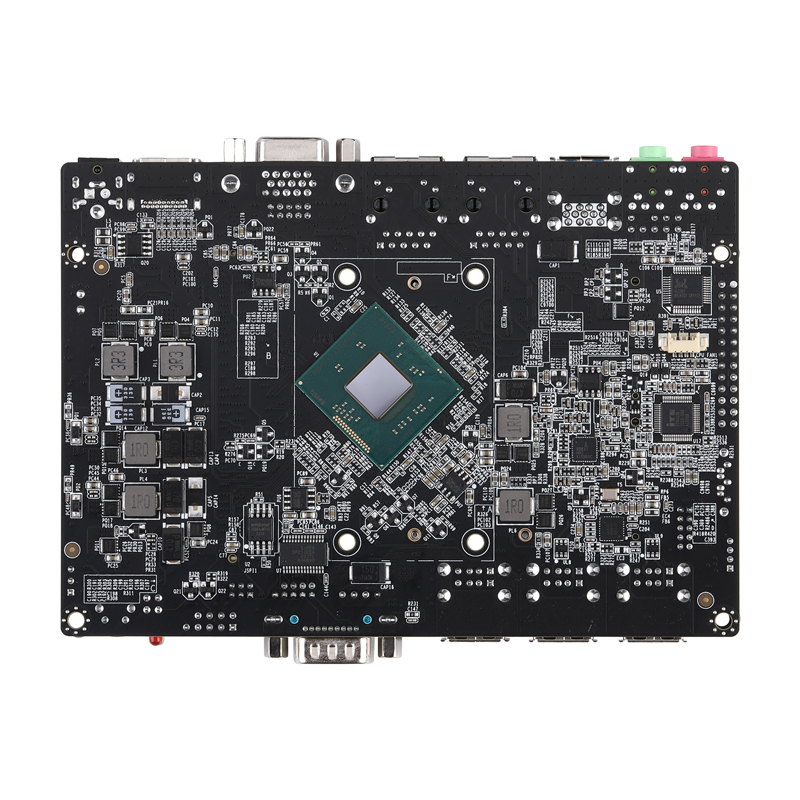

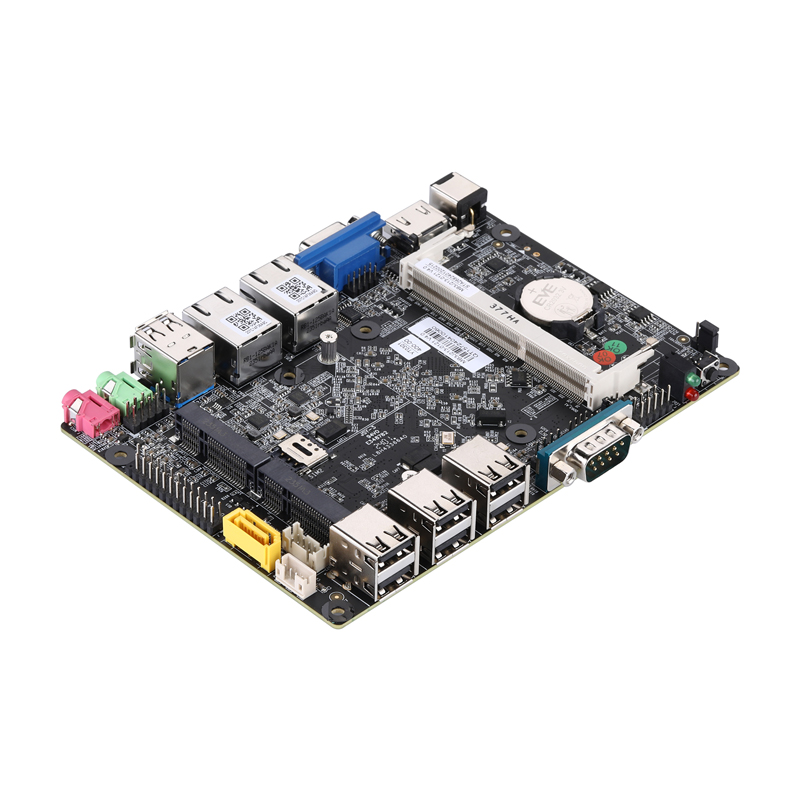

Motherboard MB3J213-0100 Series

Model: MB3J213-0100

Total LAN2
LAN Speed1G RJ45
Serial Ports7

Key Specs

CPU
Bay Trail
Memory
DDR3L SO-DIMM · Max 8GB
LAN
2
Storage
mSATA, SATA
Board Size
148x104

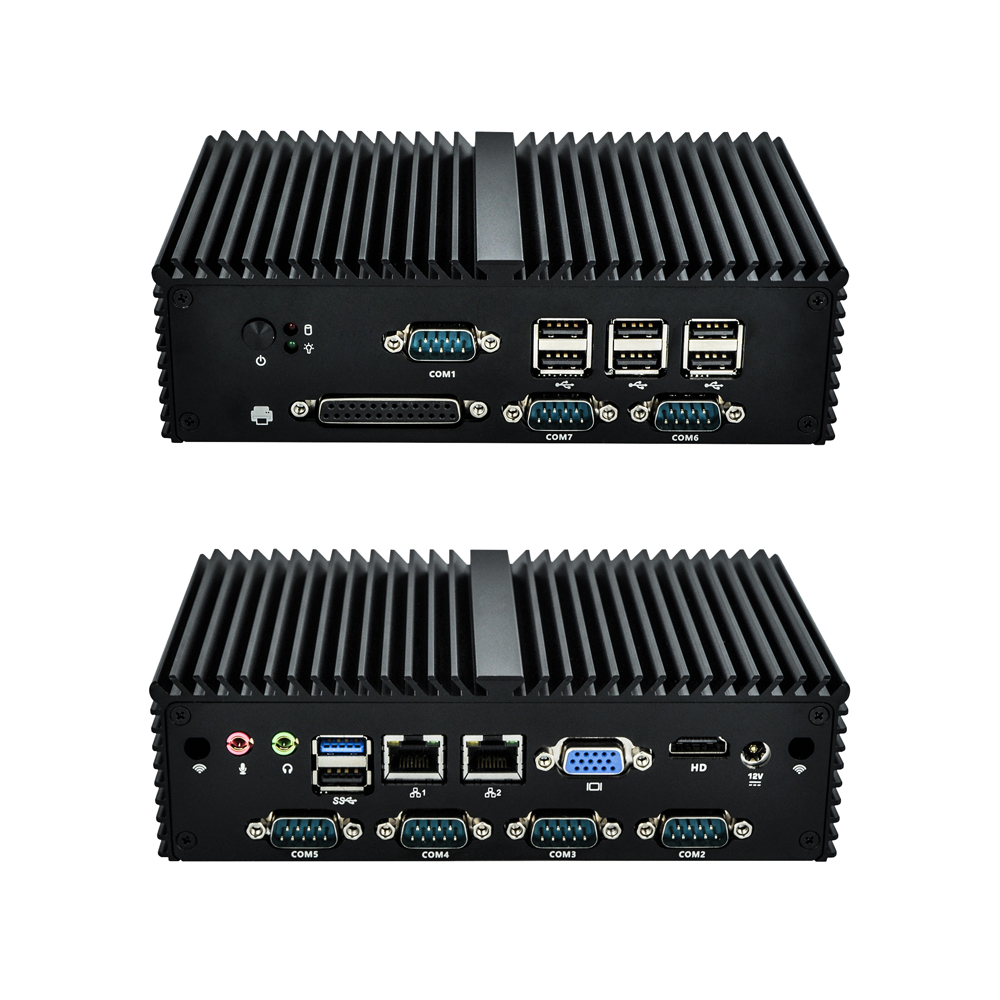

Compatible Systems

Q10100X-S04Q10100X-S04Q10100XP-S04Q10100XP-S04Q10100XL-S04Q10100XL-S04Q10100SN-S06Q10100SN-S06Q10100SN-S04Q10100SN-S04

This product is available via inquiry and OEM/ODM customization.

Send Inquiry
Q1800G2-XQ1900G2-XMB3J213-0122MB3J213-0125MB3J213-0111MB3J213-0121MB3J213-0123MB2J213-0134MB3J113-0121IntelBay TrailPentiumCeleronATOMN2840J1800J1900N2920N2930N3540

Main Features

  • Intel Bay Trail Processor
  • 1 × VGA, 1 × HDMI, 7 × RS-232
  • 1 × USB 3.0, 7 × USB 2.0, 1 × SATA 3.0
  • 1 × Mini-PCIe, 1 × mSATA
  • 2 × Realtek Gigabit LAN

Processor System

CPUIntel Bay Trail Processor
ChipsetBy CPU
Dimension148× 104mm
Core NumberBy CPU
Max. SpeedBy CPU
L2 CacheBy CPU
BIOSUEFI

Memory

TechnologyDDR3L 1333/1600MHz SDRAM
Max.8GB
Socket1× SO-DIMM

Graphics

ControllerBy CPU
VRAMShared Memory
VGA1
HDMI1
Multi DisplayYes

Ethernet

Interface10/100/1000Mbps
Controller2× Realtek Gigabit LAN
Connector2× RJ-45

Audio

ControllerRealtek HD Audio

Front I/O

Power Button1
LED1× Power LED,1× HDD LED
USB6× USB 2.0
Serial Port1× RS-232,Pin 9 supports 5V/12V

Rear I/O

USB1× USB 3.0,1× USB 2.0
Audio2 (Line-out,Mic-in)
DC-IN1
VGA1
HDMI1
Ethernet2

Storage

Max. Data Transfer RateSATA 3.0 (6.0Gb/S)

Expansion

mSATA1× Full-length Mini PCIe for SSD
Mini PCIe1× Mini PCIe, Full-length Mini PCIe for 4G Half-length Mini PCIe for Wi-Fi by Default

Internal Connector

VGA1, 2 × 5Pin, Pitch 2.0mm
Serial Port6, 2 × 13Pin, Pitch 2.54mm (Option)
Serial Port1, 2 × 5Pin, Pitch 2.0mm
RS-4850
SATA1, SATA 3.0 (6.0Gb/S)
SATA PWR Connector1, 1 × 4Pin, Pitch PH2.0mm
SIM Slot1
AutoStart JumperYes, 1 × 3Pin, Pitch 2.54mm
Clear CMOS Jumper0
GPIO Header1, 2 × 5Pin, Pitch 2.0mm
USB 2 Header1, 1 × 4Pin, Pitch 2.54mm
Front Panel Header1, 2 × 5Pin, Pitch 2.54mm
Speakers Header1, 2 × 5Pin, Pitch 2.54mm
Power Header1, 1 × 2Pin, Pitch 5.5mm (Option)
Input PWR12V DC in, 5.5mm/2.5mm

Environmental

Operating Temperature0-50℃

Accessories

AccessoriesCable for HDD

OS Support

OSWindows 7, Windows 10, Linux

Package Contents

  • Motherboard × 1
  • SATA Combo Cable × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeLegacy ModelCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPDatasheet
MB3J213-0111 Q1800G2-X Bay trail Celeron J1800 2 / 2 2.41Ghz ~ 2.58Ghz 1M Intel HD Graphics 10W
MB3J213-0121 Q1900G2-X Bay trail Celeron J1900 4 / 4 2.00Ghz ~ 2.42Ghz 2M Intel HD Graphics 10W
MB3J213-0122 - Bay trail Celeron N2920 4 / 4 1.86Ghz ~ 2.00Ghz 2M Intel HD Graphics 7.5W
MB3J213-123 - Bay trail Celeron N2930 4 / 4 1.83Ghz ~ 2.16Ghz 2M Intel HD Graphics 7.5W
MB2J213-0134 MB3J213-0125 Bay trail Pentium N3540 4 / 4 2.16Ghz ~ 2.66Ghz 2M Intel HD Graphics 7.5W
