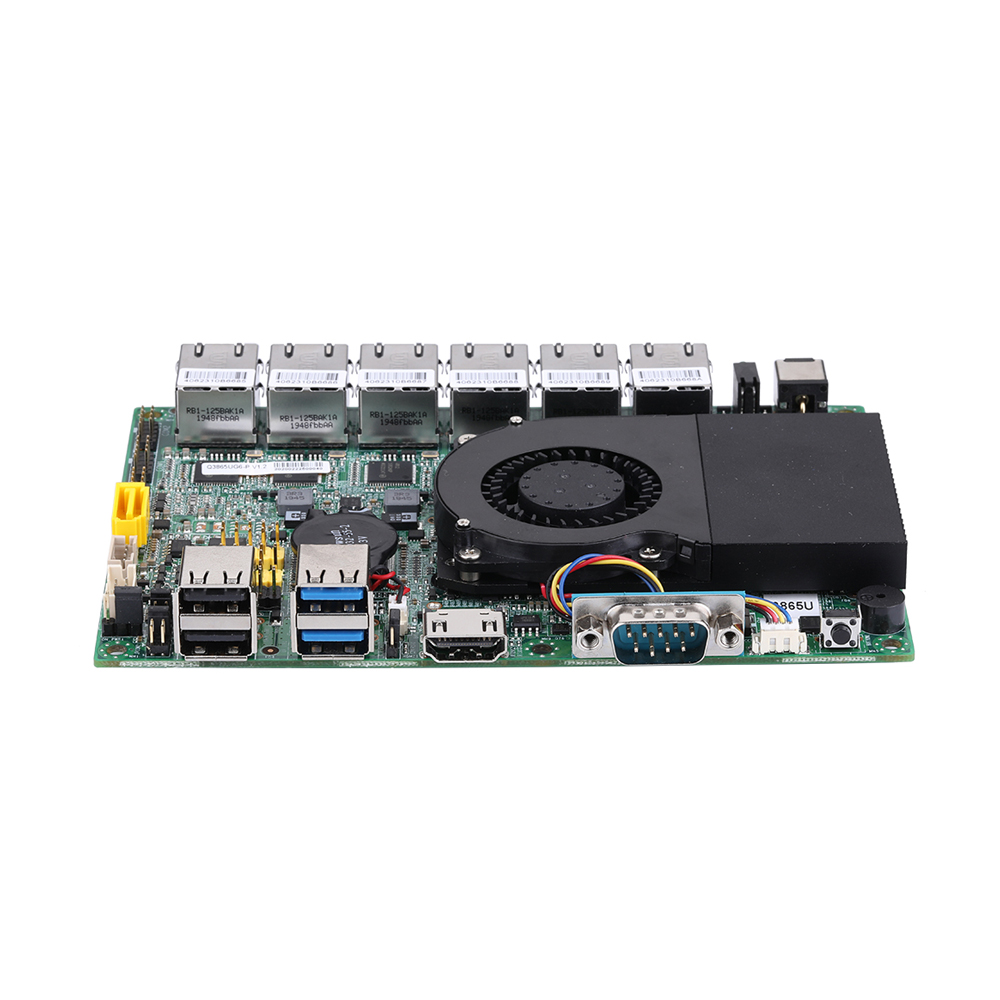

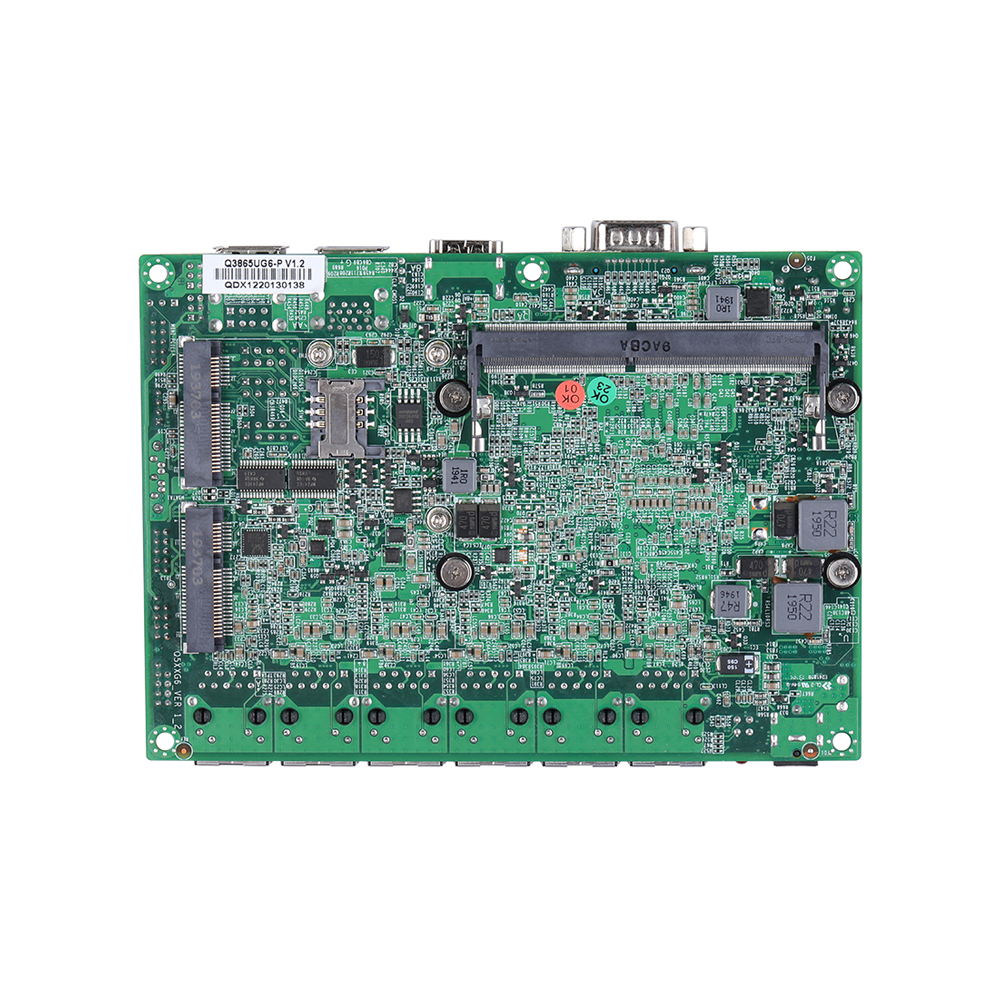

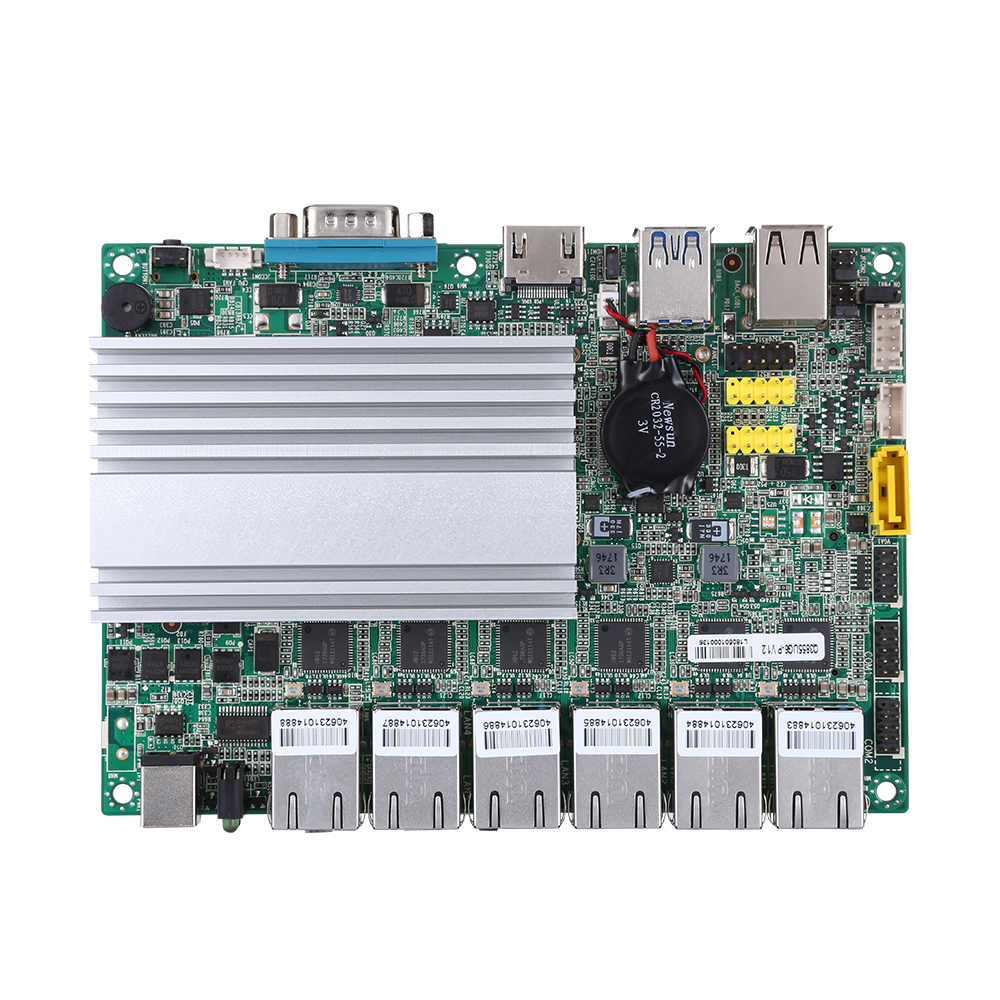

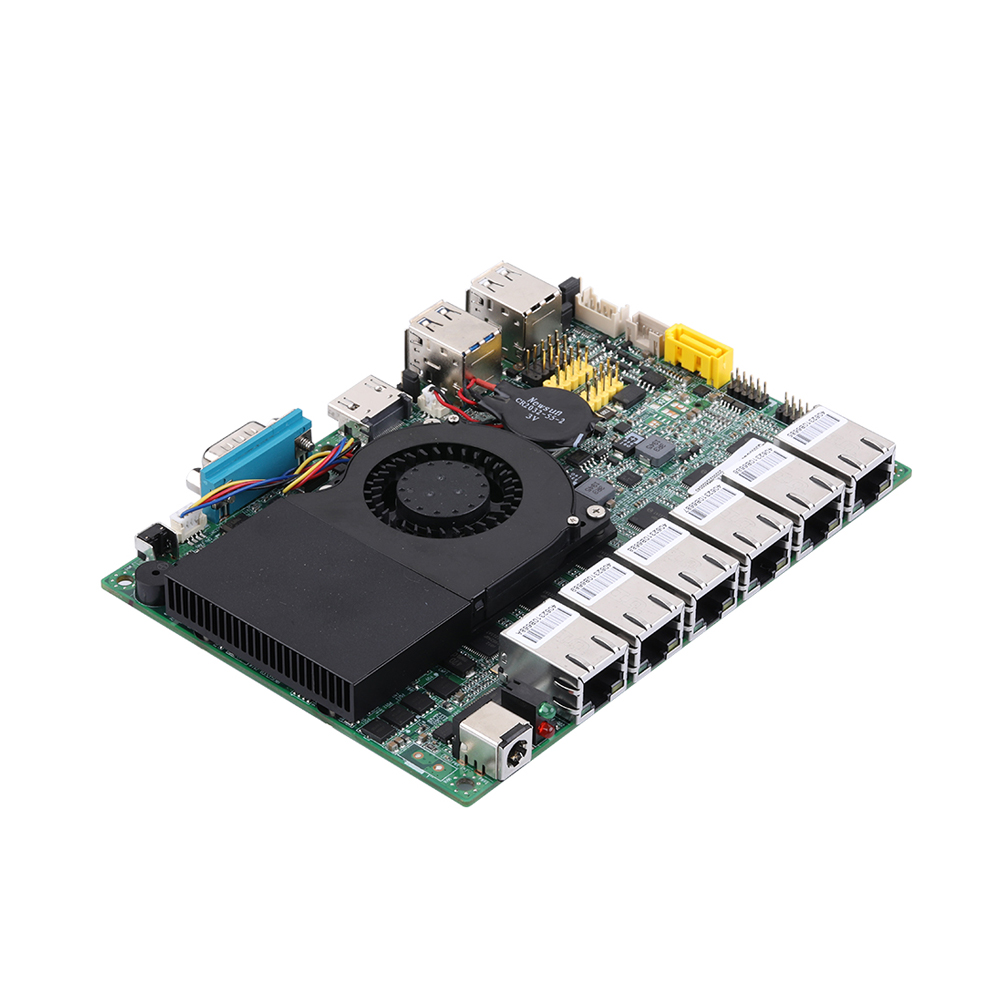

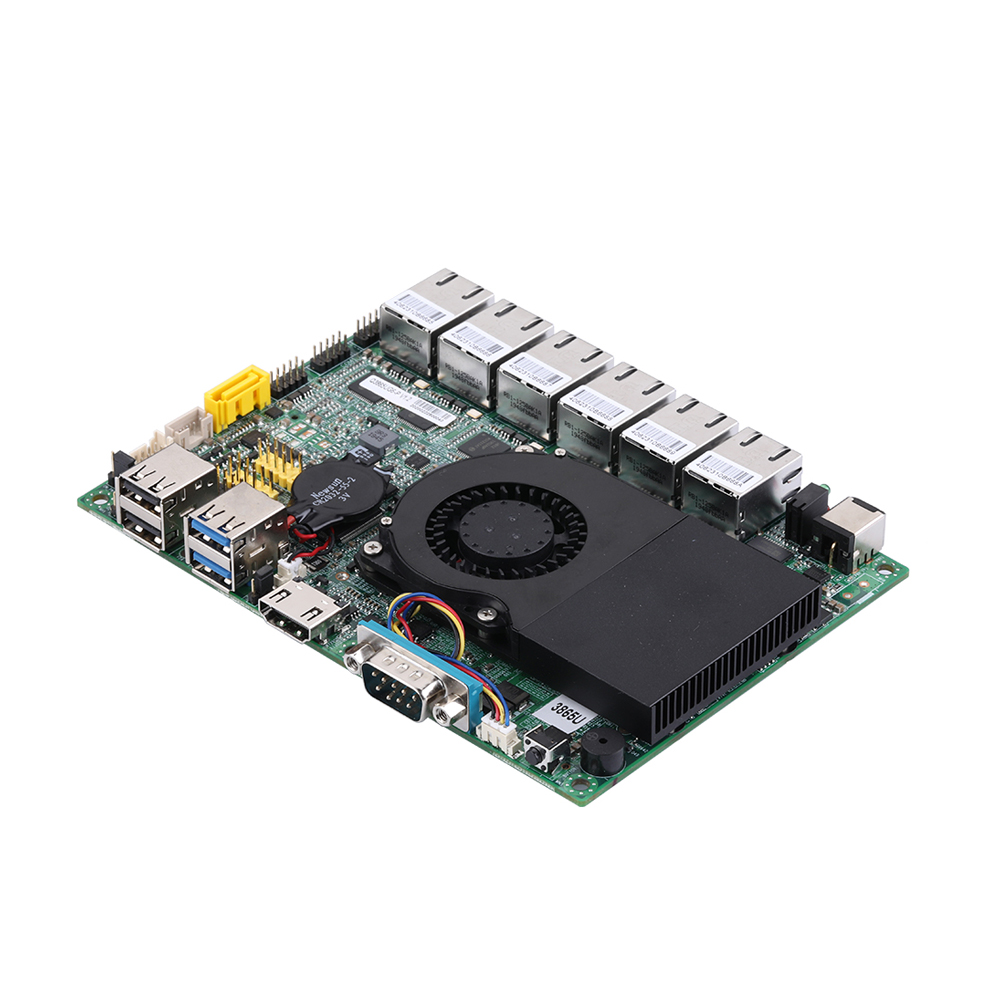

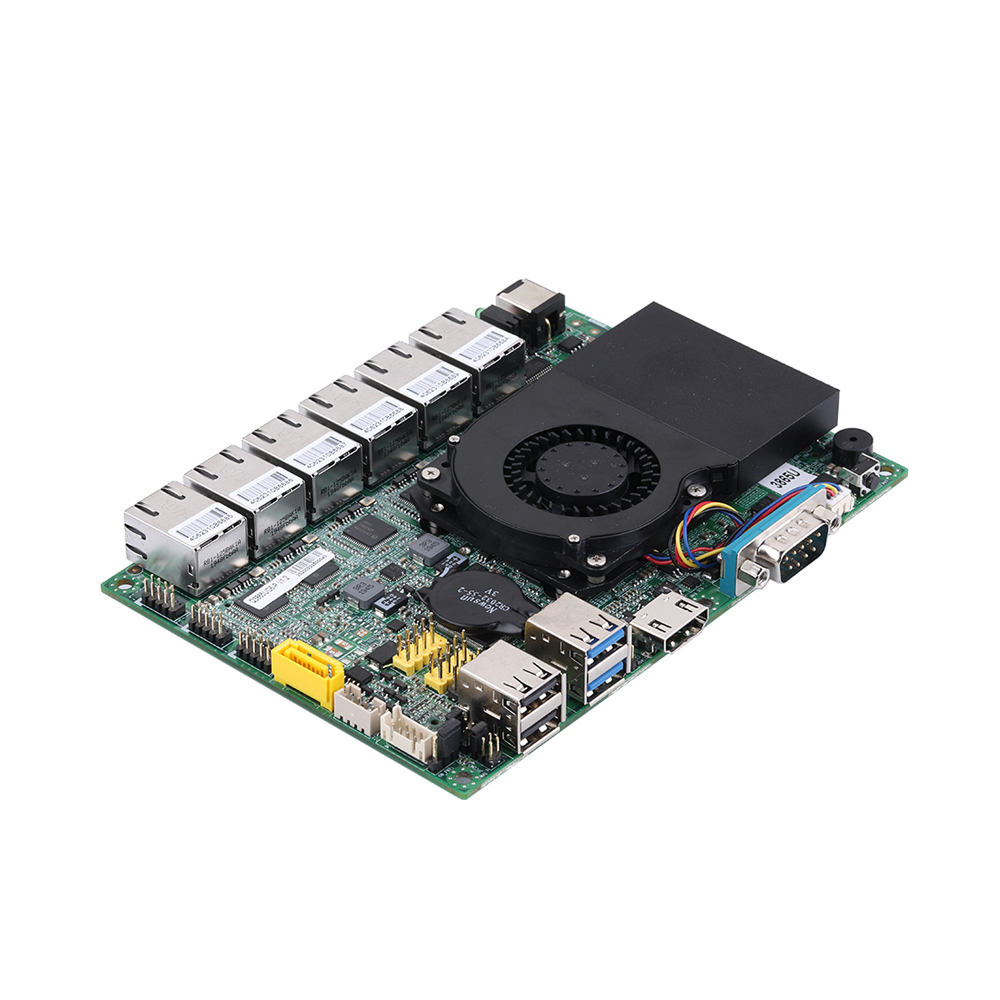

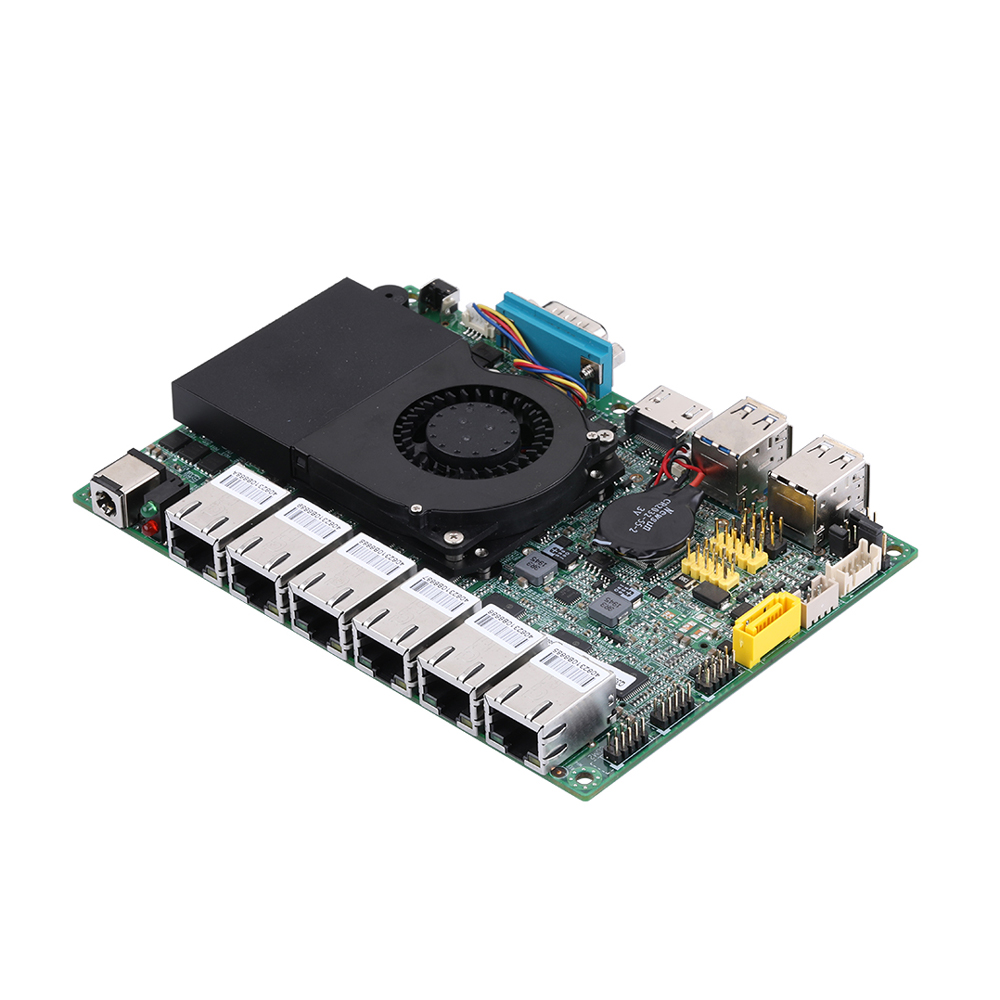

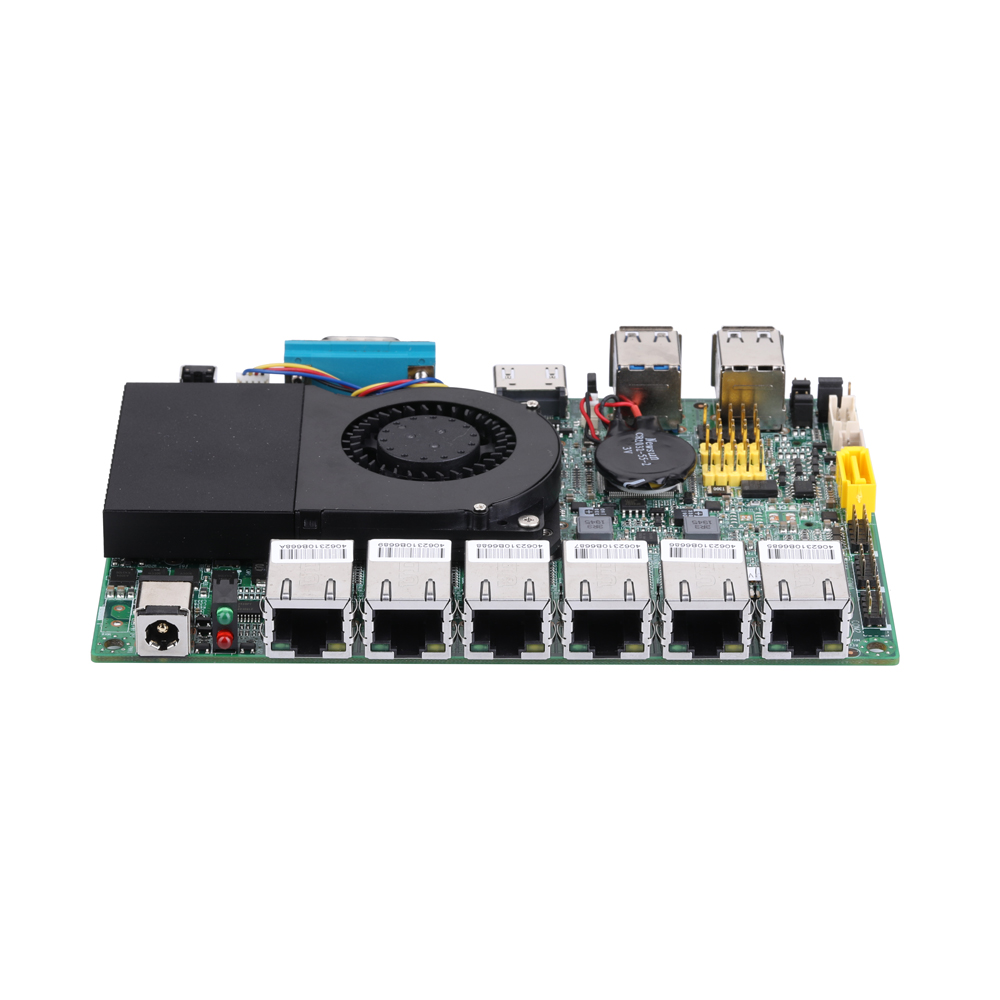

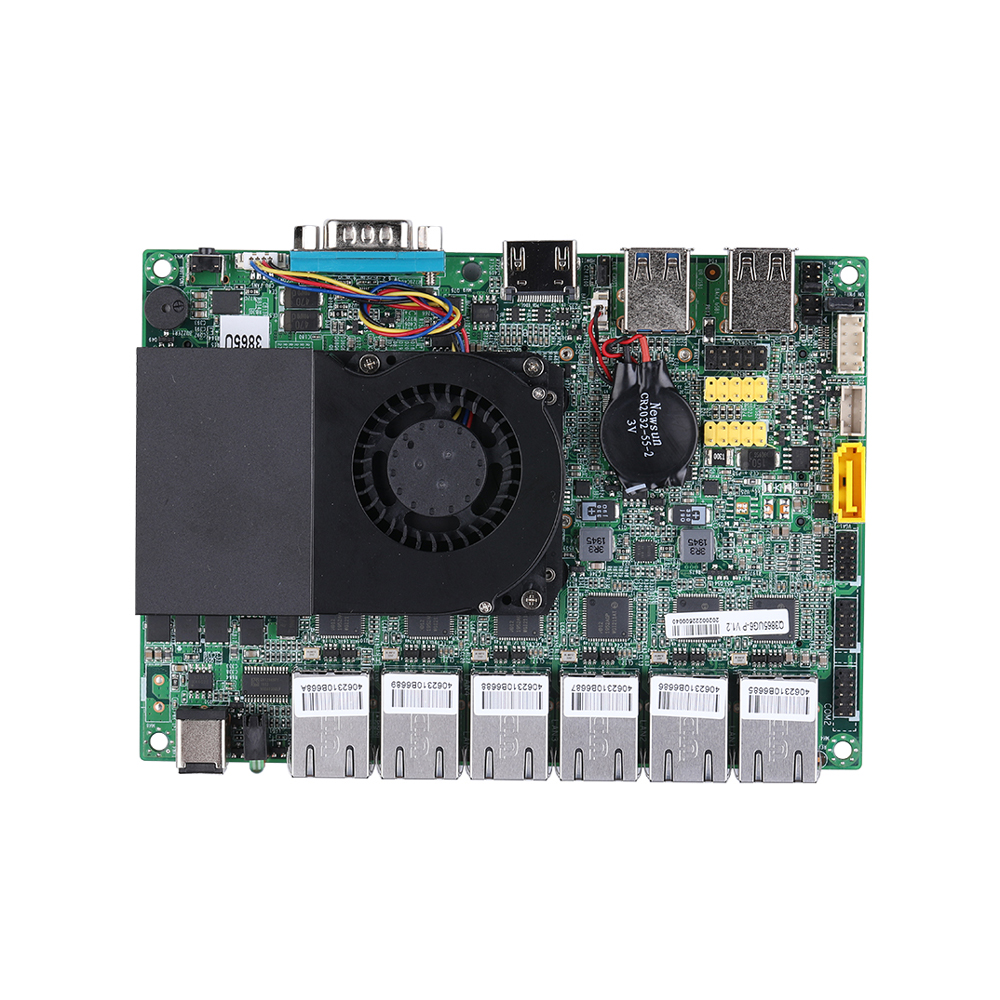

Motherboard MB3U623-0600 Series

Name: Motherboard MB3U623-0600 Series
Brand: Qotom
SKU: MB3U623-0600
Availability: InStock

Model: MB3U623-0600

Total LAN6

LAN Speed1G RJ45

Serial Ports1

Key Specs

CPU: Skylake / Kaby Lake
Memory: DDR4 SO-DIMM · Max 32GB
LAN: 6
Storage: mSATA, SATA
Board Size: 148x104

Compatible Systems

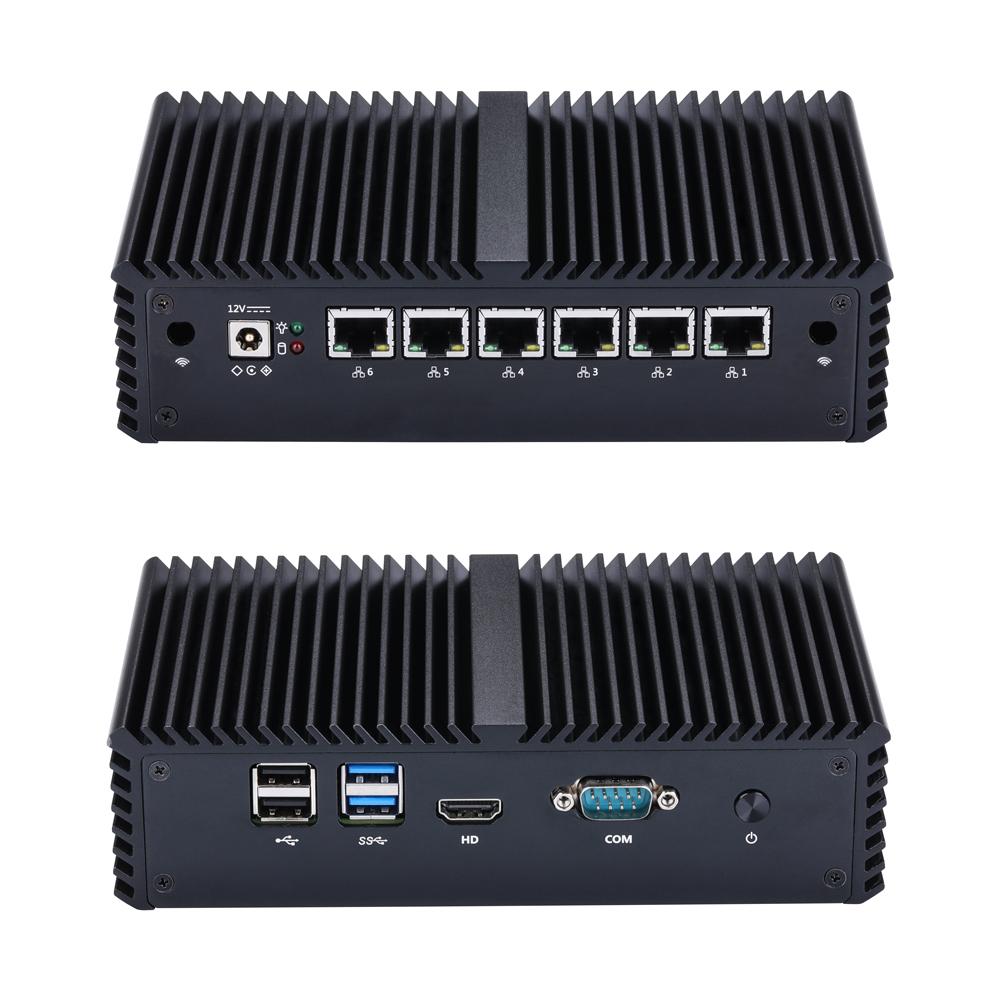

Q30600G6-S05

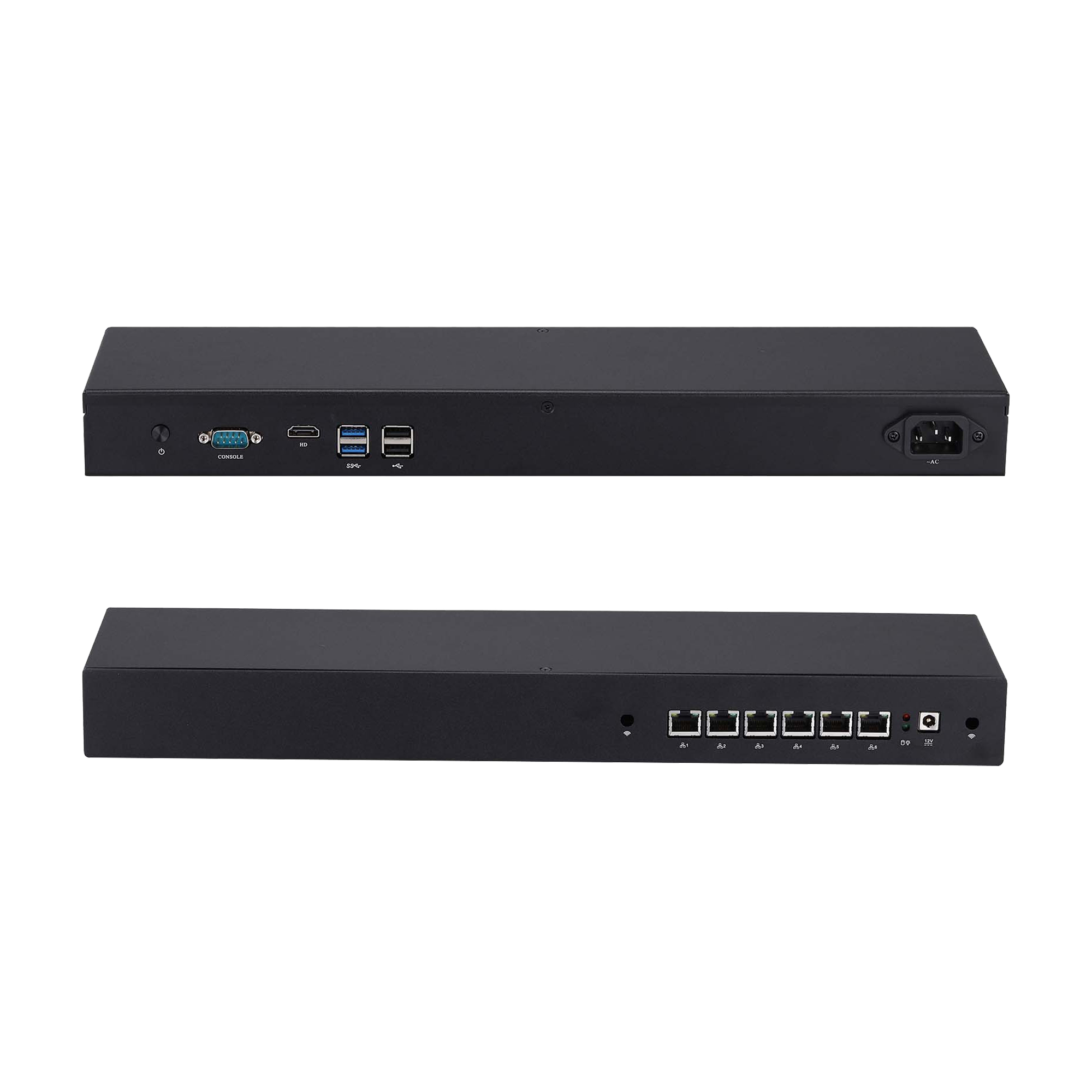

Q30600G6-1U03

This product is available via inquiry and OEM/ODM customization.

Send Inquiry

Main Features

Intel 6 th Skylake-U Processor
Intel 7 th Kabylake-U Processor
1 × HDMI, 1 × RS-232
2 × USB 3.0, 2 × USB 2.0, 1 × SATA 3.0
1 × Mini-PCIe, 1 × mSATA
6 × Intel I211-AT/I210-AT Gigabit LAN

Related Products

Mini PC Q30600PV S02 Series

Q30600PV-S02

Mini PC Q30600SN S13 Series

Q30600SN-S13

Motherboard MB4J61X-090U Series

MB4J61X-090U

Motherboard MB7UT1X-150U Series

MB7UT1X-150U

Mini PC Q30600P S02 Series

Q30600P-S02

Motherboard MB7UT1X-1500 Series

MB7UT1X-1500

CPU	• Intel 6 th Skylake-U Processor • Intel 7 th Kabylake-U Processor
Chipset	By CPU
Dimension	148 × 104mm
Core Number	By CPU
Max. Speed	By CPU
L2 Cache	By CPU
BIOS	UEFI

Technology	DDR4 2133MHz SDRAM
Max.	32GB
Socket	1 × SO-DIMM

Controller	By CPU
VRAM	Shared Memory
VGA	1 (Option)
HDMI	1 (Support HDMI 1.4a)
Multi Display	No

Interface	10/100/1000Mbps
Controller	6 × Intel I211-AT/I210-AT Gigabit LAN
Connector	6 × RJ-45

DC-IN	1
LED	1 × Power LED,1 × HDD LED
Ethernet	6

Mini PC Series

Motherboard Series

NAS Storage Series

OPS Series

Panel PC Series

Accessories

Motherboard MB3U623-0600 Series

Key Specs

Compatible Systems

Main Features

Processor System

Memory

Graphics

Ethernet

Audio

Front I/O

Rear I/O

Storage

Expansion

Internal Connector

Watchdog Timer

Power

Environmental

Accessories

OS Support

Package Contents

Order & Specification Selection

Driver Downloads

Related Products

Power Button	1
USB	2 × USB 3.0, 2 × USB 2.0
Serial Port	1 × RS-232
HDMI	1

mSATA	1 × Full-length Mini PCIe for SSD
Mini PCIe	1 × Mini PCIe Full-length Mini PCIe for 4G Half-length Mini PCIe for Wi-Fi by Default

VGA Header	1, 2 × 5Pin, Pitch 2.0mm (Option)
Serial Port	2, 2 × 5Pin, Pitch 2.0mm, COM1/2 Support 5V/12V (Option)
RS-485	COM1/2 can be set up as RS-485 (Option)
SATA	1, SATA 3.0 (6.0Gb/S)
SATA PWR Connector	1, 1 × 4Pin, Pitch PH2.0mm
SIM Slot	1
AutoStart Jumper	Yes, 1 × 3Pin, Pitch 2.54mm
Clear CMOS Jumper	Yes, 1 × 3Pin, Pitch 2.0mm
GPIO Header	1, 2 × 5Pin, Pitch 2.0mm
USB 2.0 Header	2, 2 × 5Pin, Pitch 2.54mm
Front Panel Header	1, 2 × 5Pin, Pitch 2.54mm
Power Header	1, 1 × 2Pin, Pitch 5.5mm (Option)

Output	From Super I/O to Drag RESETCON#
Interval	256 Segments,0,1,2,3,,,255 sec/min

Ordering Code	Legacy Model	Code Name	Processor Type	Processor Number	Cores / Threads	Frequency	Cache	Graphics	TDP
MB3U623-0611	Q3855UG6-P	Skylake	Celeron	3855U	2 / 2	1.6GHz	2M	Intel HD 510	15W
MB3U623-0612	Q3955UG6-P	Skylake	Celeron	3955U	2 / 2	2.0GHz	2M	Intel HD 510	15W
MB3U623-0631	Q6100UG6-P	Skylake	Core i3	6100U	2 / 4	2.3GHz	3M	Intel HD 520	15W
MB3U623-0651	Q6200UG6-P	Skylake	Core i5	6200U	2 / 4	2.3GHz ~ 2.8GHz	3M	Intel HD 520	15W
MB3U623-0671	Q6500UG6-P	Skylake	Core i7	6500U	2 / 4	2.5GHz ~ 3.1GHz	4M	Intel HD 520	15W
MB3U623-0711	Q3865UG6-P	Kaby Lake	Celeron	3865U	2 / 2	1.8GHz	2M	Intel HD 610	15W
MB3U623-0712	Q3965UG6-P	Kaby Lake	Celeron	3965U	2 / 2	2.2GHz	2M	Intel HD 610	15W
MB3U623-0731	Q7100UG6-P	Kaby Lake	Core i3	7100U	2 / 4	2.4GHz	3M	Intel HD 620	15W
MB3U623-0751	Q7200UG6-P	Kaby Lake	Core i5	7200U	2 / 4	2.5GHz ~ 3.1GHz	3M	Intel HD 620	15W
MB3U623-0771	Q7500UG6-P	Kaby Lake	Core i7	7500U	2 / 4	2.7GHz ~ 3.5GHz	4M	Intel HD 620	15W
