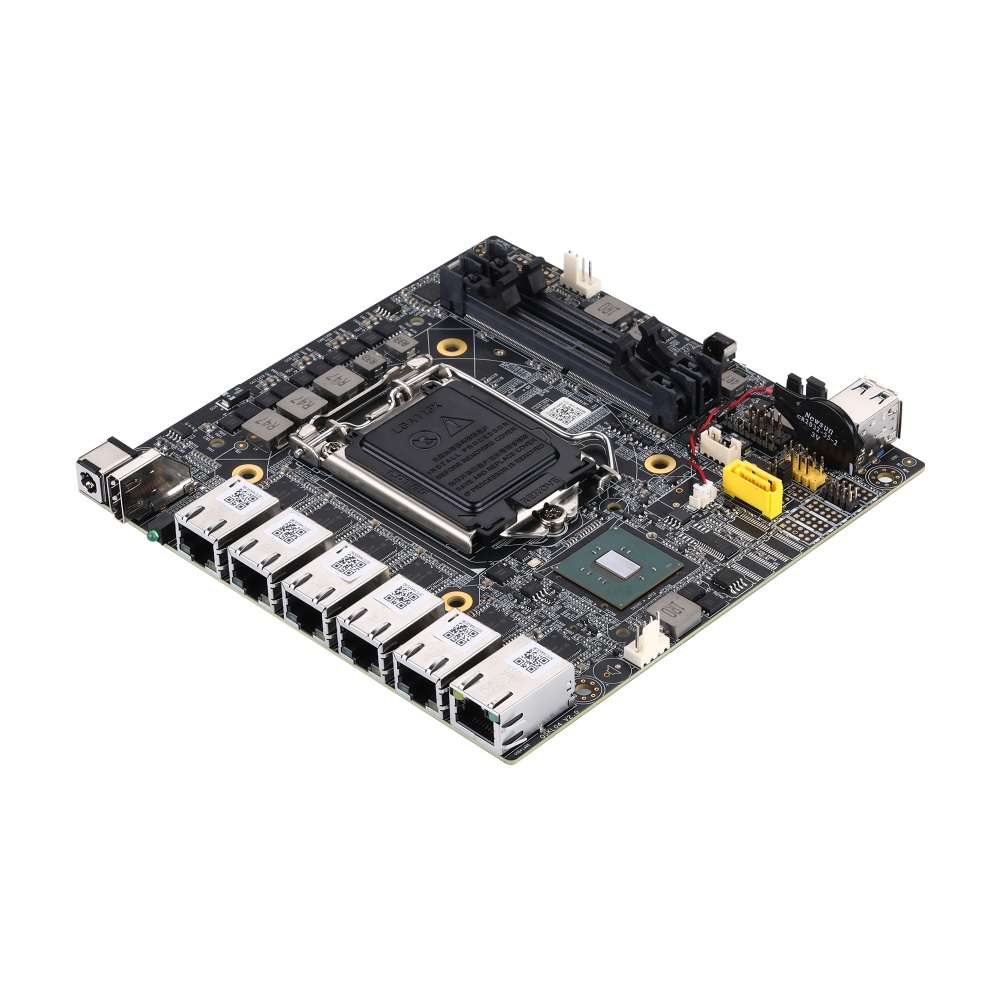

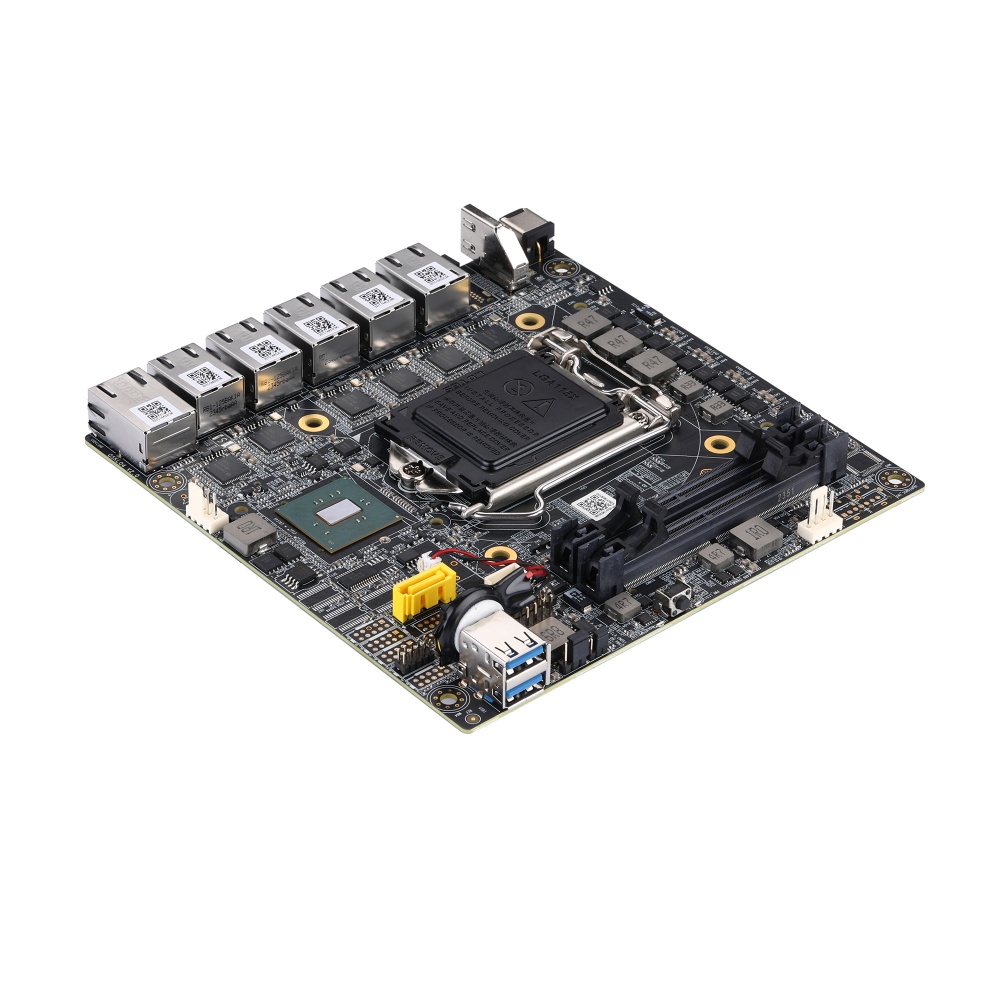

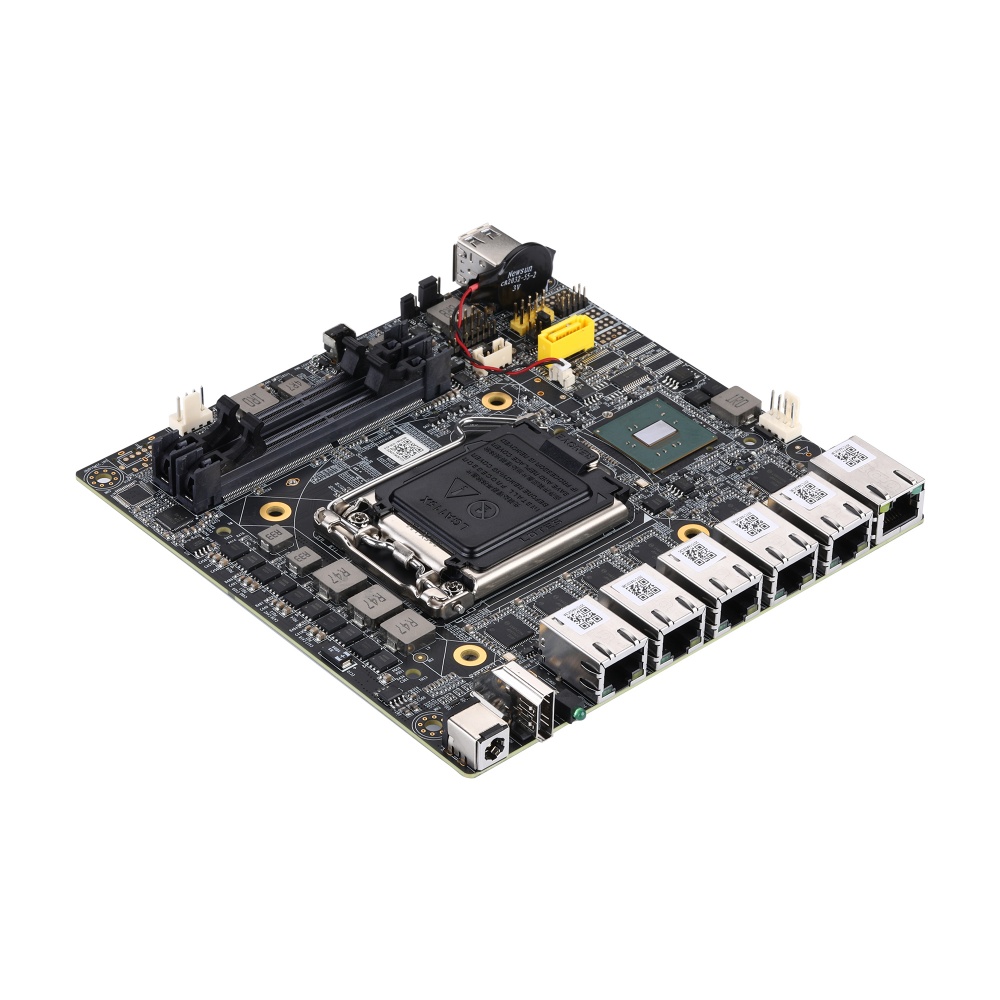

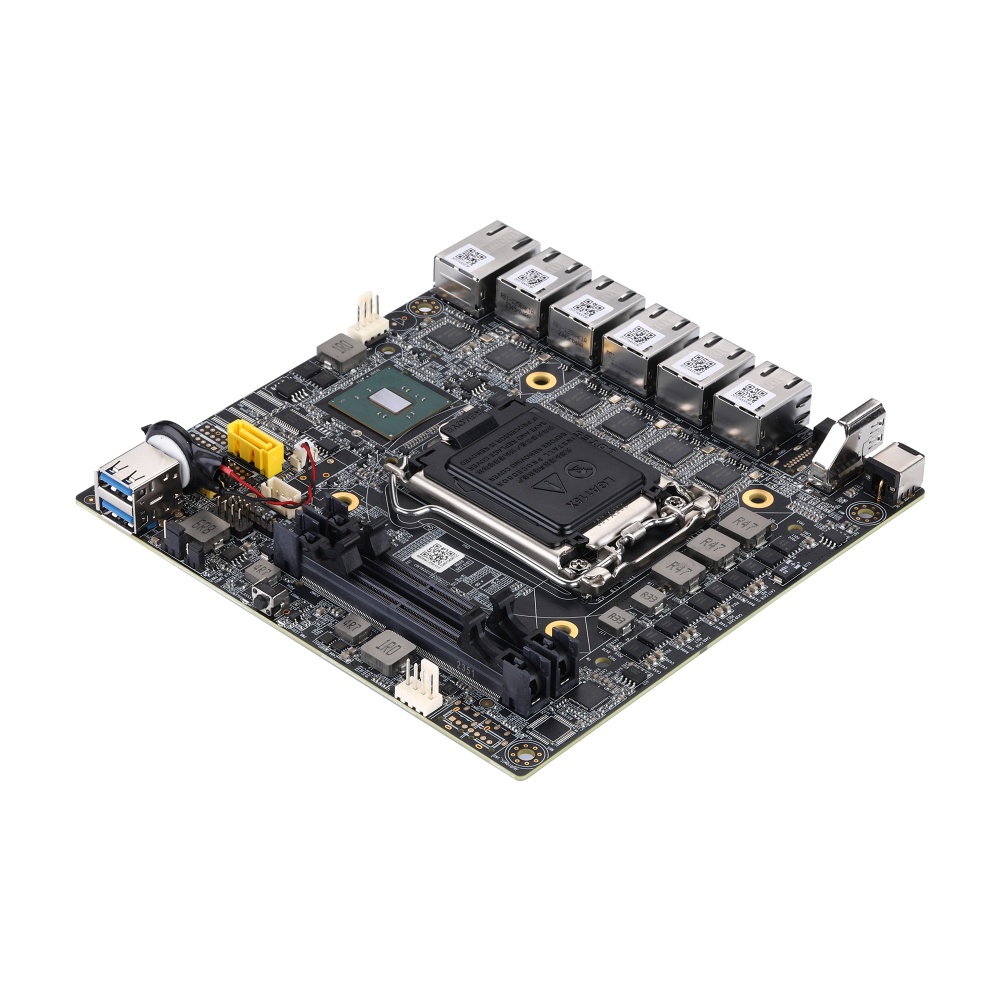

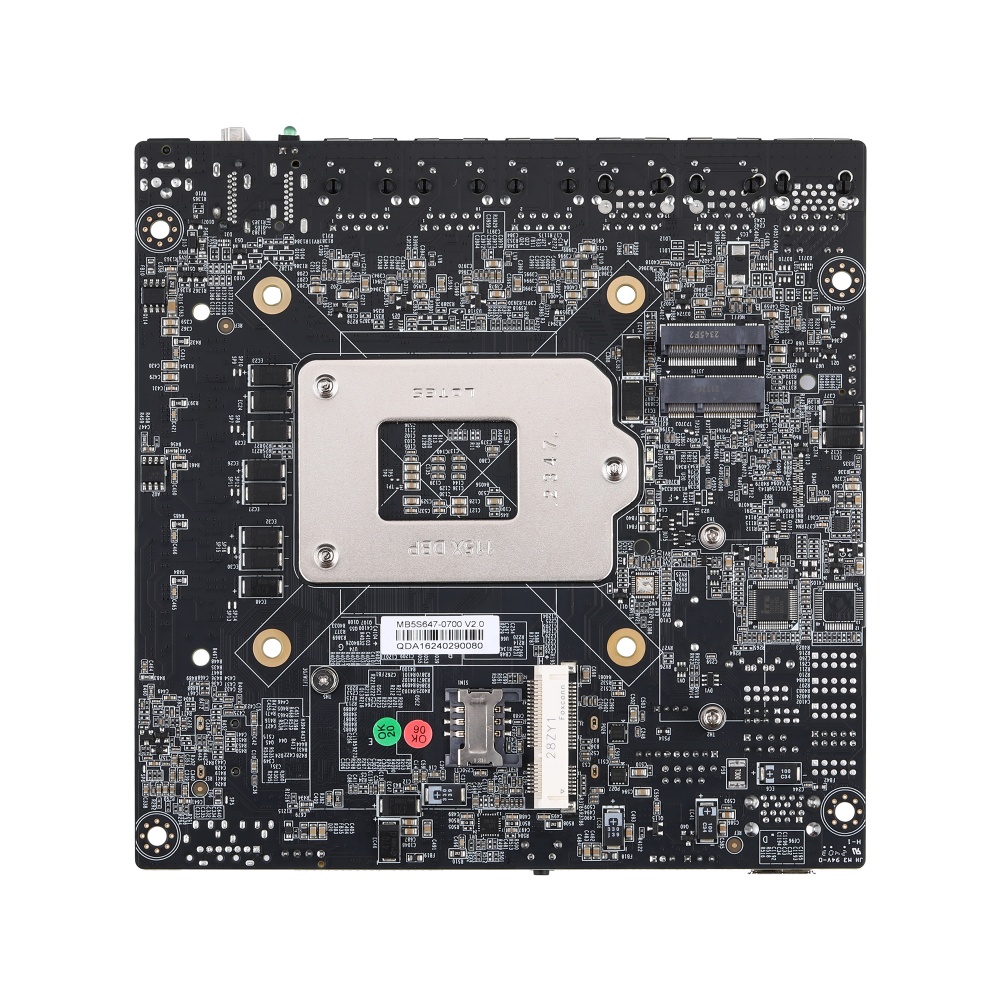

Motherboard MB5S647-0700 Series

Model: MB5S647-0700

Total LAN6
LAN Speed1G RJ45

Key Specs

CPU
Skylake-S / Kaby Lake-S / Coffee Lake-S
Memory
DDR4 SO-DIMM · Max 64GB
LAN
6
Storage
M.2 Mkey, SATA
Board Size
155x155

Compatible Systems

Q70600G6-S09Q70600G6-S09

This product is available via inquiry and OEM/ODM customization.

Send Inquiry
Q6XXG6-PMB5S647-0700IntelSkylake-SKaby Lake-SCoffee Lake-SCoffee Lake-R-SCeleronPentiumCore i3Core i5Core i7Core i9G3900G3920G4400G4500G4520610063006400650066006700G3930G3950G456071007300740075007700G4900G4920G4950810083008400850086008700G5400G5420G5500G562091009300932094009500960097009900

Main Features

  • Intel 6 th Skylake-S Processor
  • Intel 7 th Kabylake-S Processor
  • Intel 8 th Coffee Lake-S Processor
  • Intel 9 th Coffee Lake-R-S Processor
  • 1 × HDMI, • 2 × USB 3.0, 1 × SATA 3.0
  • 1 × Mini-PCIe, 2 × M.2
  • 6 × Intel I211-AT/I210-AT Gigabit LAN

Processor System

CPU• Intel 6 th Skylake-S Processor • Intel 7 th Kabylake-S Processor • Intel 8 th Coffee Lake-S Processor • Intel 9 th Coffee Lake-R-S Processor
ChipsetIntel B150
Dimension155 × 155mm
Core NumberBy CPU
Max. SpeedBy CPU
L2 CacheBy CPU
BIOSUEFI

Memory

TechnologyDDR4 2133MHz SDRAM
Max.64GB
Socket2 × SO-DIMMs

Graphics

ControllerBy CPU
VRAMShared Memory
VGA0
HDMI1 (Support HDMI 1.4a)
Multi DisplayNo

Ethernet

Interface10/100/1000Mbps
Controller6 × Intel I211-AT/I210-AT Gigabit LAN
Connector6 × RJ-45

Audio

ControllerNo

Front I/O

Power Button1
LED1 × Power LED, 1 × HDD LED
USB2 × USB 3.0
AudioNo

Rear I/O

DC-IN1
HDMI1
Ethernet6
LED1 × Power LED

Storage

Max. Data Transfer RateSATA 3.0 (6.0Gb/S)

Expansion

M.21 × M.2 for SSD (M key, Type: 2280)
M.21 × M.2 for Wi-Fi (E key, Type: 2230)
Mini PCIe1 × Mini PCIe, Full-length Mini PCIe for 4G by Default, Half-length Mini PCIe for Wi-Fi

Internal Connector

TPM1 (Option)
VGA Header1, 2 × 5Pin, Pitch 2.0mm (Option)
Serial Port0
RS-4850
SATA1, SATA 3.0 (6.0Gb/S)
SATA PWR Connector1, 1 × 4Pin, Pitch PH2.0mm
SIM Slot1
AutoStart JumperYes, 1 × 3Pin, Pitch 2.54mm
Clear CMOS JumperYes, 1 × 3Pin, Pitch 2.0mm
GPIO Header1, 2 × 5Pin, Pitch 2.0mm
USB 2.0 Header2, 2 × 5Pin, Pitch 2.54mm
Front Panel Header1, 2 × 5Pin, Pitch 2.0mm
Power Header1, 1 × 2Pin, Pitch 4.2mm (Option)

Watchdog Timer

OutputFrom Super I/O to Drag RESETCON#
Interval256 Segments,0,1,2,3,,,255 sec/min

Power

Input PWR12V DC in, 5.5mm/2.5mm

Environmental

Operating Temperature0-50℃

Accessories

AccessoriesCable for HDD

OS Support

OSWindows 10, Linux Windows 7 (Only for 6th Gen Skylake)

Package Contents

  • Motherboard × 1
  • SATA Combo Cable × 1

* Actual package contents may vary. Subject to change without notice.
