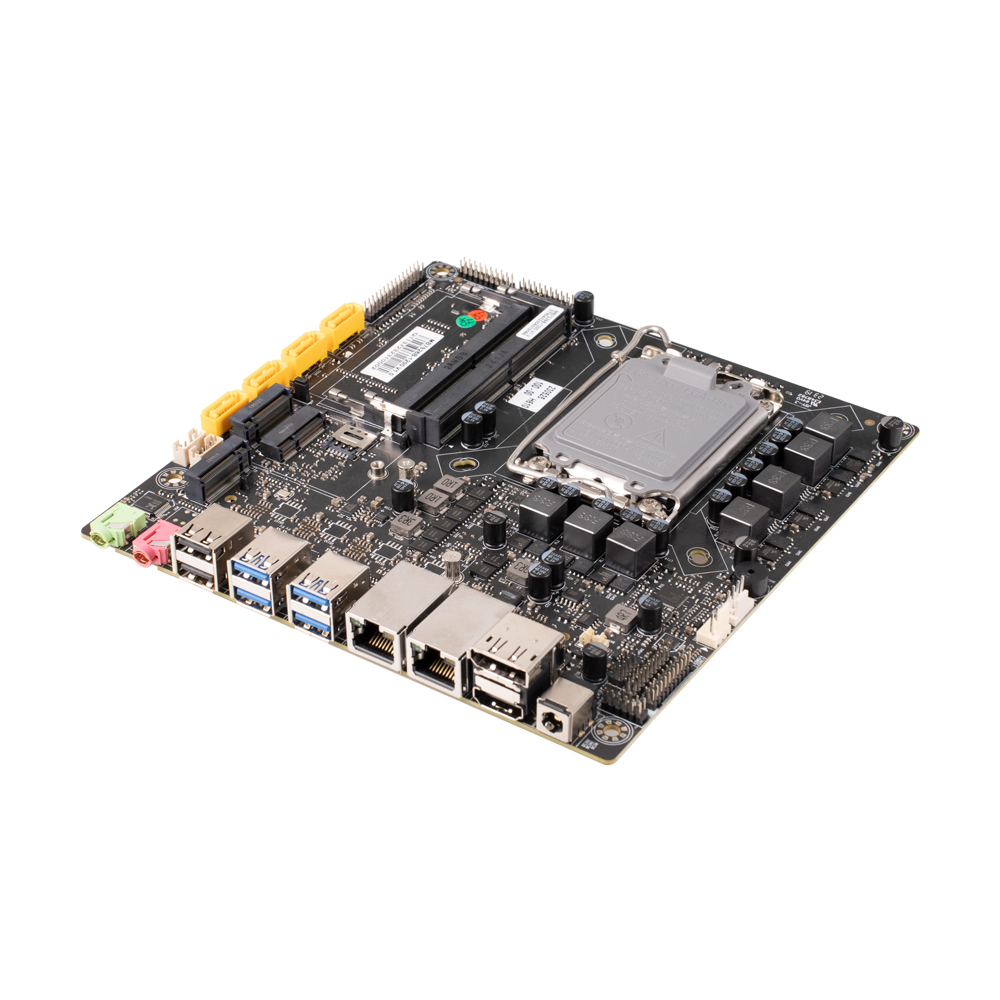

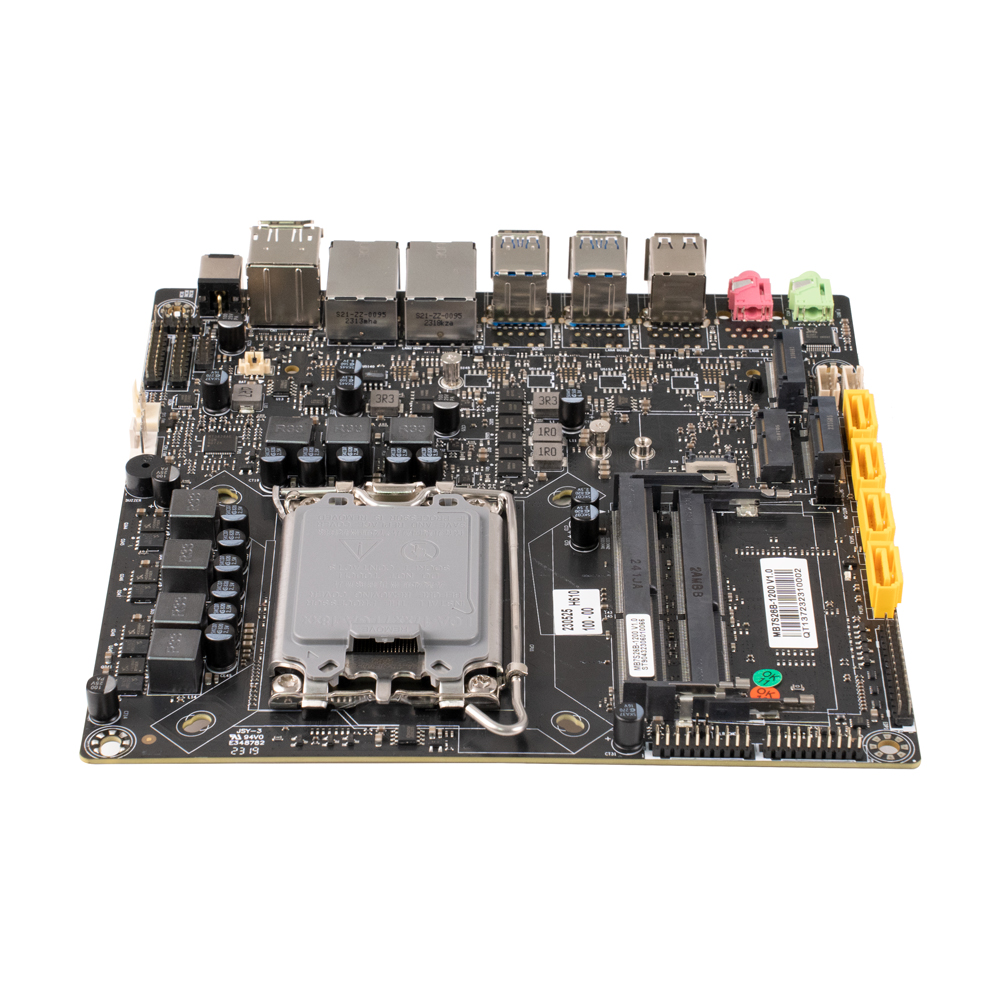

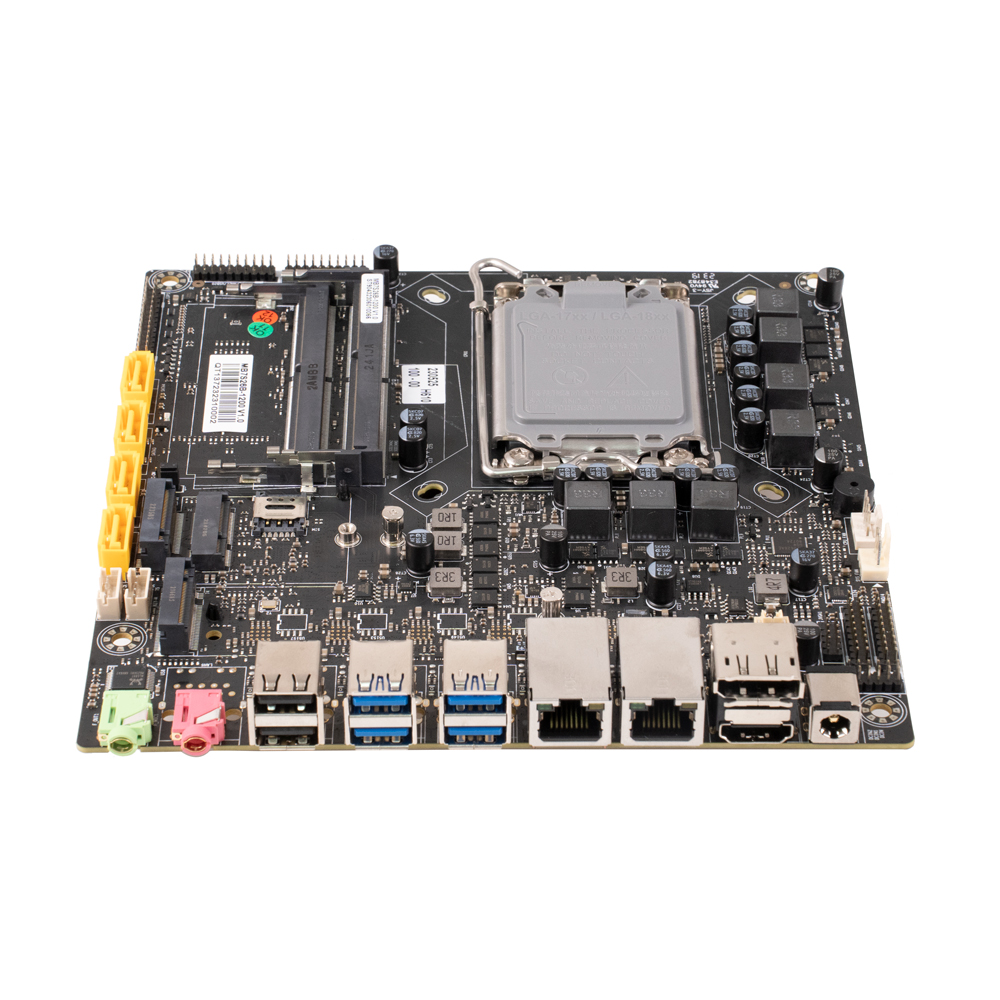

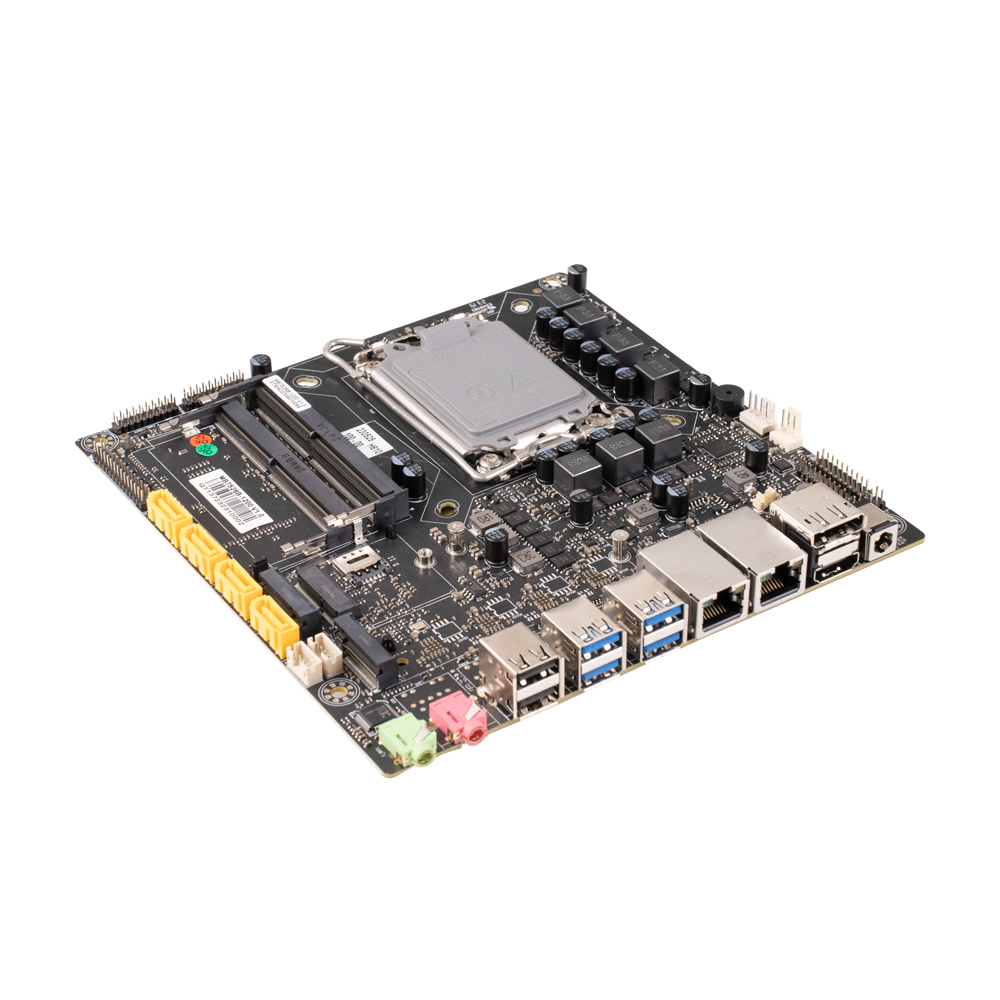

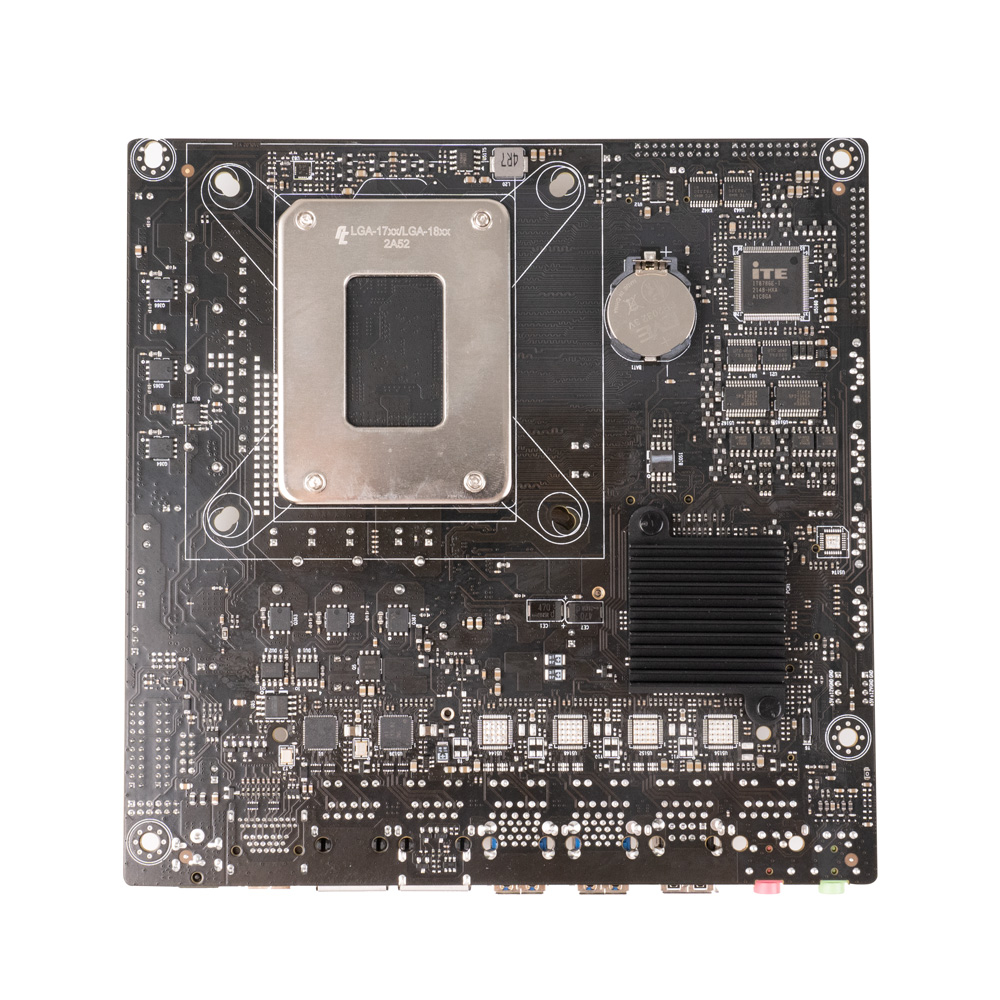

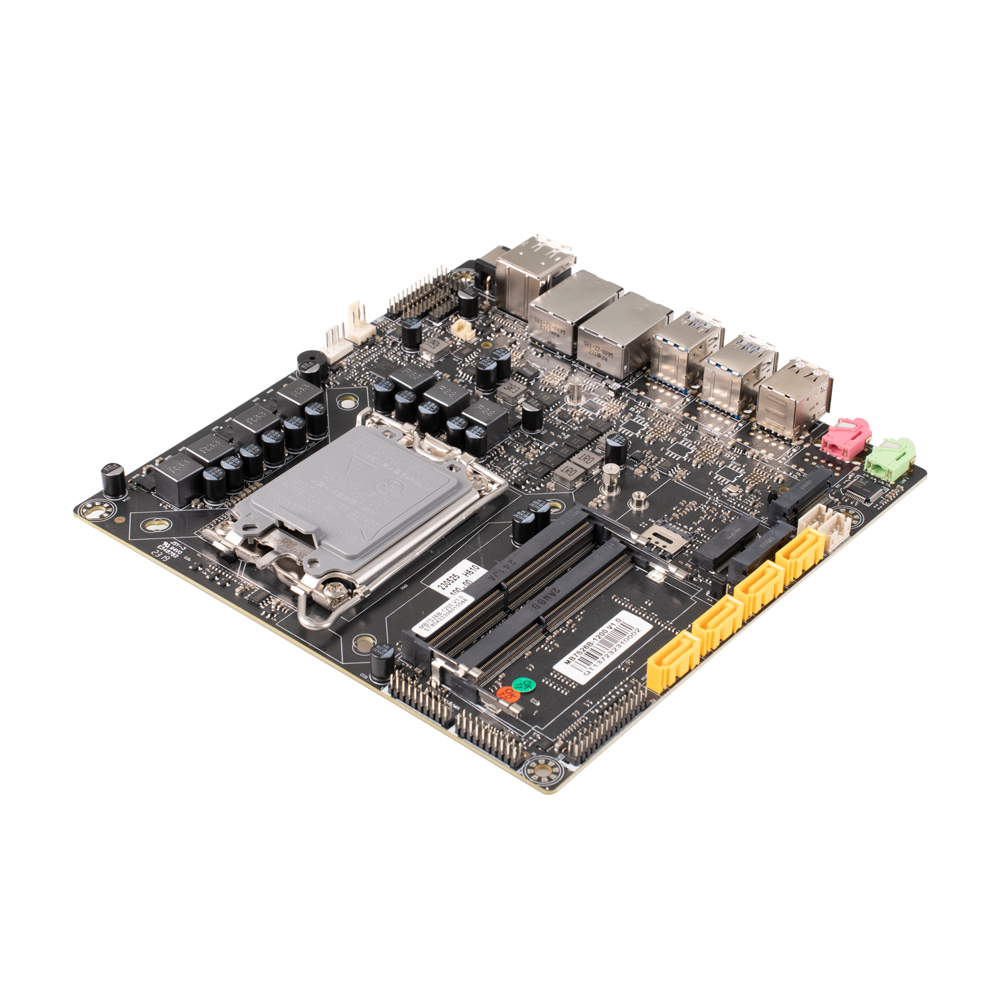

Motherboard MB7S26B-1200 Series

Name: Motherboard MB7S26B-1200 Series
Brand: Qotom
SKU: MB7S26B-1200
Availability: InStock

Model: MB7S26B-1200

Total LAN2

LAN Speed2.5G RJ45

Serial Ports6

Key Specs

CPU: Alder lake-S / Raptor Lake-S
Memory: DDR4 SO-DIMM · Max 64GB
LAN: 2
Storage: M.2 Mkey, SATA
Board Size: 170x170

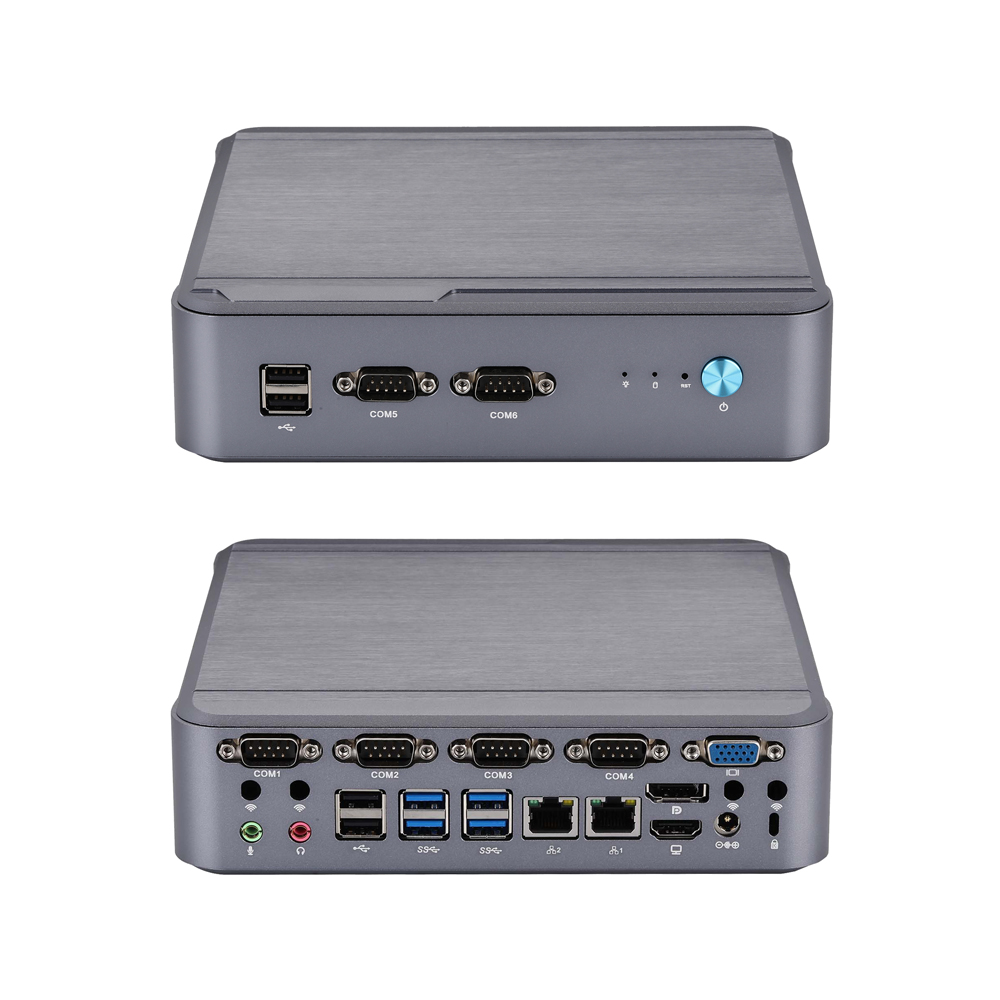

Compatible Systems

This product is available via inquiry and OEM/ODM customization.

Send Inquiry

Main Features

Intel 12 th Alder lake -S Processor
Intel 13 th Raptor Lake-S Processor
1 × HDMI, 1 × Display Port, 1 × VGA (Header)
6 × RS-232, 2 × RS-485
4 × USB 3.0, 2 × USB 2.0
3 × M.2, 4 × SATA 3.0
2 × Intel I225-V/I226-V 2.5G LAN

Related Products

Mini PC Q71200C S15 Series

Q71200C-S15

Mini PC Q71200X S18 Series

Q71200X-S18

Motherboard MB2J260-0700 Series

MB2J260-0700

Mini PC Q71200G6 1U17 Series

Q71200G6-1U17

Motherboard MB2U240-0900 Series

MB2U240-0900

Mini PC Q71200S S18 Series

Q71200S-S18

CPU	• Intel 12 th Alder lake -S Processor • Intel 13 th Raptor Lake-S Processor
Chipset	Intel H610
Dimension	170 × 170mm
Core Number	By CPU
Max. Speed	By CPU
L2 Cache	By CPU
BIOS	UEFI

Technology	DDR4 2400Mhz SDRAM
Max.	64GB
Socket	2 × SO-DIMMs

Controller	By CPU
VRAM	Shared Memory
VGA	1 (Header)
Display Port	1
HDMI	1 (Support HDMI 1.4a)
EDP	1
Multi Display	Yes

Interface	100/1000/2500Mbps
Controller	2 × Intel I225-V/I226-V 2.5G LAN
Connector	2 × RJ-45

USB	4× USB 3.0,2× USB 2.0
Audio	2 (Mic-in, Line-out)
DC-IN	1
HDMI	1
Display Port	1
Ethernet	2

Mini PC Series

Motherboard Series

NAS Storage Series

OPS Series

Panel PC Series

Accessories

Motherboard MB7S26B-1200 Series

Key Specs

Compatible Systems

Main Features

Processor System

Memory

Graphics

Ethernet

Audio

Rear I/O

Storage

Expansion

Internal Connector

Watchdog Timer

Power

Environmental

Accessories

OS Support

Package Contents

Compare Similar Products

Driver Downloads

Related Products

M.2	1× M.2 for SSD (M key, Type: 2280,PCIe 4.0 × 4)
M.2	1 × M.2 for 4G/5G (B key, Type: 3042/3052), 5G Defaults to PCIe Mode, USB 3.0 Mode Requires Customization
M.2	1 × M.2 for Wi-Fi (E key, Type: 2230)

TPM	1 (Option)
EDP	1, 2 × 15Pin, Pitch 1.0mm
VGA Header	1, 2 × 5Pin, Pitch 2.0mm
Serial Port	6, 2 × 5Pin, Pitch 2.0mm
RS-485	COM3/4 can be set up as RS-422/RS-485
PS/2	0
SATA	4, SATA 3.0 (6.0Gb/S)
SATA PWR Connector	2, 1 × 4Pin, Pitch PH2.0mm
SIM Slot	1
AutoStart Jumper	Yes, 1 × 3Pin, Pitch 2.0mm
Clear CMOS Jumper	Yes, 1 × 2Pin, Pitch 2.0mm
USB 2.0 Header	2, 2 × 5Pin, Pitch 2.0mm
Front Panel Header	1, 2 × 5Pin, Pitch 2.0mm
Power Header	1, 1 × 2Pin, Pitch 5.0mm (Option)

Output	From Super I/O to Drag RESETCON#
Interval	256 Segments,0,1,2,3,,,255 sec/min
