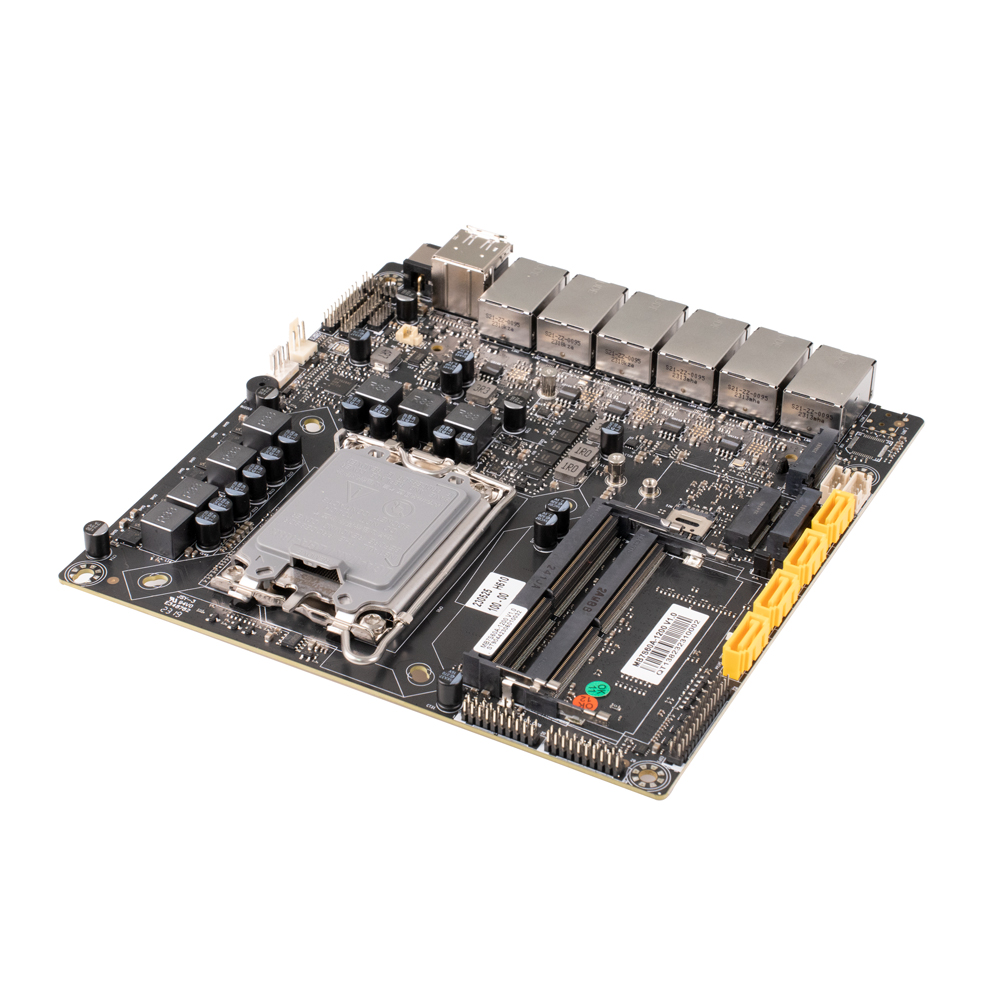

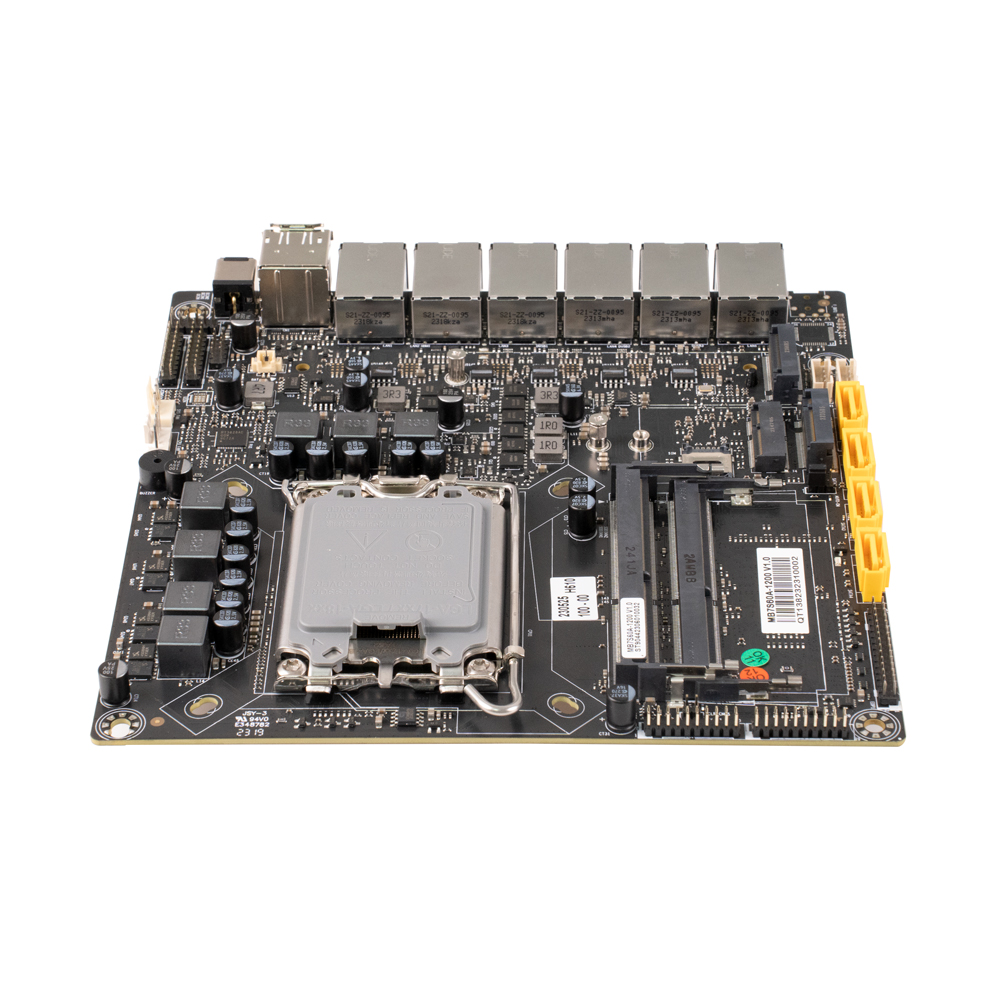

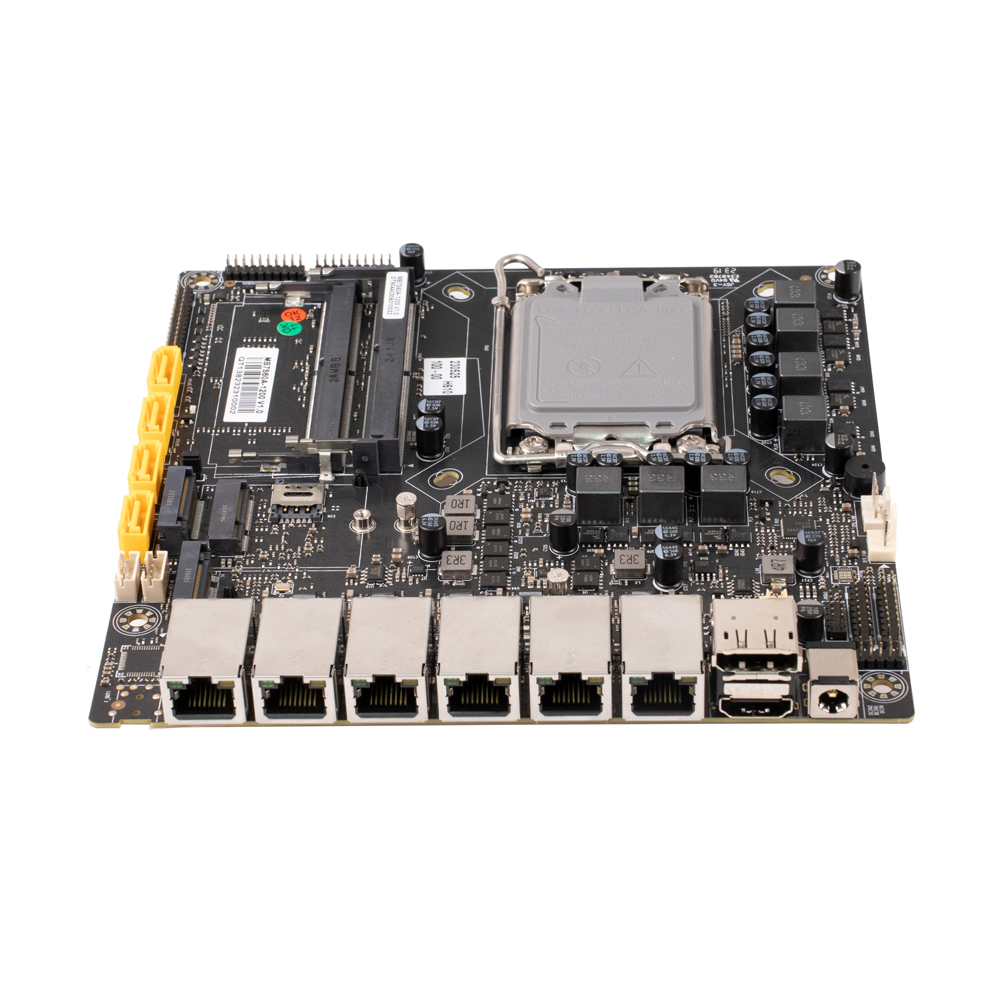

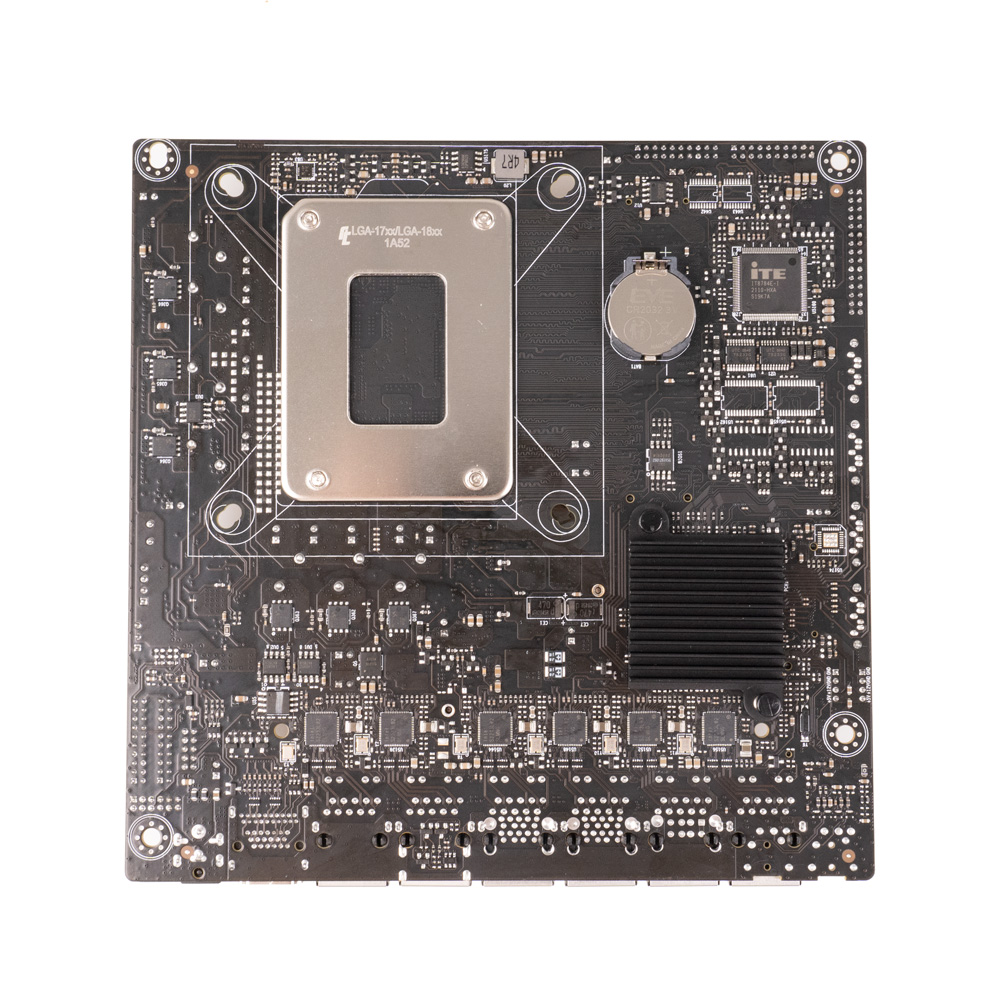

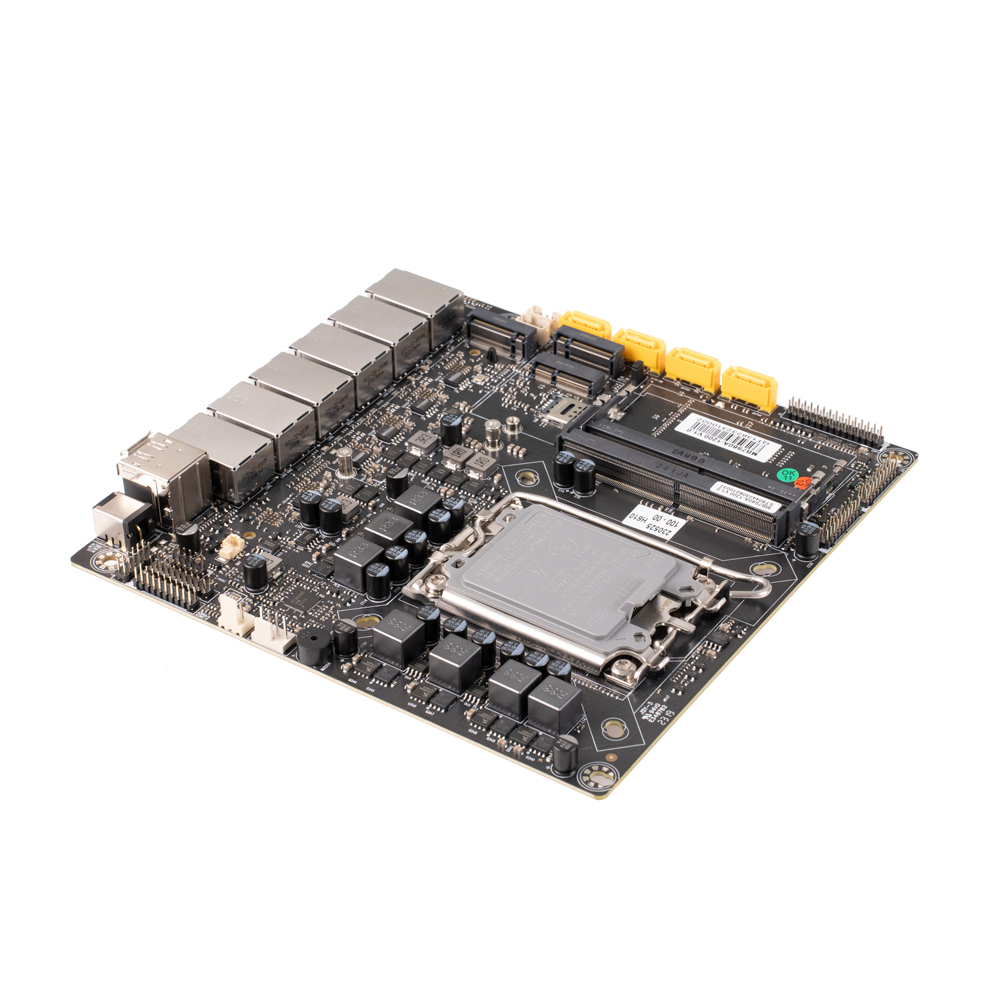

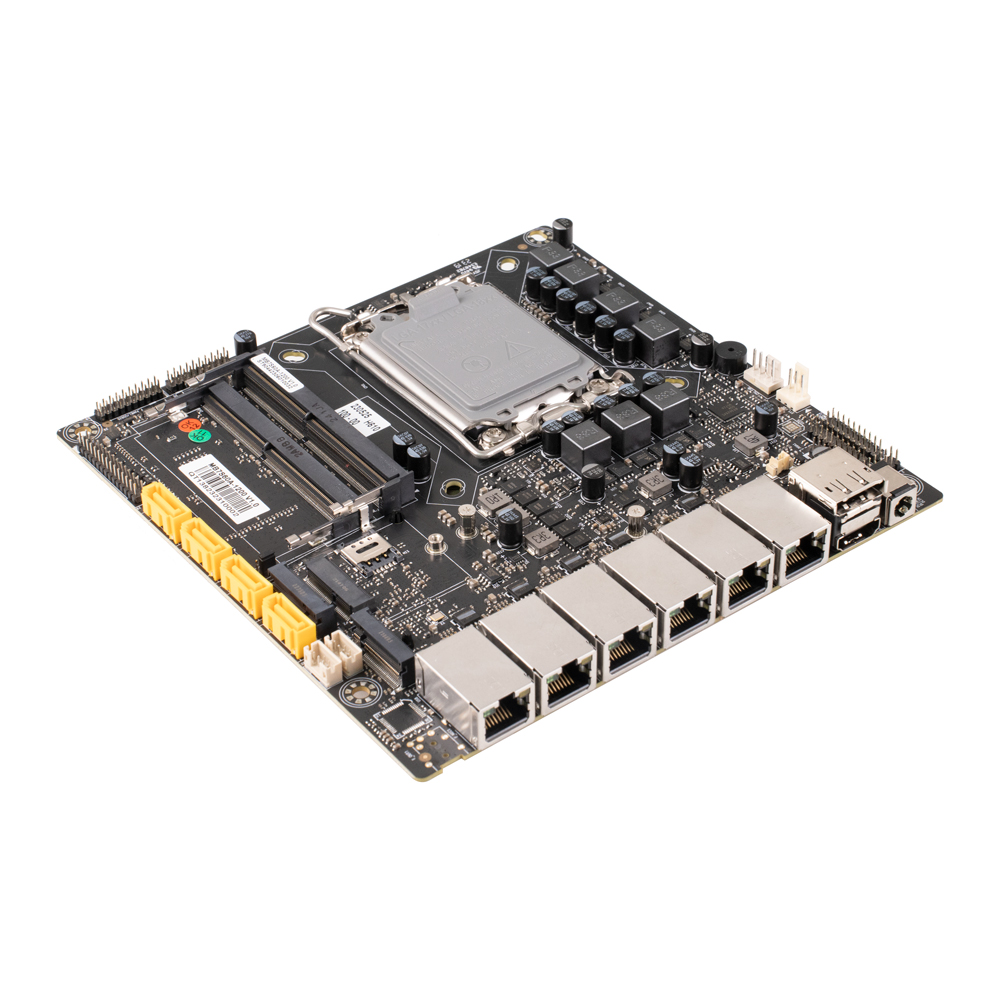

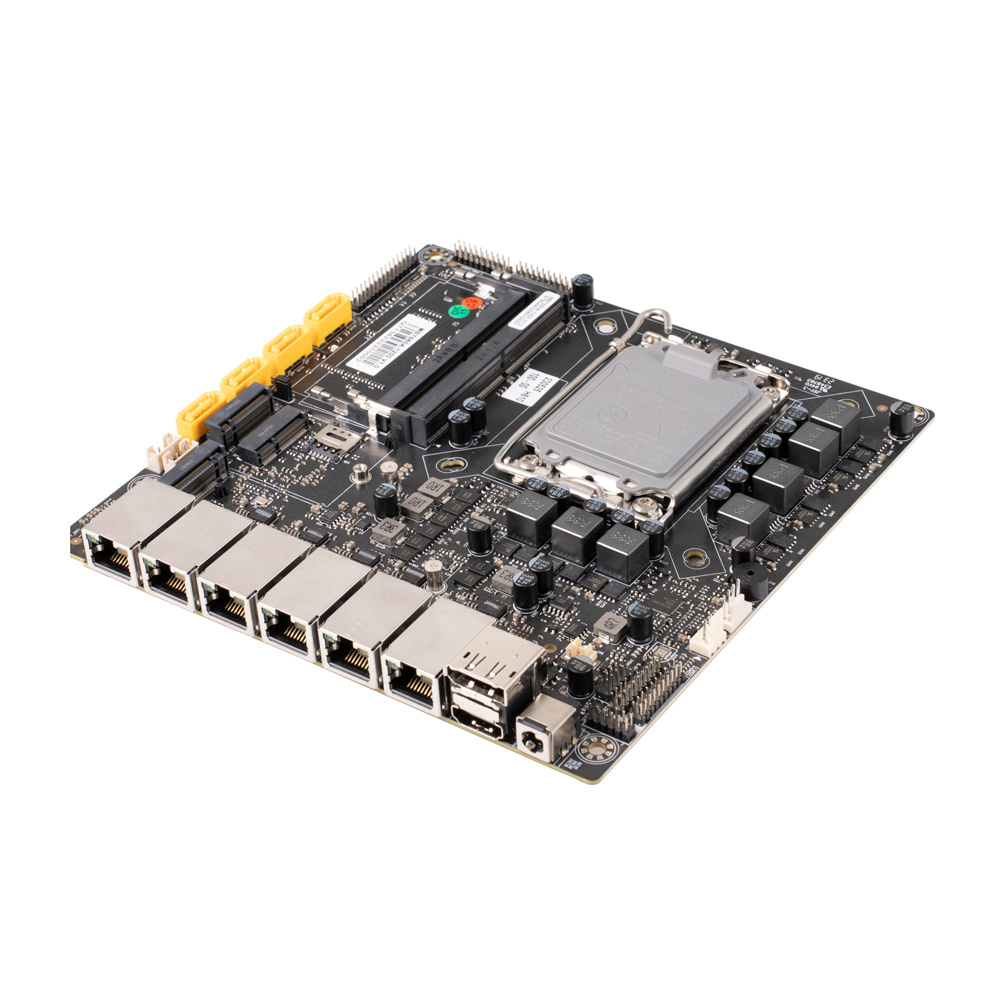

Motherboard MB7S60A-1200 Series

Model: MB7S60A-1200

Total LAN6
LAN Speed2.5G RJ45

Key Specs

CPU
Alder lake-S / Raptor Lake-S
Memory
DDR4 SO-DIMM · Max 64GB
LAN
6
Storage
M.2 Mkey, SATA
Board Size
170x170

Compatible Systems

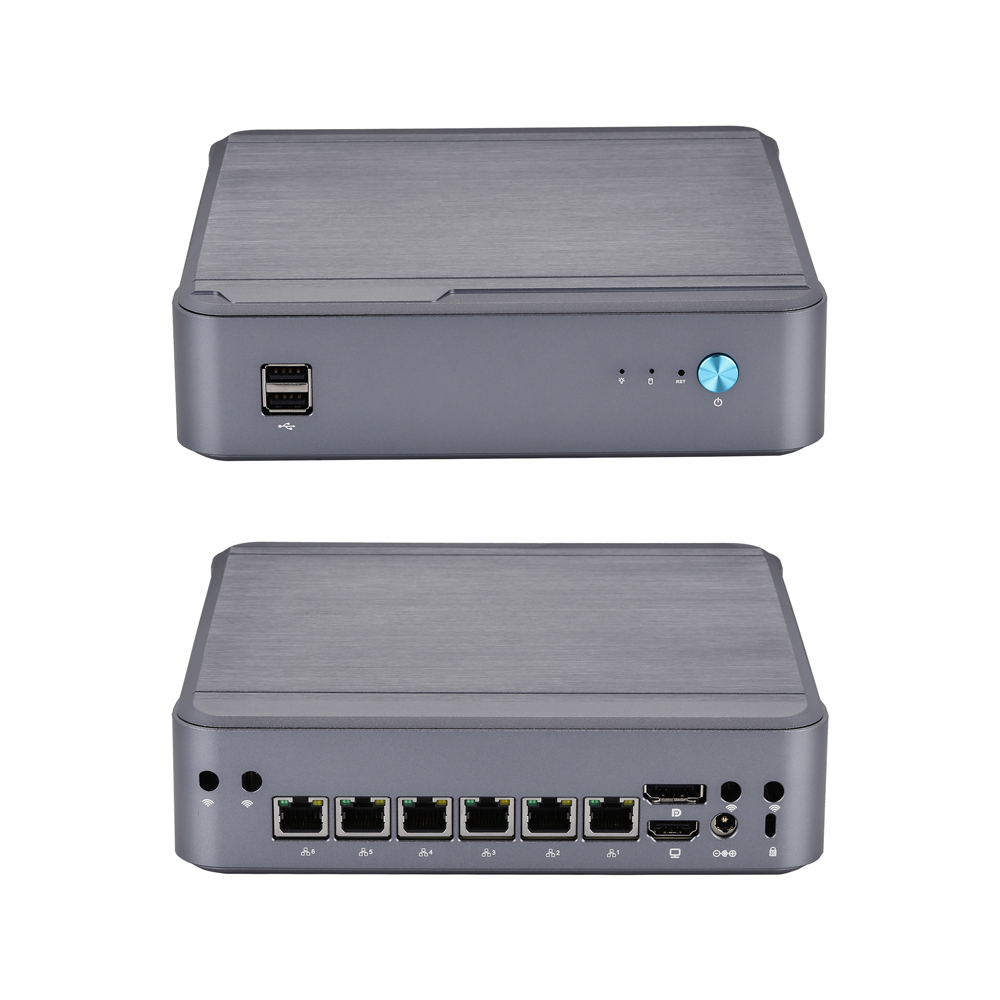

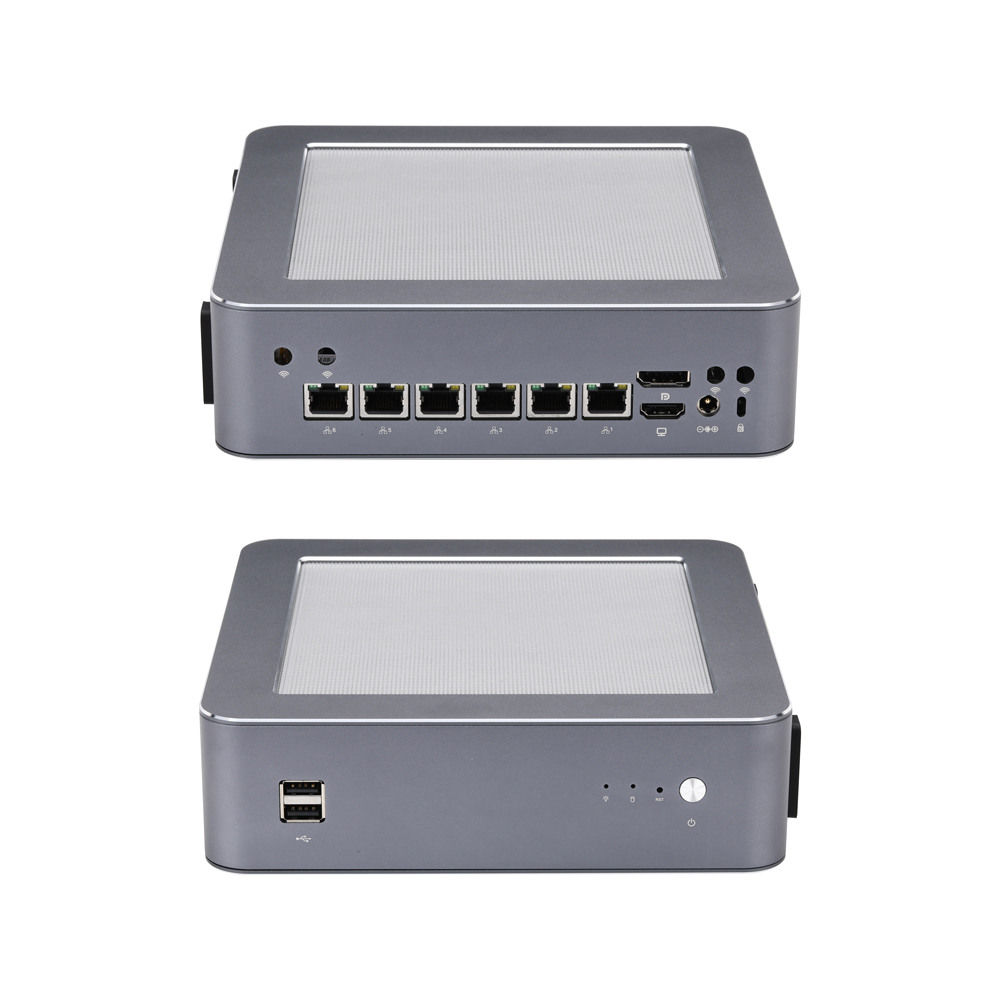

Q71200G6-1U17Q71200G6-1U17Q71200G6-S15Q71200G6-S15Q71200G6-S18Q71200G6-S18

This product is available via inquiry and OEM/ODM customization.

Send Inquiry
IntelPentiumCeleronCore i3Core i5Core i7Core i9G3900Alder lake-SRaptor Lake-SRaptor Lake R-SBartlett lake-SG740012100123001240012500126001270012900131001340013500136001370013900300T141001440014500146001470014900MB7S60A-1200

Main Features

  • Intel 12 th Alder lake -S Processor
  • Intel 13 th Raptor Lake-S Processor
  • 1 × HDMI, 1 × Display Port
  • 2 × USB 2.0
  • 3 × M.2, 4 × SATA 3.0
  • 6 × Intel I225-V/I226-V 2.5G LAN

Processor System

CPU• Intel 12 th Alder lake -S Processor • Intel 13 th Raptor Lake-S Processor
ChipsetIntel H610
Dimension170 × 170mm
Core NumberBy CPU
Max. SpeedBy CPU
L2 CacheBy CPU
BIOSUEFI

Memory

TechnologyDDR4 2400Mhz SDRAM
Max.64GB
Socket2 × SO-DIMMs

Graphics

ControllerBy CPU
VRAMShared Memory
VGA0
Display Port1
HDMI1 (Support HDMI 1.4a)
EDP1
Multi DisplayYes

Ethernet

Interface100/1000/2500Mbps
Controller6 × Intel I225-V/I226-V 2.5G LAN
Connector6 × RJ-45

Audio

ControllerNo

Rear I/O

USB0
Audio0
DC-IN1
HDMI1
Display Port1
Ethernet6

Storage

Max. Data Transfer RateSATA 3.0 (6.0Gb/S)

Expansion

M.21× M.2 for SSD (M key, Type: 2280,PCIe 4.0 × 4)
M.21 × M.2 for 4G/5G (B key, Type: 3042/3052),
M.21 × M.2 for Wi-Fi (E key, Type: 2230)

Internal Connector

TPM1 (Option)
EDP1, 2 × 15Pin, Pitch 1.0mm
VGA Header0
Serial Port0
RS-4850
PS/20
SATA4, SATA 3.0 (6.0Gb/S)
SATA PWR Connector2, 1 × 4Pin, Pitch PH2.0mm
SIM Slot1
AutoStart JumperYes, 1 × 3Pin, Pitch 2.0mm
Clear CMOS JumperYes, 1 × 2Pin, Pitch 2.0mm
USB 2.0 Header2, 2 × 5Pin, Pitch 2.0mm
Front Panel Header1, 2 × 5Pin, Pitch 2.0mm
Power Header1, 1 × 2Pin, Pitch 5.0mm (Option)

Watchdog Timer

OutputFrom Super I/O to Drag RESETCON#
Interval256 Segments,0,1,2,3,,,255 sec/min

Power

Input PWR12V/19V DC in, 5.5mm/2.5mm

Environmental

Operating Temperature0-50℃

Accessories

AccessoriesCable for HDD

OS Support

OSUEFI Windows 10, UEFI Linux

Package Contents

  • Motherboard × 1
  • SATA Combo Cable × 1

* Actual package contents may vary. Subject to change without notice.
