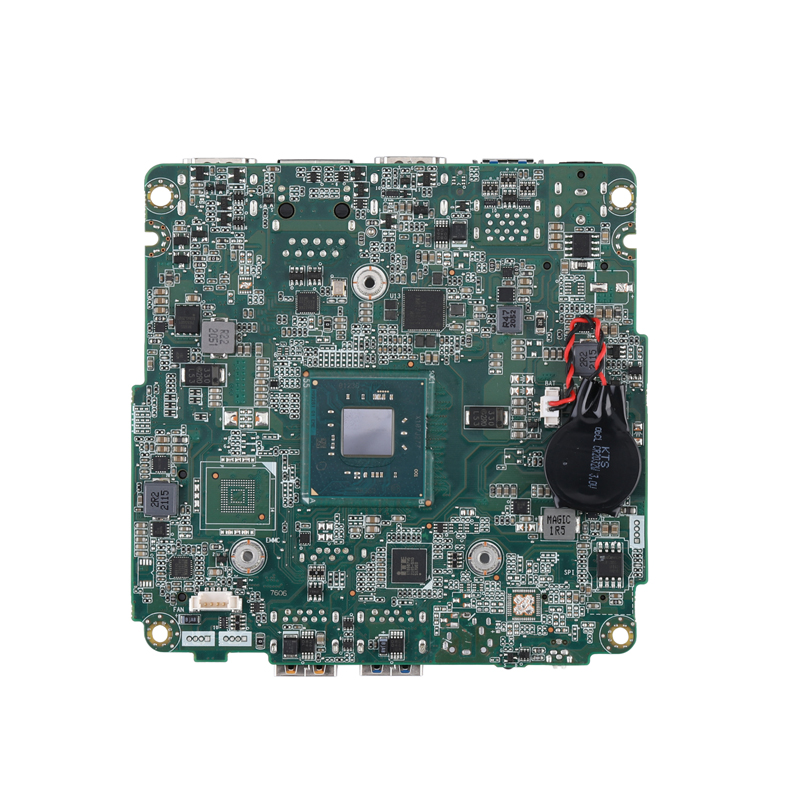

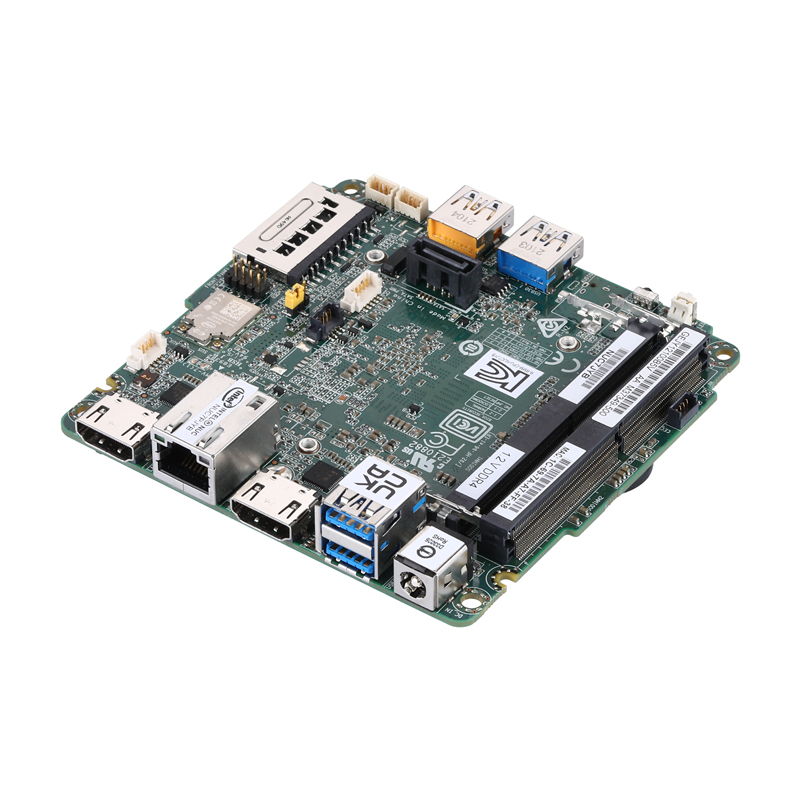

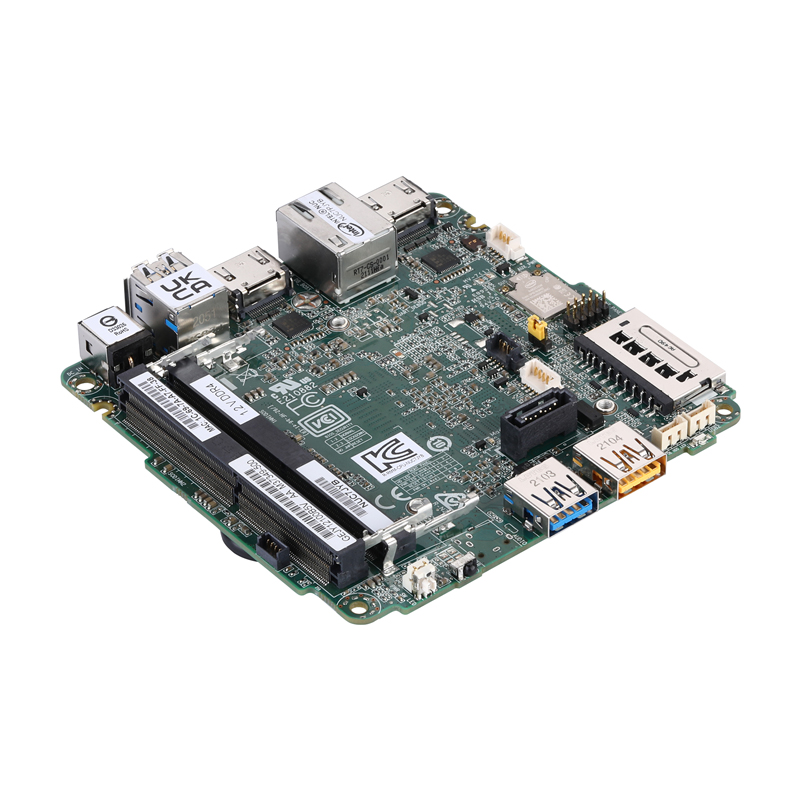

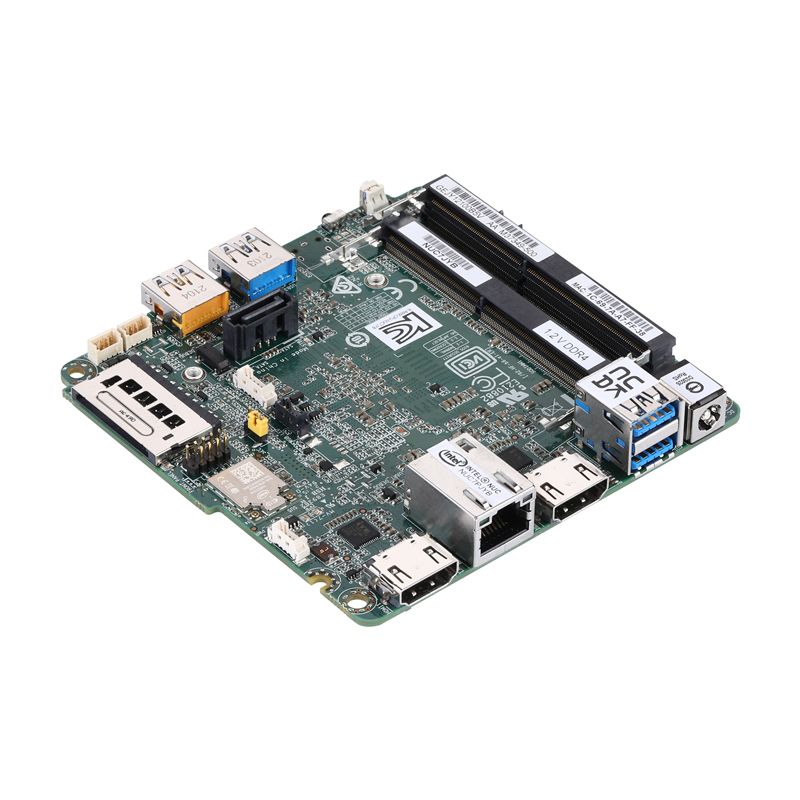

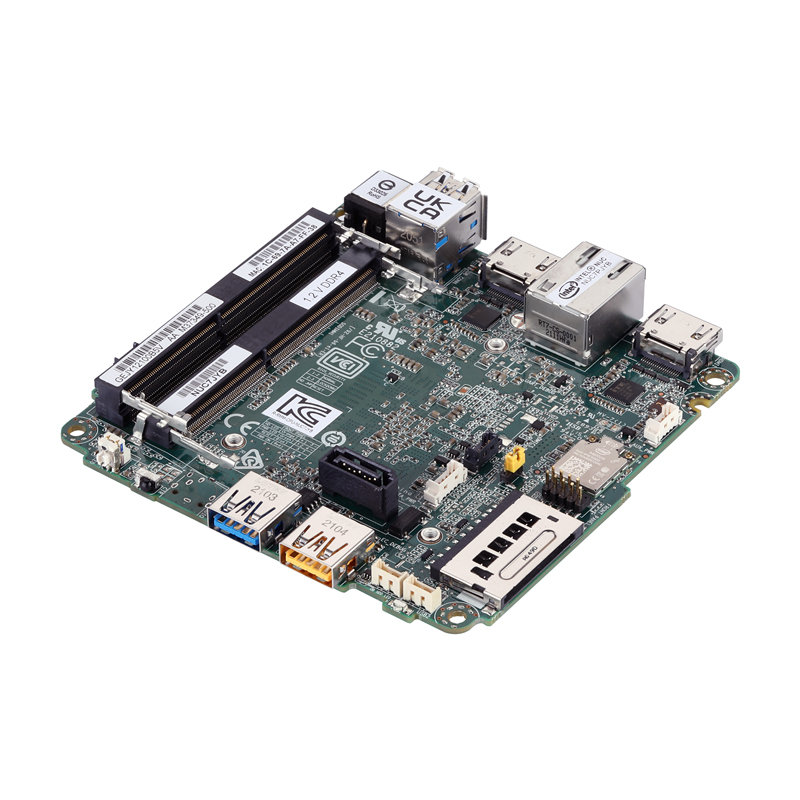

NUC7JYB image 11 / 6

Motherboard NUC7JYB Series

Model: NUC7JYB

Total LAN1
LAN Speed1G RJ45

Key Specs

CPU
Gemini Lake / Gemini Lake-R
Memory
DDR4 SO-DIMM · Max 16GB
LAN
1
Storage
SATA
Board Size
120x120

Compatible Systems

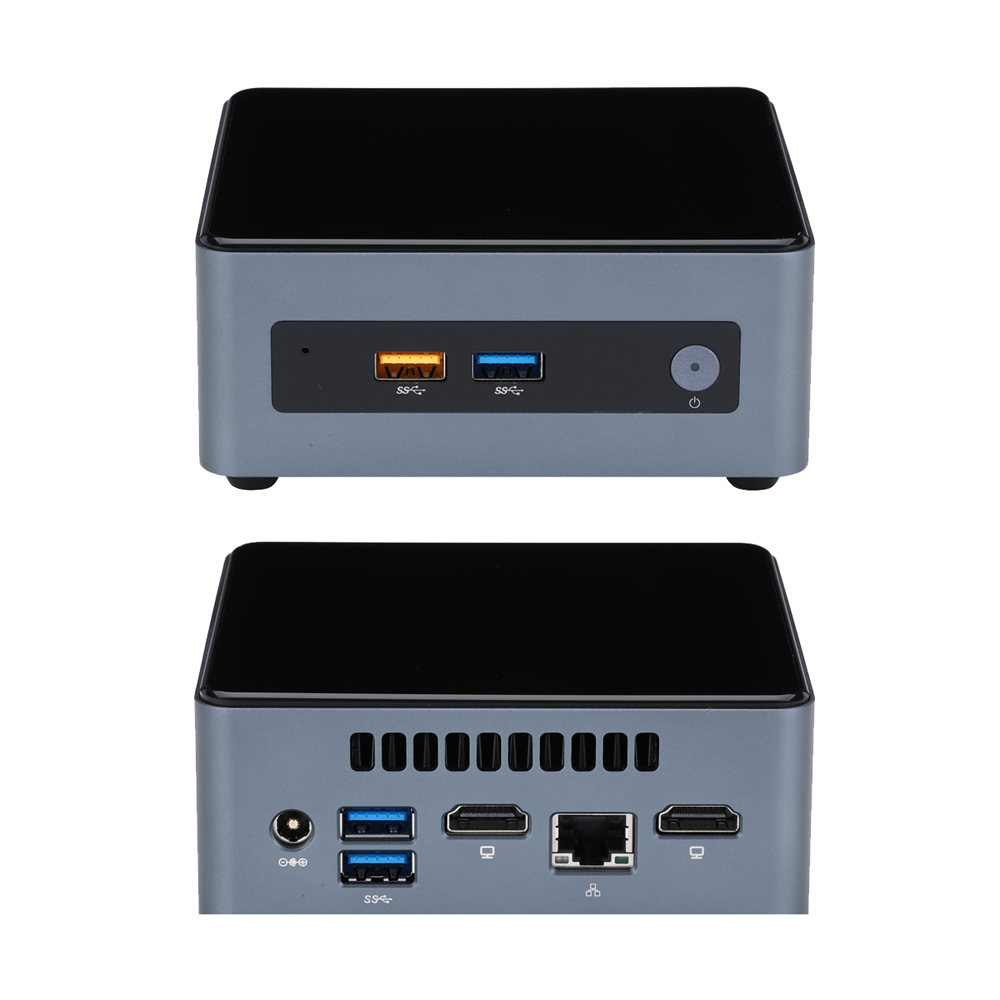

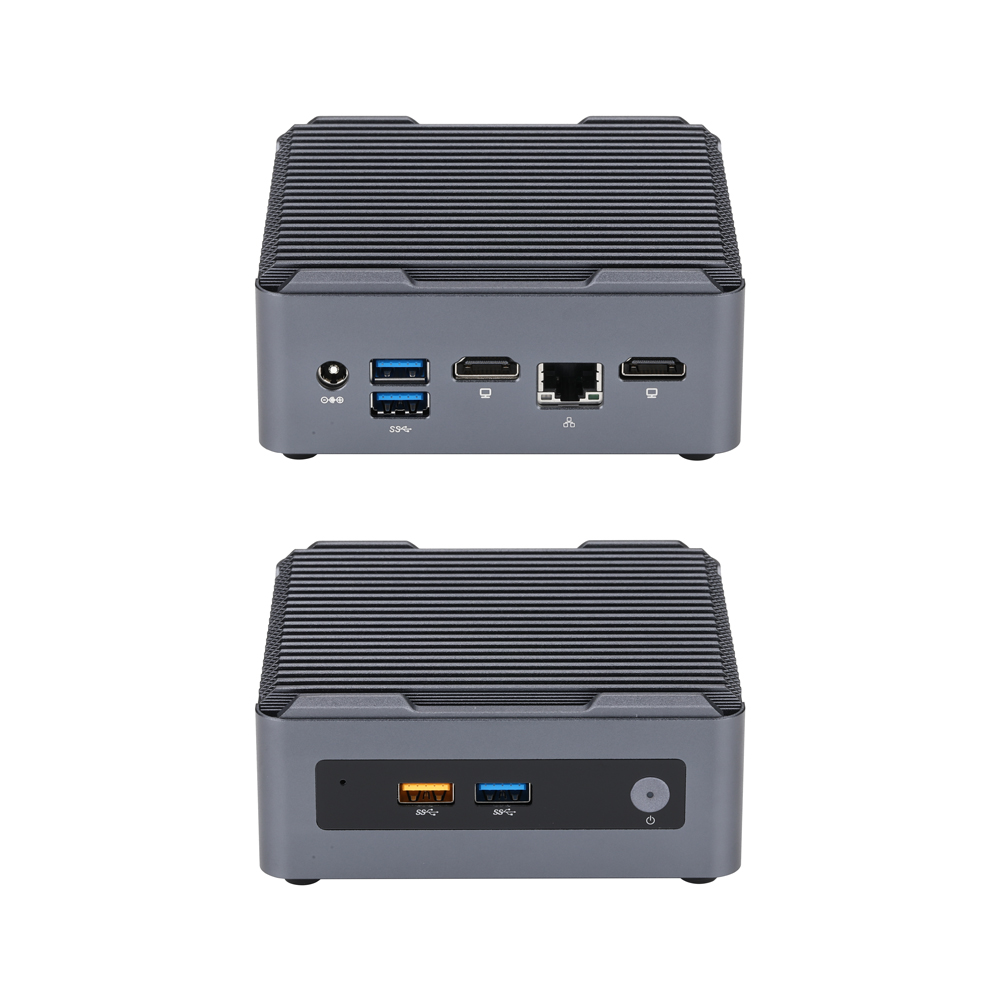

Q10531-S19Q10531-S19Q10531-S21Q10531-S21

This product is available via inquiry and OEM/ODM customization.

Send Inquiry
NUC7JYBIntelGemini LakeGemini Lake-RPentiumCeleronATOMN4000N4100J4005J4105N5000J5005N4020N4120J4025J4125N5030J5040

Main Features

  • Intel Pentium J5005 Gemini Lake Processor
  • Intel UHD Graphics 605
  • 2 × HDMI
  • 4 × USB 3.0
  • 1 × SATA
  • 1 × Realtek Gigabit LAN

Processor System

CPUIntel Gemini Lake Processor Default Pentium J5005 Processor, 1 0 W
ChipsetBy CPU
Dimension101.6 × 101.6mm
Core Number4
Max. Speed1.5GHz, up to 2.8GHz
L2 Cache4M
BIOSUEFI

Memory

TechnologyDDR4 2133/2400MHz SDRAM Only Supports a Single 1G Memory Chip
Max.16GB
Socket2 × SO-DIMMs

Graphics

ControllerIntel UHD Graphics 605
HDMI2 × HDMI 2.0a
Multi DisplayY es

Ethernet

Interface10/100/1000Mbps
Controller1 × Realtek Gigabit LAN
Connector1 × RJ-45

Audio

ControllerN o

Front I/O

Power Button1
LED1 × Power LED, 1 × HDD LED
USB2 × USB 3.0
IRConsumer Infrared (CIR) sensor

Rear I/O

USB2 × USB 3.0
DC-IN1
Display2 × HDMI
Ethernet1

Side I/O

SDXC card1 × SDXC card reader slot

Storage

Max. Data Transfer RateSATA 3.0 (6.0Gb/S)

Internal Connector

Wi-FiIntel Wireless-AC 9462-D2W wireless LAN module
SATA1, SATA 3.0 (6.0Gb/S)
SATA PWR Connector1, 1 × 4Pin, Pitch 1.25mm
Clear CMOS JumperYes, 1 × 3Pin, Pitch 1.25mm
USB 2.0 Header1, 1 × 4Pin, Pitch 1.25mm
Front Panel Header1, 2 × 5Pin, Pitch 1.25mm
CPU FAN Connector1, 1 × 4Pin, Pitch 1.25mm

Power

Input PWR12V/19V DC in, 5.5mm/2.5mm

Environmental

Operating Temperature0-50℃

Accessories

AccessoriesCable for HDD,Fan module

OS Support

OSWindows 10, Linux

Package Contents

  • Motherboard × 1
  • SATA Combo Cable × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPDatasheet
NUC7JYB CurrentGemini Lake Pentium J5005 4 / 4 1.5GHz ~ 2.8GHz 4M Intel UHD Graphics 605 10W
