Q10100S-S08 image 11 / 7

Mini PC Q10100S S08 Series

Model: Q10100S-S08

Total LAN2
LAN Speed1G RJ45
Serial Ports1

Key Specs

CPU
Bay Trail
Memory
DDR3L SO-DIMM · Max 8GB
LAN
2
Storage
mSATA, SATA

Compatible Motherboard

MB2J213-0100MB2J213-0100

This product is available via inquiry and OEM/ODM customization.

Send Inquiry
Q180SQ190SQ192SQ193SQ195SQ10111SQ10121SQ10122SQ10123SQ10134SIntelBay TrailPentiumCeleronATOMN2840J1800J1900N2920N2930N3540

Main Features

  • Intel Bay Trail Processor
  • 1 × VGA,1 × HDMI,1 × RS-232
  • 1 × USB 3.0,3 × USB 2.0,1 × SATA 3.0
  • 1 × Mini PCIe,1 × mSATA
  • 2 × Realtek Gigabit LAN

Processor System

CPUIntel Bay Trail Processor
CPU TDPBy CPU
Memory1 × DDR3L SO-DIMM Socket (Up to 8G, 1333/1600MHz)
ChipsetBy CPU
GraphicsBy CPU
LAN Chipset2 × Realtek Gigabit LAN
AudioRealtek HD Audio
Watch DogNo

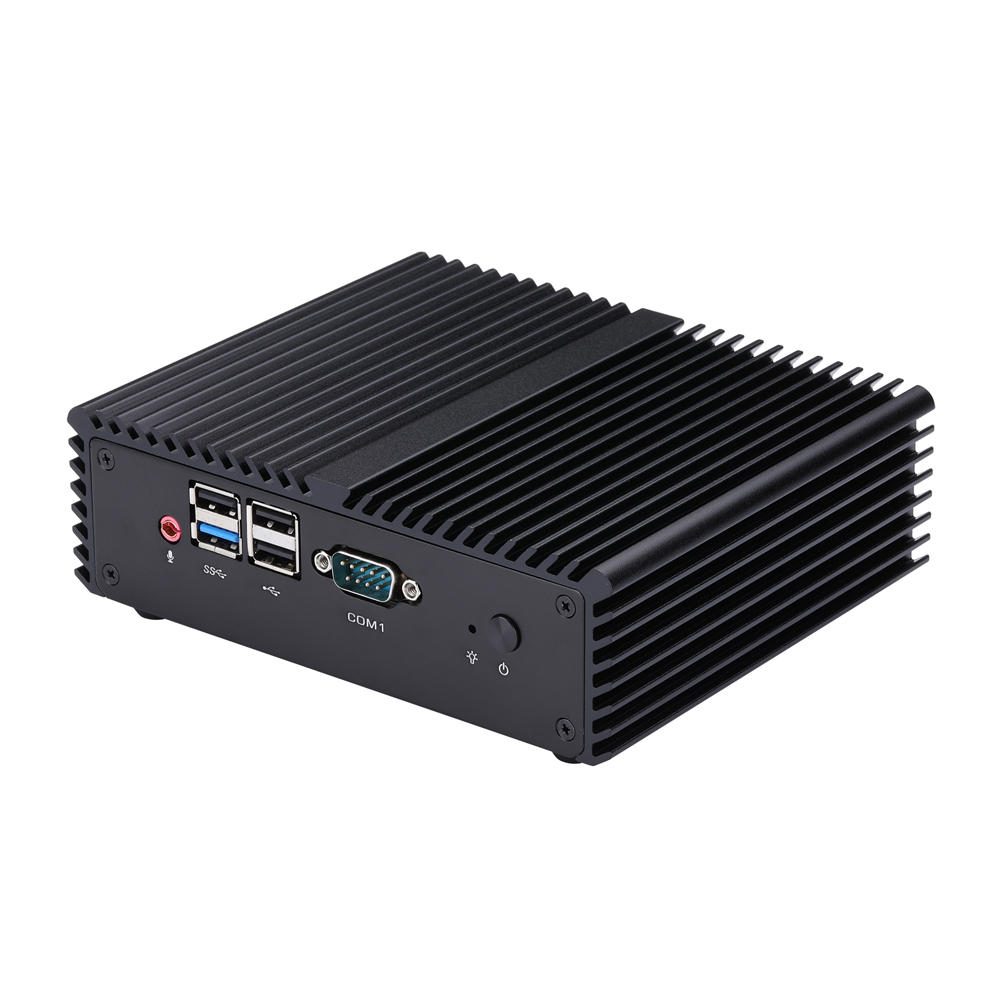

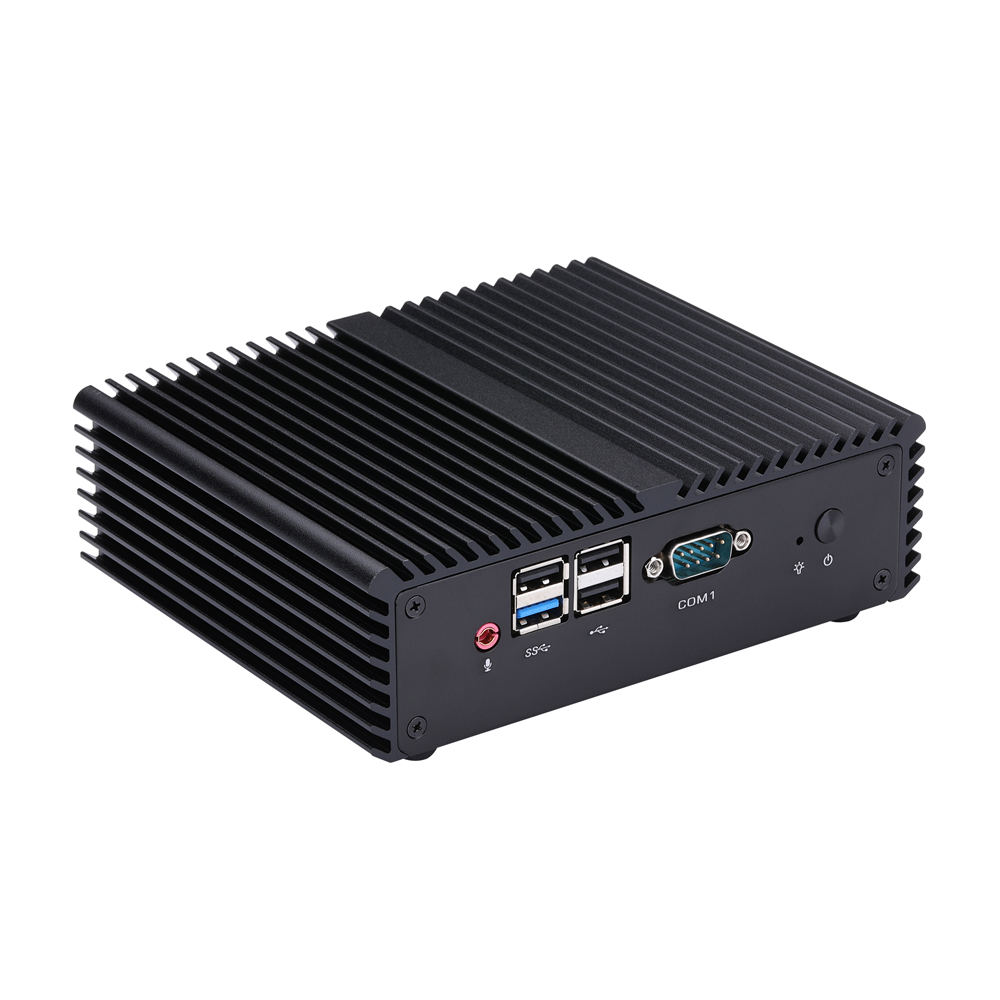

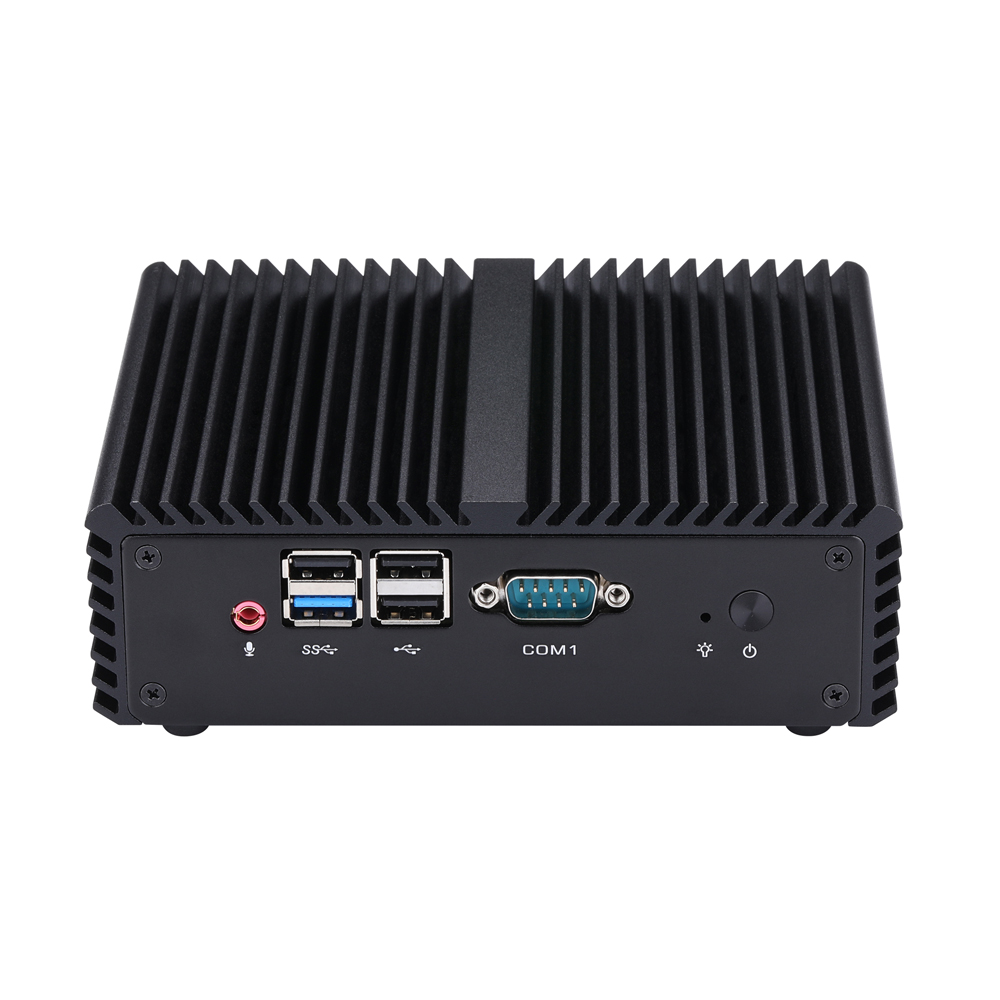

Front I/O

Power Button1
LED1 × Power LED
USB1 × USB 3.0,3 × USB 2.0
Serial Port1 × RS-232 (COM1)
Audio1 (Mic-in)

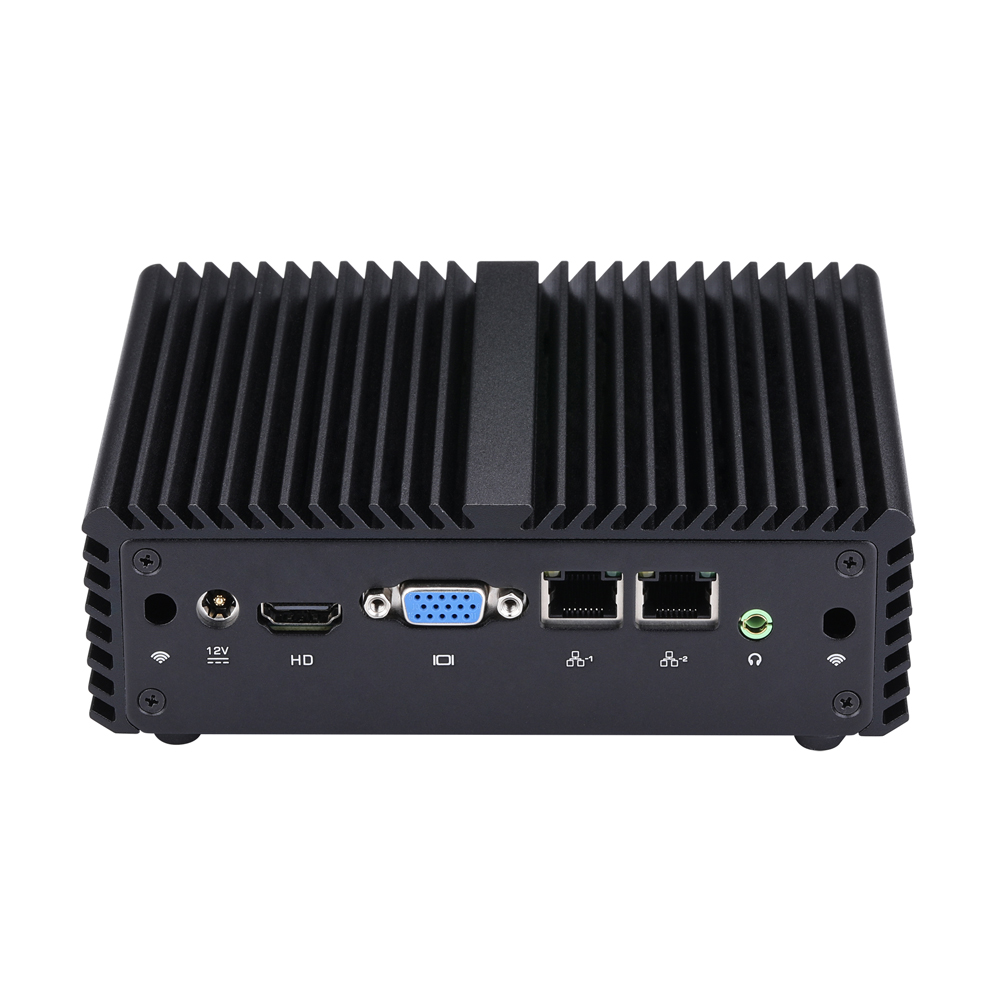

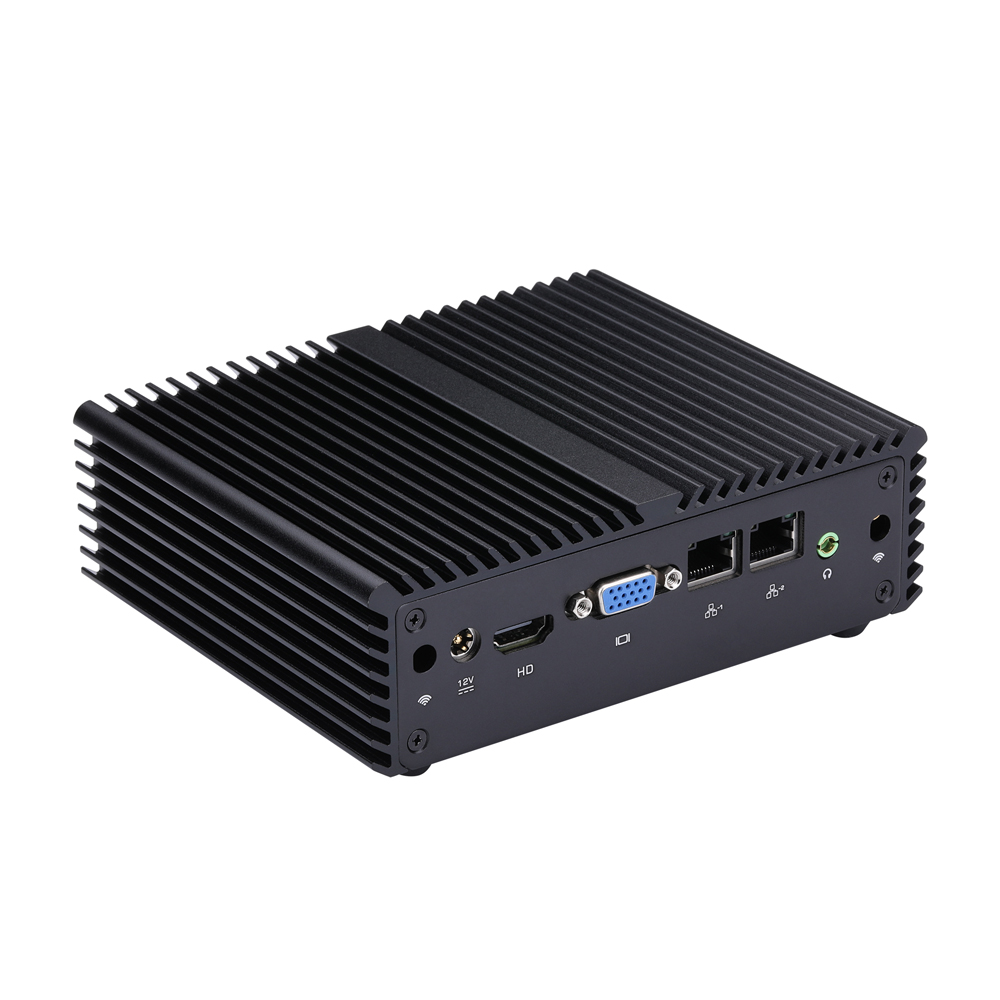

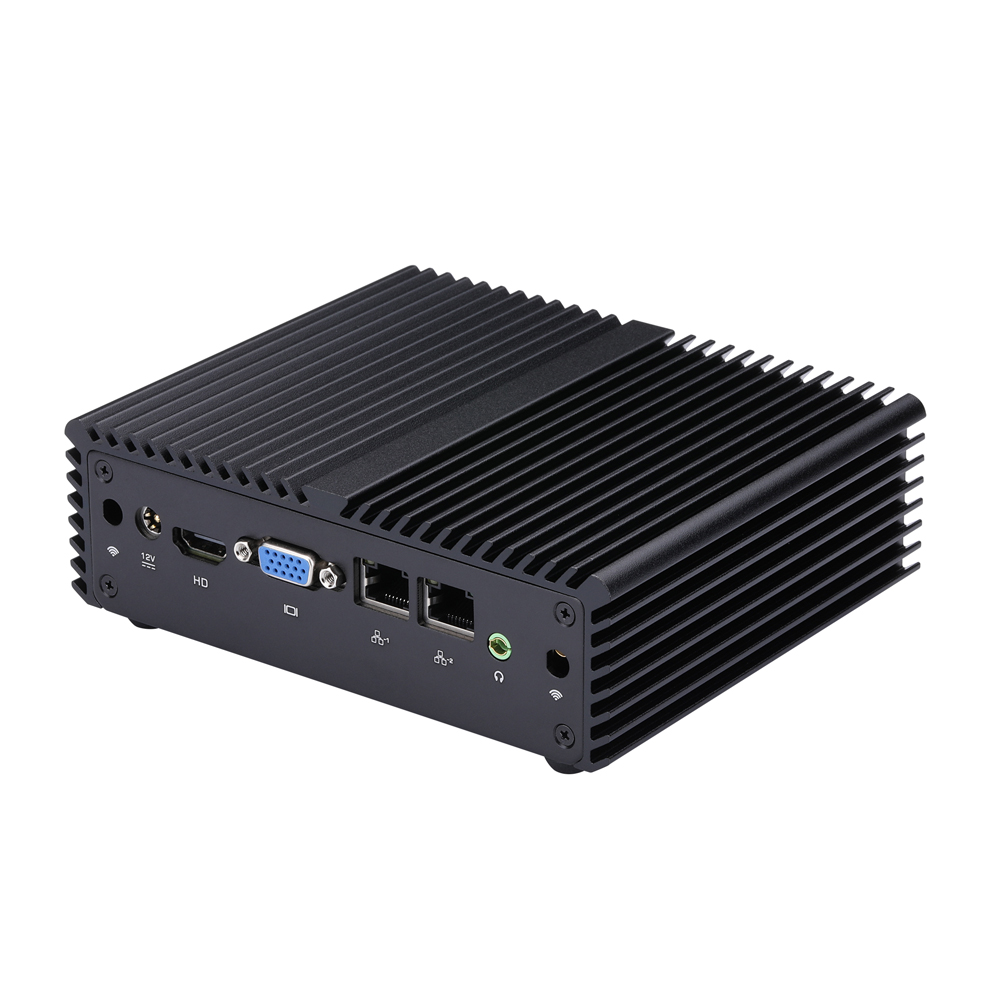

Rear I/O

Power1 × DC Jack
Video Output1 × HDMI,1 × VGA
LAN2 × Realtek Gigabit LAN
USB0
Audio1 (Line-out)
Serial Port0

Storage

Type1 × 2.5-inch HDD/SSD 1 × Mini PCIe for mSATA SSD

Expansion

mSATA1 × Full-length Mini PCIe for SSD
Mini PCIe1 × Half-length Mini PCIe for Wi-Fi
SIM Card Slot0
AutoStart JumperNo
DC-INNo
CMOS Clear JumperNo
GPIONo
VGA0

Power

Power Adapter12V3A
DC Jack5.5mm, 2.5mm

Environmental

Operating Temp0°C~50°C
Non-Operating Temp-20°C~80°C
Humidity10%~90%

Mechanical

MaterialAluminium Alloy
Dimension155 × 127 × 48mm
Weight0.88kg
MountingVESA Mounting Bracket
Packaging Dimension261 × 218 × 75mm
Kensington LockNo
Cooling ModeFanless Design

OS Support

OSWindows 7, Windows 8, Windows 10, Linux

Package Contents

  • Mini PC × 1
  • Power Adapter × 1
  • AC Power Cable × 1
  • VESA Mount × 1
  • SATA Combo Cable × 1
  • Screw Kit × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeLegacy ModelCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPDatasheet
Q10111S-S08 Q180S Bay trail Celeron J1800 2 / 2 2.41Ghz ~ 2.58Ghz 1M Intel HD Graphics 10W
Q10121S-S08 Q190S Bay trail Celeron J1900 4 / 4 2.00Ghz ~ 2.42Ghz 2M Intel HD Graphics 10W
Q10122S-S08 Q192S Bay trail Celeron N2920 4 / 4 1.86Ghz ~ 2.0Ghz 2M Intel HD Graphics 7.5W
