Mini PC Q10500C S11 Series

Model: Q10500C-S11

Total LAN1
LAN Speed1G RJ45
Serial Ports2

Key Specs

CPU
Gemini Lake / Gemini Lake-R
Memory
DDR4 SO-DIMM · Max -
LAN
1
Storage
mSATA

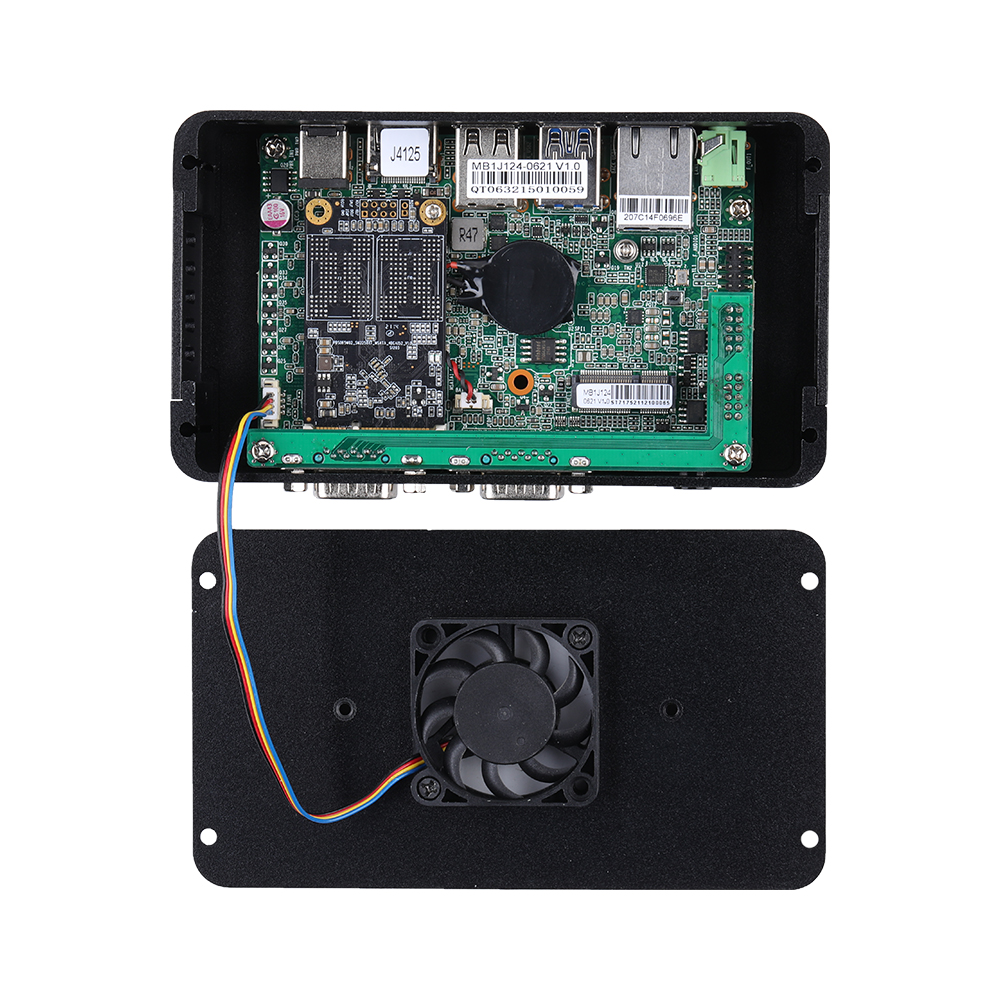

Compatible Motherboard

MB1J124-0500MB1J124-0500

This product is available via inquiry and OEM/ODM customization.

Send Inquiry
Q730CQ750CQ10511CQ10512CQ10521CQ10522CQ10611CQ10612CQ10621CQ10621C2IntelGemini LakeGemini Lake-RPentiumCeleronATOMN4000N4100J4005J4105N5000J5005N4020N4120J4025J4125N5030J5040

Main Features

  • Intel Gemini Lake Processor
  • Intel Gemini Lake-R Processor
  • 1 × HDMI,2 × RS-232
  • 2 × USB 3.0,2 × USB 2.0
  • 1 × M.2,1 × mSATA
  • 1 × Realtek Gigabit LAN

Processor System

CPU• Intel Gemini Lake Processor • Intel Gemini Lake-R Processor
CPU TDPBy CPU
Memory4GB, Integrated (Up to 8G)
ChipsetBy CPU
GraphicsBy CPU
LAN Chipset1 × Realtek Gigabit LAN
AudioRealtek HD Audio
Watch DogYes

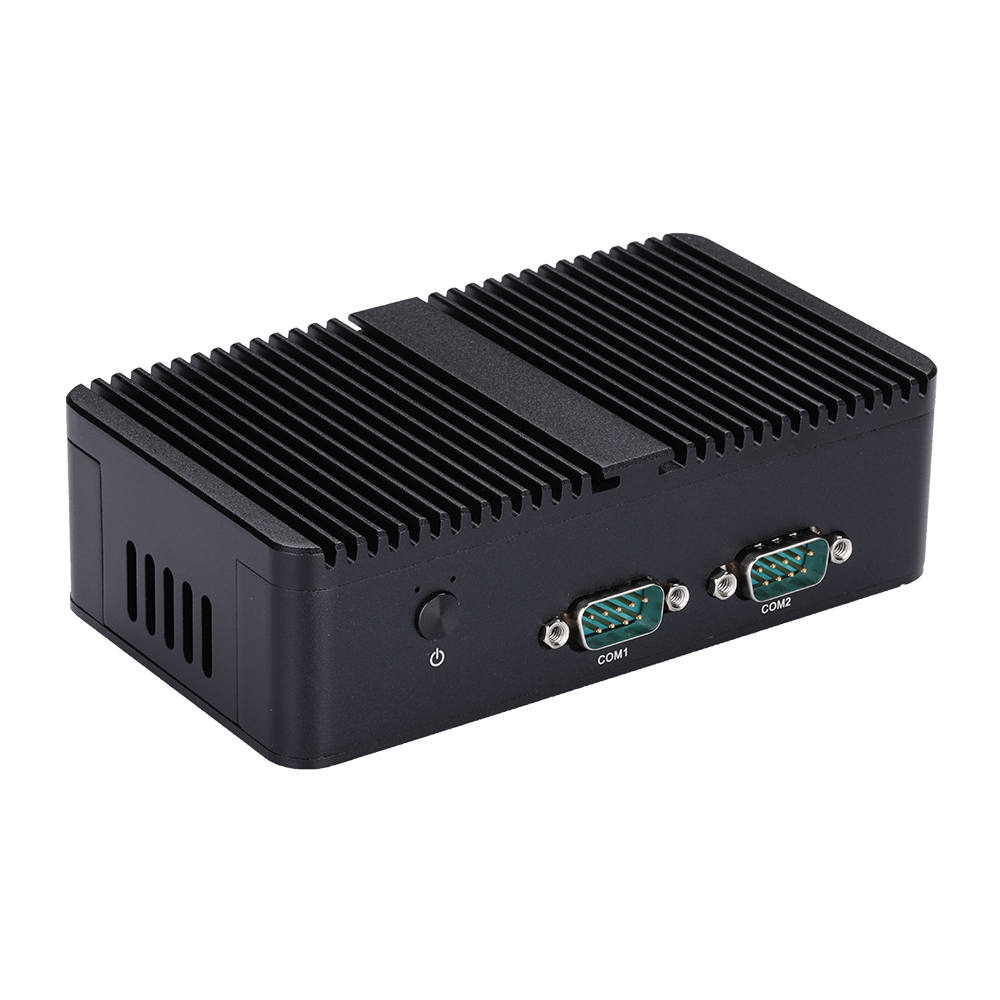

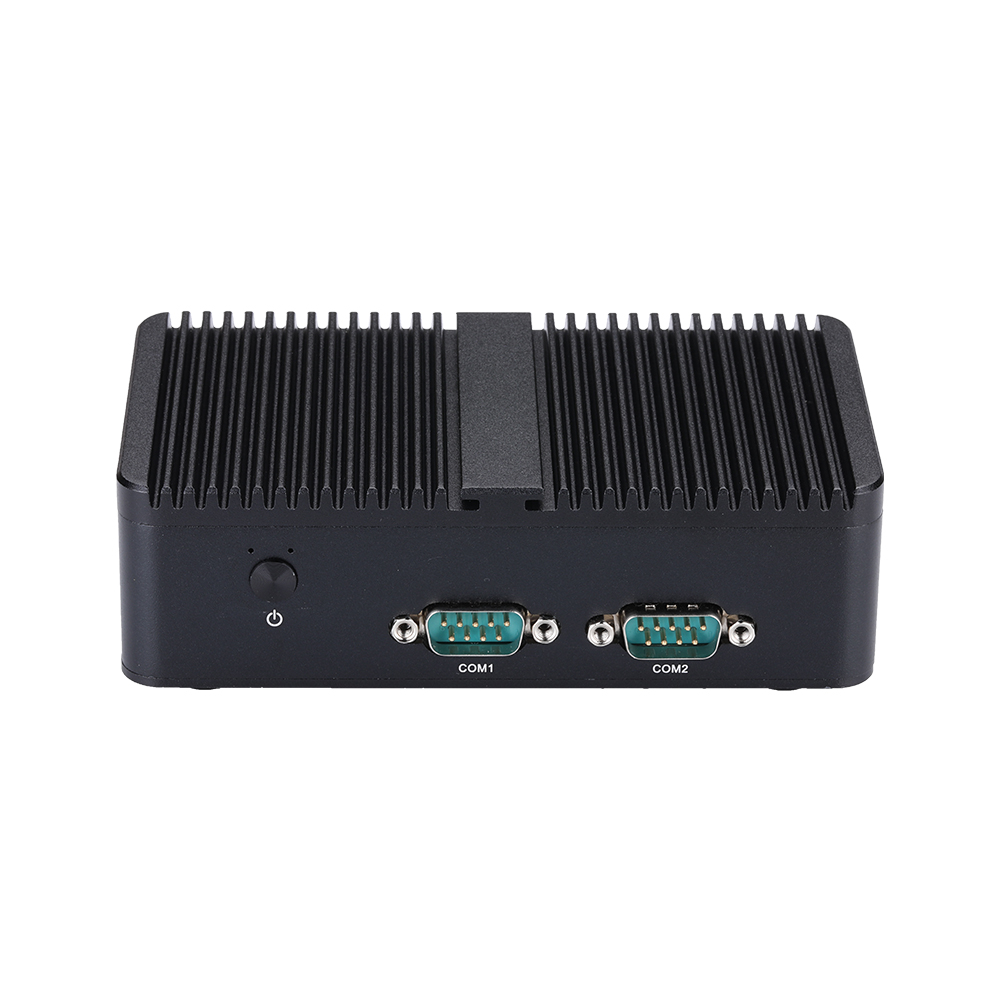

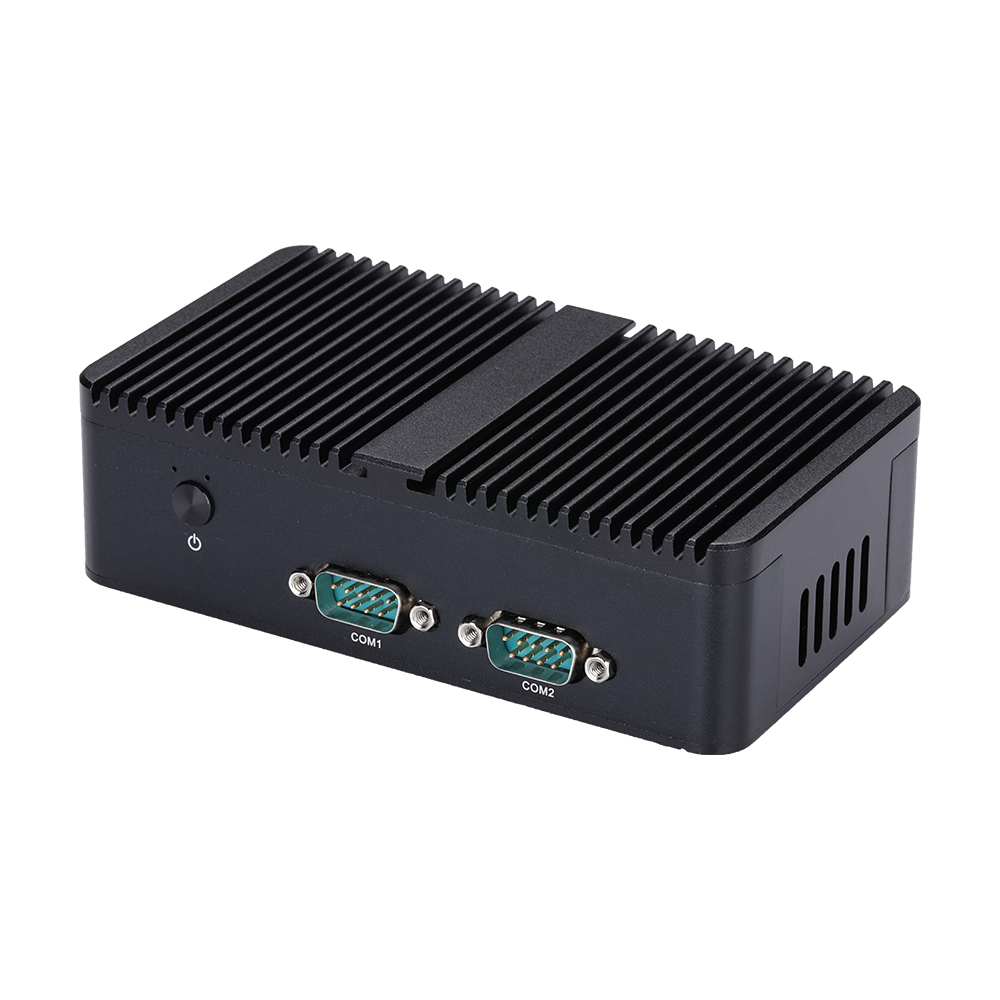

Front I/O

Power Button1
LED1 × Power LED,1 × HDD LED
Serial Port2 × RS-232 (Support RS-485)

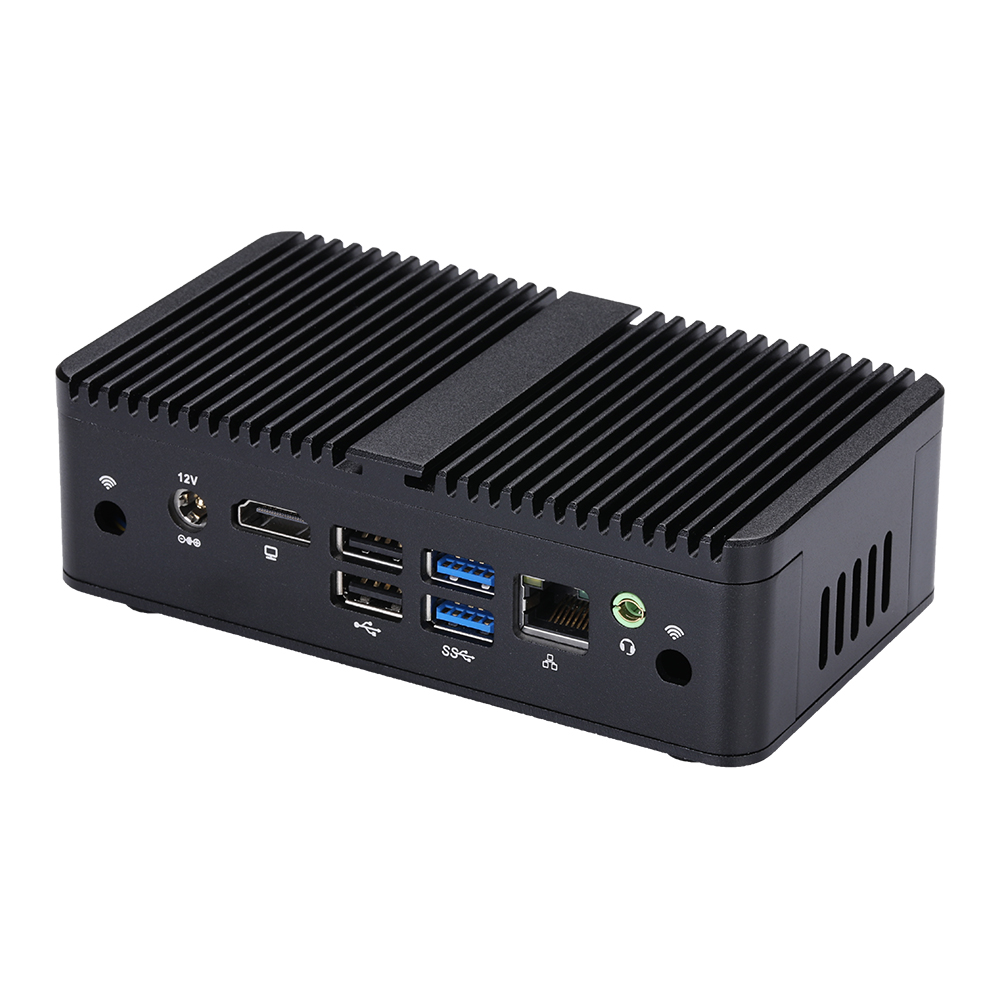

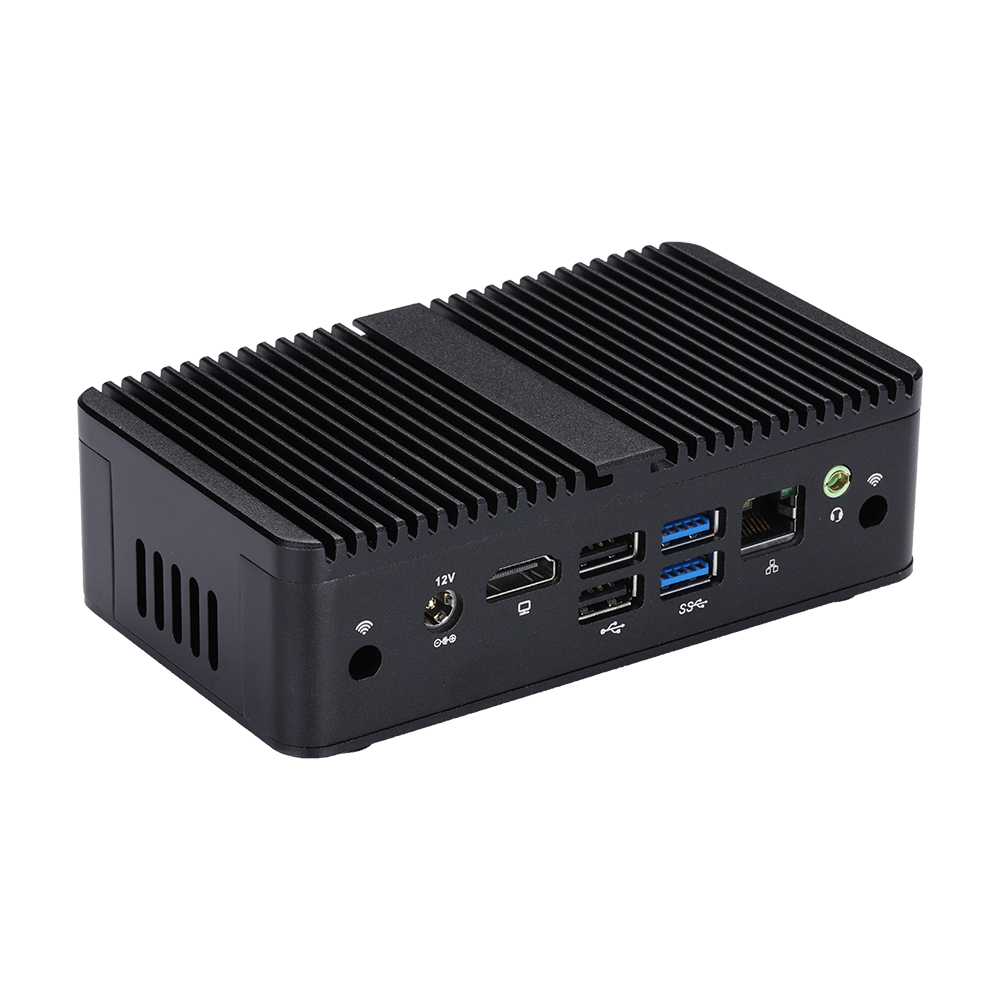

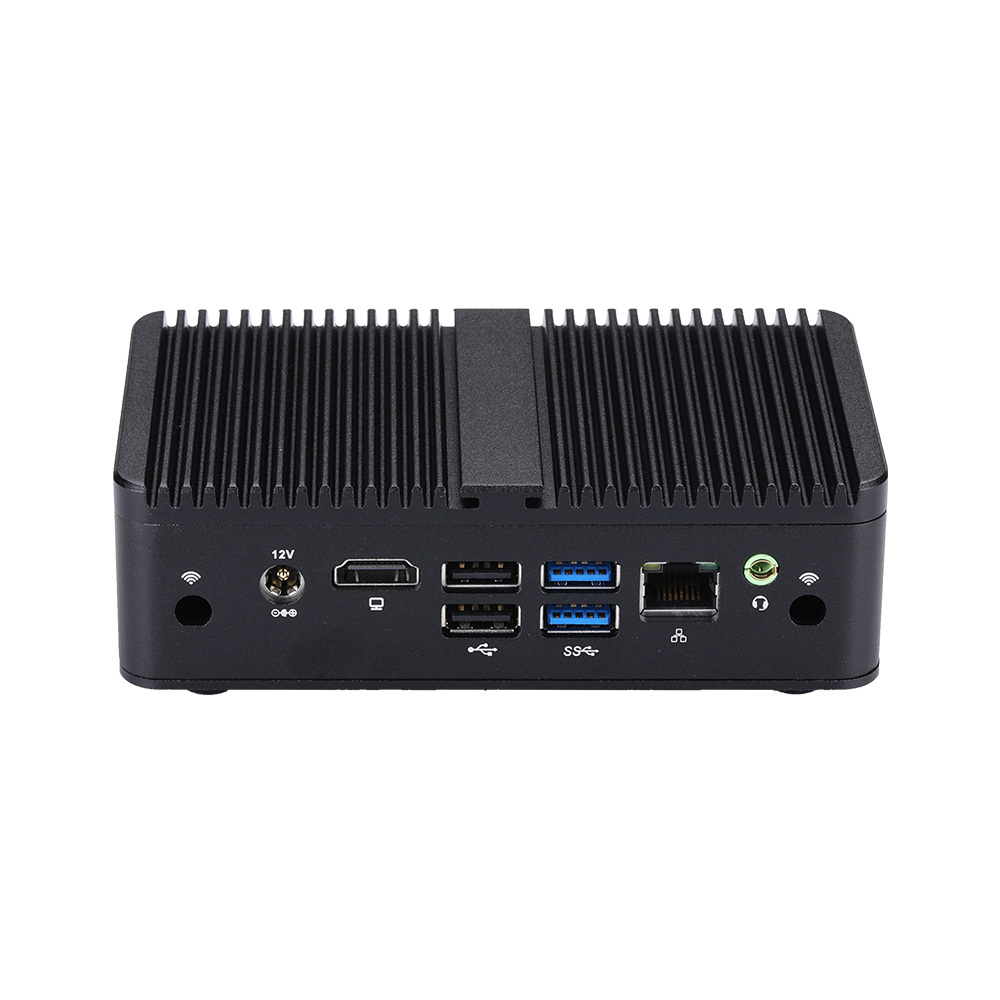

Rear I/O

Power1 × DC Jack
Video Output1 × HDMI
LAN1 × Realtek Gigabit LAN
USB2 × USB 2.0,2 × USB 3.0
Audio1 (Mic-in, Line-out)

Storage

Type1 × Mini PCIe for mSATA SSD

Expansion

mSATA1 × Full-length Mini PCIe for SSD
M.21 × M.2 for Wi-Fi (E key, Type: 2230)
GPIO1,2 × 5Pin, Pitch 2.0mm
EDP1
Front Audio1,2 × 5Pin, Pitch 2.0mm
Front Panel Header1,2 × 5Pin, Pitch 2.0mm

Power

Power Adapter12V3A
DC Jack5.5mm, 2.5mm

Environmental

Operating Temp0°C~50°C
Non-Operating Temp-20°C~80°C
Humidity10%~90%

Mechanical

MaterialAluminium Alloy
Dimension136 × 77 × 40mm
Weight0.41kg
MountingVESA Mounting Bracket
Packaging Dimension261 × 218 × 75mm
Kensington LockNo
Cooling ModeFanless Design by Default, Fan-assisted Cooling

OS Support

OSWindows 10, Linux

Package Contents

  • Mini PC × 1
  • Power Adapter × 1
  • AC Power Cable × 1
  • VESA Mount × 1
  • Screw Kit × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeLegacy ModelProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPCode NameDatasheet
4-S11 Memory: - - - - - - - -
Q10511C-S11 - Celeron J4005 2 / 2 2.0GHz ~ 2.7GHz 4M Intel UHD Graphics 600 10W Gemini Lake
Q10521C-S11 Q730C Celeron J4105 4 / 4 1.5GHz ~ 2.5GHz 4M Intel UHD Graphics 600 10W Gemini Lake
Q10621C-S11 Q750C Celeron J4125 4 / 4 2.0GHz ~ 2.7GHz 4M Intel UHD Graphics 600 10W Gemini Lake Refresh
8-S11 Memory: - - - - - - - -
Q10621C2-S11 - Celeron J4125 4 / 4 2.0GHz ~ 2.7GHz 4M Intel UHD Graphics 600 10W Gemini Lake Refresh
