Qotom
MB2J510-0800 image 11 / 6

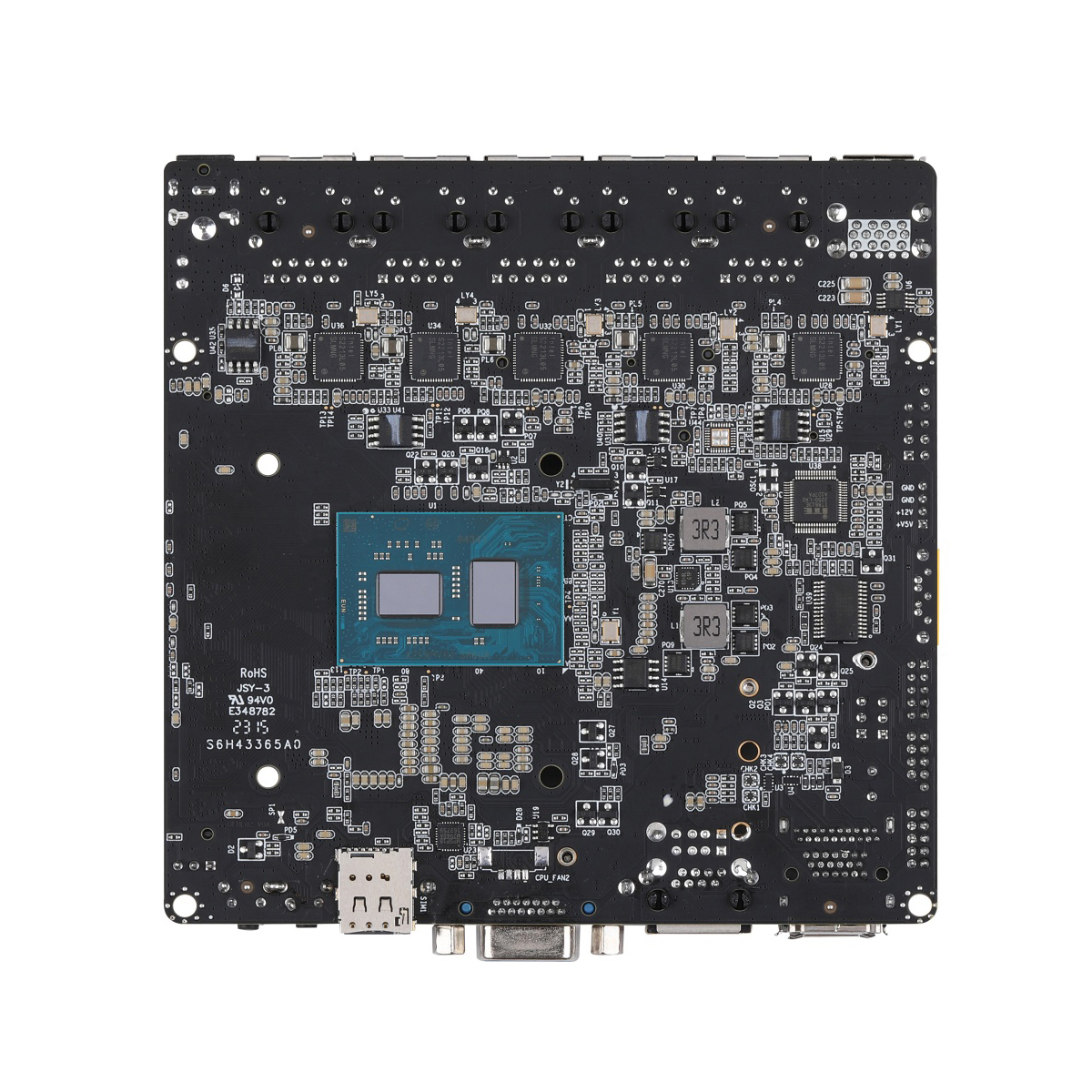

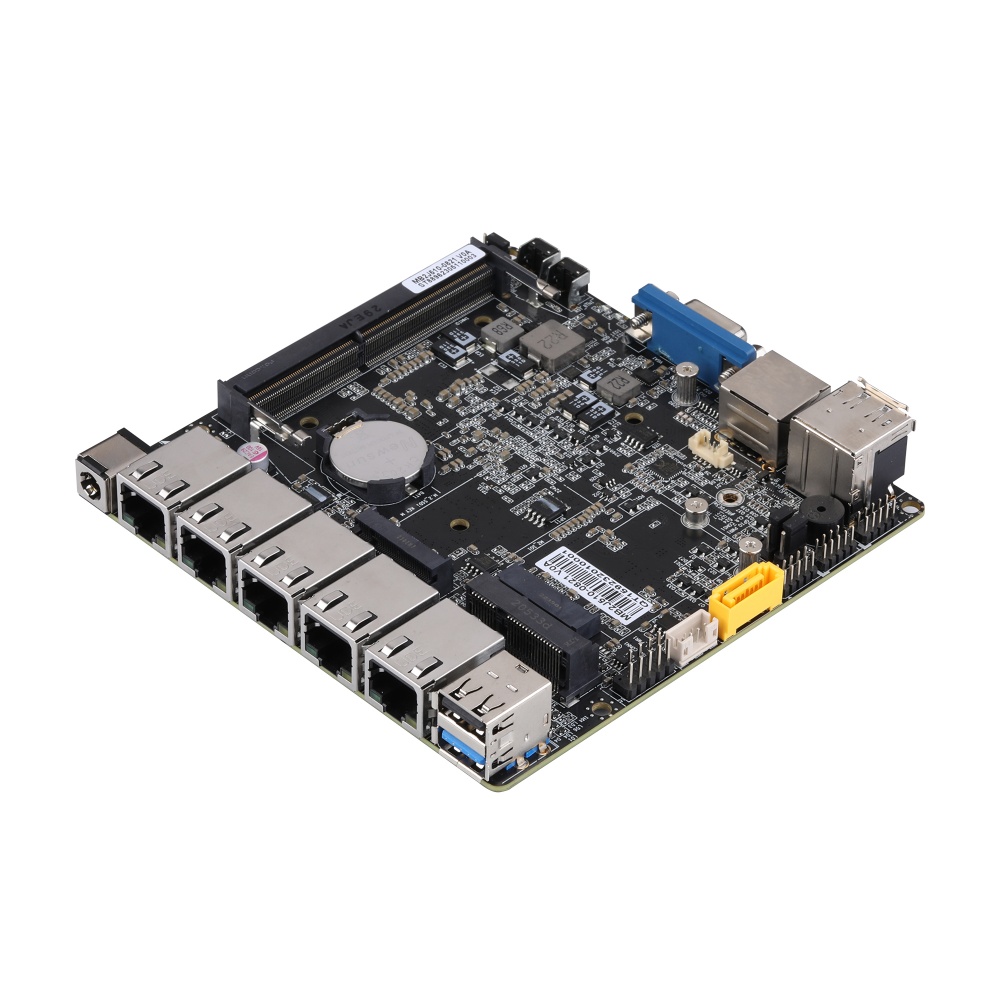

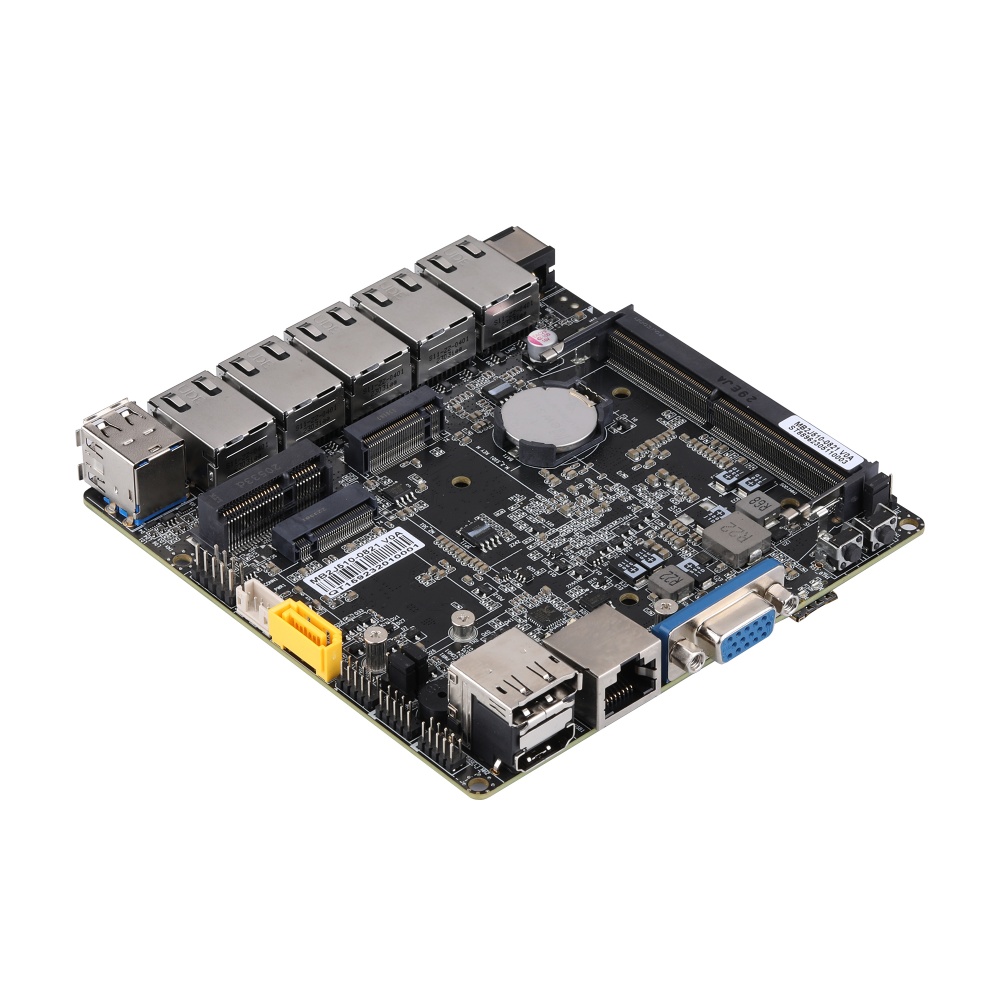

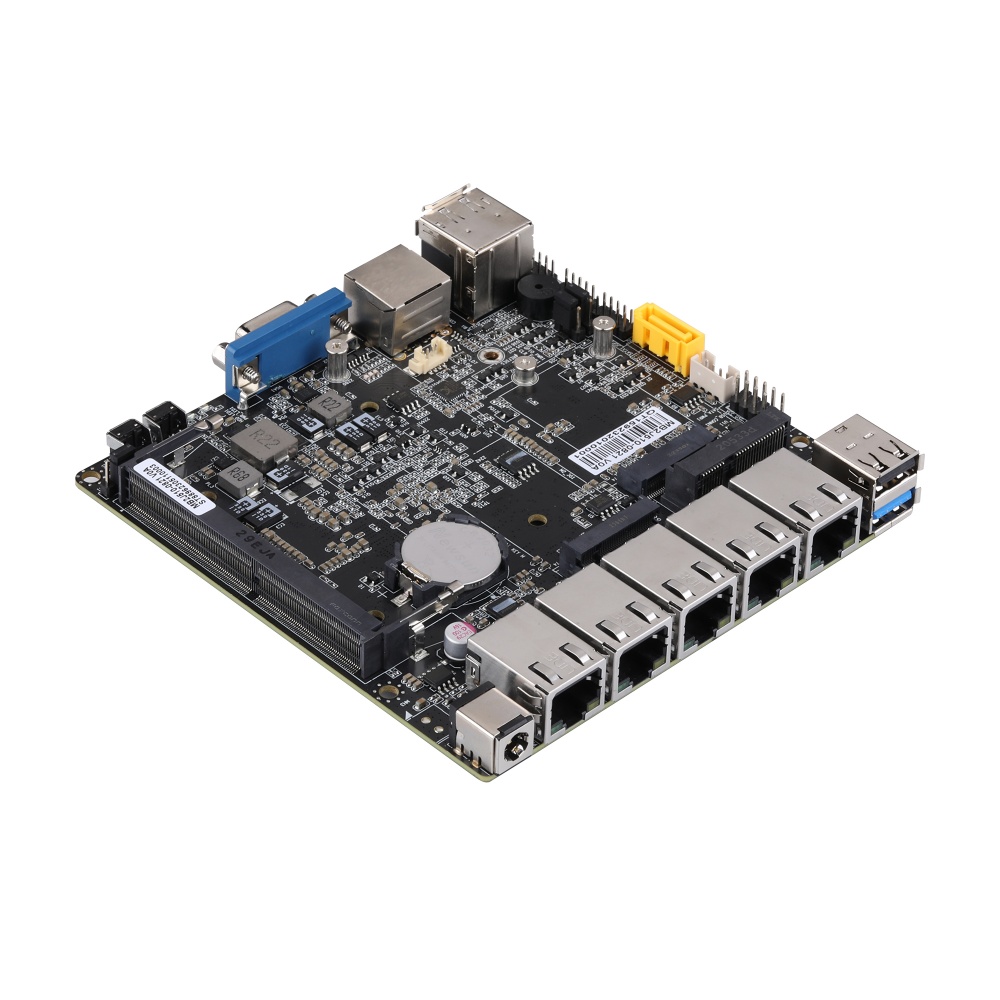

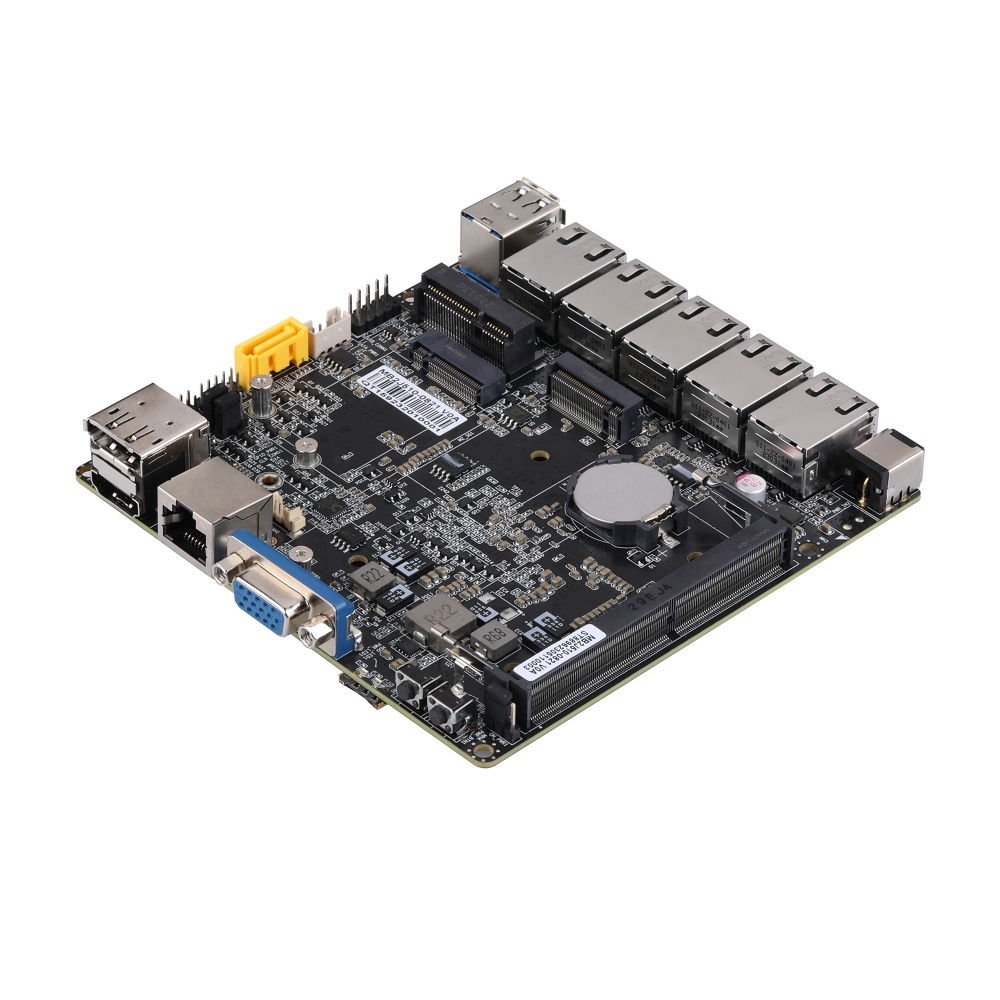

Motherboard MB2J510-0800 Series

Model: MB2J510-0800

Total LAN5
LAN Speed2.5G RJ45
Serial Ports1

Key Specs

CPU
Elkhart Lake
Memory
DDR4 SO-DIMM · Max 32GB
LAN
5
Storage
M.2 Mkey, mSATA, SATA
Board Size
120x120

Compatible Systems

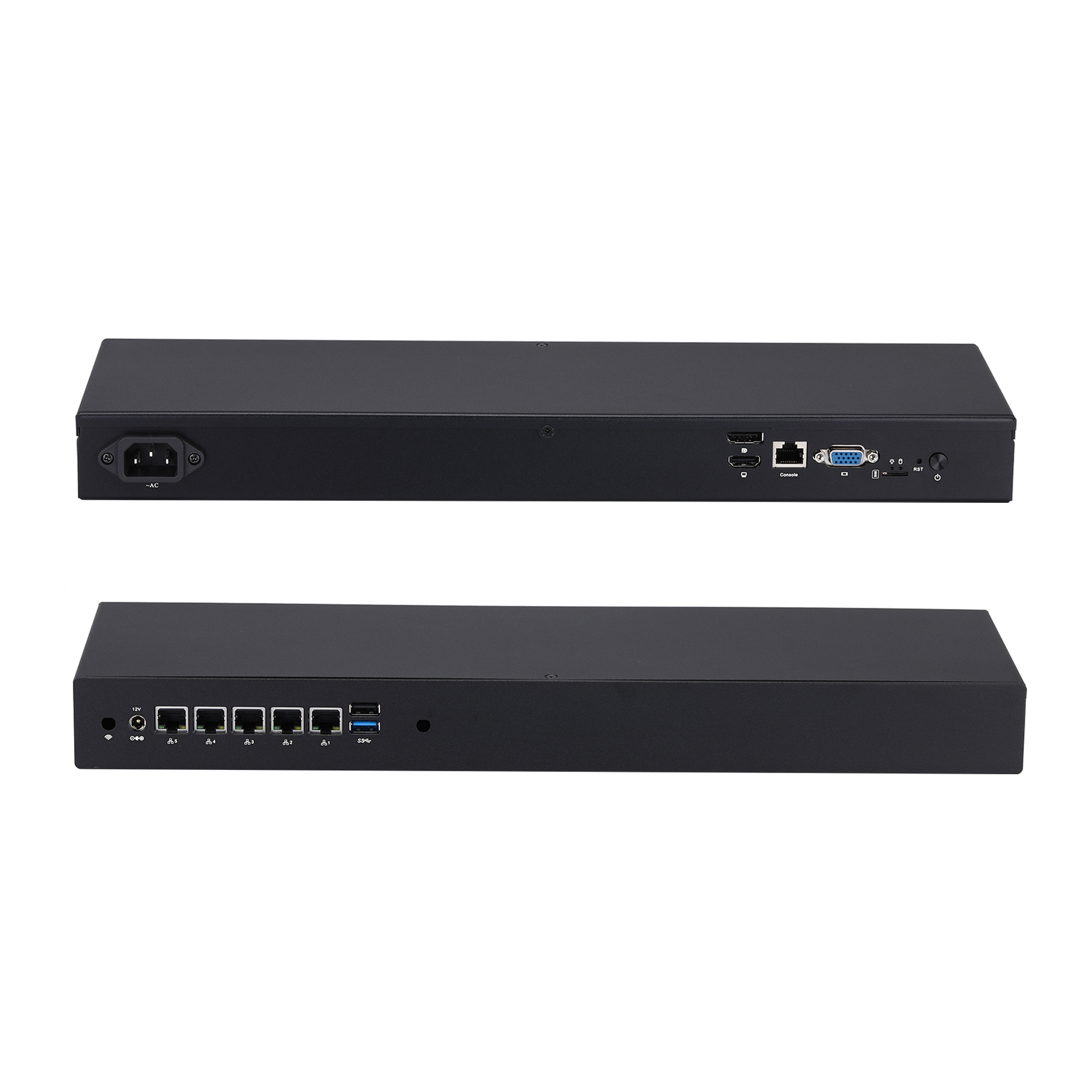

Q10800G5-S08Q10800G5-S08Q10800G5-1U08Q10800G5-1U08

This product is available via inquiry and OEM/ODM customization.

Send Inquiry
MB2J510-0811MB2J510-0821IntelElkhart LakePentiumCeleronATOMN6210N6211J6412J6413J6415J6426

Main Features

  • Intel Elkhart Lake Processor
  • 1 × HDMI, 1 × Display Port, 1 × VGA
  • 1 × USB 3.0,1x USB 2.0
  • 2 × M.2, 1 × mSATA, 1 × SATA3.0
  • 1 × RS-232 (RJ-45)
  • 5 × Intel I225-V/I226-V 2.5G LAN

Processor System

CPUIntel Elkhart Lake Processor
ChipsetBy CPU
Dimension120 × 120mm
Core NumberBy CPU
SpeedBy CPU
L2 CacheBy CPU
BIOSUEFI

Memory

TechnologyDDR4 2133/2400MHz SDRAM
Max.32GB
Socket1 × SO-DIMM

Graphics

ControllerBy CPU
VRAMShared Memory
VGA1
HDMI1 (Support HDMI 1.4a)
Display Port1
Multi DisplayYes

Ethernet

Interface100/1000/2500Mbps
Controller5 × Intel I225-V/I226-V 2.5G LAN
Connector5 × RJ-45

Audio

ControllerRealtek HD Audio

Front I/O

Power Button1 × Power Button, 1 × Reset Button
LED1 × Power LED,1 × HDD LED
USB1 × USB 3.0, 1x USB 2.0
DC-IN1
Ethernet5
Display1× VGA,1× HDMI,1× Display Port
Serial Port/USB1 × Connector, RS-232 (RJ-45) by Default,2 × USB 2.0 (Option)
SIM Slot1

Storage

Max. Data Transfer RateSATA 3.0 (6.0Gb/S)

Expansion

mSATA1 × Full-length Mini PCIe for SSD
M.21 × M.2 for 4G/5G (B key, Type: 3042/3052)
M.21× M.2 for SSD (M key, Type: 2280,PCIe 3.0 × 2) Wi-Fi support via a Converter Card

Internal Connector

Serial Port1, 2 × 5Pin, Pitch 2.0mm
SATA1, SATA 3.0 (6.0Gb/S)
SATA PWR Connector1, 1 × 4Pin, Pitch PH2.0mm
AutoStart JumperYes, 1 × 3Pin, Pitch 2.54mm
Clear CMOS JumperYes, 1 × 3Pin, Pitch 2.54mm
GPIO Header1, 2 × 5Pin, Pitch 2.0mm
GPIO Power SelectYes, 1 × 3Pin, Pitch 2.54mm
USB 2.0 Header2, 2 × 5Pin, Pitch 2.54mm
Front Panel Header1, 2 × 5Pin, Pitch 2.0mm
Power Header1, 1 × 2Pin, Pitch 3.5mm, Phoenix 2Pin (Option)

Watchdog Timer

OutputFrom Super I/O to Drag RESETCON#
Interval256 Segments,0,1,2,3,,,255 sec/min

Power

Input PWR12V DC in, 5.5mm/2.5mm

Environmental

Operating Temperature0-50℃

Accessories

AccessoriesCable for HDD

OS Support

OSUEFI Windows 10, UEFI Linux

Package Contents

  • Motherboard × 1
  • SATA Combo Cable × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPDatasheet
MB2J510-0811 Elkhart Lake Celeron N6210 2 / 2 1.20Ghz ~ 2.6Ghz 1.5M Intel UHD Graphics 6.5W
MB2J510-0821 Elkhart Lake Celeron J6412 4 / 4 2.00Ghz ~ 2.60Ghz 1.5M Intel UHD Graphics 10W
