Mini PC Q10800G5 S08 Series

Model: Q10800G5-S08

Total LAN5
LAN Speed2.5G RJ45
Serial Ports1

Key Specs

CPU
Elkhart Lake
Memory
DDR4 SO-DIMM · Max 32GB
LAN
5
Storage
M.2 Mkey, mSATA, SATA

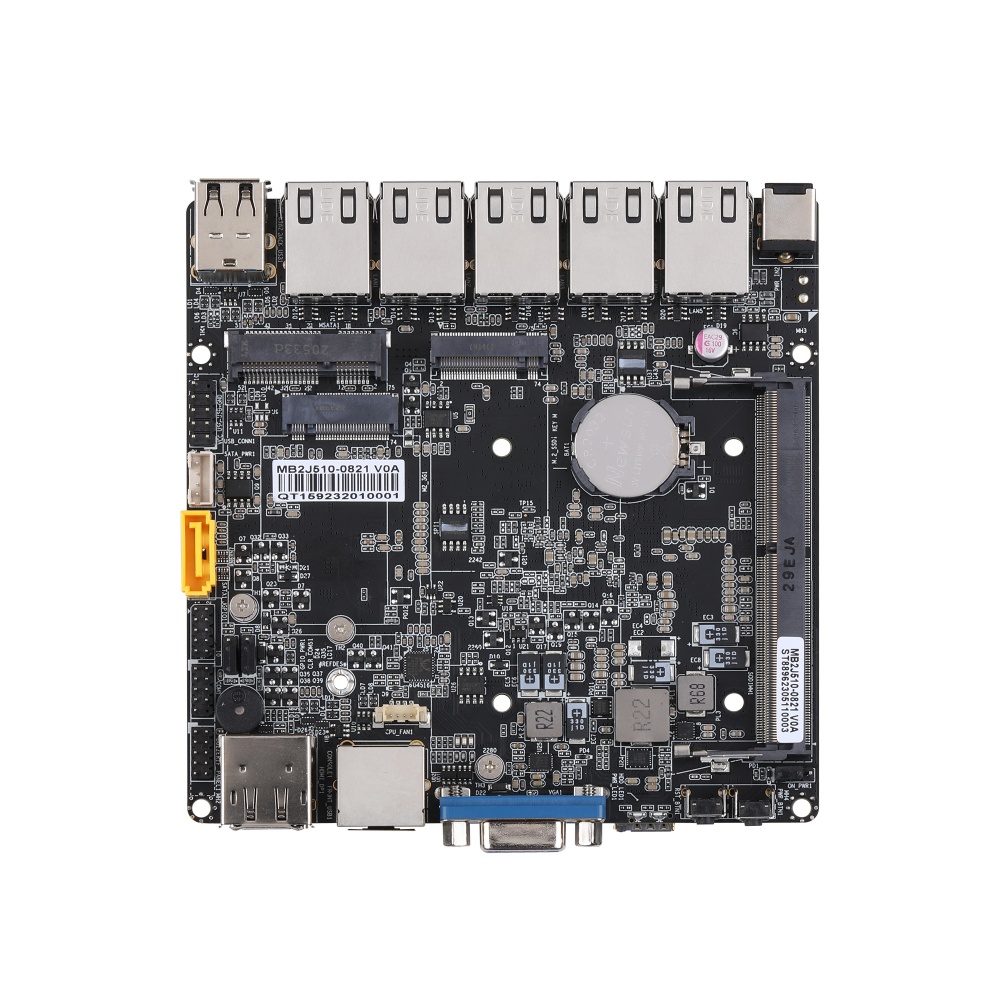

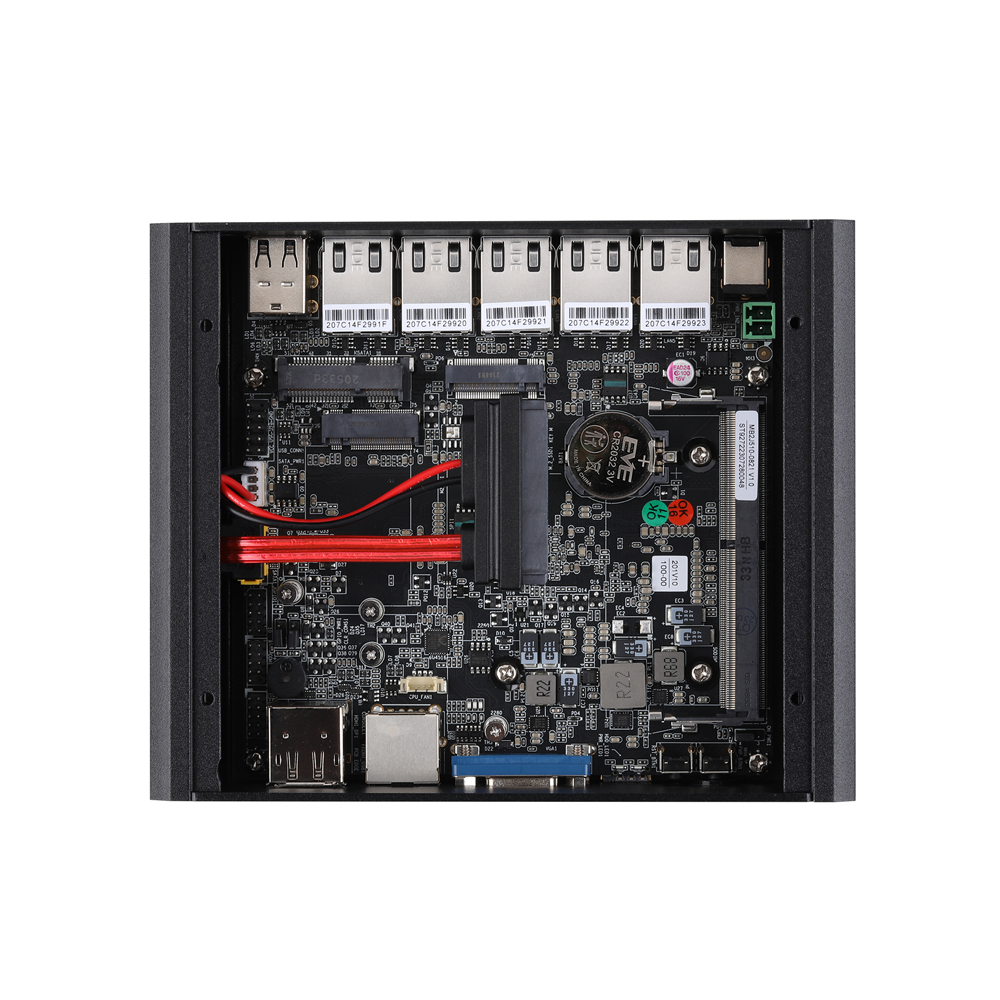

Compatible Motherboard

MB2J510-0800MB2J510-0800

This product is available via inquiry and OEM/ODM customization.

Send Inquiry
Q780G5Q790G5Q10811G5Q10821G5IntelElkhart LakePentiumCeleronATOMN6210N6211J6412J6413J6415J6426

Main Features

  • Intel Elkhart Lake Processor
  • 1 × HDMI, 1 × Display Port, 1 × VGA
  • 1 × USB 3.0, 1 × USB 2.0
  • 2 × M.2, 1 × mSATA, 1 × SATA 3.0
  • 5 × Intel I225-V/I226-V 2.5G LAN

Processor System

CPUIntel Elkhart Lake Processor
CPU TDPBy CPU
Memory1 × DDR4 SO-DIMM Socket (Up to 32G)
ChipsetBy CPU
GraphicsBy CPU
AudioNo
Watch DogYes

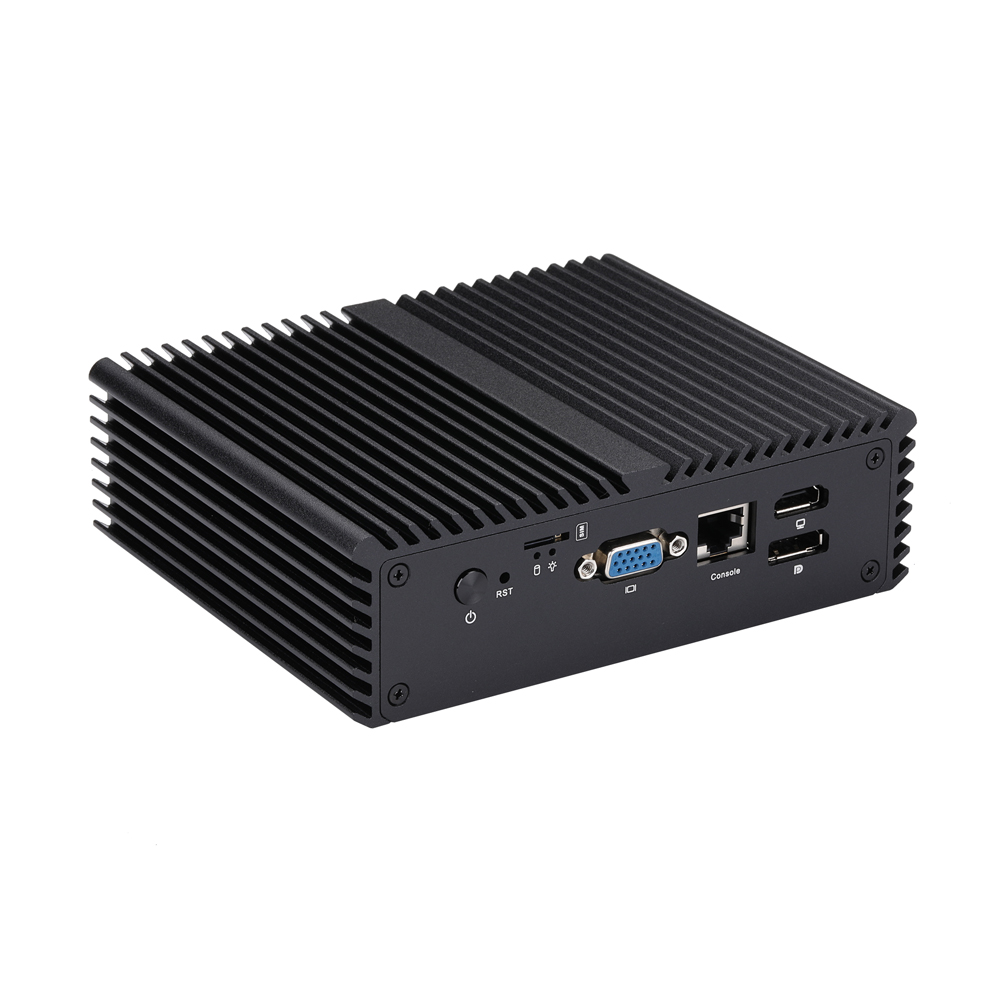

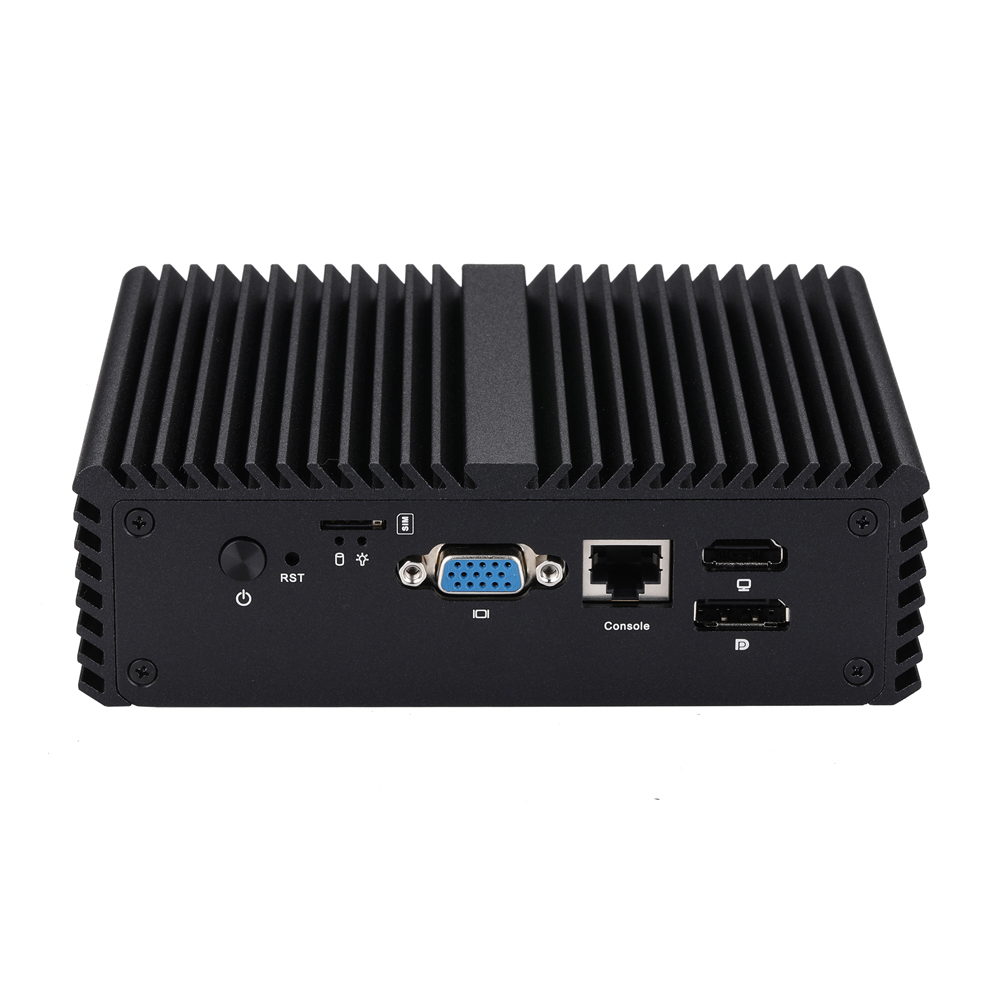

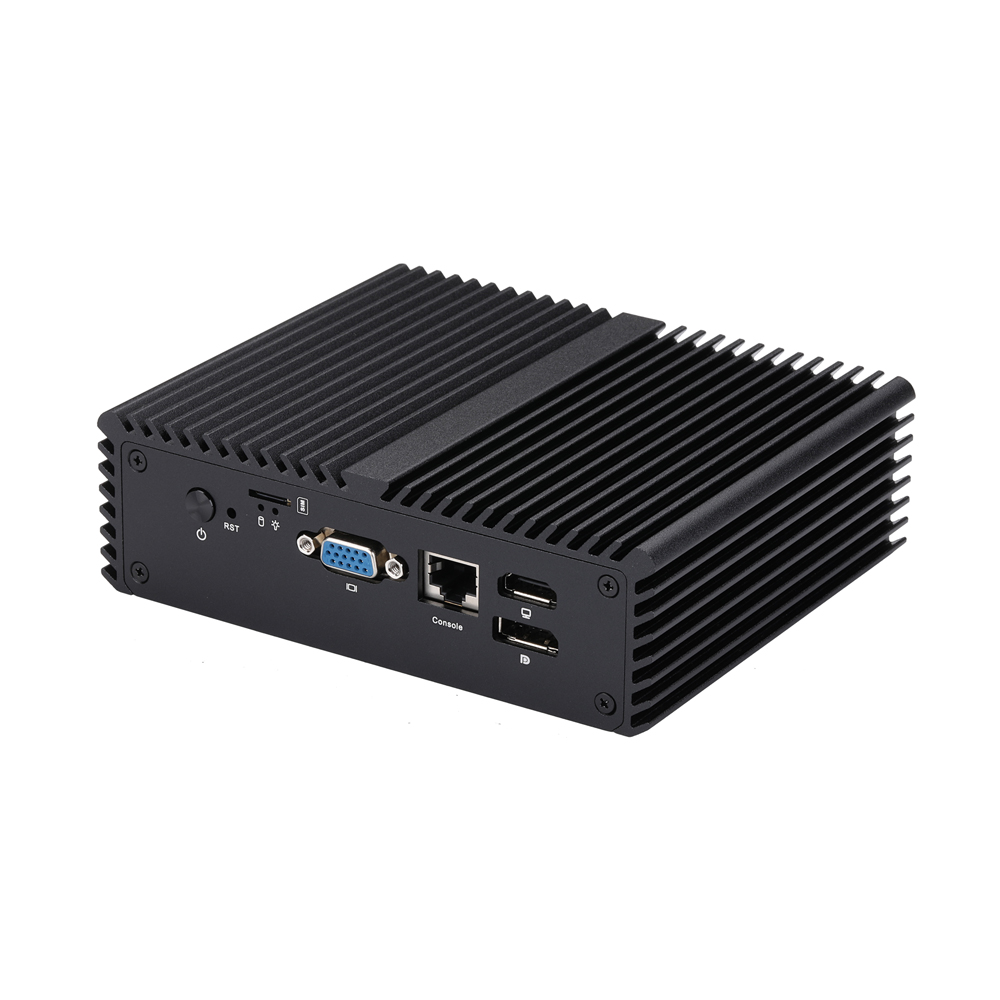

Front I/O

Power Button1 × Power Button,1 × Reset Button
LED1 × Power LED,1 × HDD LED
Serial Port1 × RS-232 Port (RJ-45)
Video Output1 × HDMI,1 × Display Port,1 × VGA
SIM Card Slot1

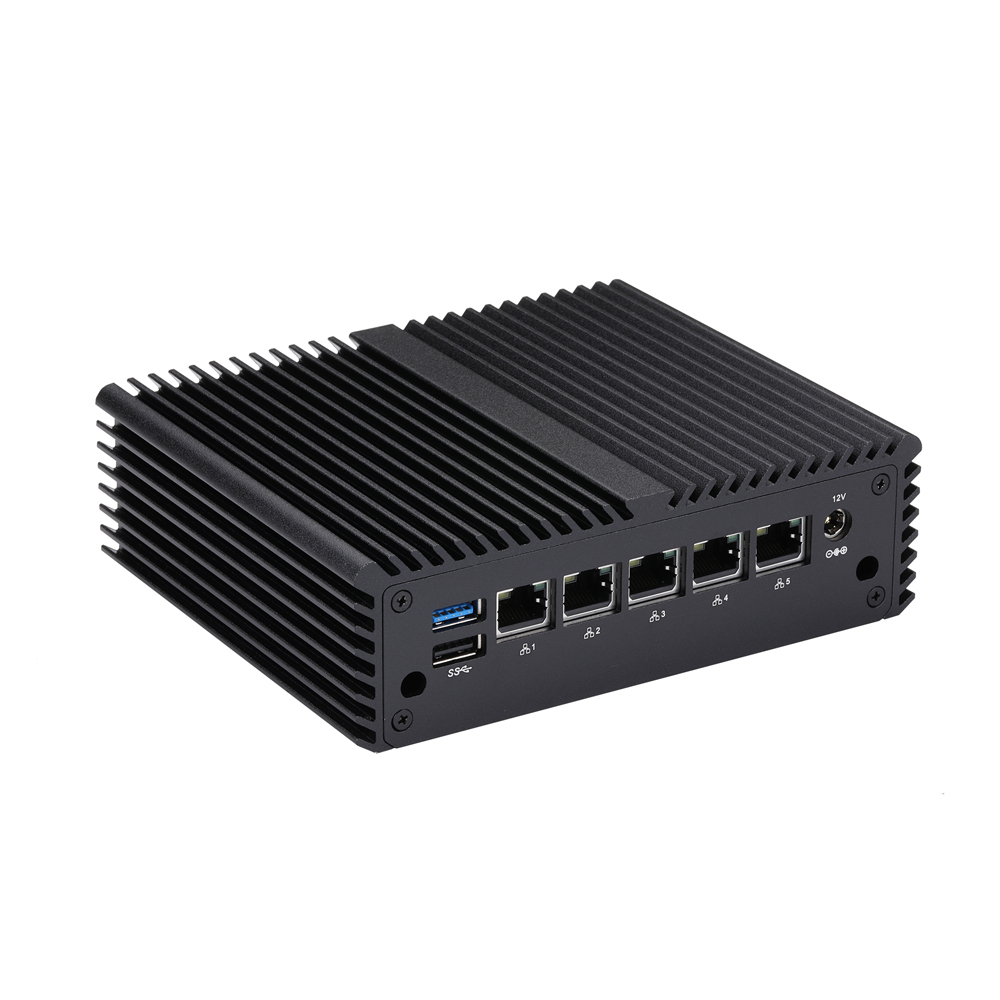

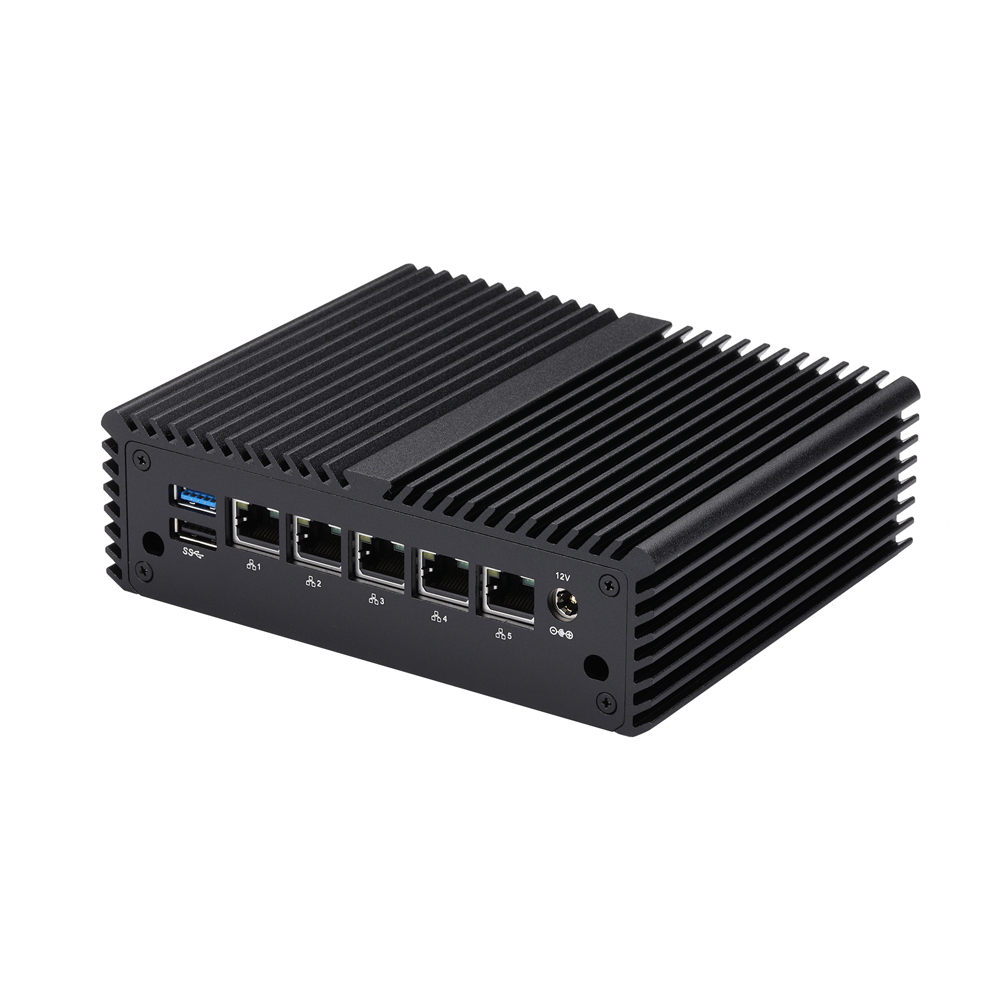

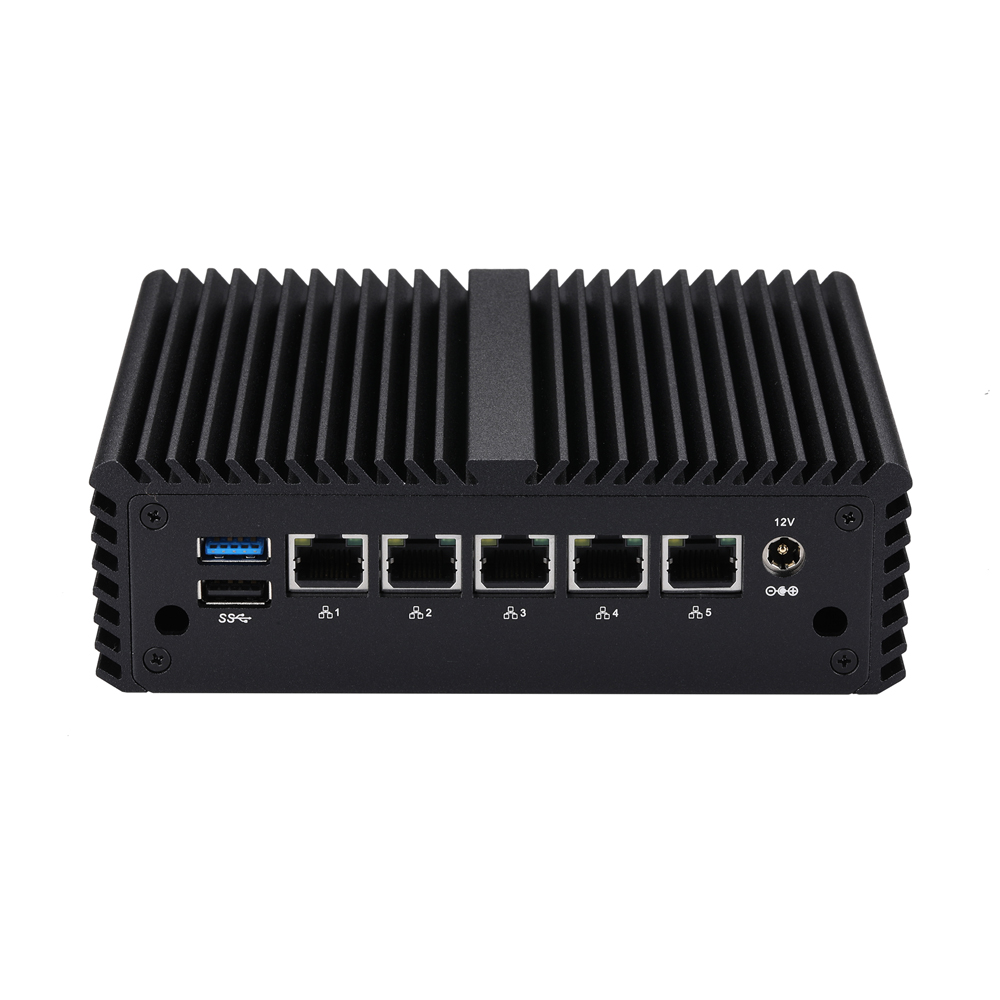

Rear I/O

Power1 × DC Jack
LAN5 × Intel I225-V/I226-V 2.5G LAN
USB1 × USB 3.0,1 × USB 2.0

Storage

Type1 × 2.5-inch HDD/SSD
Type1 × Mini PCIe for mSATA SSD
Type1 × M.2 for SSD (M key, Type: 2280, PCIe 3.0 × 1)

Expansion

mSATA1 × mSATA for SSD
M.21 × M.2 for 4G/5G (B key, Type: 3042/3052)
M.21 × M.2 for SSD (M key, Type: 2280, PCIe 3.0 × 2) Wi-Fi via Converter Card
SIM Card Slot0
AutoStart JumperYes,1 × 3Pin, Pitch 2.54mm
GPIO1,2 × 5Pin, Pitch 2.0mm
Clear CMOSYes,1 × 3Pin, Pitch 2.54mm
Front Panel Header1, 2 × 5Pin, Pitch 2.0mm

Power

Power Adapter12V3A
DC Jack5.5mm, 2.5mm

Environmental

Operating Temp0°C~50°C
Non-Operating Temp-20°C~80°C
Humidity10%~90%

Mechanical

MaterialAluminium Alloy
Dimension155 × 127 × 48mm
Weight0.85kg
MountingVESA Mounting Bracket
Packaging Dimension261 × 218 × 75mm
Kensington LockNo
Cooling ModeFanless Design

OS Support

OSUEFI Windows 10, UEFI Linux

Package Contents

  • Mini PC × 1
  • Power Adapter × 1
  • AC Power Cable × 1
  • VESA Mount × 1
  • SATA Combo Cable × 1
  • Screw Kit × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPDatasheet
Q10811G5-S08 Elkhart Lake Celeron N6210 2 / 2 1.20Ghz ~ 2.6Ghz 1.5M Intel UHD Graphics 6.5W
Q10821G5-S08 Elkhart Lake Celeron J6412 4 / 4 2.00Ghz ~ 2.60Ghz 1.5M Intel UHD Graphics 10W

Related Products

Mini PC Q10800XV S04 Series

Mini PC Q10800XV S04 Series

Q10800XV-S04

Mini PC Q30400GE S20 Series

Mini PC Q30400GE S20 Series

Q30400GE-S20

Mini PC Q30400GEX S10 Series

Mini PC Q30400GEX S10 Series

Q30400GEX-S10

Mini PC Q10900H6 S23 Series

Mini PC Q10900H6 S23 Series

Q10900H6-S23

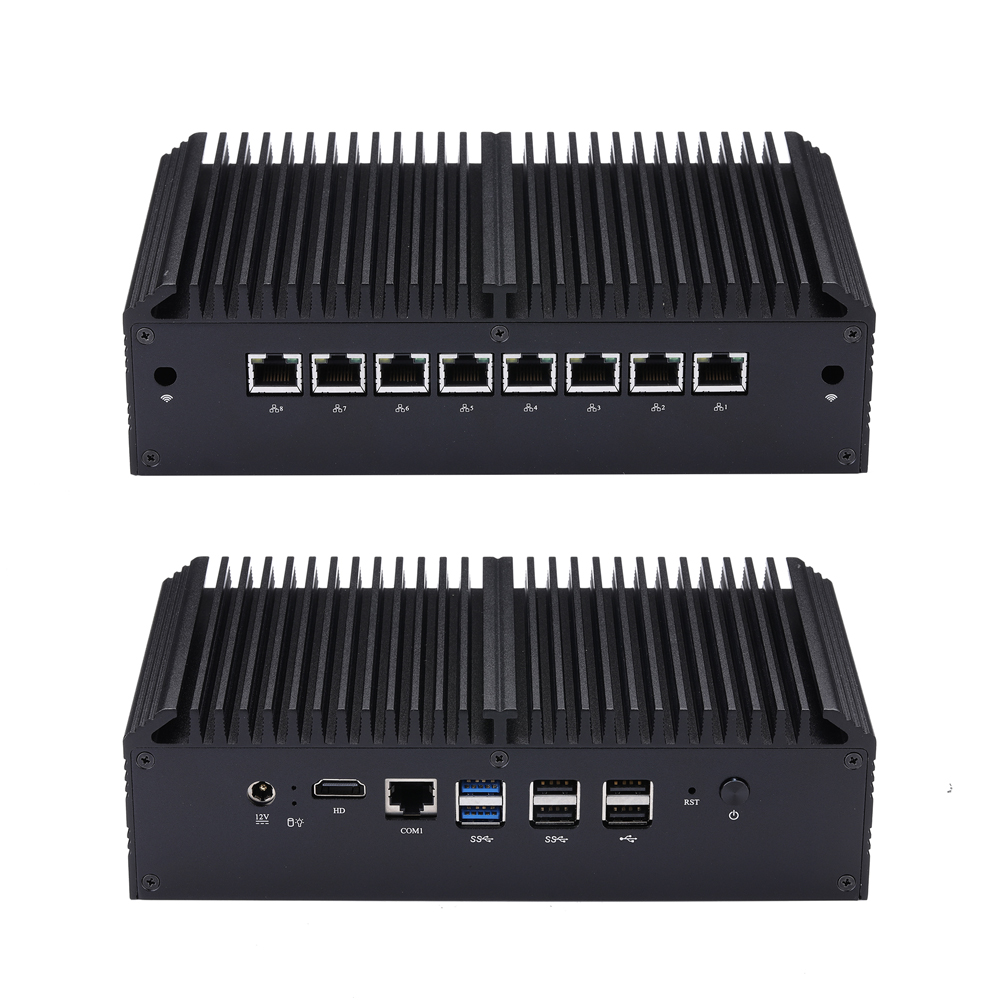

Mini PC Q30400GE S10 Series
