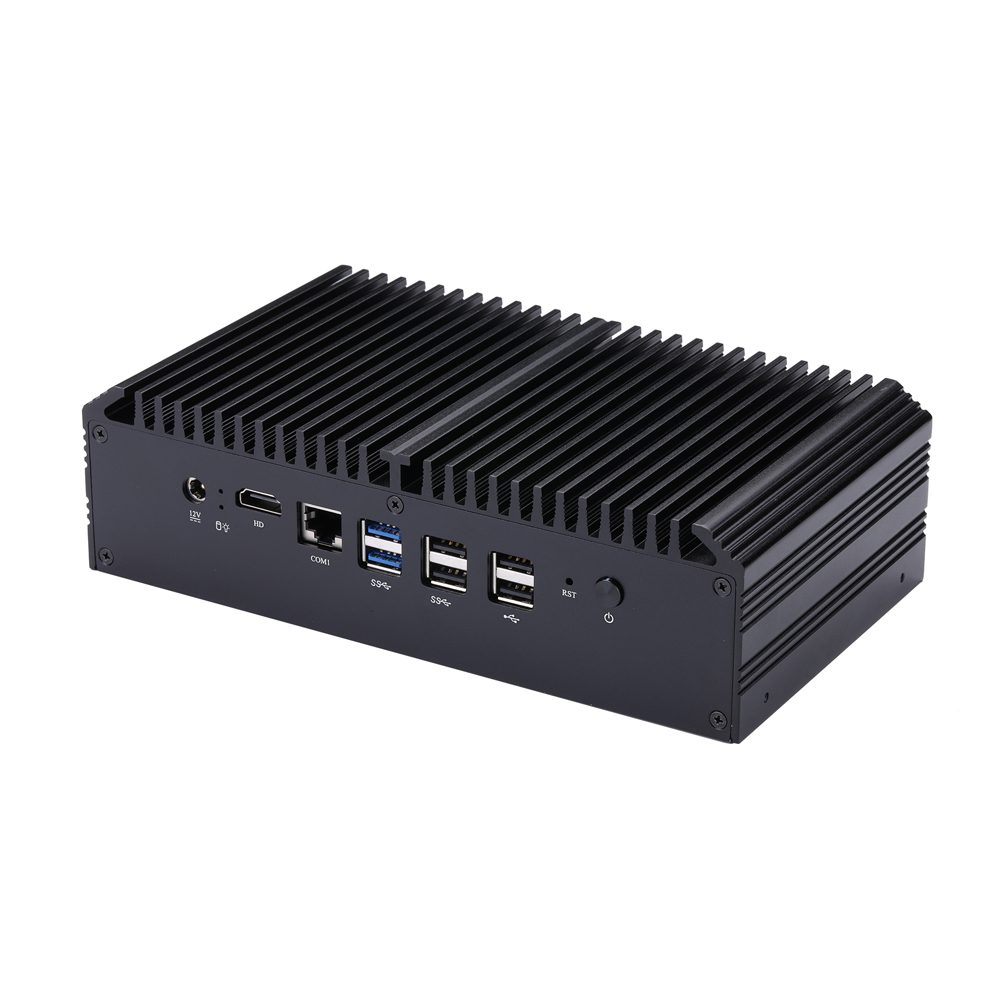

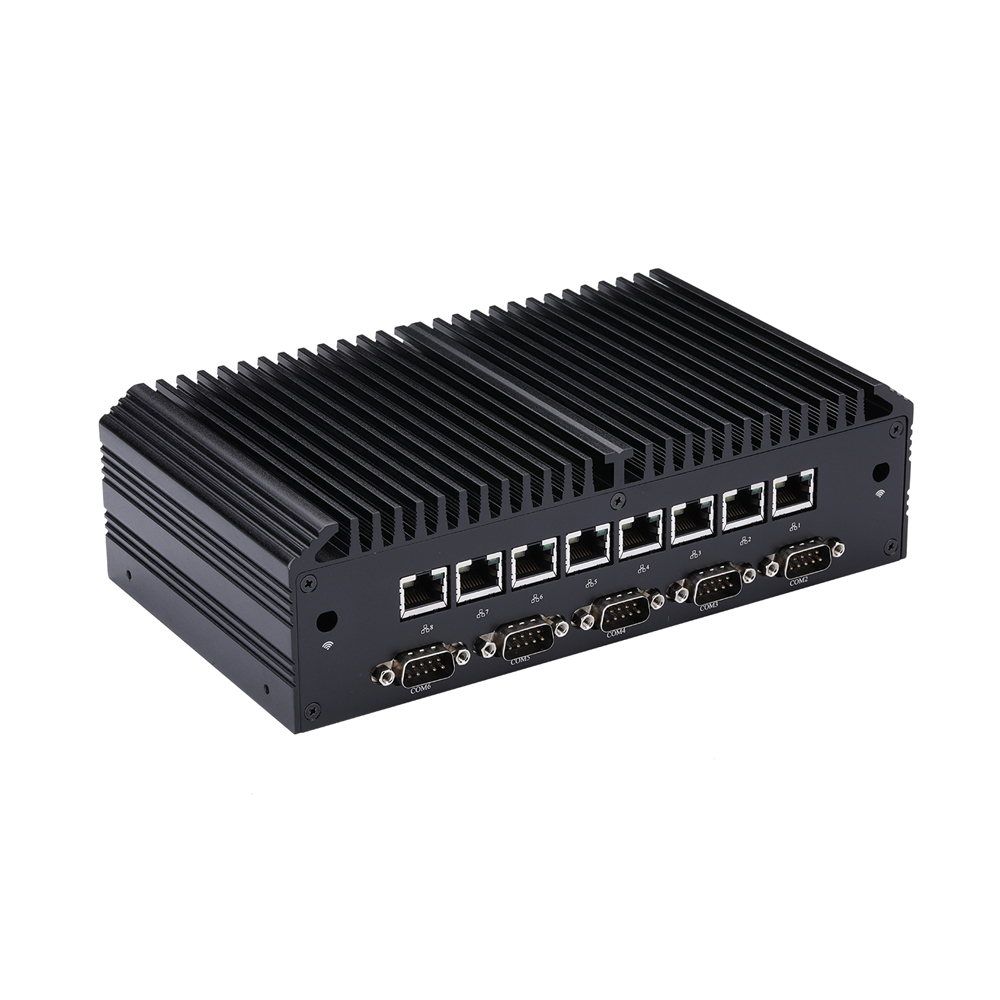

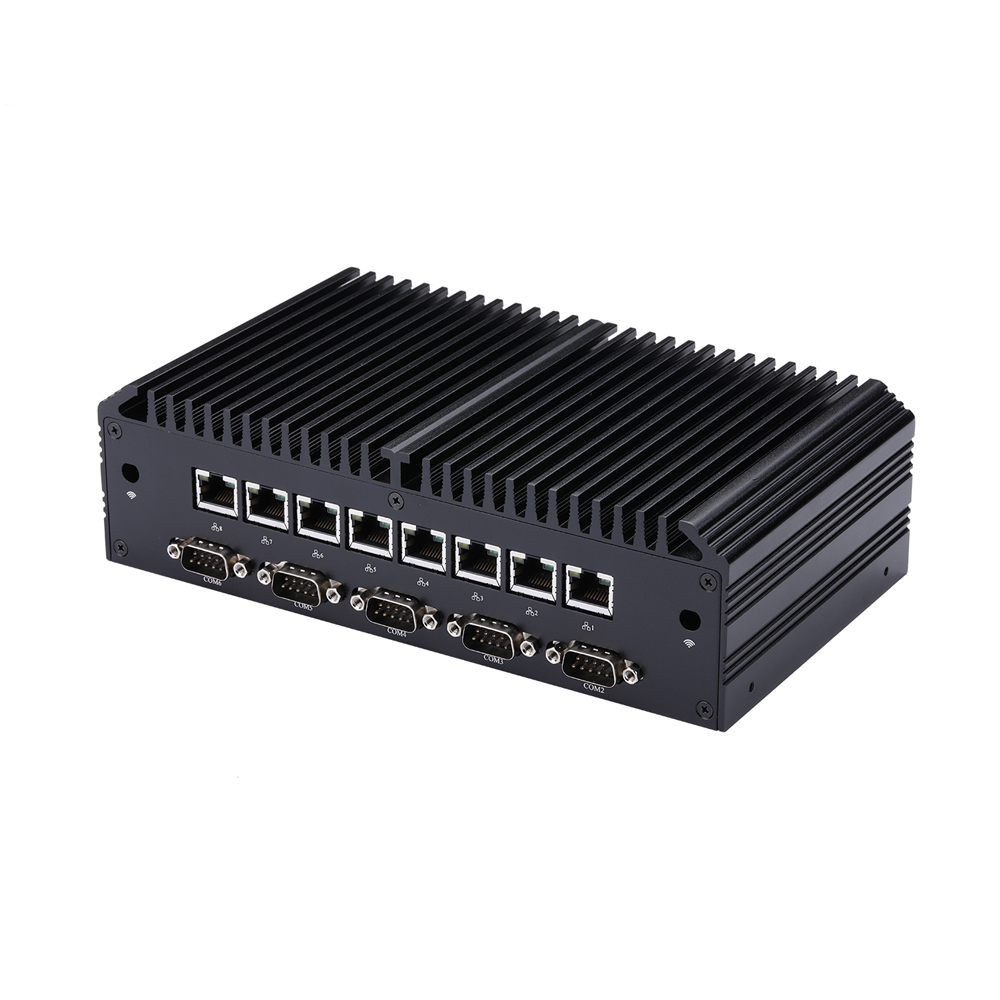

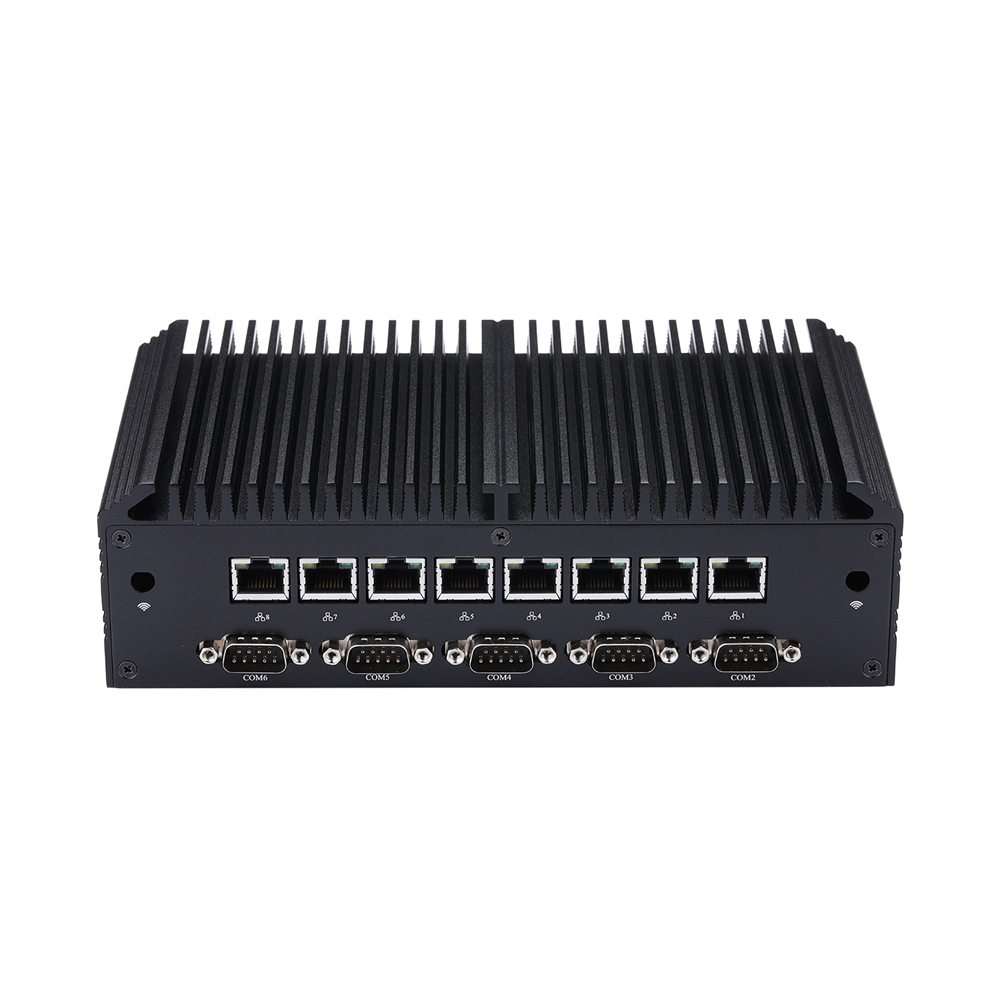

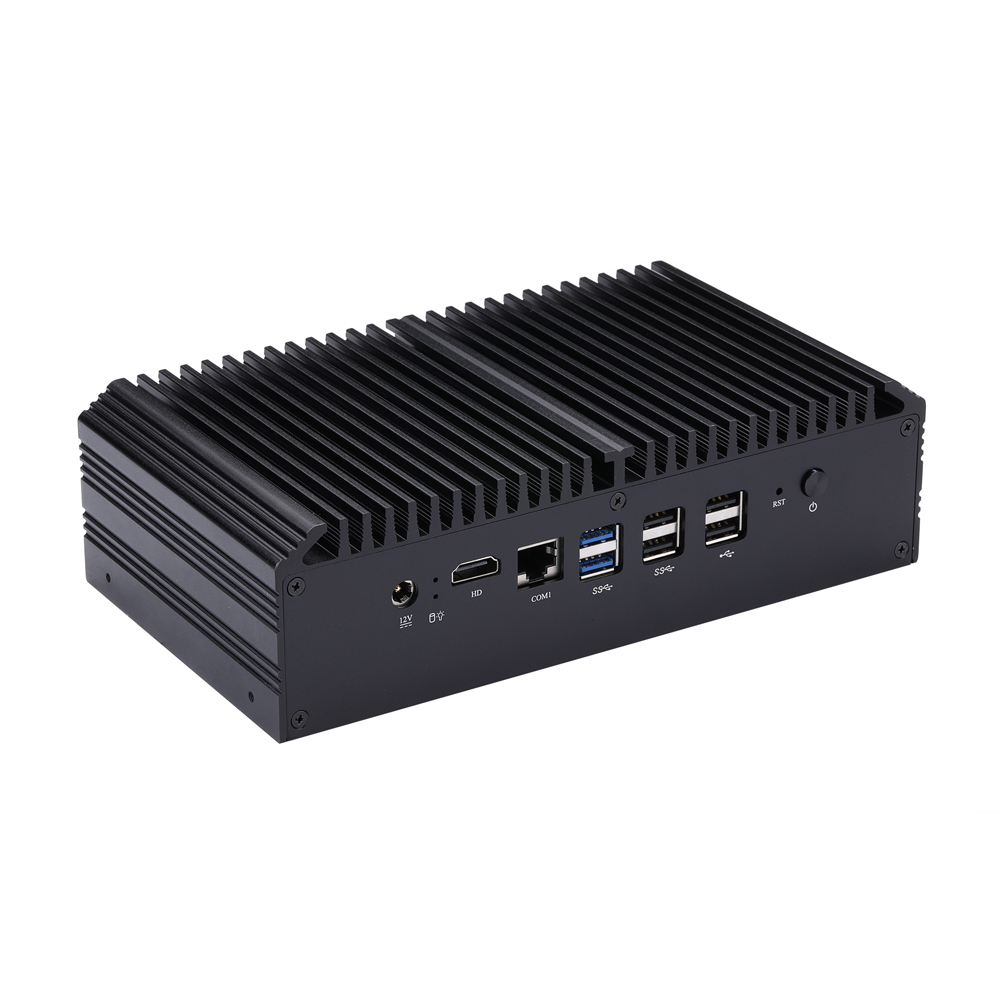

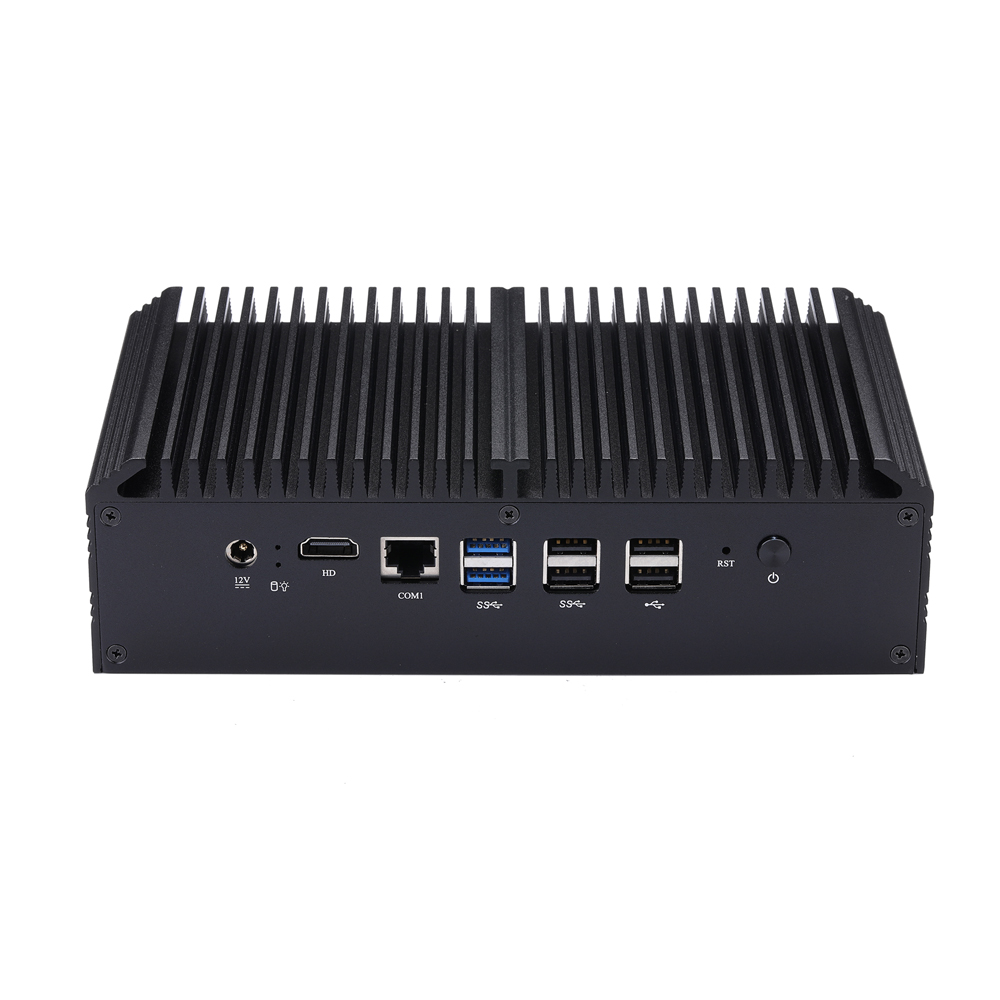

Mini PC Q30400GEX S10 Series

Name: Mini PC Q30400GEX S10 Series
Brand: Qotom
SKU: Q30400GEX-S10
Availability: InStock

Model: Q30400GEX-S10

Total LAN8

LAN Speed1G RJ45

Serial Ports6

Key Specs

CPU: Haswell / Broadwell
Memory: DDR3L SO-DIMM · Max 8GB
LAN: 8
Storage: mSATA, SATA

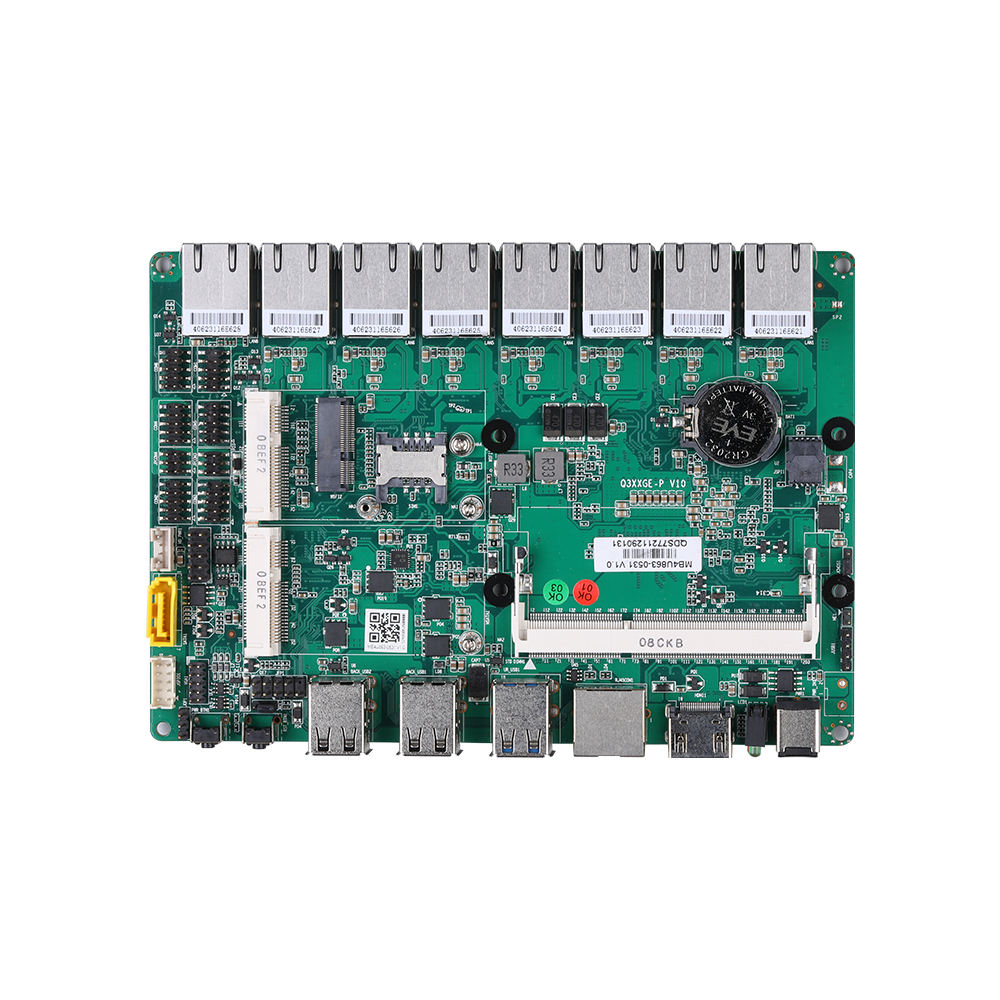

Compatible Motherboard

MB4U863-0400

This product is available via inquiry and OEM/ODM customization.

Send Inquiry

Main Features

Intel 4 th Haswell –U/Y Processor
Intel 5 th Broadwell-U Processor
1 × HDMI
2 × USB 3.0, 4 × USB 2.0
1 × mSATA, 1 × Mini PCIe, 1 × M.2, 1 × SATA 3.0
1 × RS-232 (RJ-45), 5 × RS-232 (DB9)
8 × Intel I211-AT/I210-AT Gigabit LAN

Related Products

Mini PC Q30400GE S20 Series

Q30400GE-S20

Mini PC Q30400X S05 Series

Q30400X-S05

Mini PC Q10800G5 S08 Series

Q10800G5-S08

Mini PC Q10900H6 S23 Series

Q10900H6-S23

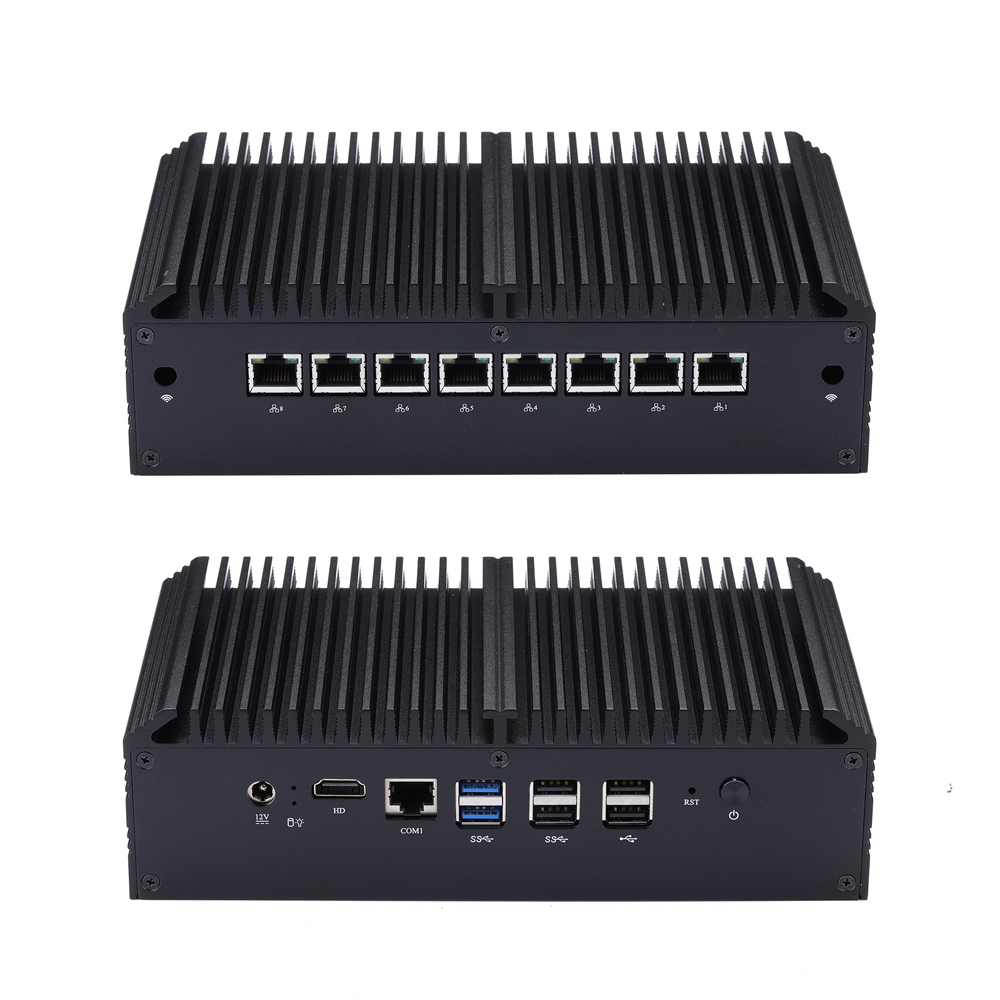

Mini PC Q30400GE S10 Series

Q30400GE-S10

Mini PC Q10900V6 1U13 Series

Q10900V6-1U13

CPU	• Intel 4 th Haswell –U/Y Processor • Intel 5 th Broadwell-U Processor
CPU TDP	By CPU
Memory	1 × DDR3L SO-DIMM Socket (Up to 8G, 1333/1600MHz)
Chipset	By CPU
Graphics	By CPU
LAN Chipset	8 × Intel I211-AT/I210-AT Gigabit LAN
Watch Dog	Yes

Power Button	1
LED	1 × Power LED,1 × HDD LED
USB	2 × USB 3.0,4× USB 2.0
Serial Port	1 × RS-232 Port (RJ-45)
Reset Button	1
Power	1 × DC Jack
Video Output	1 × HDMI

Type	1 × 2.5-inch HDD/SSD
Type	1 × Mini PCIe for mSATA SSD

Mini PCIe	1 × Mini PCIe (Only Support USB Device) Full-length for 4G Half-length for Wi-Fi
M.2	1 × M.2 for Wi-Fi (E key, Type: 2230)
SIM Card Slot	1
AutoStart Jumper	Yes,1 × 3Pin, Pitch 2.0mm
CMOS Clear Jumper	Yes,1 × 3Pin, Pitch 2.0mm
Serial Port	0
GPIO	1,2 × 5Pin, Pitch 2.0mm
RS-485	COM3/4 can be set up as RS-485

Power Adapter	12V4A
DC Jack	5.5mm, 2.5mm

Mini PC Series

Motherboard Series

NAS Storage Series

OPS Series

Panel PC Series

Accessories

Mini PC Q30400GEX S10 Series

Key Specs

Compatible Motherboard

Main Features

Processor System

Front I/O

Rear I/O

Storage

Expansion

Power

Environmental

Mechanical

OS Support

Package Contents

Order & Specification Selection

Driver Downloads

Related Products

LAN	8 × Intel I211-AT/I210-AT Gigabit LAN
Serial Port	5 × RS-232 Port (DB9) (COM3/COM4 Support 5V/12V)

Operating Temp	0°C~50°C
Non-Operating Temp	-20°C~80°C
Humidity	10%~90%

Material	Aluminium Alloy
Dimension	217 × 122 × 62mm
Weight	1.41kg
Mounting	VESA Mounting Bracket
Packaging Dimension	285 × 260 × 93mm
Kensington Lock	No
Cooling Mode	Fanless Design

Ordering Code	Code Name	Processor Type	Processor Number	Cores / Threads	Frequency	Cache	Graphics	TDP
Q30411GEX-S10	Haswell	Celeron	2955U	2 / 2	1.4GHz	2M	Intel HD Graphics	15W
Q30431GEX-S10	Haswell	Core i3	4005U	2 / 4	1.7GHz	3M	Intel HD 4400	15W
Q30451GEX-S10	Haswell	Core i5	4200U	2 / 4	1.6GHz ~ 2.6GHz	3M	Intel HD 4400	15W
Q30471GEX-S10	Haswell	Core i7	4500U	2 / 4	1.8GHz ~ 3.0GHz	4M	Intel HD 4400	15W
Q30432GEX-S10	Haswell	Core i3	4010Y	2 / 4	1.3GHz	3M	Intel HD 4200	11.5W
Q30452GEX-S10	Haswell	Core i5	4200Y	2 / 4	1.4GHz ~ 1.9GHz	3M	Intel HD 4200	11.5W
Q30511GEX-S10	Broadwell	Celeron	3205U	2 / 2	1.5GHz	2M	Intel HD Graphics	15W
Q30512GEX-S10	Broadwell	Celeron	3215U	2 / 2	1.7GHz	2M	Intel HD Graphics	15W
Q30521GEX-S10	Broadwell	Pentium	3805U	2 / 2	1.9GHz	2M	Intel HD Graphics	15W
Q30531GEX-S10	Broadwell	Core i3	5005U	2 / 4	2.0GHz	3M	Intel HD 5500	15W
Q30551GEX-S10	Broadwell	Core i5	5200U	2 / 4	2.2GHz ~ 2.7GHz	3M	Intel HD 5500	15W
Q30571GEX-S10	Broadwell	Core i7	5500U	2 / 4	2.4GHz ~ 3.0GHz	4M	Intel HD 5500	15W
