Mini PC Q10900V6 1U13 Series

Model: Q10900V6-1U13

Total LAN6
LAN Speed2.5G RJ45 / 10G RJ45 / 10G SFP+
Serial Ports1

Key Specs

CPU
Alder lake N / Twin Lake
Memory
DDR5 SO-DIMM · Max 48GB
LAN
6
Storage
M.2 Mkey

Compatible Motherboard

MB4J61X-090UMB4J61X-090U

This product is available via inquiry and OEM/ODM customization.

Send Inquiry
Q10911V6Q10921V6Q10922V6Q10923V6Q10924V6Q10931V6Q10932V6Q11022V6Q11023V6Q11031V6Q11032V6IntelAlder Lake-NTwin LakePentiumCeleronATOMX7425EN50N97N100N200N300N305N150N250N350N355

Main Features

  • Intel Alder Lake-N Processor
  • Intel Twin Lake-N Processor
  • 1 × HDMI, 1 × Display Port
  • 2 × USB 3.0 , 2 × USB 2.0
  • 2 × M.2
  • 1 × RS-232 (RJ45)
  • 2 × Intel I226-V 2.5G LAN
  • 2, Intel X550 10G LAN
  • 2, Intel X710-BM2 10G SFP+

Processor System

CPUIntel Alder Lake-N Processor Intel Twin Lake-N Processor
CPU TDPBy CPU
Memory1 × DDR5 SO-DIMM Socket (Up to 48G)
ChipsetBy CPU
GraphicsBy CPU
LAN Chipset2 × Intel I226-V 2.5G LAN 2, Intel X550 10G LAN (10GbE/5GbE/2.5GbE/1GbE) 2, Intel X710-BM2 10G SFP+ (10GbE/1GbE)
Watch DogYes

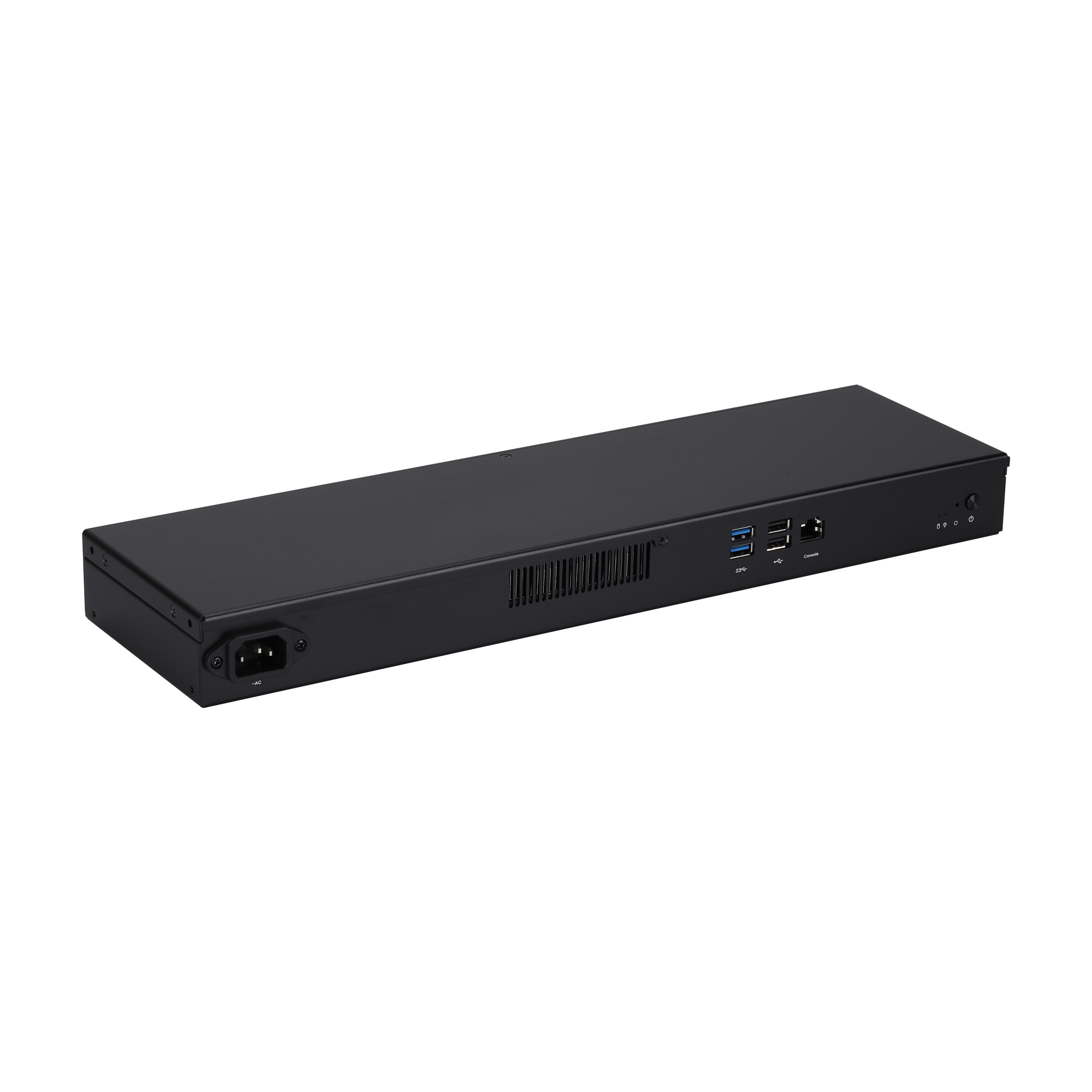

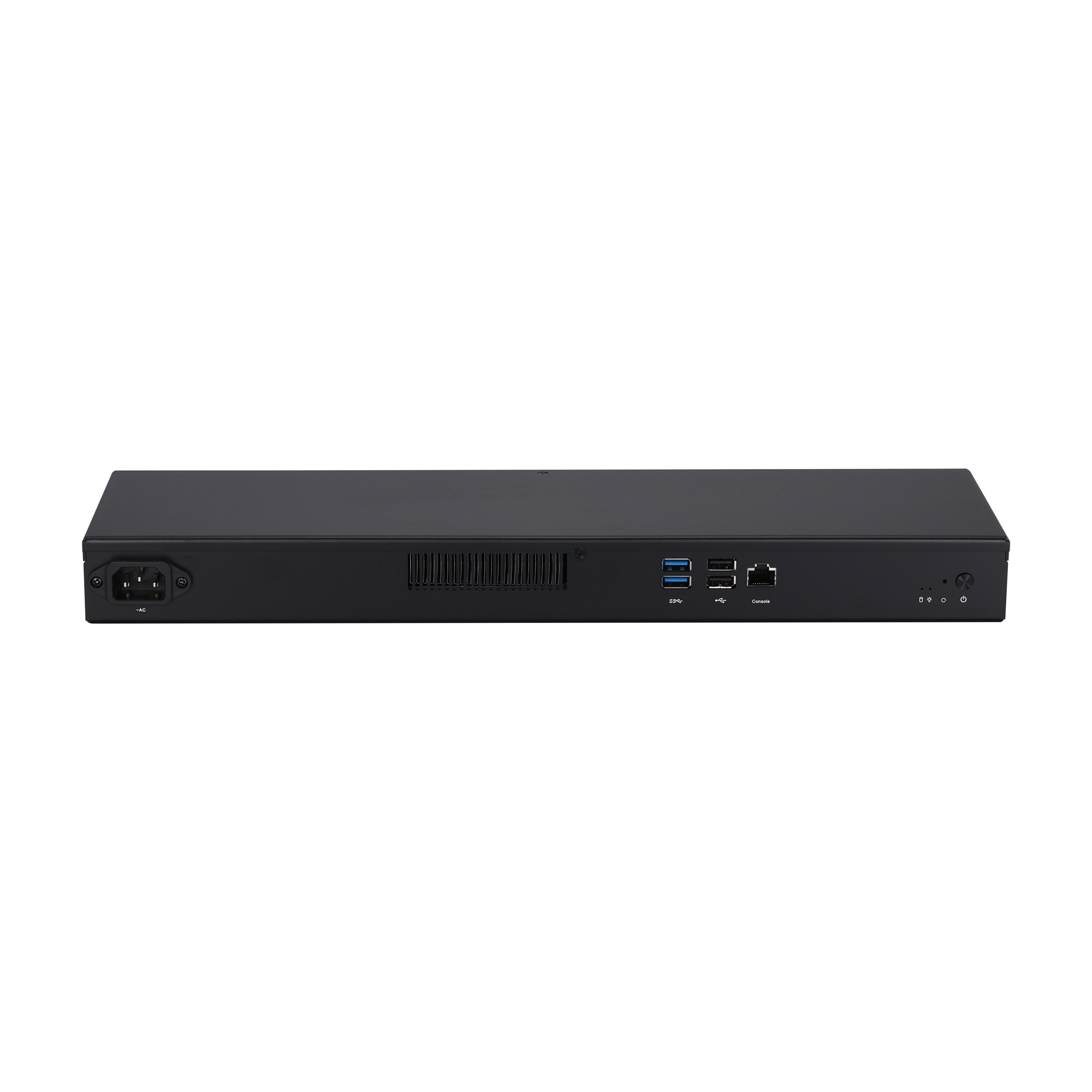

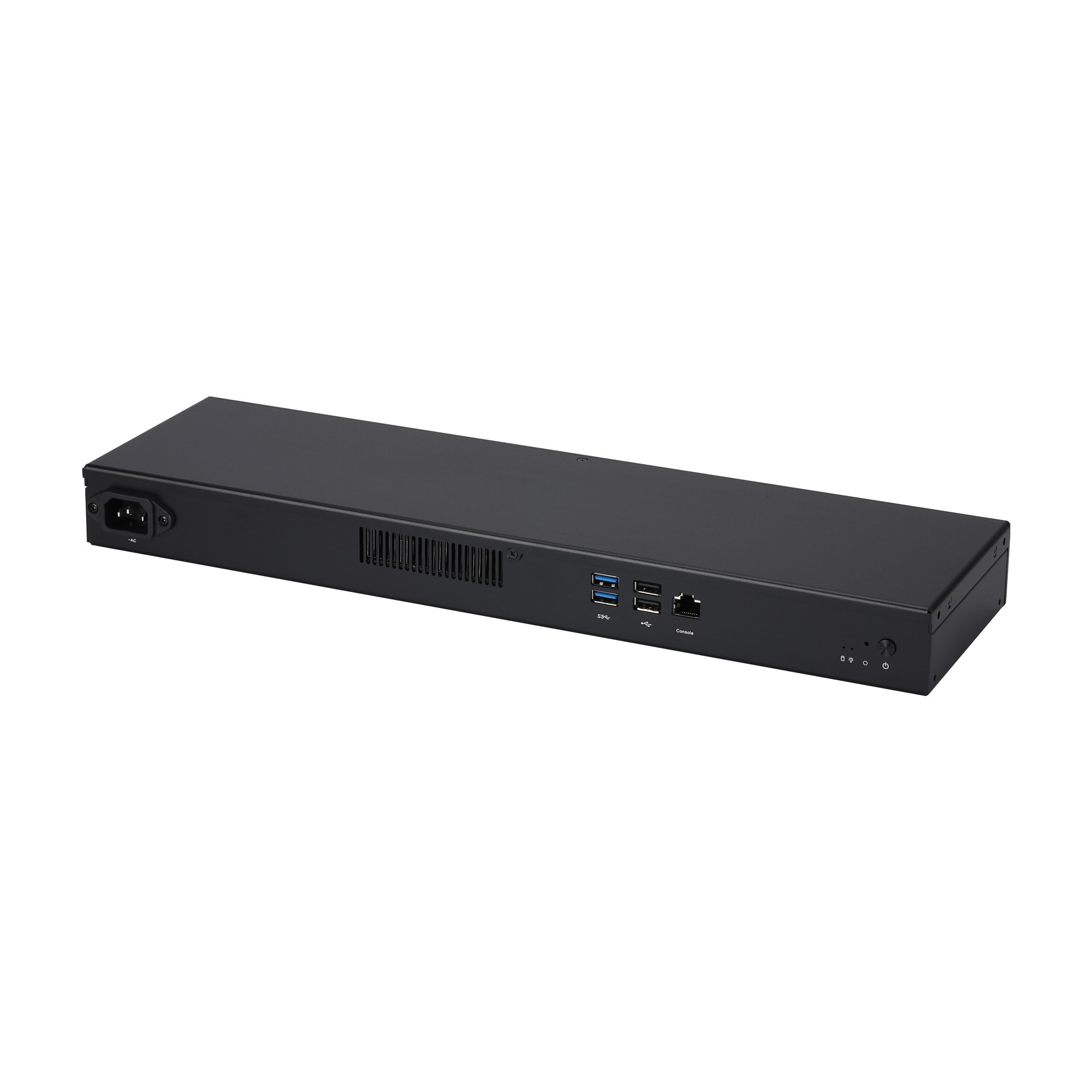

Front I/O

Power Button1 × Power Button, 1 × Reset Button
LED1 × Power LED,1 × HDD LED
USB2 × USB 3.0, 2 × USB 2.0
Serial Port1 × Connector, RS-232 (RJ-45)

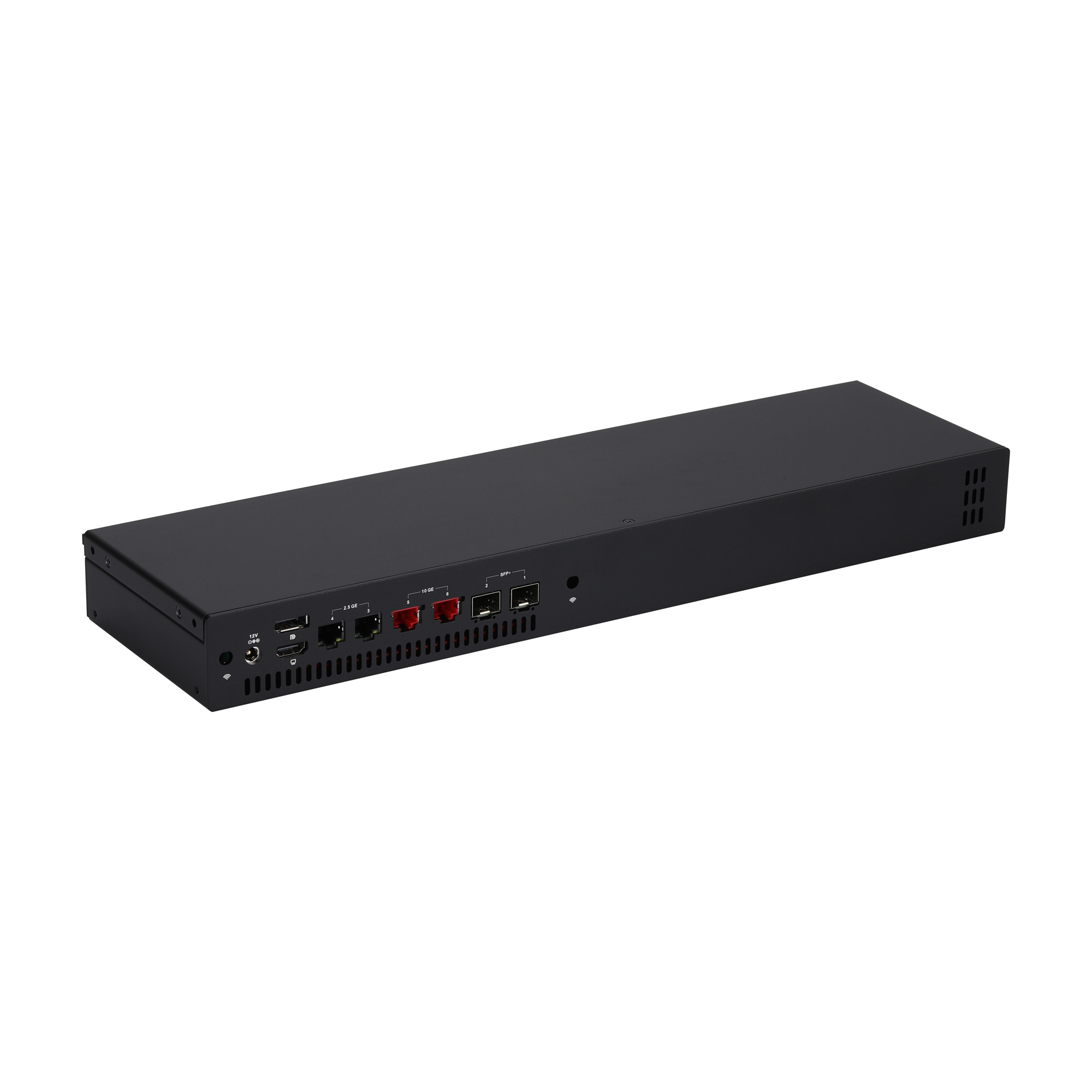

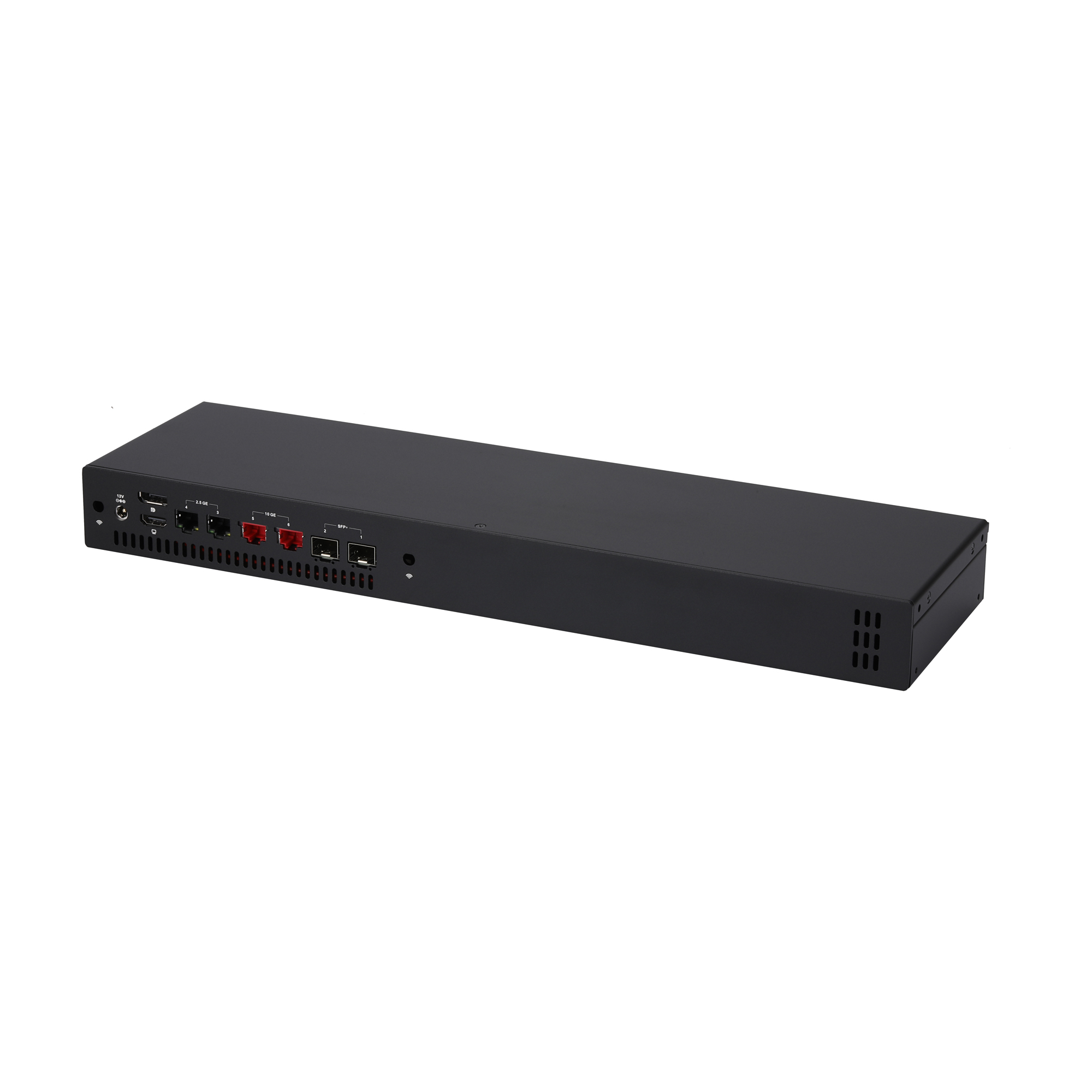

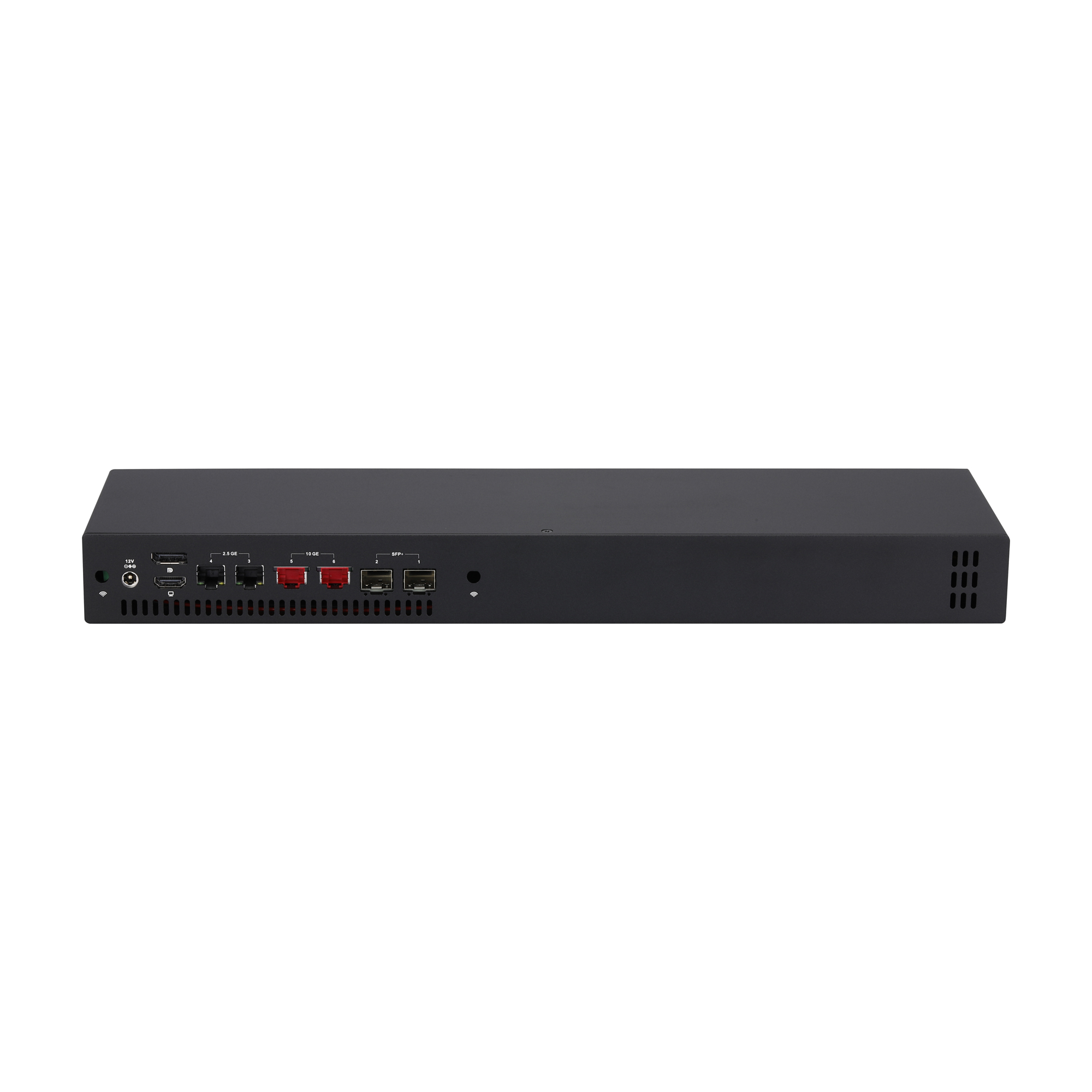

Rear I/O

DC-IN1
Display1× HDMI,1× Display Port
SFP+2 × 10G SFP+
Ethernet2 × 10G RJ45 Both interfaces support up to 12Gbps
Ethernet2 × 2.5G RJ45

Storage

Type1 × M.2 for SSD (M key,Type: 2 280, PCIe 3.0 × 1)

Expansion

M.21 × M.2 for Wi-Fi (E key, Type: 2230)
AutoStart JumperYes, 1 × 3Pin, Pitch 2.0mm
eMMCOption
USB 2.0 Header2, 2 × 5Pin, Pitch 2.0mm
USB 3.0 Header1, 2 × 5Pin, Pitch 2.0mm,Option
CMOS Clear JumperYes, 1 × 3Pin, Pitch 2.0mm
Front Panel Header1, 2 × 5Pin, Pitch 2.0mm
Power Header1, 1 × 2Pin, Pitch 3.5mm, Phoenix 2Pin

Power

Power AdapterAC 100-240V by Default
DC JackDC 12V (5.5mm, 2.5mm)

Environmental

Operating Temp0°C~50°C
Non-Operating Temp-20°C~80°C
Humidity10%~90%

Mechanical

MaterialAluminium Alloy
Dimension440 × 122 × 44mm
Weight1.42kg
MountingVESA Mounting Bracket
Packaging Dimension545 × 180 × 90mm
Kensington LockNo
Cooling ModeFan

OS Support

OSUEFI Windows, UEFI Linux

Package Contents

  • Mini PC × 1
  • AC Power Cable × 1
  • VESA Mount × 1
  • Screw Kit × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPDatasheet
Q10911V6-1U13 Alder lake-N - N50 2 / - 3.4GHz 6M Intel UHD Graphics 6W
Q10921V6-1U13 Alder lake-N - N97 4 / - 3.6GHz 6M Intel UHD Graphics 12W
Q10922V6-1U13 Alder lake-N - N100 4 / 4 3.4GHz 6M Intel UHD Graphics 6W
Q10923V6-1U13 Alder lake-N - N200 4 / 4 3.7GHz 6M Intel UHD Graphics 6W
Q10924V6-1U13 Alder lake-N Atom X7425E 4 / 4 3.4GHz 6M Intel UHD Graphics 12W
Q10931V6-1U13 Alder lake-N Core i3 N300 8 / 8 3.8GHz 6M Intel UHD Graphics 7W
Q10932V6-1U13 Alder lake-N Core i3 N305 8 / 8 3.8GHz 6M Intel UHD Graphics 15W
Q11022V6-1U13 Twin Lake-N - N150 4 / 4 3.6GHz 6M Intel Graphics 6W
Q11023V6-1U13 Twin Lake-N - N250 4 / 4 3.8GHz 6M Intel Graphics 6W
Q11031V6-1U13 Twin Lake-N Core i3 N350 8 / 8 3.9GHz 6M Intel Graphics 7W
Q11032V6-1U13 Twin Lake-N Core i3 N355 8 / 8 3.9GHz 6M Intel Graphics 15W
