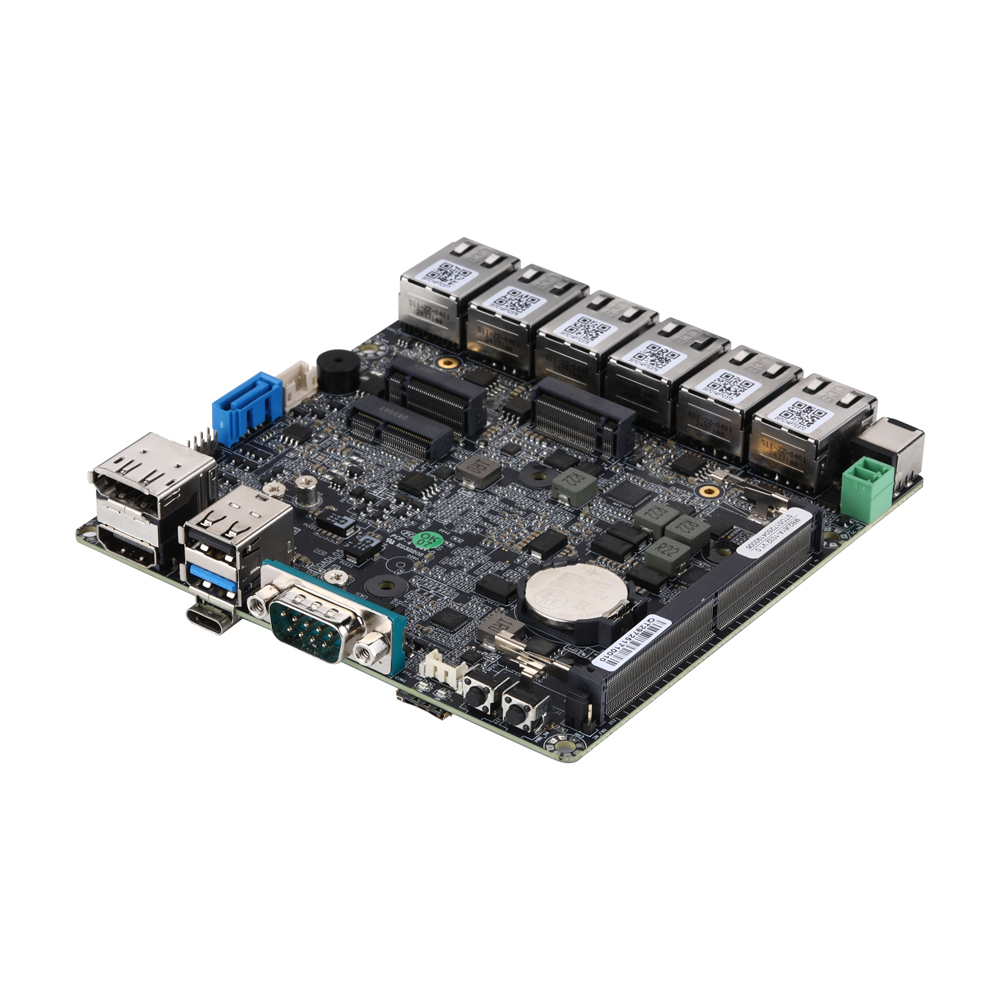

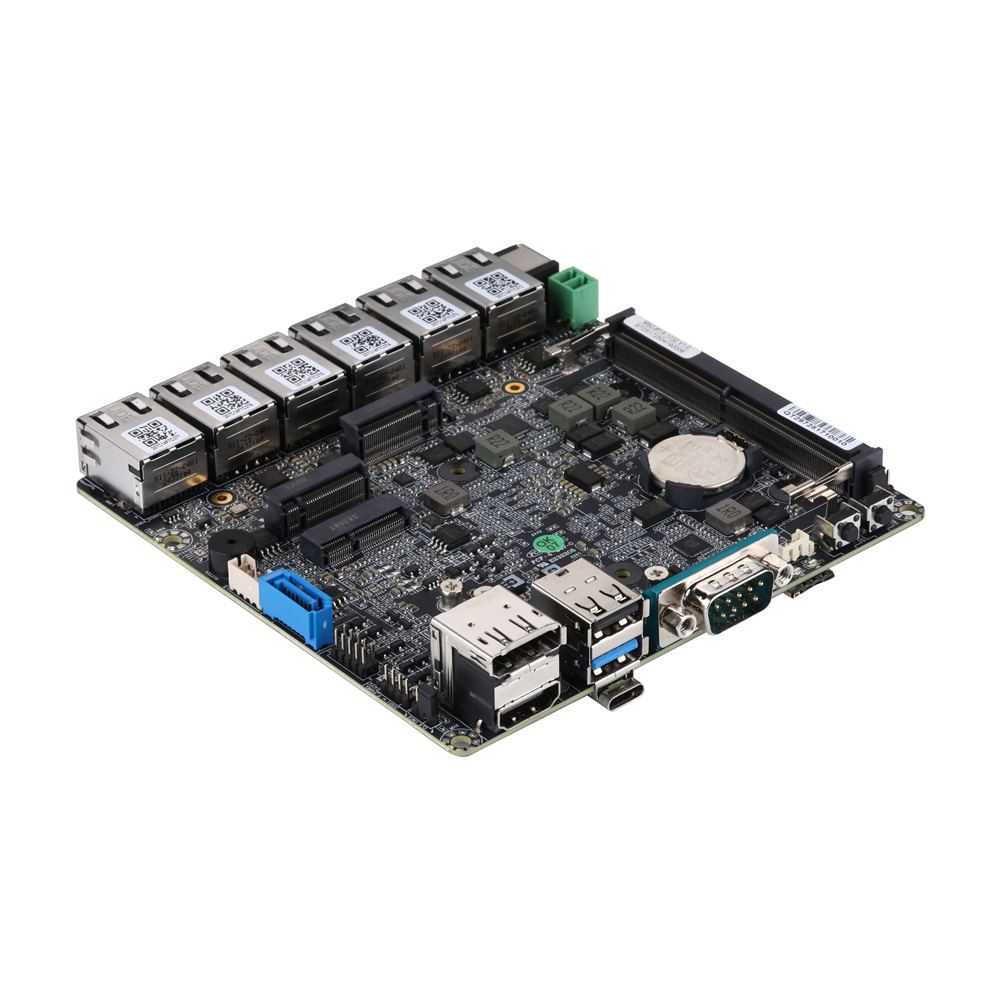

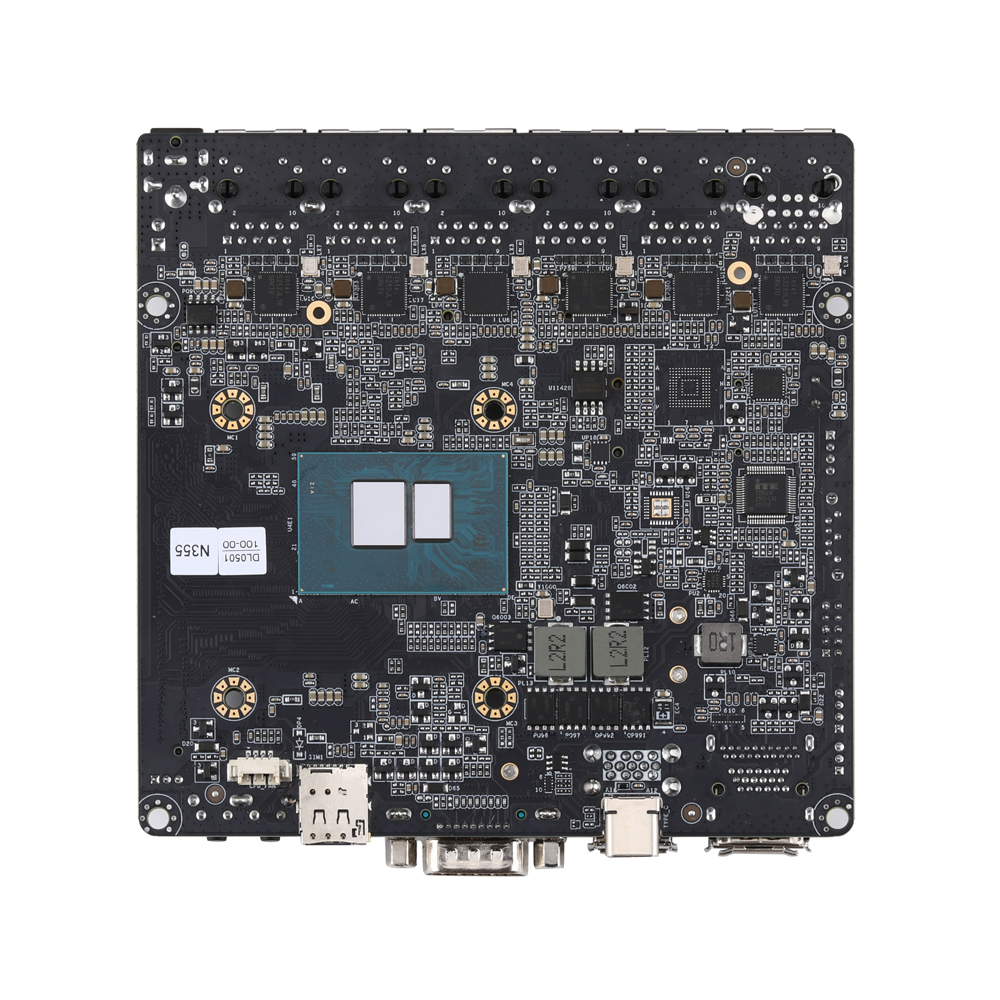

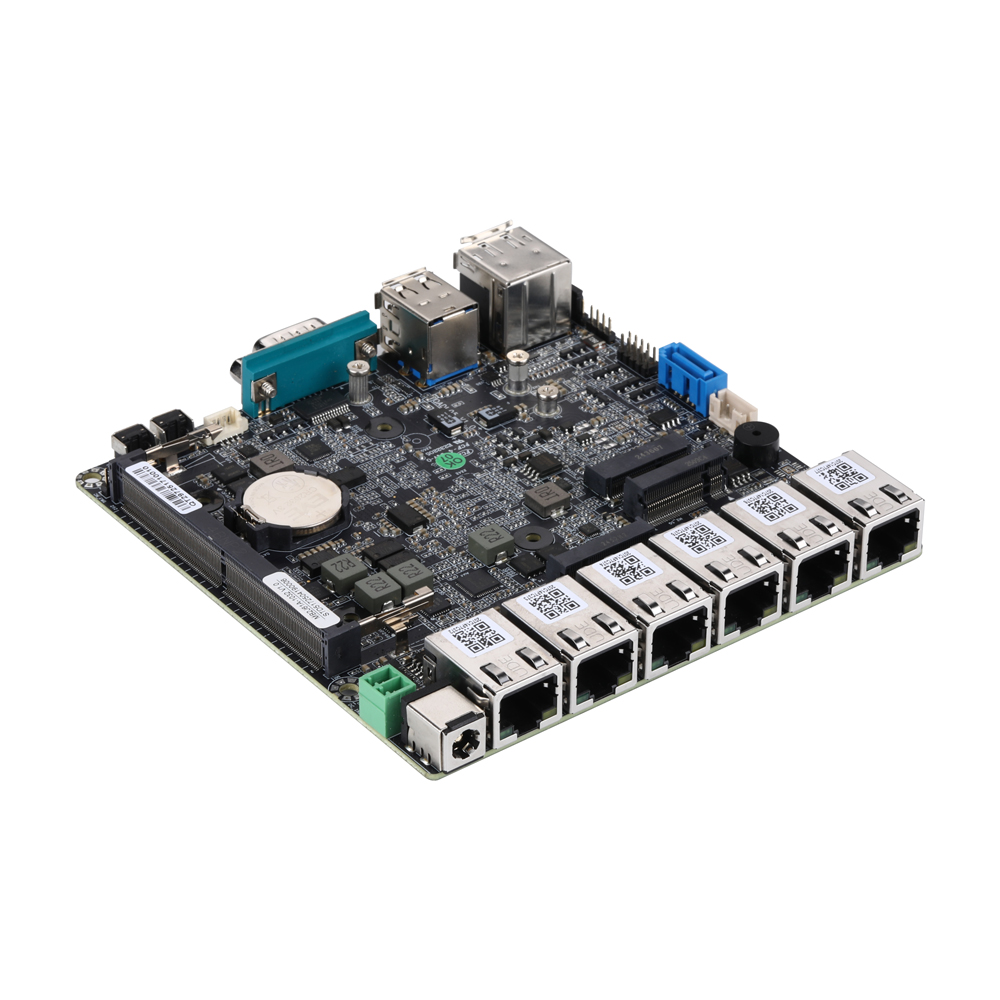

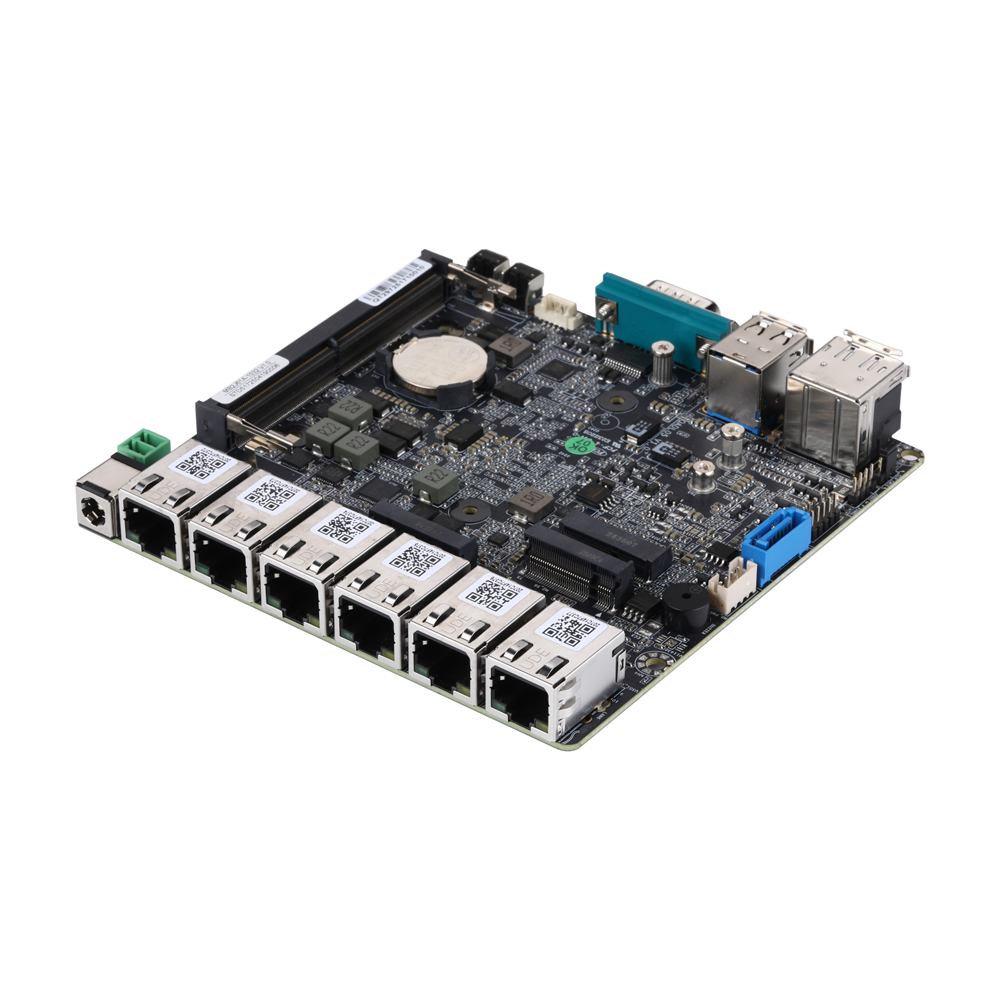

Motherboard MB2J61A-0900 Series

Name: Motherboard MB2J61A-0900 Series
Brand: Qotom
SKU: MB2J61A-0900
Availability: InStock

Model: MB2J61A-0900

Total LAN6

LAN Speed2.5G RJ45

Serial Ports1

Key Specs

CPU: Alder lake N / Twin Lake
Memory: DDR5 SO-DIMM · Max 48GB
LAN: 6
Storage: M.2 Mkey, SATA
Board Size: 120x120

Compatible Systems

Q10900G6-1U12

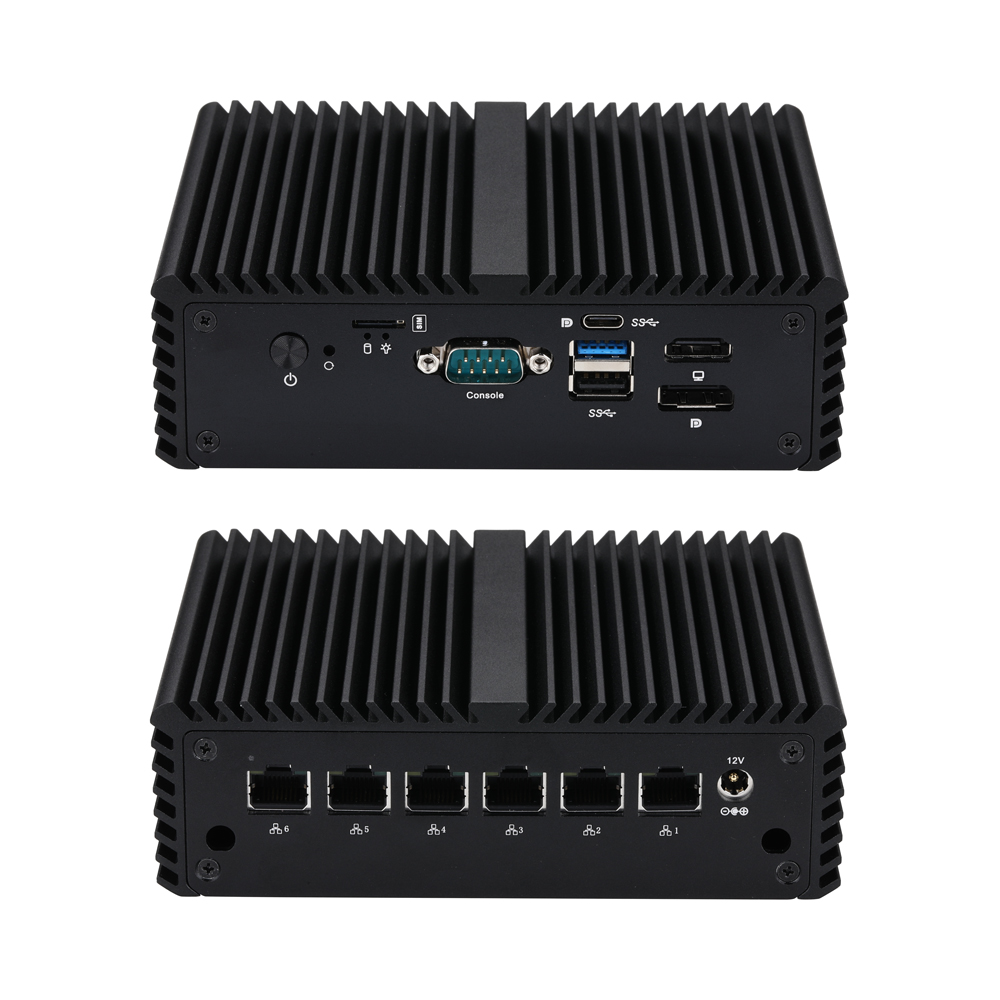

Q10900G6-S08

This product is available via inquiry and OEM/ODM customization.

Send Inquiry

Main Features

Intel Alder Lake-N Processor
Intel Twin Lake-N Processor
1 × HDMI, 2 × Display Port
1 × Type C,1 × USB 3.0 ,1 × USB 2.0
3 × M.2, 1 × SATA3.0
1 × RS-232 (DB9)
6× Intel I226-V 2.5G LAN

Related Products

Mini PC Q10900XPG S04 Series

Q10900XPG-S04

Mini PC Q10900XPV S04 Series

Q10900XPV-S04

Mini PC Q10900H6 S23 Series

Q10900H6-S23

Mini PC Q10900V6 1U13 Series

Q10900V6-1U13

Mini PC Q10900XPGV S04 Series

Q10900XPGV-S04

Mini PC Q10900V6 S23 Series

Q10900V6-S23

CPU	Intel Alder Lake-N Processor Intel Twin Lake-N Processor
Chipset	By CPU
Dimension	120 × 120mm
Core Number	By CPU
Speed	By CPU
L2 Cache	By CPU
BIOS	UEFI

Technology	DDR5 4800MHz SDRAM
Max.	48GB
Socket	1 × SO-DIMM

Controller	By CPU
VRAM	Shared Memory
Type C	1× Display Port
HDMI	1 (Support HDMI 1.4a)
Display Port	1
Multi Display	Yes

Interface	100/1000/2500Mbps
Controller	6 × I226-V 2.5G LAN
Connector	6 × RJ-45

Power Button	1 × Power Button, 1 × Reset Button
LED	1 × Power LED,1 × HDD LED
USB	1 × USB 3.0, 1 × USB 2.0
Serial Port	1 × Connector, RS-232 (DB9)
DC-IN	1
Ethernet	6
SIM Slot	1 × Nano Sim Slot
Type C	1, USB 3.0 and Display Port
Display	1× HDMI,1× Display Port

Mini PC Series

Motherboard Series

NAS Storage Series

OPS Series

Panel PC Series

Accessories

Motherboard MB2J61A-0900 Series

Key Specs

Compatible Systems

Main Features

Processor System

Memory

Graphics

Ethernet

Audio

Front I/O

Storage

Expansion

Internal Connector

Watchdog Timer

Power

Environmental

Accessories

OS Support

Package Contents

Order & Specification Selection

Driver Downloads

Related Products

M.2	1× M.2 for SSD (M key, Type:2280,PCIe 3.0 × 1)
M.2	1 × M.2 for 4G/5G (B key, Type: 3042/3052) (Option)
M.2	1 × M.2 for Wi-Fi (E key, Type: 2230)

SATA	1, SATA 3.0 (6.0Gb/S)
SATA PWR Connector	1, 1 × 4Pin, Pitch PH2.0mm
AutoStart Jumper	Yes, 1 × 3Pin, Pitch 2.0mm
Clear CMOS Jumper	Yes, 1 × 3Pin, Pitch 2.0mm
Front Panel Header	1, 2 × 5Pin, Pitch 2.0mm
USB 2.0 Header	1, 1 × 4Pin, Pitch 2.0mm
Power Header	1, 1 × 2Pin, Pitch 3.5mm, Phoenix 2Pin

Output	From Super I/O to Drag RESETCON#
Interval	256 Segments,0,1,2,3,,,255 sec/min

Ordering Code	Code Name	Processor Type	Processor Number	Cores / Threads	Frequency	Cache	Graphics	TDP
MB2J61A-0911	A lder lake-N	-	N50	2 / -	3.4GHz	6M	Intel UHD Graphics	6W
MB2J61A-0921	Alder lake-N	-	N97	4 / -	3.6GHz	6M	Intel UHD Graphics	12W
MB2J61A-0922	Alder lake-N	-	N100	4 / 4	3.4GHz	6M	Intel UHD Graphics	6W
MB2J61A-0923	Alder lake-N	-	N200	4 / 4	3.7GHz	6M	Intel UHD Graphics	6W
MB2J61A-0924	Alder lake-N	Atom	X7425E	4 / 4	3.4GHz	6M	Intel UHD Graphics	12W
MB2J61A-0931	Alder lake-N	Core i3	N300	8 / 8	3.8GHz	6M	Intel UHD Graphics	7W
MB2J61A-0932	Alder lake-N	Core i3	N305	8 / 8	3.8GHz	6M	Intel UHD Graphics	15W
MB2J61A-1022	Twin Lake-N	-	N150	4 / 4	3.6GHz	6M	Intel Graphics	6W
MB2J61A-1023	Twin Lake-N	-	N250	4 / 4	3.8GHz	6M	Intel Graphics	6W
MB2J61A-1031	Twin Lake-N	Core i3	N350	8 / 8	3.9GHz	6M	Intel Graphics	7W
MB2J61A-1032	Twin Lake-N	Core i3	N355	8 / 8	3.9GHz	6M	Intel Graphics	15W
