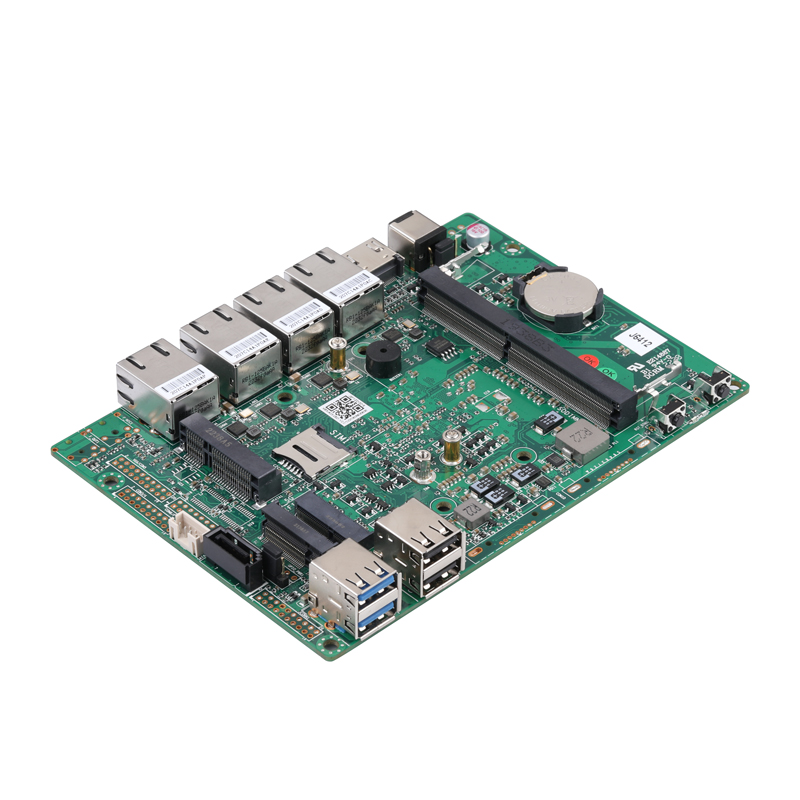

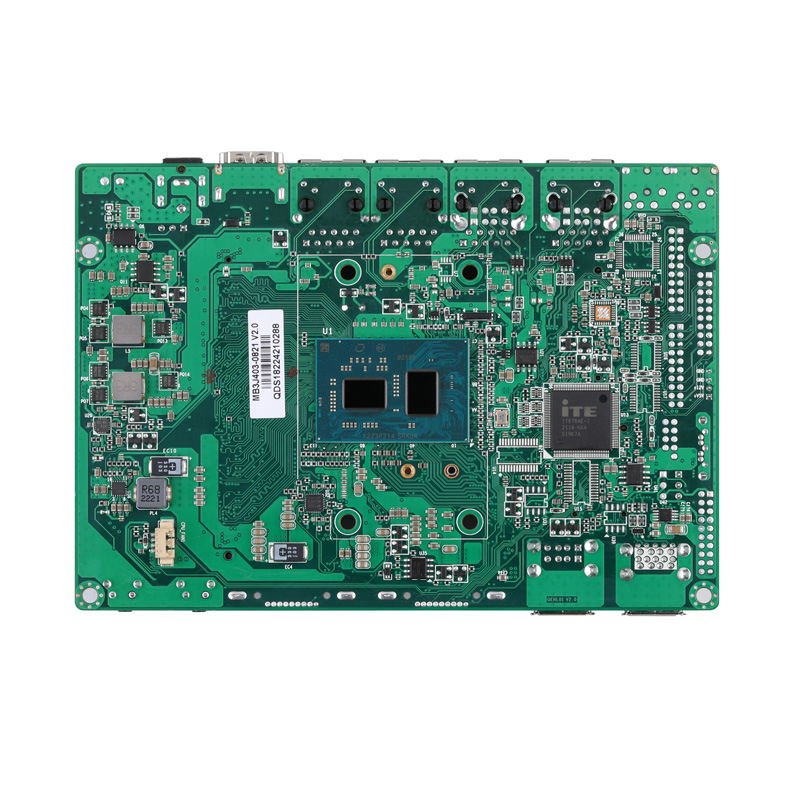

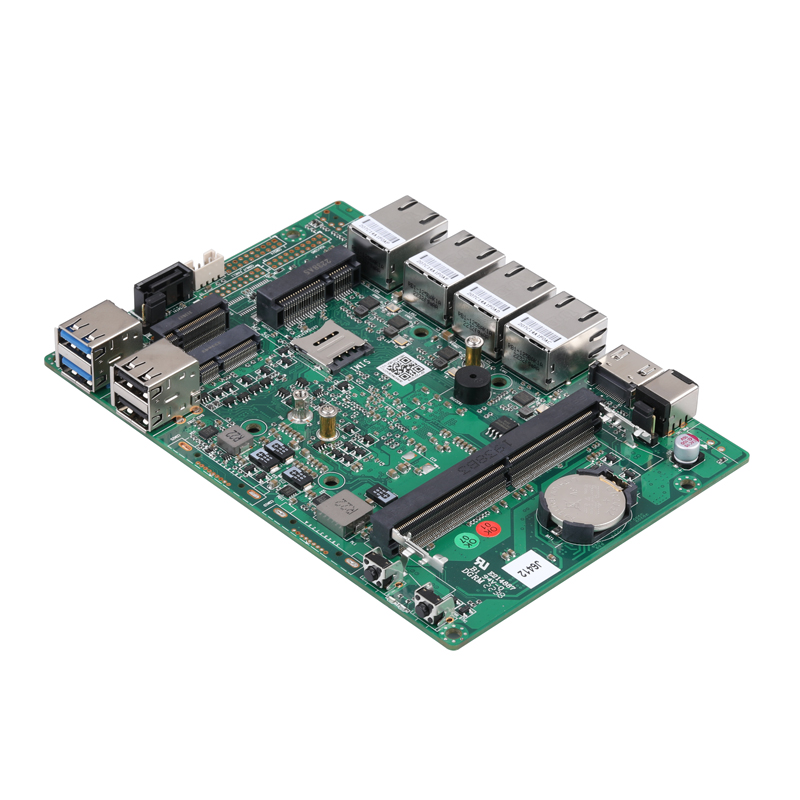

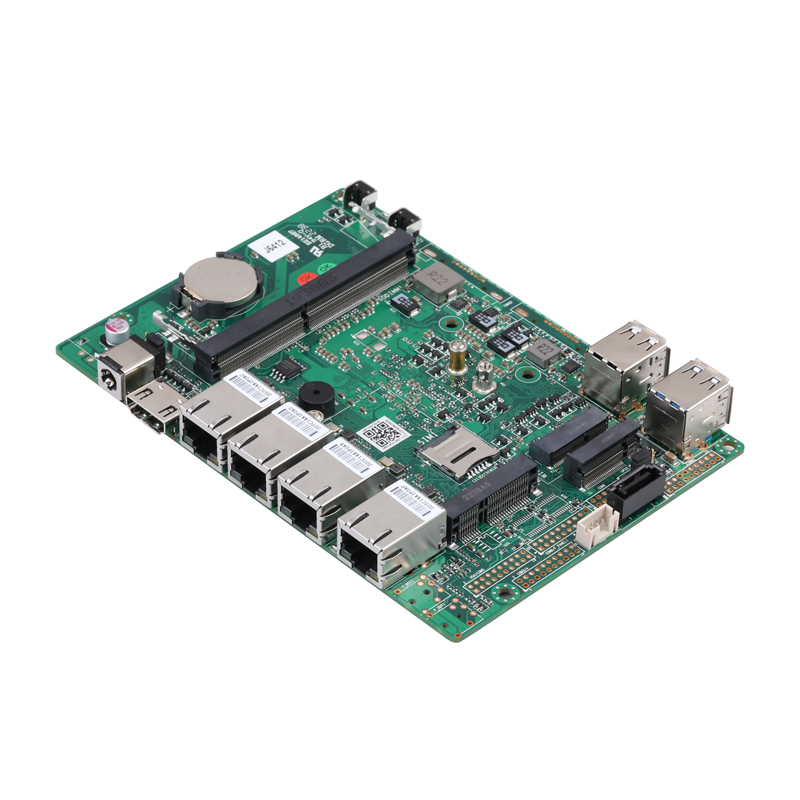

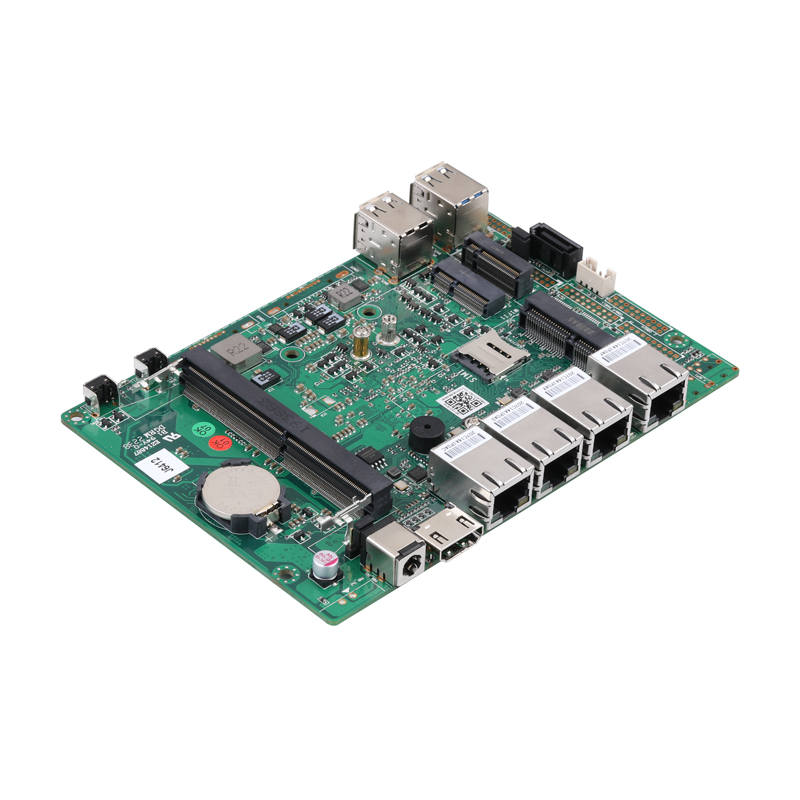

Motherboard MB3J403-0800 Series

Model: MB3J403-0800

Total LAN4
LAN Speed1G RJ45

Key Specs

CPU
Elkhart Lake
Memory
DDR4 SO-DIMM · Max 32GB
LAN
4
Storage
mSATA, SATA
Board Size
148x104

Compatible Systems

Q10800G4-S04Q10800G4-S04

This product is available via inquiry and OEM/ODM customization.

Send Inquiry
MB3J403-0811MB3J403-0821IntelElkhart LakePentiumCeleronATOMN6210N6211J6412J6413J6415J6426

Main Features

  • Intel Elkhart Lake Processor
  • 1 × HDMI
  • 2 × USB 3.0, 2 × USB 2.0
  • 2 × M.2, 1 × mSATA, 1 × SATA 3.0
  • 4 × Realtek Gigabit LAN

Processor System

CPUIntel Elkhart Lake Processor
ChipsetBy CPU
Dimension148 × 104mm
Core NumberBy CPU
SpeedBy CPU
L2 CacheBy CPU
BIOSUEFI

Memory

TechnologyDDR4 2133/2400MHz SDRAM
Max.32GB
Socket1 × SO-DIMM

Graphics

ControllerBy CPU
VRAMShared Memory
VGA0
HDMI1 (Support HDMI 1.4a)
Multi DisplayN o

Ethernet

Interface10/100/1000Mbps
Controller4 × Realtek Gigabit LAN
Connector4 × RJ-45

Audio

ControllerNo

Front I/O

Power Button1 × Power Button, 1 × Reset Button
LED1 × Power LED, 1 × HDD LED
USB0
USB2 × USB 3.0, 2 × USB 2.0
Serial Port0
DC-IN1
Phoenix 2Pin0
HDMI1
Ethernet4
Audio0

Storage

Max. Data Transfer RateSATA 3.0 (6.0Gb/S)

Expansion

mSATA1 × Full-length Mini PCIe for SSD
M.21 × M.2 for 4G/5G (B key, Type: 3042/3052), 5G Defaults to PCIe Mode, USB 3.0 Mode Requires Customization
M.21 × M.2 for Wi-Fi (E key, Type: 2230)

Internal Connector

VGA Header0
Serial Port0
RS-4850
PS/20
SATA1, SATA 3.0 (6.0Gb/S)
SATA PWR Connector1, 1 × 4Pin, Pitch PH2.0mm
SIM Slot1
AutoStart JumperYes, 1 × 3Pin, Pitch 2.54mm
Clear CMOS JumperYes, 1 × 3Pin, Pitch 2.54mm
GPIO Header0
GPIO Power Select0
Front Panel Header0
Power Header1, 1 × 2Pin, Pitch 3.5mm, Phoenix 2Pin (Option)

Watchdog Timer

OutputFrom Super I/O to Drag RESETCON#
Interval256 Segments,0,1,2,3,,,255 sec/min

Power

Input PWR12V DC in, 5.5mm/2.5mm

Environmental

Operating Temperature0-50 ℃

Accessories

AccessoriesCable for HDD

OS Support

OSUEFI Windows 10, UEFI Linux

Package Contents

  • Motherboard × 1
  • SATA Combo Cable × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPDatasheet
MB3J403-0811 Elkhart Lake Celeron N6210 2 / 2 1.20Ghz ~ 2.6Ghz 1.5M Intel UHD Graphics 6.5W
MB3J403-0821 Elkhart Lake Celeron J6412 4 / 4 2.00Ghz ~ 2.60Ghz 1.5M Intel UHD Graphics 10W
