Mini PC Q10700G4 S08 Series

Model: Q10700G4-S08

Total LAN4
LAN Speed1G RJ45

Key Specs

CPU
Jasper Lake
Memory
DDR4 SO-DIMM · Max 32GB
LAN
4
Storage
M.2 Mkey, SATA

Compatible Motherboard

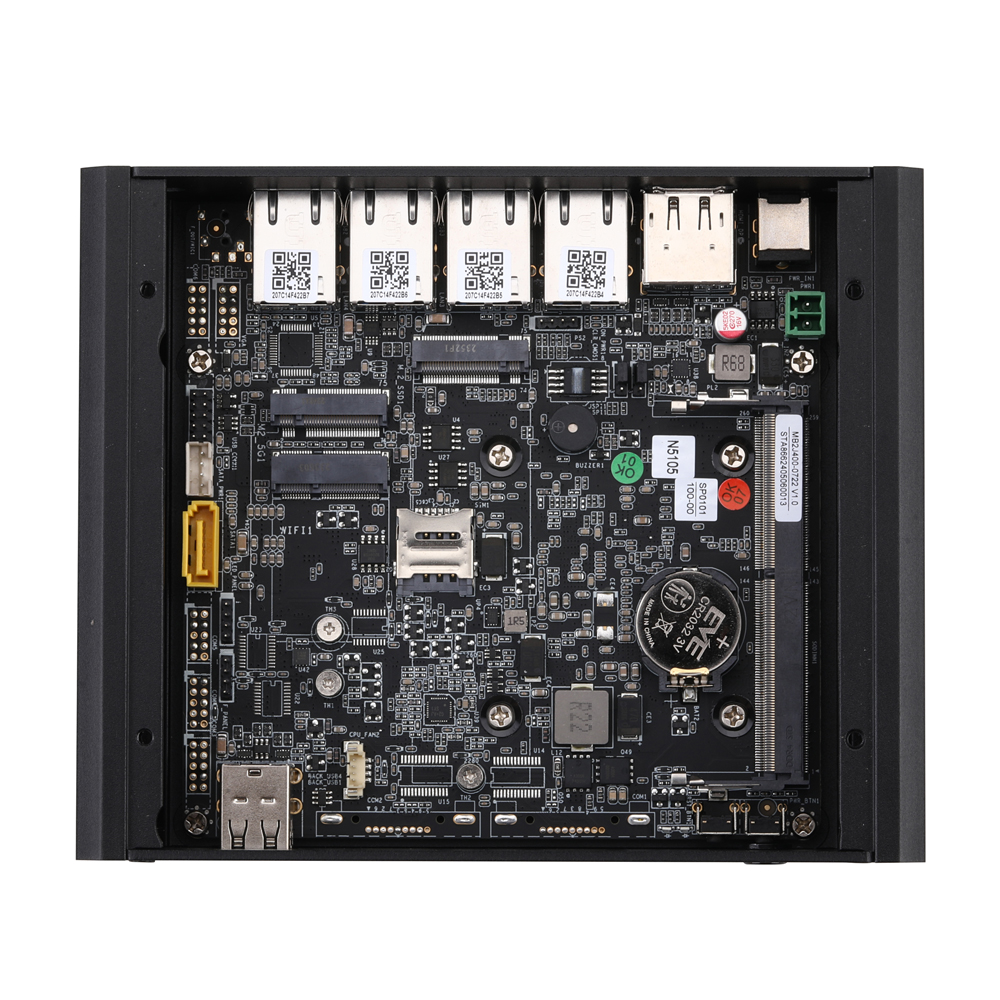

MB2J400-0700MB2J400-0700

This product is available via inquiry and OEM/ODM customization.

Send Inquiry
Q10711G4Q10712G4Q10721G4Q10722G4Q10723G4Q10731G4Q10732G4IntelJasper LakePentiumCeleronATOMN5095N5100N5105N4505N4500N6000N6005

Main Features

  • Intel Jasper Lake Processor
  • 1 × HDMI,1 × Display Port
  • 1 × USB 3.0,1 × USB 2.0,1 × Type C
  • 3 × M.2,1 × SATA 3.0
  • 4 × Realtek Gigabit LAN

Processor System

CPUIntel Jasper Lake Processor
CPU TDPBy CPU
Memory1 × DDR4 SO-DIMM Socket (Up to 32G)
ChipsetBy CPU
GraphicsBy CPU
LAN Chipset4 × R ealtek Gigabit LAN
AudioNo
Watch DogYes

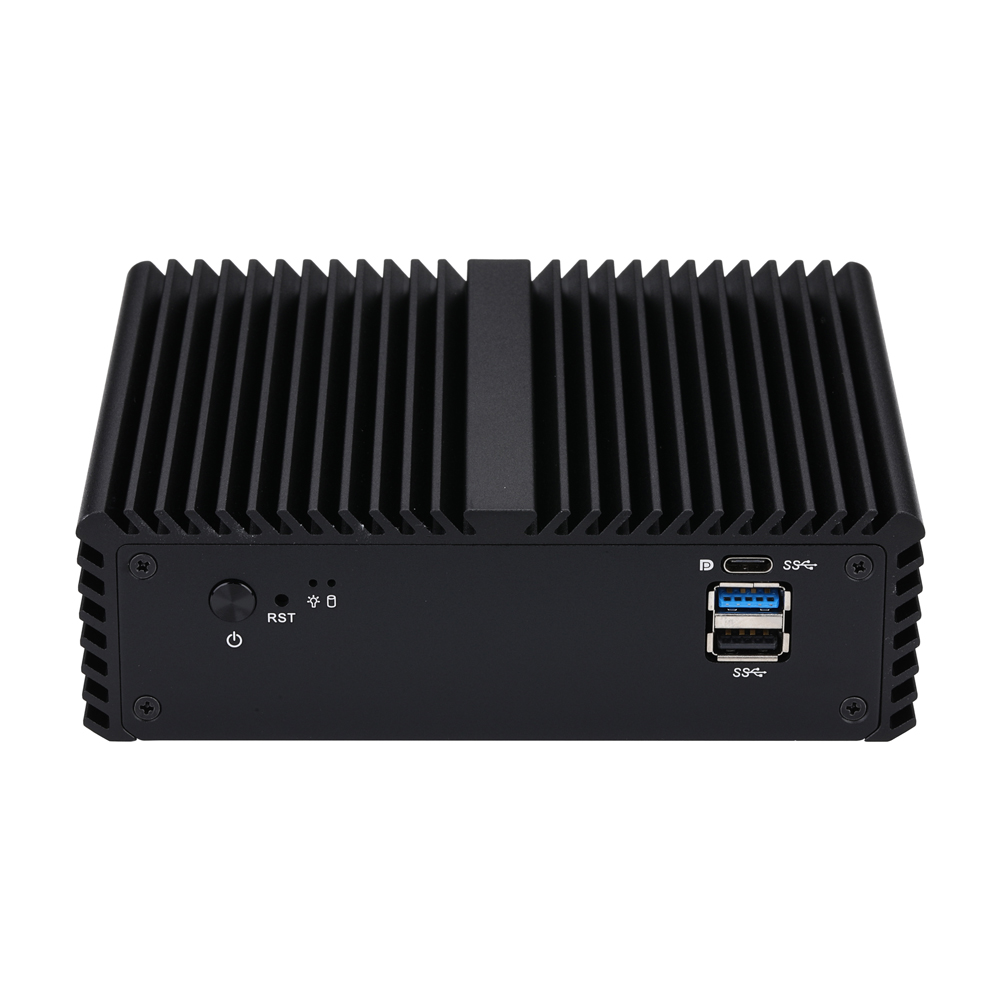

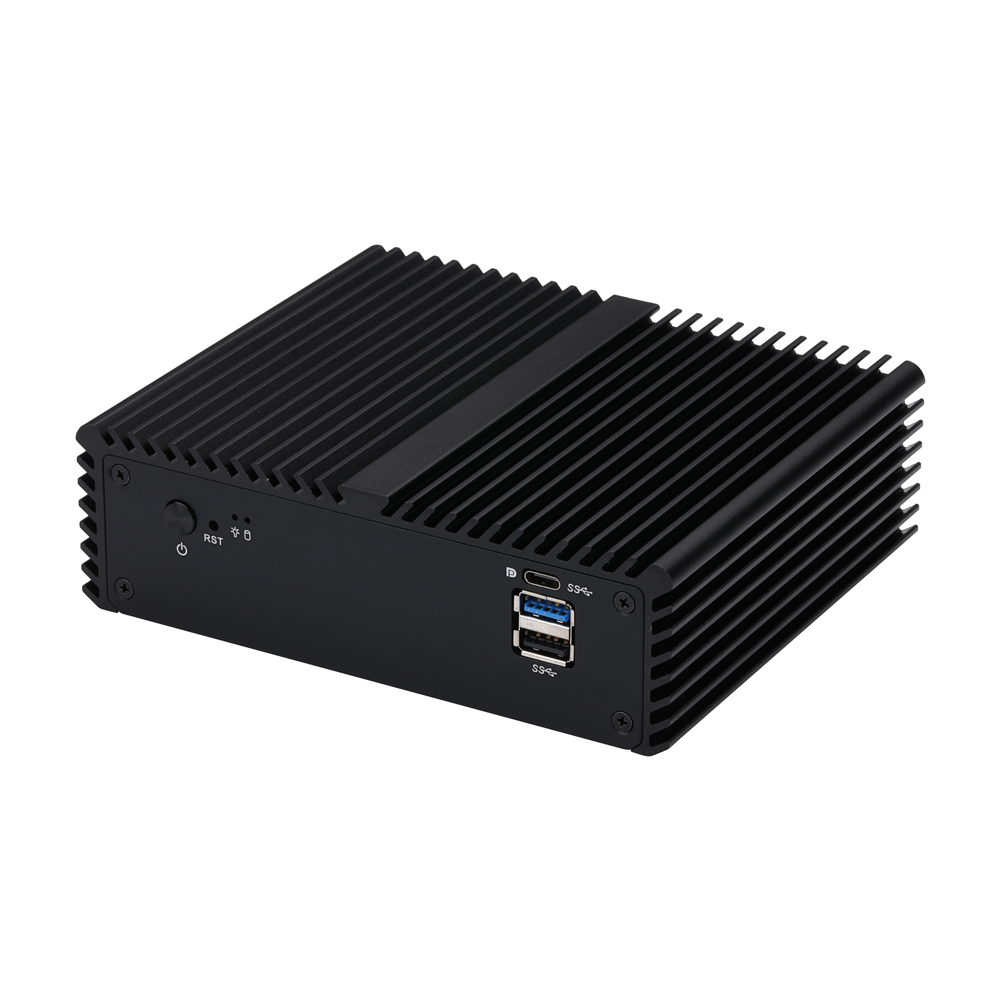

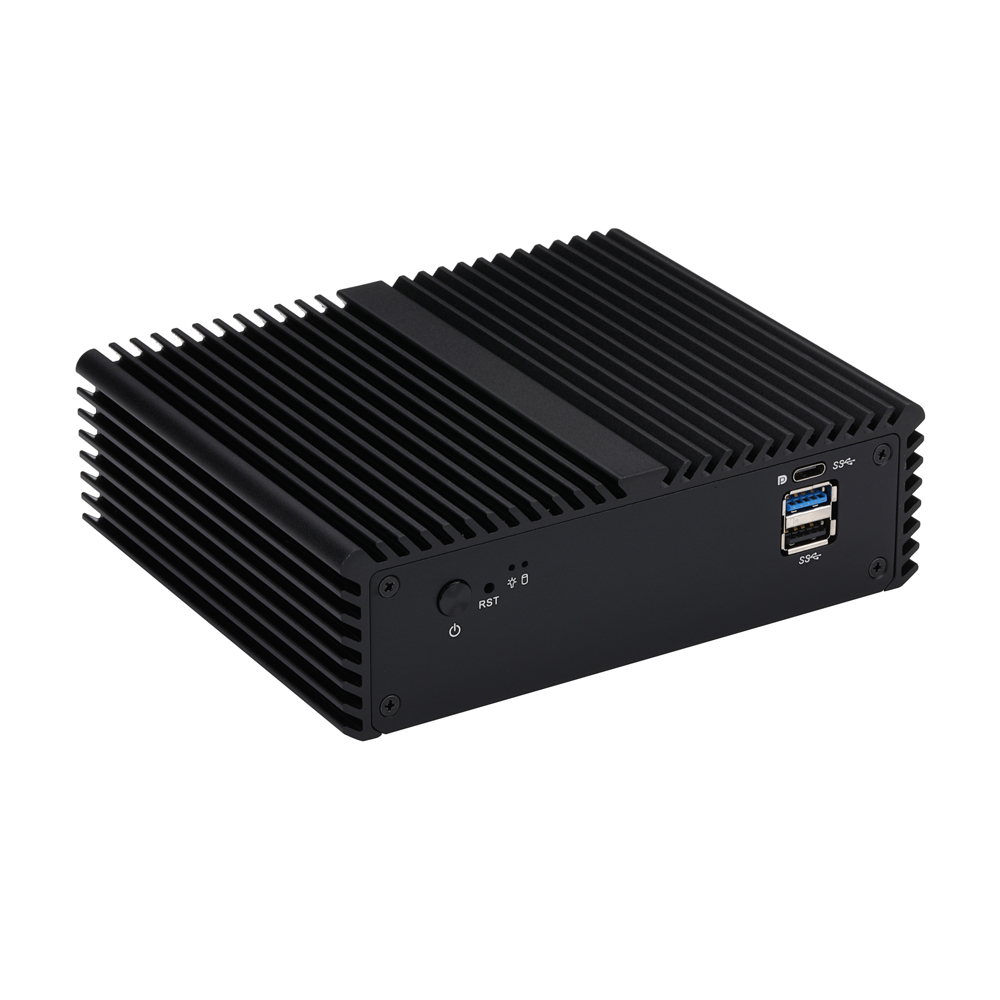

Front I/O

Power Button1 × Power Button,1 × Reset Button
LED1 × Power LED,1 × HDD LED
USB1 × USB3.0,1 × USB2.0
Type C1 × Type C (USB 3.0,Display Port)

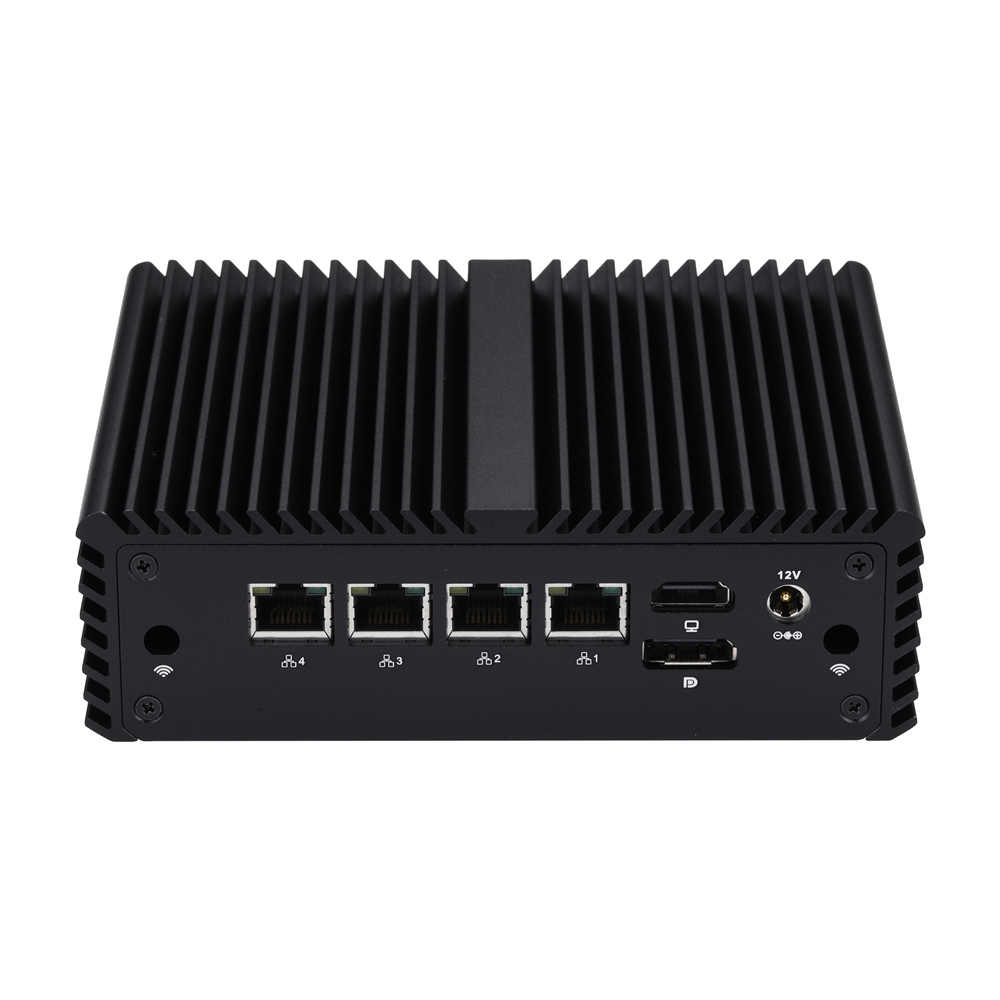

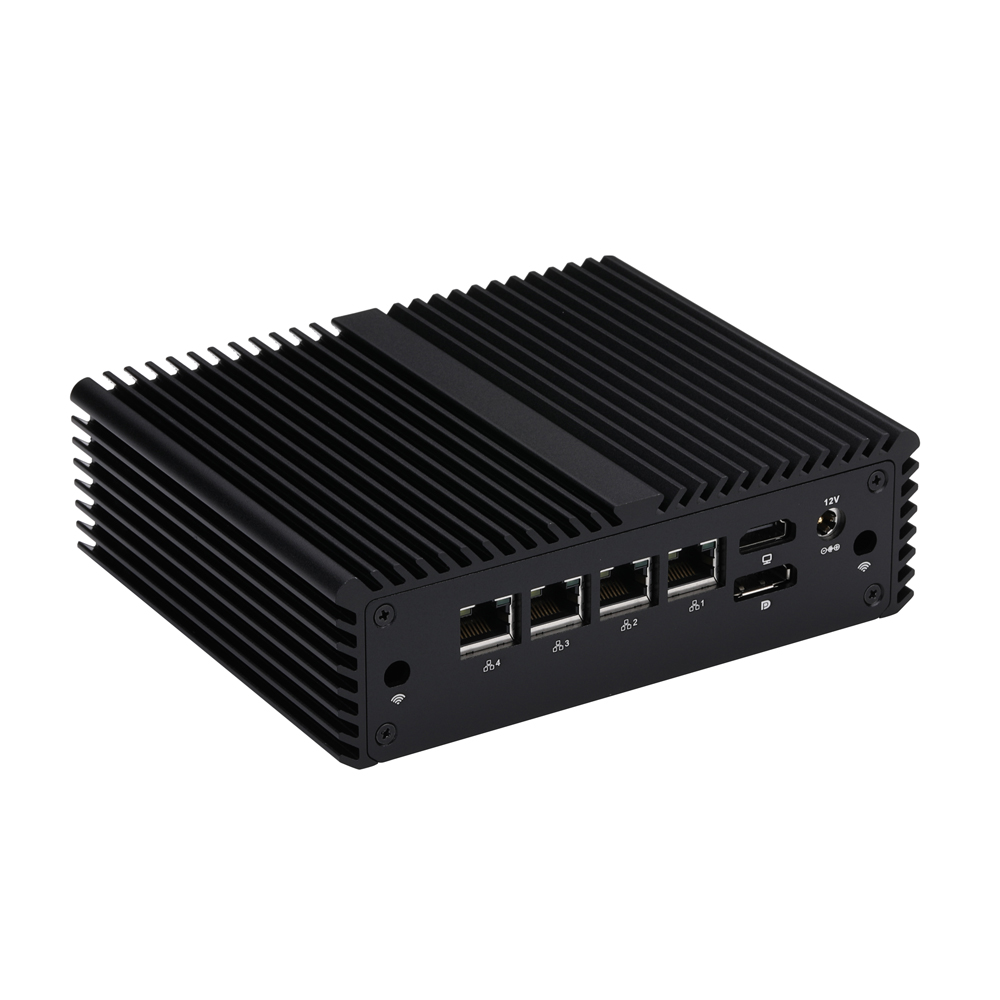

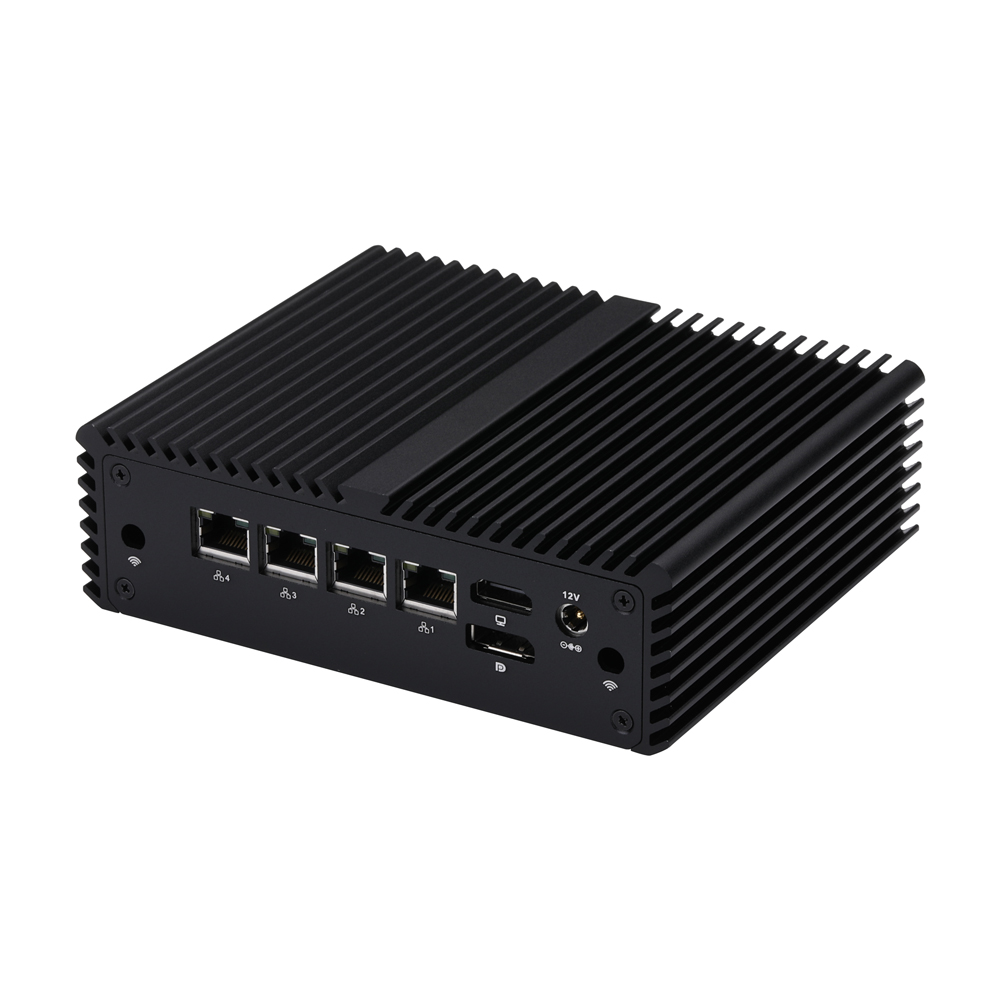

Rear I/O

Power1 × DC Jack
Video Output1 × HDMI,1 × Display Port
LAN4 × Realtek Gigabit LAN
Audio0

Storage

Type1 × 2.5-inch HDD/SSD
Type1 × M.2 for SSD (M key, Type:2280,PCIe 3.0 × 1)

Expansion

M.21 × M.2 for SSD (M key, Type:2280,PCIe 3.0 × 1)
M.21 × M.2 for 4G/5G (B key,Type:3042/3052)
M.21 × M.2 for Wi-Fi (E key,Type:2230)
SIM Card Slot1
AutoStart JumperYes, 1 × 3Pin, Pitch 2.0mm
GPIO1,2 × 5Pin, Pitch 2.0mm
Power Header1, 1 × 2Pin, Pitch 3.5mm, Phoenix 2Pin (Optional)
Clear CMOS JumperYes,1 × 3Pin, Pitch 2.0mm

Power

Power Adapter12V3A
DC Jack5.5mm, 2.5mm

Environmental

Operating Temp0°C~50°C
Non-Operating Temp-20°C~80°C
Humidity10%~90%

Mechanical

MaterialAluminium Alloy
Dimension155 × 127 × 48mm
Weight0.83kg
MountingVESA Mounting Bracket
Packaging Dimension261 × 218 × 75mm
Kensington LockNo
Cooling ModeFanless Design

OS Support

OSUEFI Windows 10, UEFI Linux

Package Contents

  • Mini PC × 1
  • Power Adapter × 1
  • AC Power Cable × 1
  • VESA Mount × 1
  • SATA Combo Cable × 1
  • Screw Kit × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeLegacy ModelCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPDatasheet
G4-S08 Q10711 Jasper Lake Celeron N4500 2 / 2 1.1GHz ~ 2.8GHz 4M Intel UHD Graphics 6W
G4-S08 Q10712 Jasper Lake Celeron N4505 2 / 2 2.0GHz ~ 2.9GHz 4M Intel UHD Graphics 10W
G4-S08 Q10721 Jasper Lake Celeron N5100 4 / 4 1.1GHz ~ 2.8GHz 4M Intel UHD Graphics 6W
G4-S08 Q10722 Jasper Lake Celeron N5105 4 / 4 2.0GHz ~ 2.9GHz 4M Intel UHD Graphics 10W
G4-S08 Q10723 Jasper Lake Celeron N5095 4 / 4 2.0GHz ~ 2.9GHz 4M Intel UHD Graphics 15W
G4-S08 Q10731 Jasper Lake Pentium N6000 4 / 4 1.1GHz ~ 3.0GHz 4M Intel UHD Graphics 6W
G4-S08 Q10732 Jasper Lake Pentium N6005 4 / 4 2.0GHz ~ 3.3GHz 4M Intel UHD Graphics 10W
