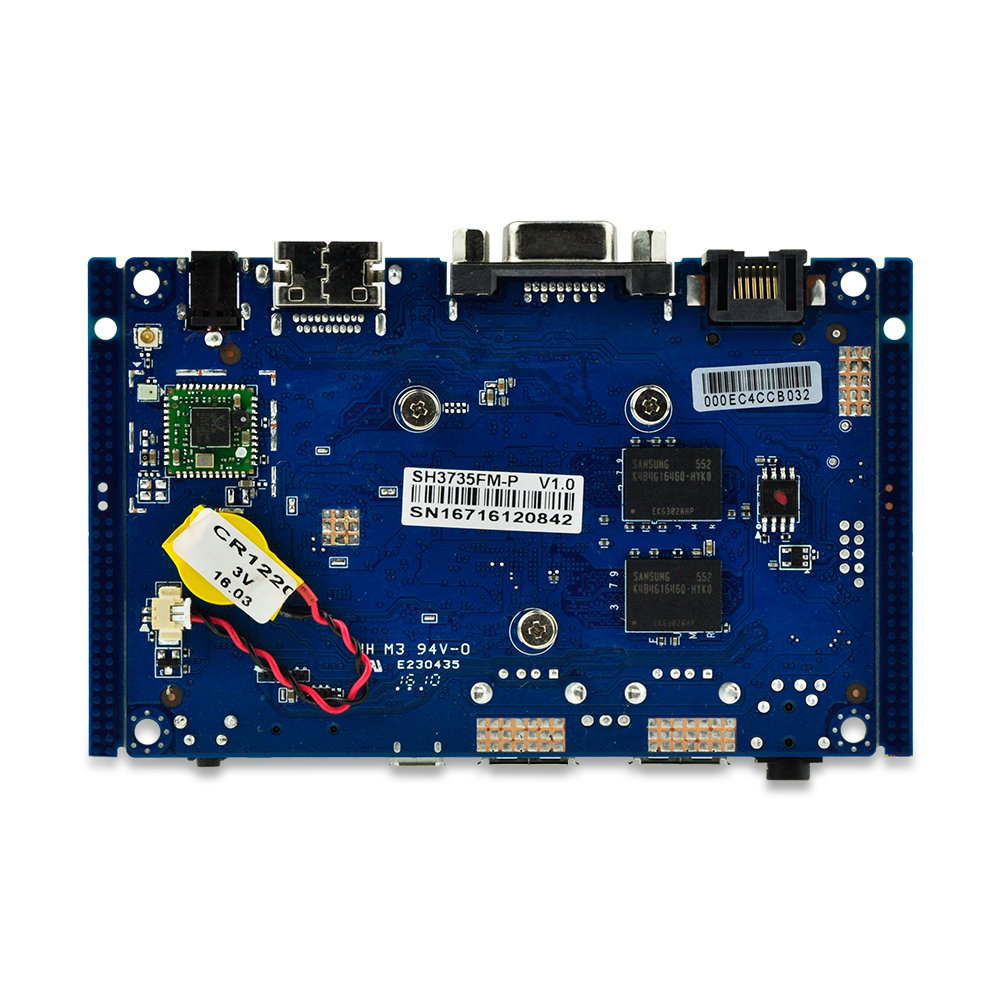

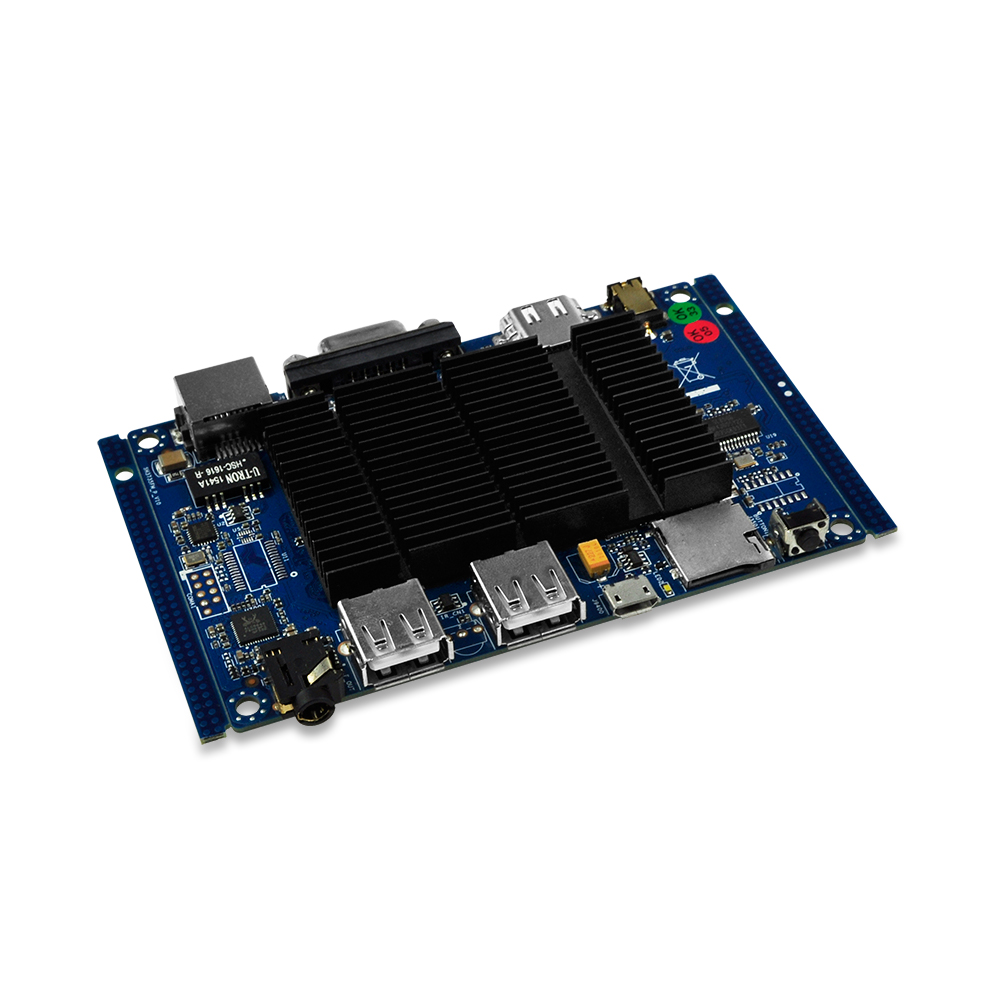

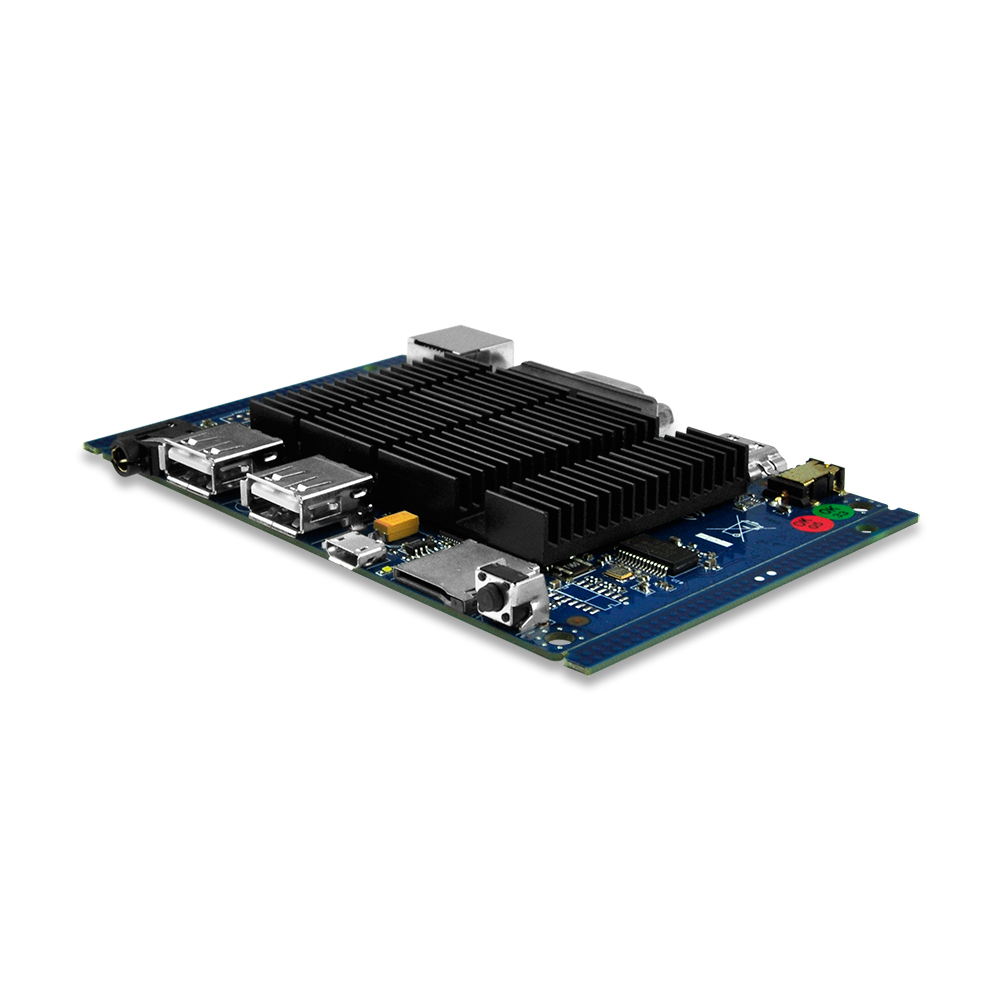

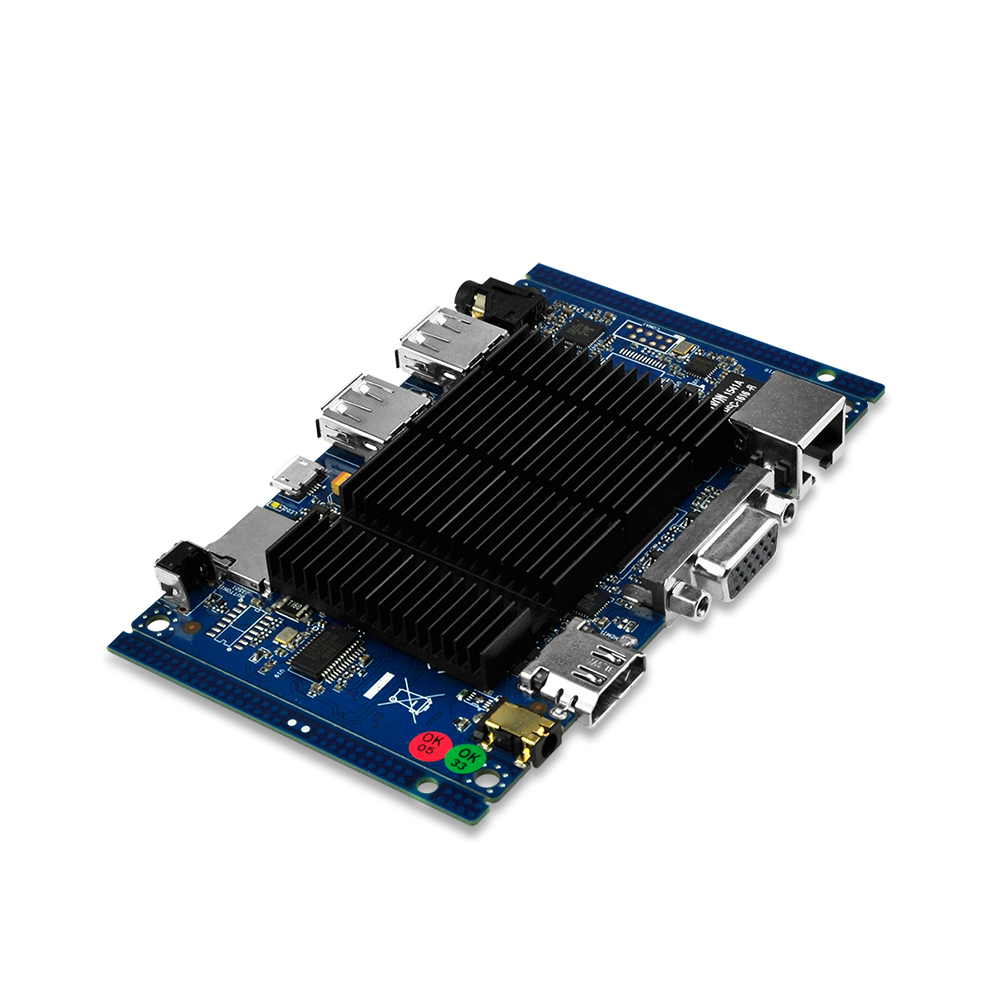

Motherboard Q3735FM-P Series

Model: Q3735FM-P

Total LAN1
LAN Speed1G RJ45

Key Specs

CPU
Bay Trail
Memory
Integrated · Max Integrated
LAN
1
Board Size
105x70

This product is available via inquiry and OEM/ODM customization.

Send Inquiry

Main Features

  • Intel Atom Z3735F Bay Trail Processor
  • Intel HD Graphics
  • 1 × VGA, 1 × HDMI
  • 1 × Micro USB, 2 × USB 2.0
  • 1 × Integrated Wi-Fi & Bluetooth
  • 1 × Realtek RTL8152B LAN

Processor System

CPUIntel B ay trail Processor Atom Z3735F Processor, 2.2W
ChipsetBy CPU
Dimension105 × 70mm
Core Number4
Max. Speed1.33GHz, up to 1.83GHz
L2 Cache2M
BIOSUEFI

Memory

TechnologyDDR3L 1333/1600MHz SDRAM
Max.2GB,Integrated
Socket0

Graphics

ControllerIntel HD Graphics
VRAMShared Memory
VGA1
LVDS0
HDMI1
Multi DisplayYes

Ethernet

Interface10/100Mbps
Controller1 × Realtek RTL8152B LAN
Connector1 × RJ-45
Wi-FiRealtek RTL8723BS
Bluetooth1, Bluetooth 4.0

Audio

ControllerRealtek ALC5640 HD Audio

Front I/O

Power Button1
LED1
USB2 × USB 2.0, 1× Micro USB
TF Card Slot1
Audio1 (Mic-in, Line-out)

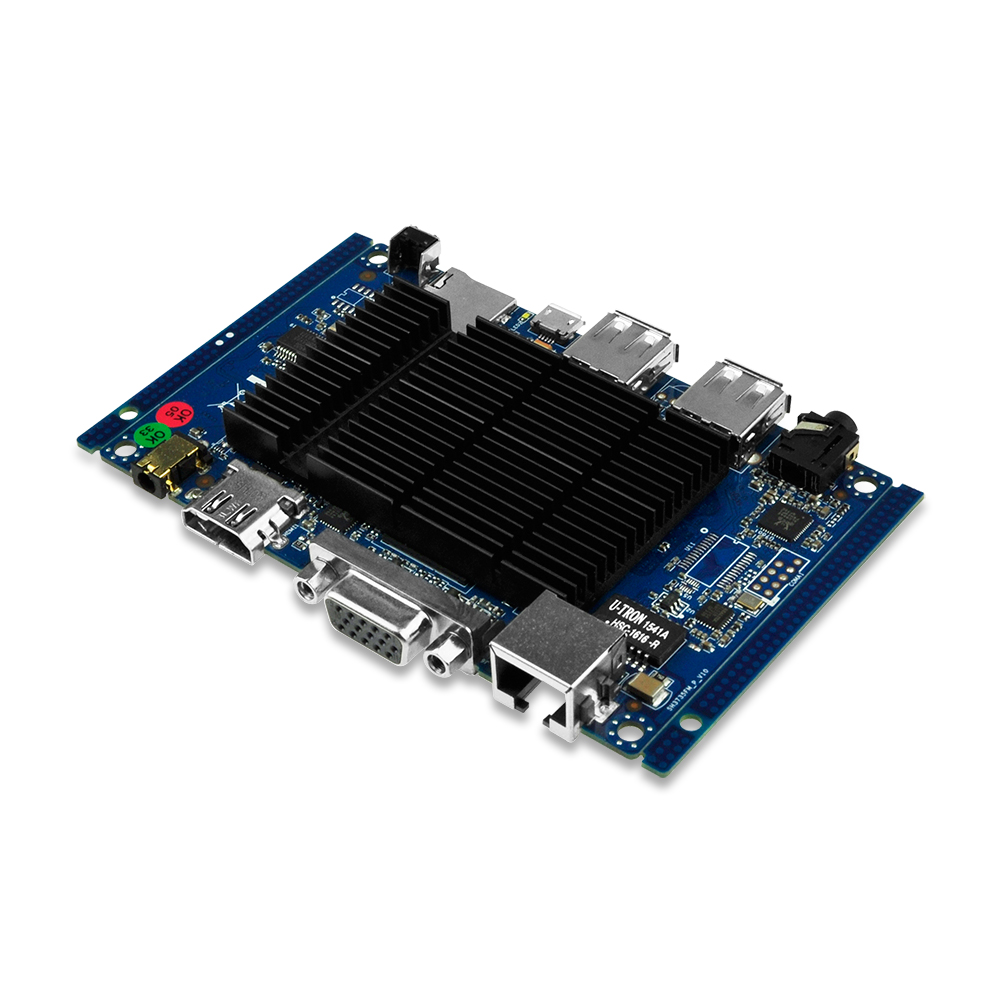

Rear I/O

DC-IN1
HDMI1
VGA1
Ethernet1

Storage

eMMC32GB,Integrated

Internal Connector

VGA0
Serial Port0
SATA0
SATA PWR Connector0
mSATA0
Mini PCIe0
SIM Slot0
AutoStart Jumper0
GPIO Header0
USB Header0
Speakers Header0
Front Panel Header0
Power Header0
Input PWR5V3A DC in, 3.5mm/1.35mm

Environmental

Operating Temperature0-50℃

Accessories

AccessoriesNo

OS Support

OSUEFI Windows 8 x86, Windows 10 x86, UEFI Linux x86

Package Contents

  • Motherboard × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPDatasheet
Q3735FM-P CurrentBay Trail Atom Z3735F 4 / 4 1.33GHz ~ 1.83GHz 2M Intel HD Graphics 2.2W
