MB3J407-0900 image 11 / 6

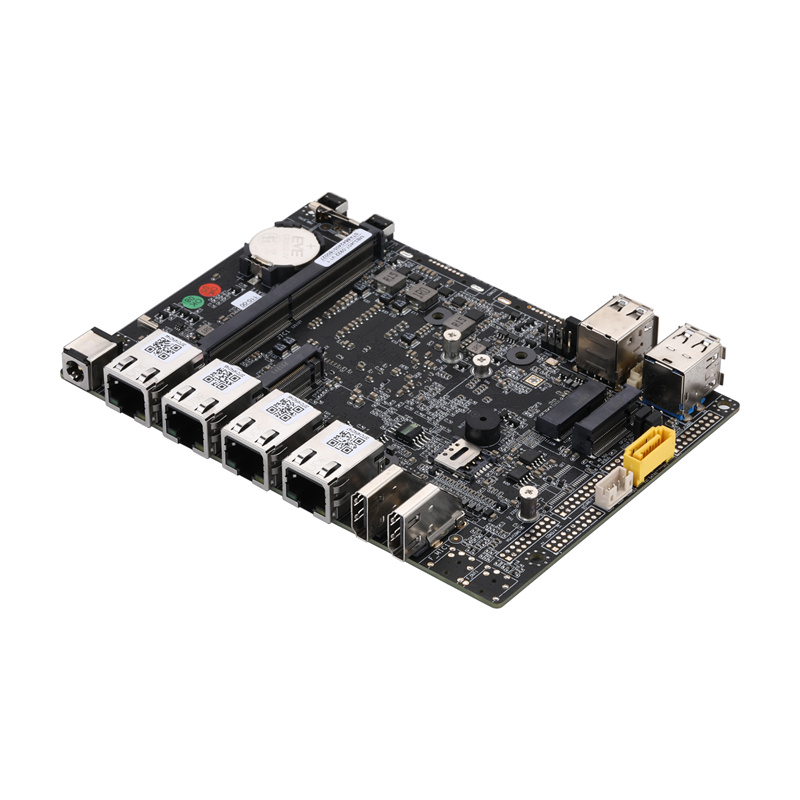

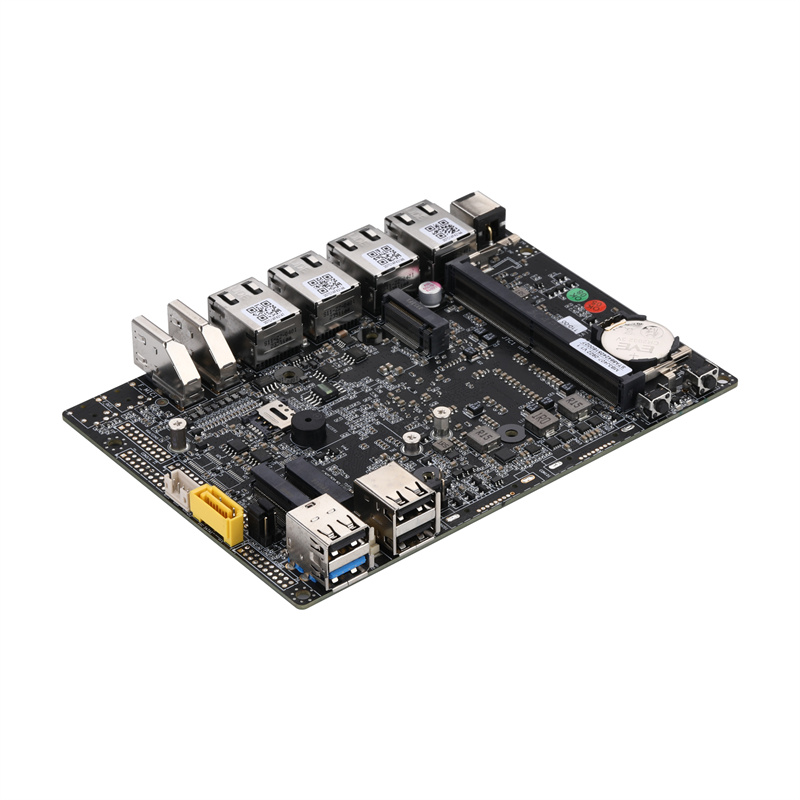

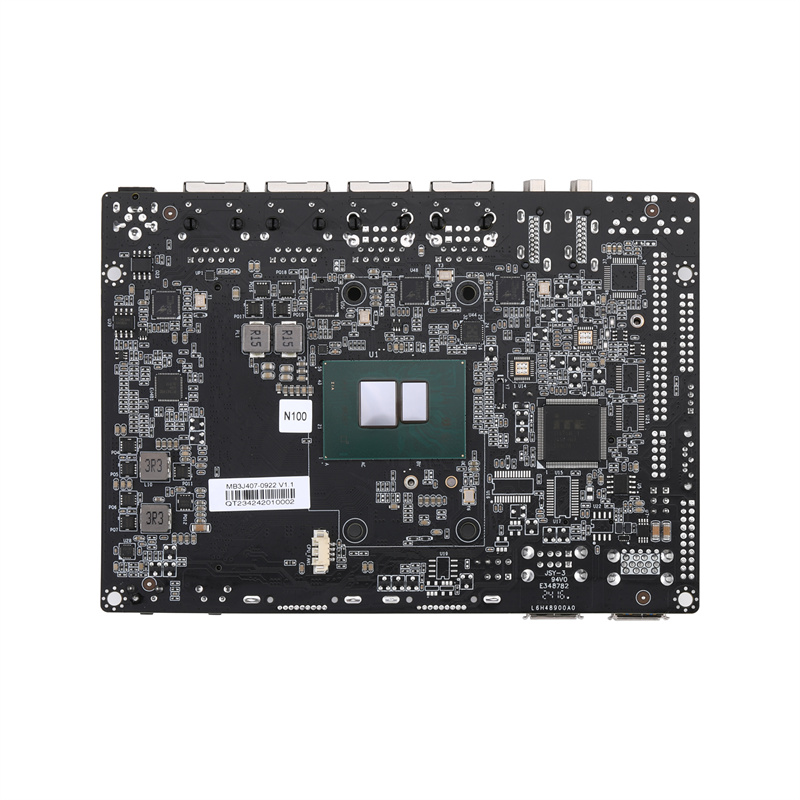

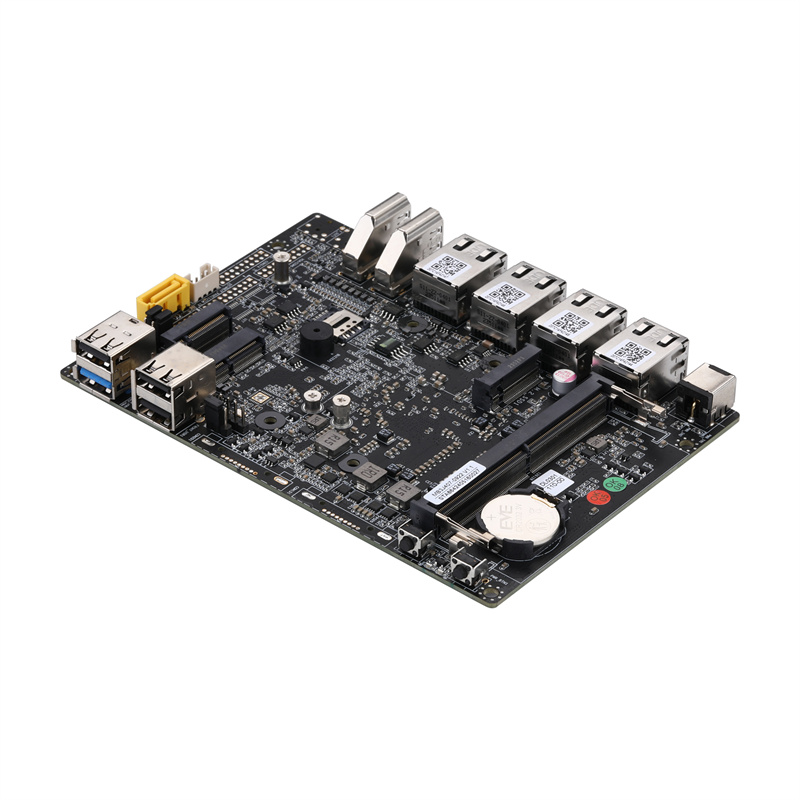

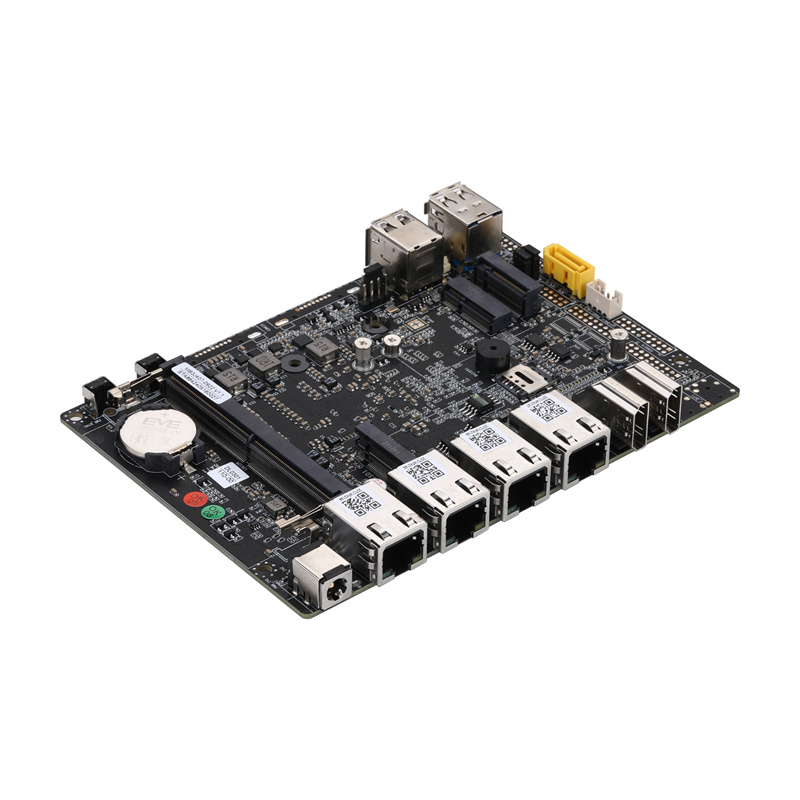

Motherboard MB3J407-0900 Series

Model: MB3J407-0900

Total LAN4
LAN Speed2.5G RJ45

Key Specs

CPU
Alder lake N / Twin Lake
Memory
DDR5 SO-DIMM · Max 48GB
LAN
4
Storage
M.2 Mkey, SATA
Board Size
148x104

Compatible Systems

Q10900G4-S04Q10900G4-S04

This product is available via inquiry and OEM/ODM customization.

Send Inquiry
MB3J407-0911MB3J407-0921MB3J407-0922MB3J407-0923MB3J407-0924MB3J407-0931MB3J407-0932MB3J407-1022MB3J407-1023MB3J407-1031MB3J407-1032IntelAlder Lake-NTwin LakePentiumCeleronATOMX7425EN50N97N100N200N300N305N150N250N350N355

Main Features

  • Intel Alder Lake-N Processor
  • Intel Twin Lake-N Processor
  • 2 × HDMI
  • 1 × USB 3.0, 3 × USB 2.0
  • 3 × M.2, 1 × SATA 3.0
  • 4 × Realtek 2.5G LAN

Processor System

CPUIntel Alder Lake-N Processor Intel Twin Lake-N Processor
ChipsetBy CPU
Dimension148 × 104mm
Core NumberBy CPU
SpeedBy CPU
L2 CacheBy CPU
BIOSUEFI

Memory

TechnologyDDR5 4800MHz SDRAM
Max.48GB
Socket1 × SO-DIMM

Graphics

ControllerBy CPU
VRAMShared Memory
VGA0
HDMI2 (Support HDMI 1.4a)
Multi DisplayYes

Ethernet

Interface100/1000/2500Mbps
Controller4 × Realtek 2.5G LAN
Connector4 × RJ-45

Audio

ControllerNo

Front I/O

Power Button1 × Power Button, 1 × Reset Button
LED1 × Power LED, 1 × HDD LED
USB1 × USB 3.0, 3 × USB 2.0
DC-IN1
HDMI2
Ethernet4

Storage

Max. Data Transfer RateSATA 3.0 (6.0Gb/S)

Expansion

M.21 × M.2 for SSD (M key, Type:2280,PCIe 3.0 × 1)
M.21 × M.2 for 4G/5G (B key, Type: 3042/3052)
M.21 × M.2 for Wi-Fi (E key, Type: 2230)

Internal Connector

PS/21, 2 × 5Pin, Pitch 2.0mm
USB 2.0 Header1, 1 × 4Pin, Pitch 2.54mm
SATA1, SATA 3.0 (6.0Gb/S)
SATA PWR Connector1, 1 × 4Pin, Pitch PH2.0mm
SIM Slot1
AutoStart JumperYes, 1 × 3Pin, Pitch 2.54mm
Clear CMOS JumperYes, 1 × 3Pin, Pitch 2.54mm
GPIO Header1, 2 × 5Pin, Pitch 2.0mm
GPIO Power SelectYes, 1 × 3Pin, Pitch 2.54mm
Front Panel Header1, 2 × 5Pin, Pitch 2.0mm
Power Header1, 1 × 2Pin, Pitch 3.5mm, Phoenix 2Pin (Option)
CPU FAN Connector1, 1 × 4Pin, Pitch PH 1.25mm
SYS FAN Connector1, 1 × 4Pin, Pitch PH 1.25mm

Watchdog Timer

OutputFrom Super I/O to Drag RESETCON#
Interval256 Segments,0,1,2,3,,,255 sec/min

Power

Input PWR12V DC in, 5.5mm/2.5mm

Environmental

Operating Temperature0-50℃

Accessories

AccessoriesCable for HDD

OS Support

OSUEFI Windows 10, UEFI Linux

Package Contents

  • Motherboard × 1
  • SATA Combo Cable × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPDatasheet
MB3J407-0911 A lder lake-N - N50 2 / - 3.4GHz 6M Intel UHD Graphics 6W
MB3J407-0921 Alder lake-N - N97 4 / - 3.6GHz 6M Intel UHD Graphics 12W
MB3J407-0922 Alder lake-N - N100 4 / 4 3.4GHz 6M Intel UHD Graphics 6W
MB3J407-0923 Alder lake-N - N200 4 / 4 3.7GHz 6M Intel UHD Graphics 6W
MB3J407-0924 Alder lake-N Atom X7425E 4 / 4 3.4GHz 6M Intel UHD Graphics 12W
MB3J407-0931 Alder lake-N Core i3 N300 8 / 8 3.8GHz 6M Intel UHD Graphics 7W
MB3J407-0932 Alder lake-N Core i3 N305 8 / 8 3.8GHz 6M Intel UHD Graphics 15W
MB3J407-1022 Twin Lake-N - N150 4 / 4 3.6GHz 6M Intel Graphics 6W
MB3J407-1023 Twin Lake-N - N250 4 / 4 3.8GHz 6M Intel Graphics 6W
MB3J407-1031 Twin Lake-N Core i3 N350 8 / 8 3.9GHz 6M Intel Graphics 7W
MB3J407-1032 Twin Lake-N Core i3 N355 8 / 8 3.9GHz 6M Intel Graphics 15W
