Mini PC Q10900G4 S08 Series

Model: Q10900G4-S04

Total LAN4
LAN Speed2.5G RJ45

Key Specs

CPU
Alder lake N / Twin Lake
Memory
DDR5 SO-DIMM · Max 48GB
LAN
4
Storage
M.2 Mkey, SATA

Compatible Motherboard

MB3J407-0900MB3J407-0900

This product is available via inquiry and OEM/ODM customization.

Send Inquiry
Q10911G4Q10921G4Q10922G4Q10923G4Q10924G4Q10931G4Q10932G4Q11022G4Q11023G4Q11031G4Q11032G4IntelAlder Lake-NTwin LakePentiumCeleronATOMX7425EN50N97N100N200N300N305N150N250N350N355

Main Features

  • Intel Alder Lake-N Processor
  • Intel Twin Lake-N Processor
  • 2 × HDMI
  • 1 × USB 3.0, 3 × USB 2.0
  • 3 × M.2, 1 × SATA 3.0
  • 4 × Realtek 2.5G LAN

Processor System

CPUIntel Alder Lake-N Processor Intel Twin Lake-N Processor
CPU TDPBy CPU
Memory1 × DDR5 SO-DIMM Socket (Up to 48G)
ChipsetBy CPU
GraphicsBy CPU
AudioNo
Watch DogYes

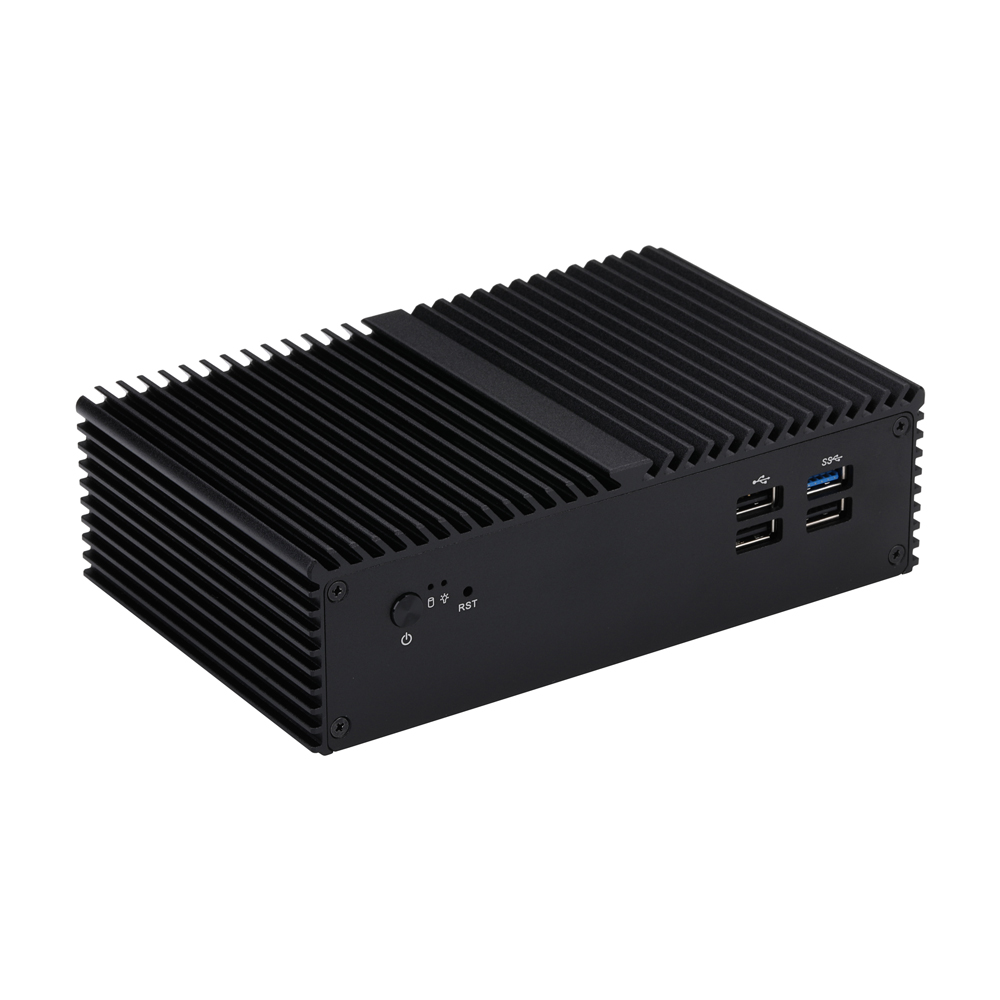

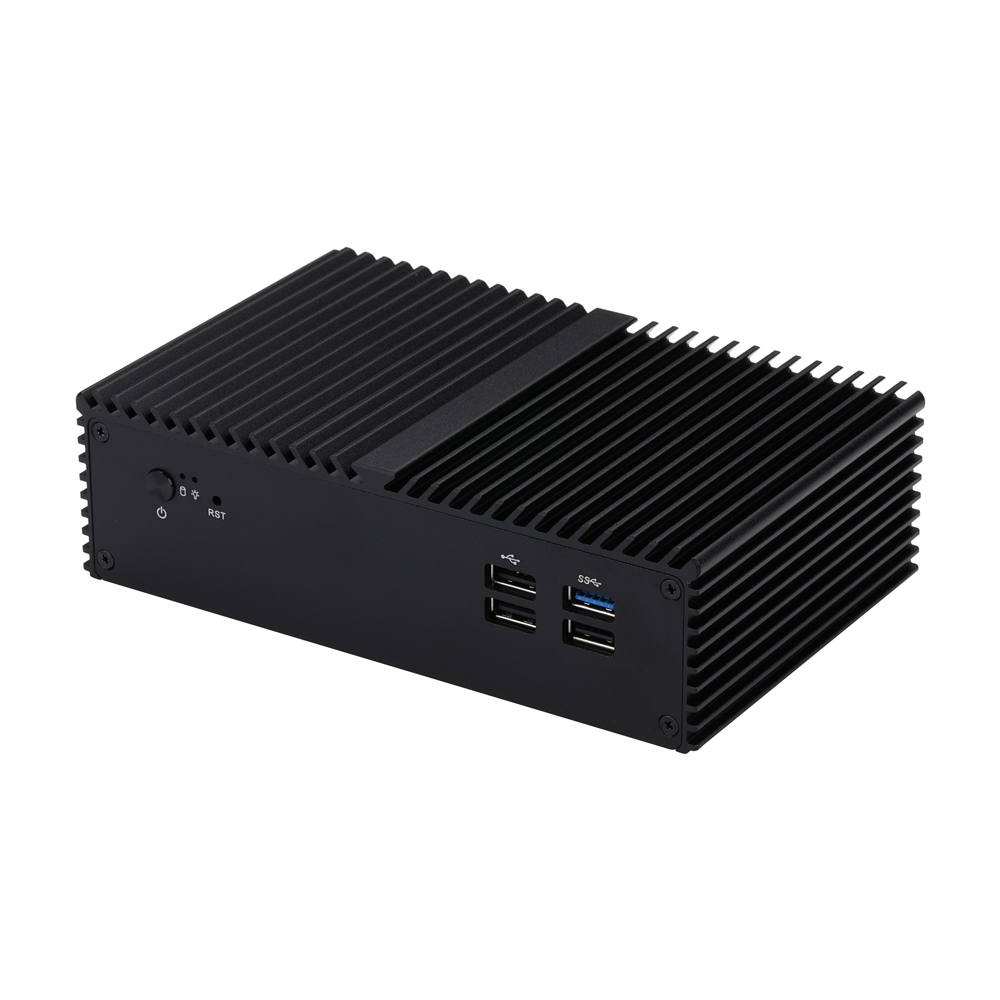

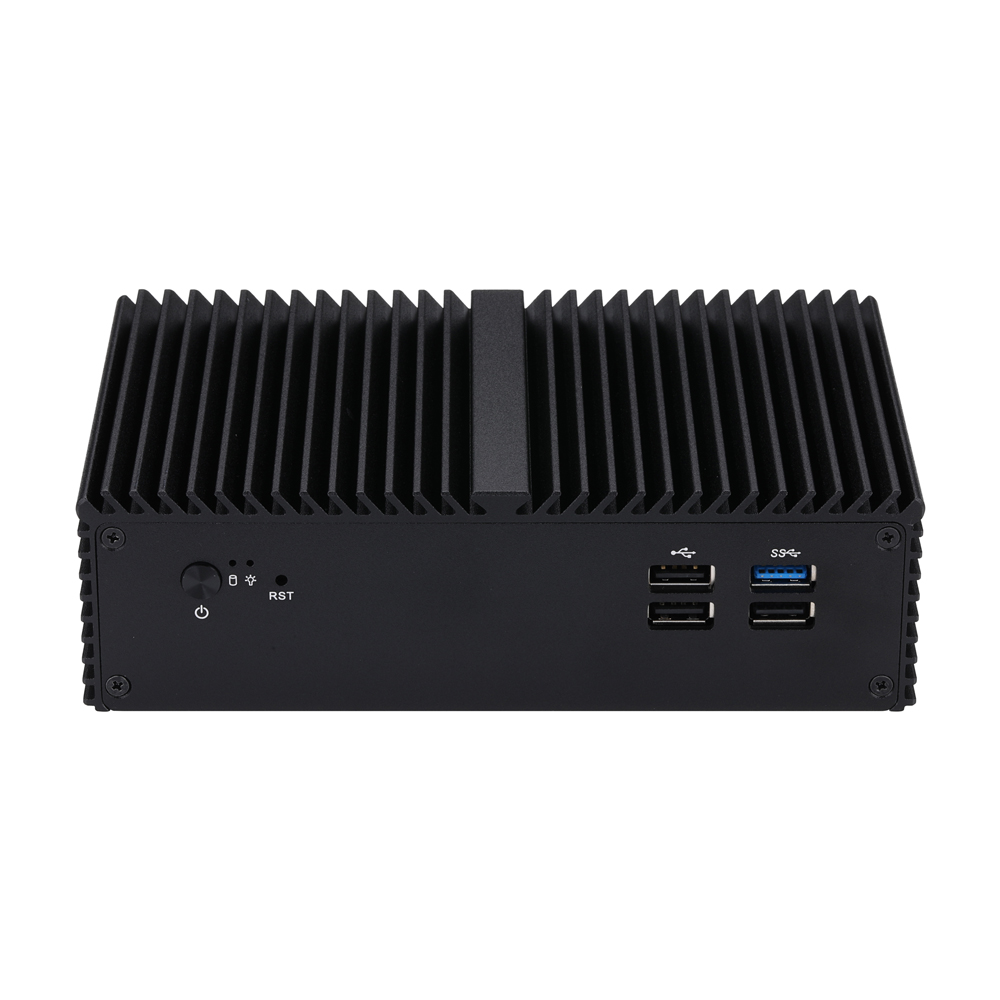

Front I/O

Power Button1 × Power Button,1 × Reset Button
LED1 × Power LED,1 × HDD LED
USB3 × USB 2.0,1 × USB 3.0
Serial Port0
PS/20
GPIO0

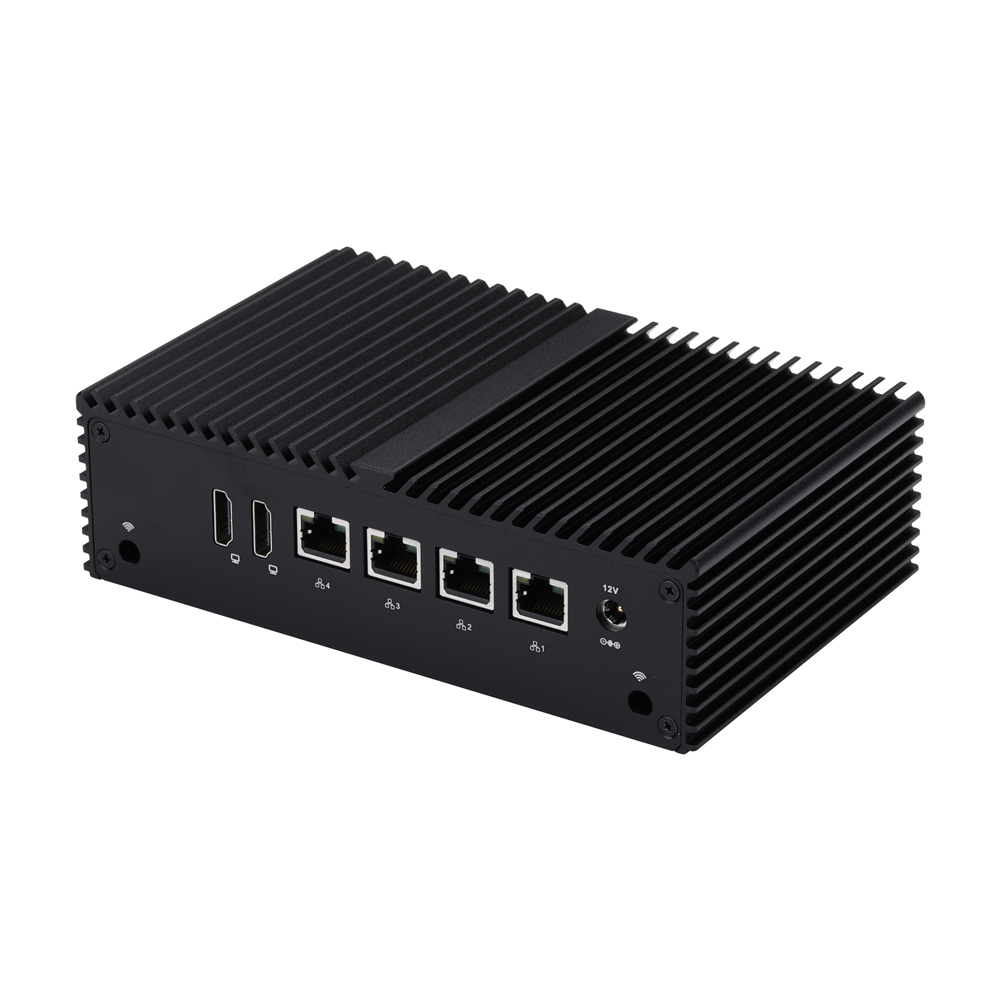

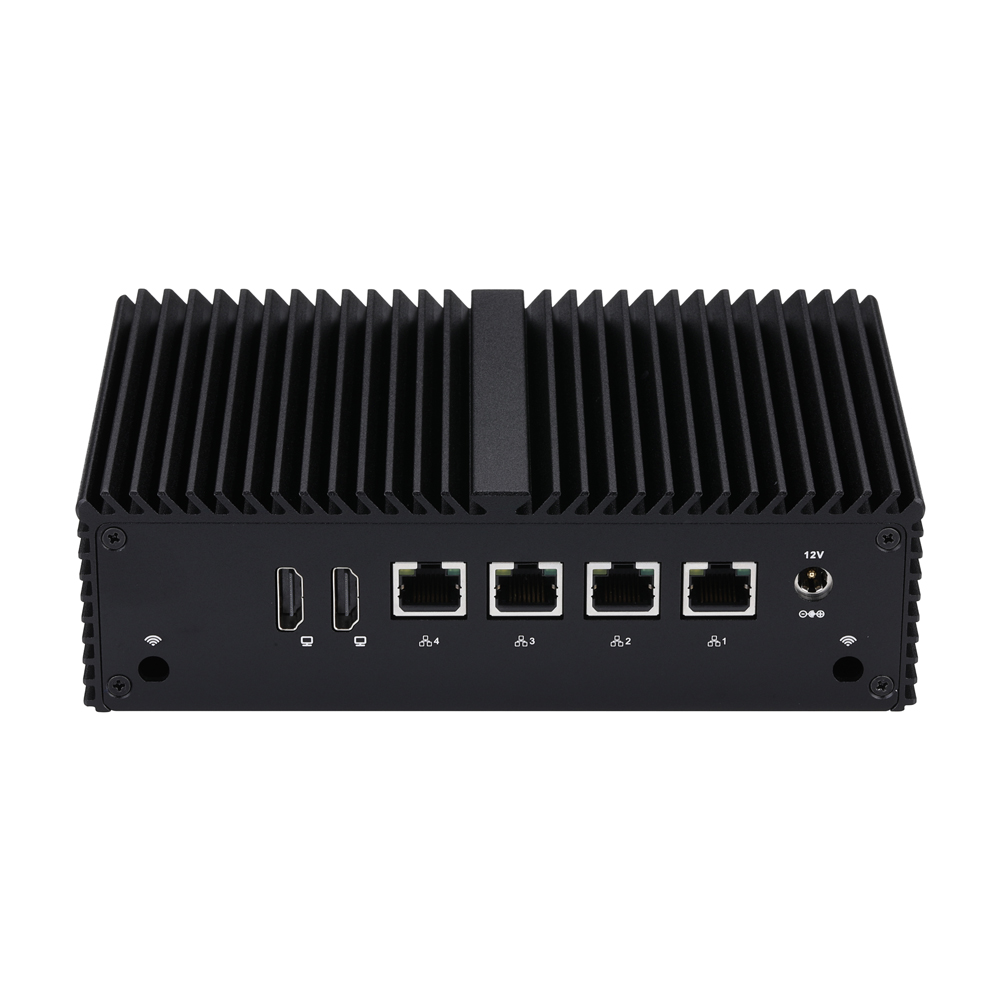

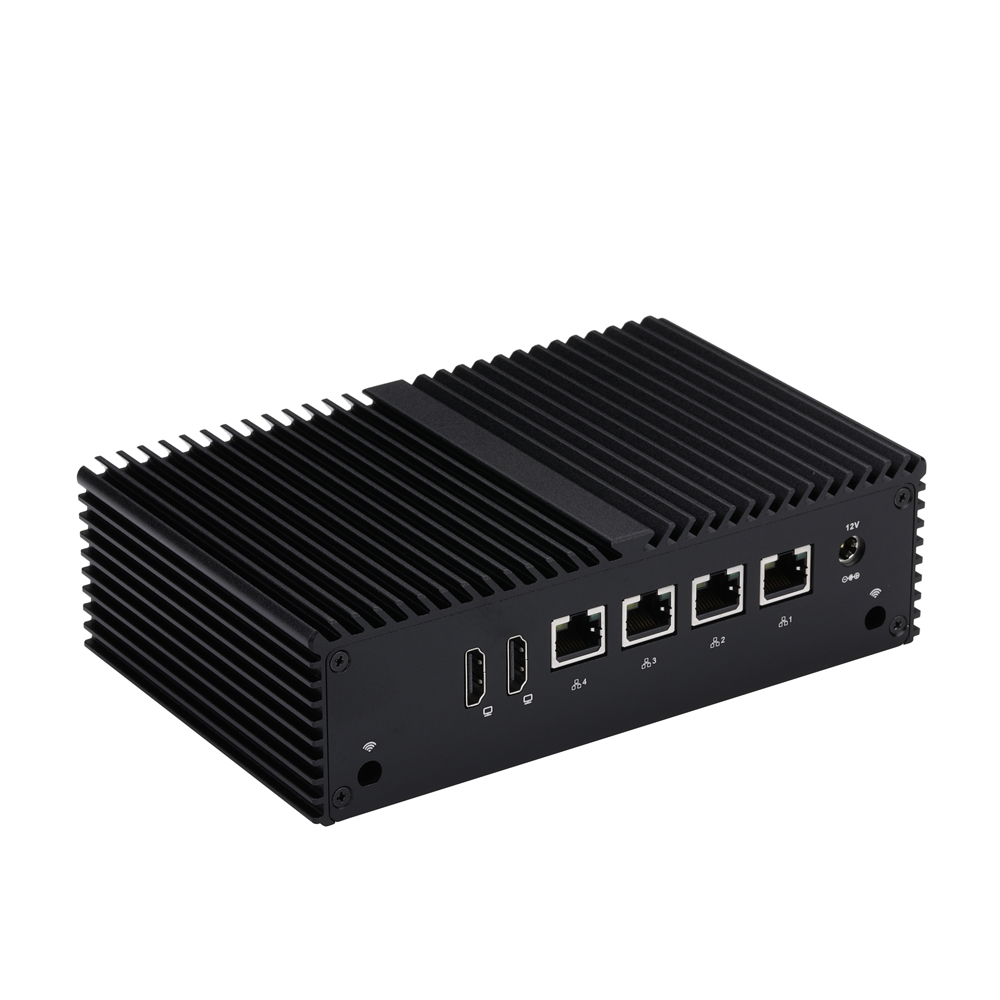

Rear I/O

Power1 × DC Jack
LAN4 × Realtek 2.5G LAN
USB0 × USB 2.0
Audio0
Display2 × HDMI
Serial Port0

Storage

Type1 × 2.5-inch HDD/SSD
Type1 × M.2 for SSD (M key, Type:2280,PCIe 3.0 × 1)

Expansion

M.21 × M.2 for SSD (M key, Type:2280,PCIe 3.0 × 1)
M.21 × M.2 for 4G/5G (B key, Type: 3042/3052)
M.21 × M.2 for Wi-Fi (E key, Type: 2230)
SIM Card Slot1
AutoStart JumperYes,1 × 3Pin, Pitch 2.54mm
GPIO1,2 × 5Pin, Pitch 2.0mm
VGA0
Serial Port0
Clear CMOS JumperYes,1 × 3Pin, Pitch 2.54mm
Front Panel Header1, 2 × 5Pin, Pitch 2.0mm

Power

Power Adapter12V3A
DC Jack5.5mm, 2.5mm

Environmental

Operating Temp0°C~50°C
Non-Operating Temp-20°C~80°C
Humidity10%~90%

Mechanical

MaterialAluminium Alloy
Dimension178 × 111 × 52mm
Weight0.77kg
MountingVESA Mounting Bracket
Packaging Dimension261 × 218 × 75mm
Kensington LockNo
Cooling ModeFanless Design

OS Support

OSUEFI Windows 10, UEFI Linux

Package Contents

  • Mini PC × 1
  • Power Adapter × 1
  • AC Power Cable × 1
  • VESA Mount × 1
  • SATA Combo Cable × 1
  • Screw Kit × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPLegacy ModelDatasheet
Q10911G4-S04 Alder lake-N - N50 2 / - 3.4GHz 6M Intel UHD Graphics 6W -
G4-S04 Alder lake-N - N97 4 / - 3.6GHz 6M Intel UHD Graphics 12W Q10921
Q10922G4-S04 Alder lake-N - N100 4 / 4 3.4GHz 6M Intel UHD Graphics 6W -
Q10923G4-S04 Alder lake-N - N200 4 / 4 3.7GHz 6M Intel UHD Graphics 6W -
Q10924G4-S04 Alder lake-N Atom X7425E 4 / 4 3.4GHz 6M Intel UHD Graphics 12W -
Q10931G4-S04 Alder lake-N Core i3 N300 8 / 8 3.8GHz 6M Intel UHD Graphics 7W -
Q10932G4-S04 Alder lake-N Core i3 N305 8 / 8 3.8GHz 6M Intel UHD Graphics 15W -
Q11022G4-S04 Twin Lake-N - N150 4 / 4 3.6GHz 6M Intel Graphics 6W -
Q11023G4-S04 Twin Lake-N - N250 4 / 4 3.8GHz 6M Intel Graphics 6W -
Q11031G4-S04 Twin Lake-N Core i3 N350 8 / 8 3.9GHz 6M Intel Graphics 7W -
Q11032G4-S04 Twin Lake-N Core i3 N355 8 / 8 3.9GHz 6M Intel Graphics 15W -
