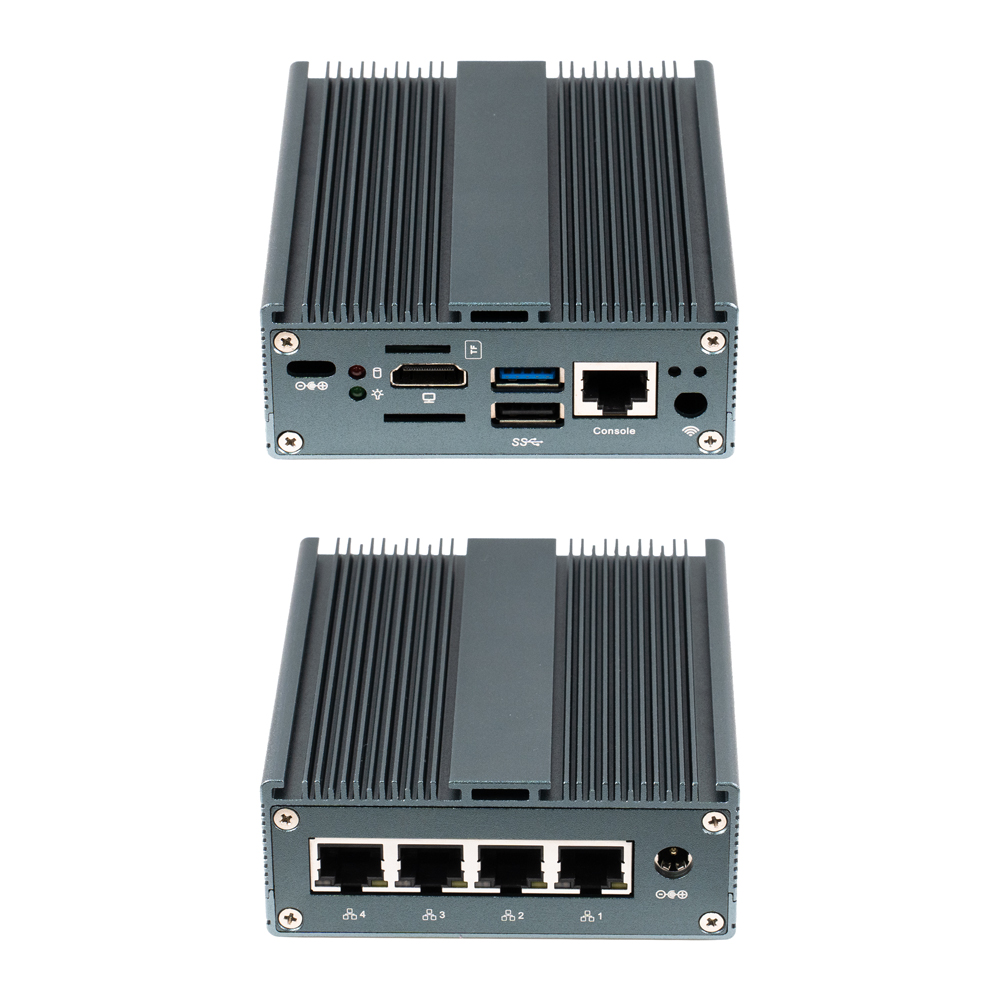

Mini PC Q00001G4 S16 Series

Model: Q00001G4-s16

Total LAN4
LAN Speed1G RJ45 / 2.5G RJ45
Serial Ports1

Key Specs

Memory
Integrated · Max 4GB
LAN
4

This product is available via inquiry and OEM/ODM customization.

Send Inquiry

Main Features

  • Rockchip RK3568 Cortex-A55 Processor
  • Mali-G52 GPU
  • 1TOPS NPU
  • 1 × HDMI, 1x RS-232 (RJ-45)
  • 1 × USB 3.0, 2 × USB 2.0
  • 2 × Realtek Gigabit LAN
  • 2 × Realtek 2.5G LAN

Processor System

CPURockchip Processor Default RK3568 Quad Cores Cortex-A55 Processor up to 2.0GHz
Memory4GB, Integrated (Up to 8G)
LAN Chipset2 × Realtek Gigabit LAN, 2 × Realtek 2.5G LAN
GPUMali-G52 GPU
NPU1TOPS NPU

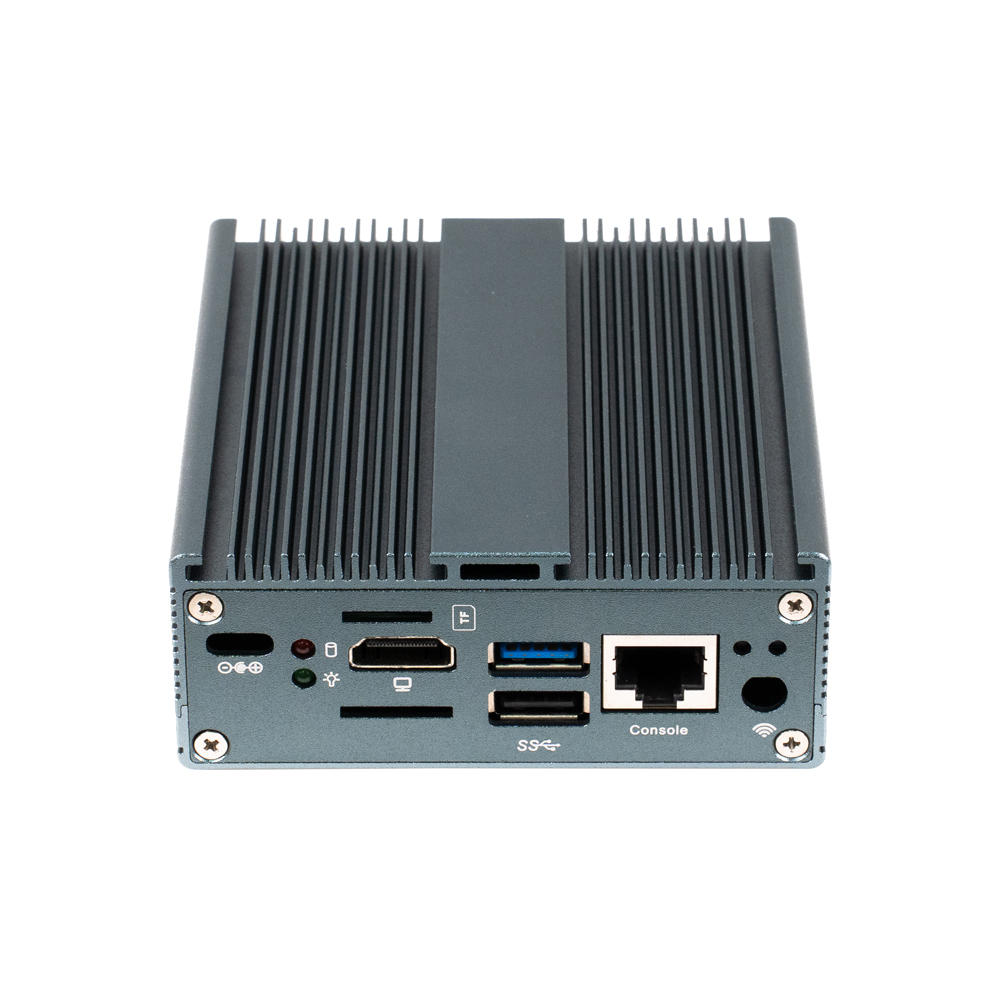

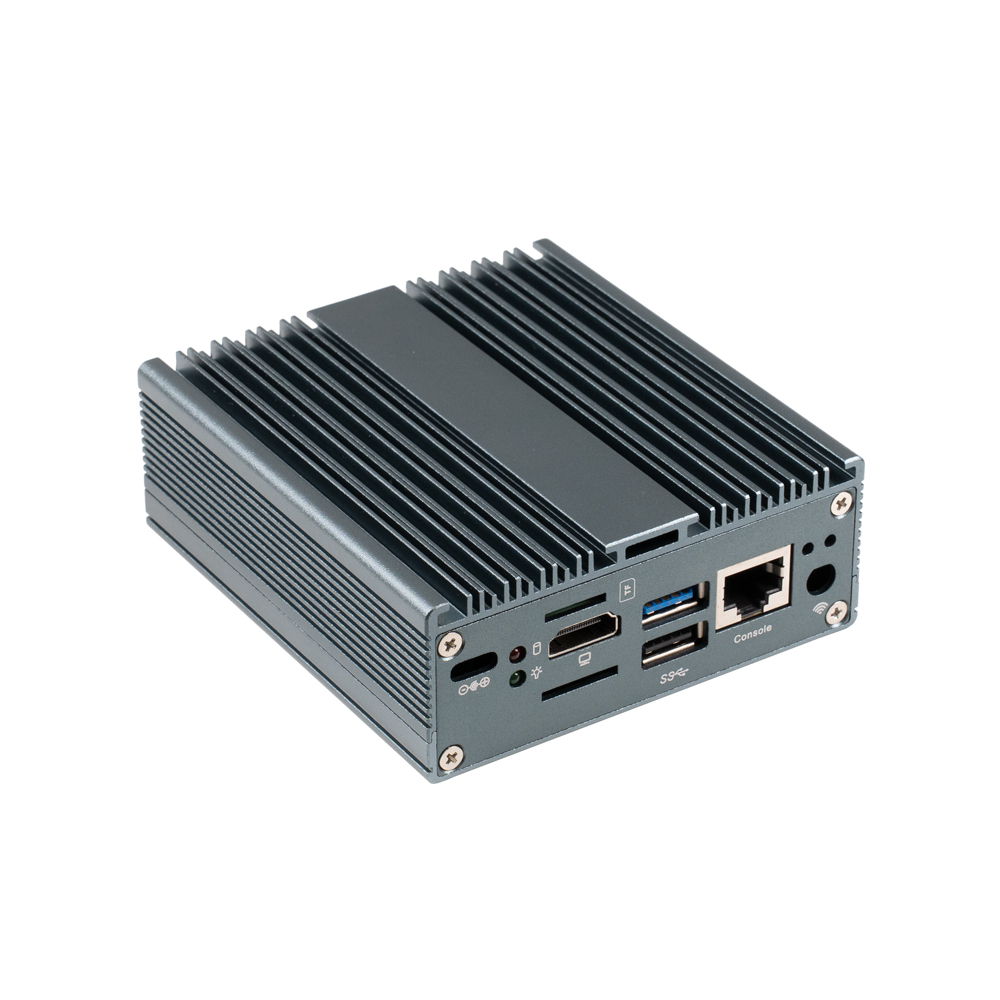

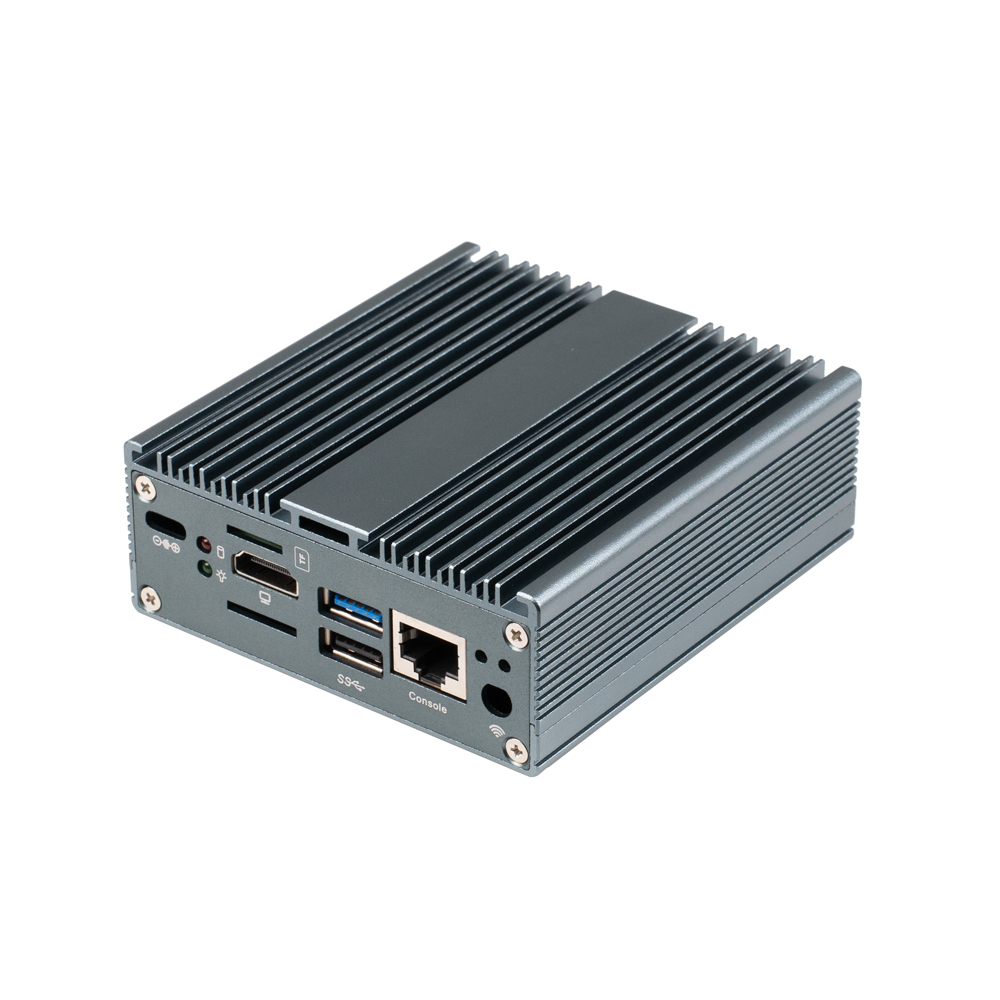

Front I/O

LED1 × Power LED,1 × HDD LED
USB1 × USB 3.0,1 × USB 2.0
Serial Port1 × RS-232 (RJ-45)
Button1 × Recovery Button,1 × Mask ROM Button
SIM Card Slot1 (Optional)
Video Output1 × HDMI
TF Card Slot1
Type C1 × Type C (Only for DC Input)

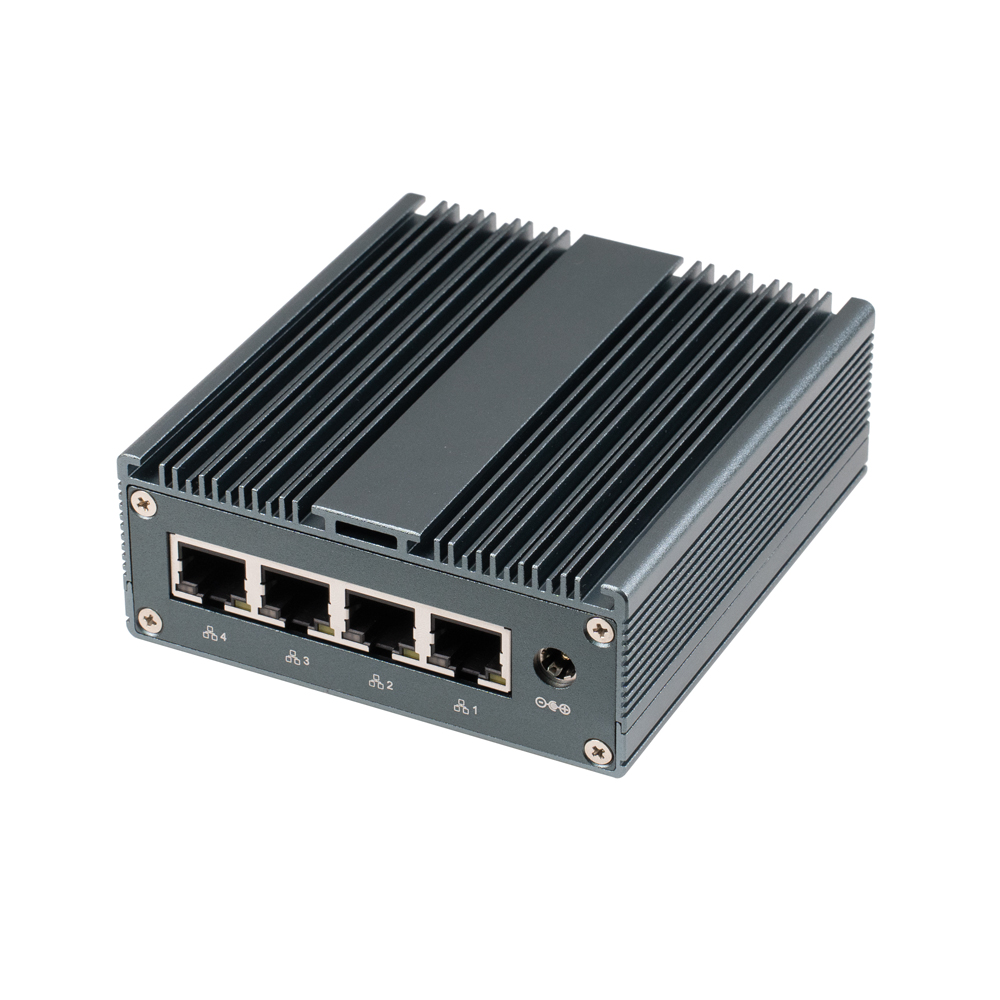

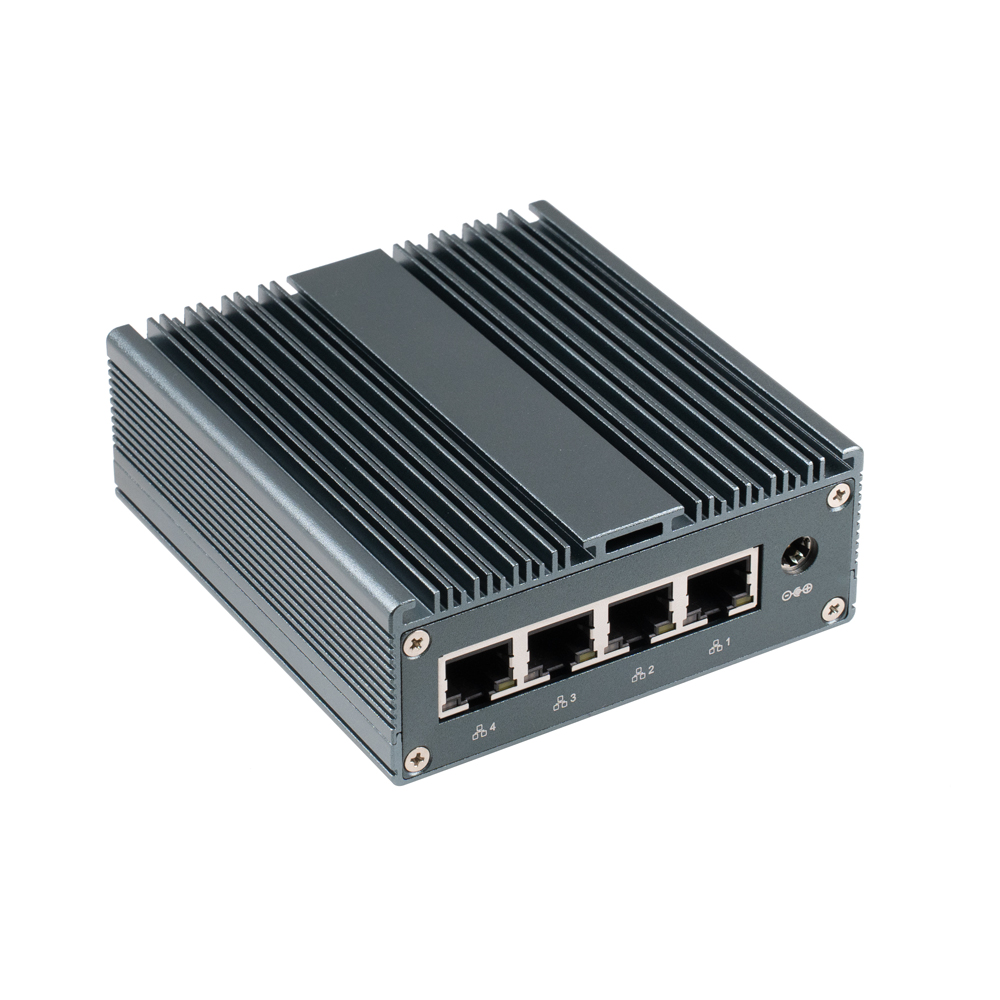

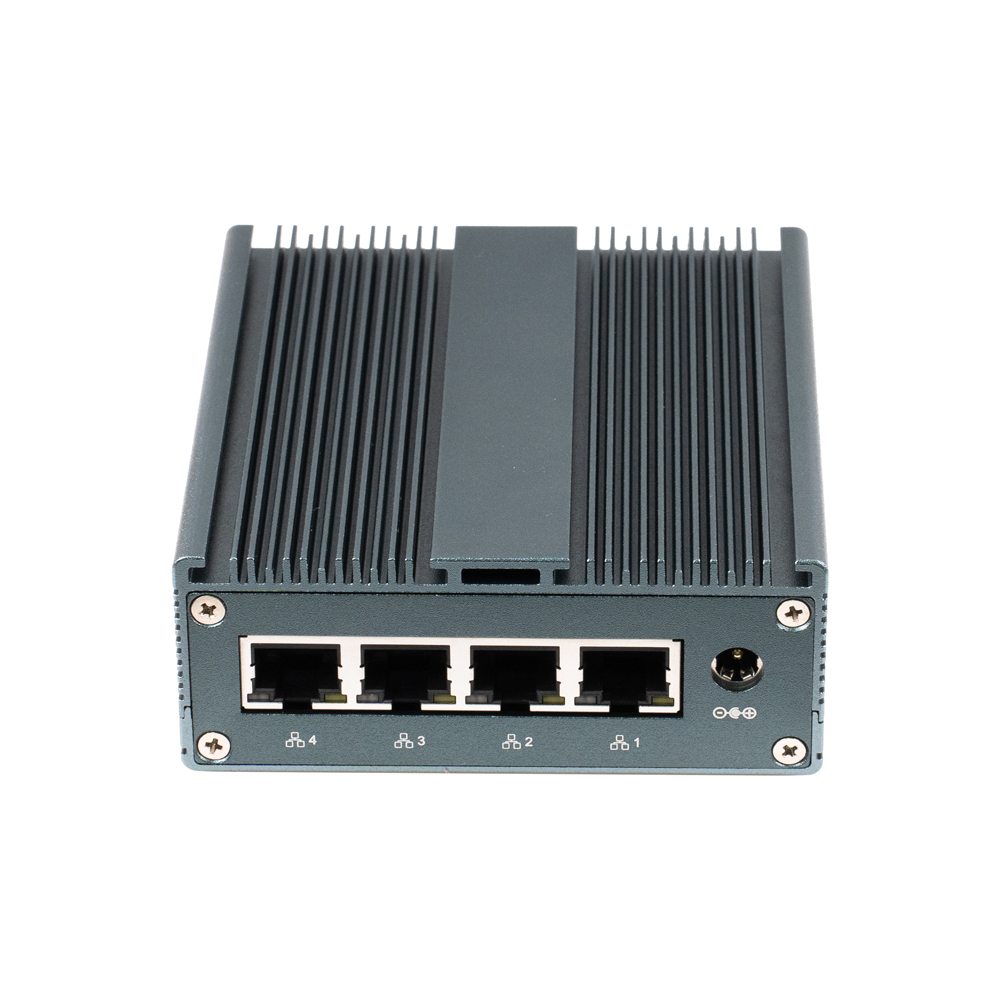

Rear I/O

Power1 × DC Jack
LAN2 × Realtek Gigabit LAN, 2 × Realtek 2.5G LAN

Storage

Type16GB, Integrated

Expansion

Mini PCIe1 × Mini PCIe (Optional) - Full-length for 4G - Half-length for Wi-Fi - Full-length for SSD
M.21 × M.2 for 4G/5G (B key, 3052) (Optional)
Serial Port1,1 × 4Pin, Pitch 2.54mm,Support 5V
USB Header1,1 × 5Pin, Pitch 2.54mm

Power

Power Adapter12V1A or 5V2A, DC Jack:5.5mm, 2.5mm By Default
Type C12V1A or 5V2A (Optional) (Only for DC Input)

Environmental

Operating Temp0°C~50°C
Non-Operating Temp-20°C~80°C
Humidity10%~90%

Mechanical

MaterialAluminium Alloy
Dimension102 × 94x 37mm
Weight0.34kg
MountingVESA Mounting Bracket
Packaging Dimension261 × 218 × 75mm
Kensington LockNo
Cooling ModeFanless Design

OS Support

OSUbuntu 18.04, openWRT

Package Contents

  • Mini PC × 1
  • Power Adapter × 1
  • AC Power Cable × 1
  • VESA Mount × 1
  • Screw Kit × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPDatasheet
Q00001G4-S16 Current- RK3568 4 2.0GHz - - -
