Mini PC Q10100G6 S04 Series

Model: Q10100G6-S04

Total LAN6
LAN Speed1G RJ45
Serial Ports1

Key Specs

CPU
Bay Trail
Memory
DDR3L SO-DIMM · Max 8GB
LAN
6
Storage
mSATA, SATA

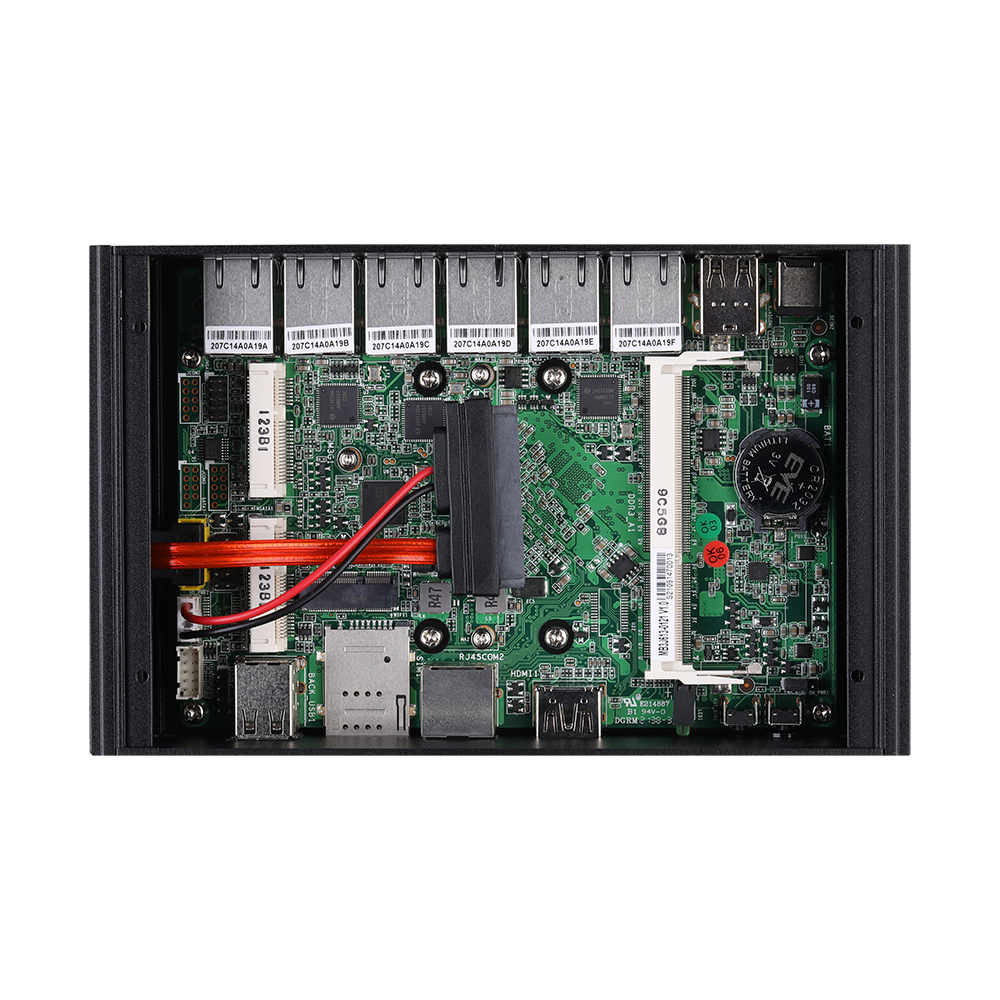

Compatible Motherboard

MB3J613-0100MB3J613-0100

This product is available via inquiry and OEM/ODM customization.

Send Inquiry
Q180G6Q190G6Q192G6Q193G6Q195G6Q10111G6Q10121G6Q10122G6Q10123G6Q10134G6IntelBay TrailPentiumCeleronATOMN2840J1800J1900N2920N2930N3540

Main Features

  • Intel Bay Trail Processor
  • 1 × HDMI,1 × RS-232 (RJ-45)
  • 1 × USB 3.0,3 × USB 2.0,1 × SATA 3.0
  • 1 × Mini PCIe,1 × mSATA,1 × M.2
  • 6 × Intel I211-AT/I210-AT Gigabit LAN

Processor System

CPUIntel Bay Trail Processor
CPU TDPBy CPU
Memory1 × DDR3L SO-DIMM Socket (Up to 8G, 1333/1600MHz)
ChipsetBy CPU
GraphicsBy CPU
LAN Chipset6 × Intel I211-AT/I210-AT Gigabit LAN
AudioNo
Watch DogYes

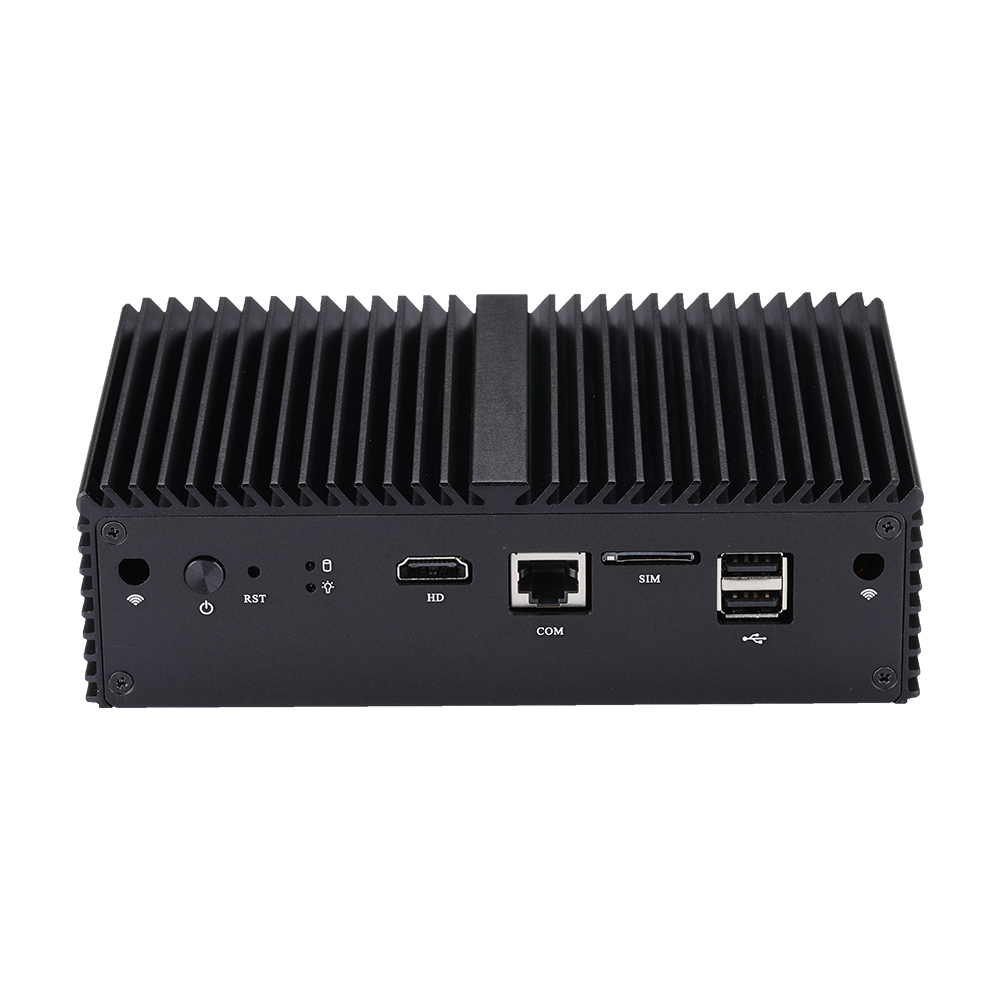

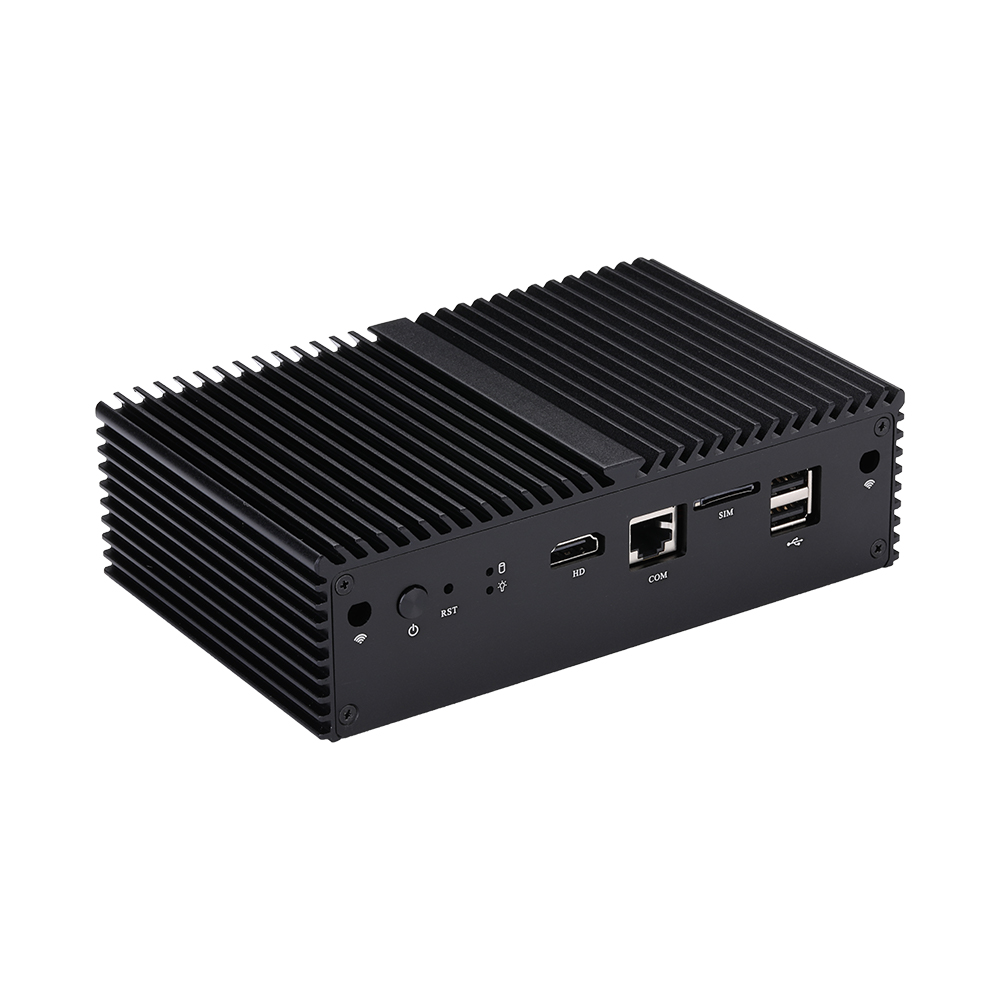

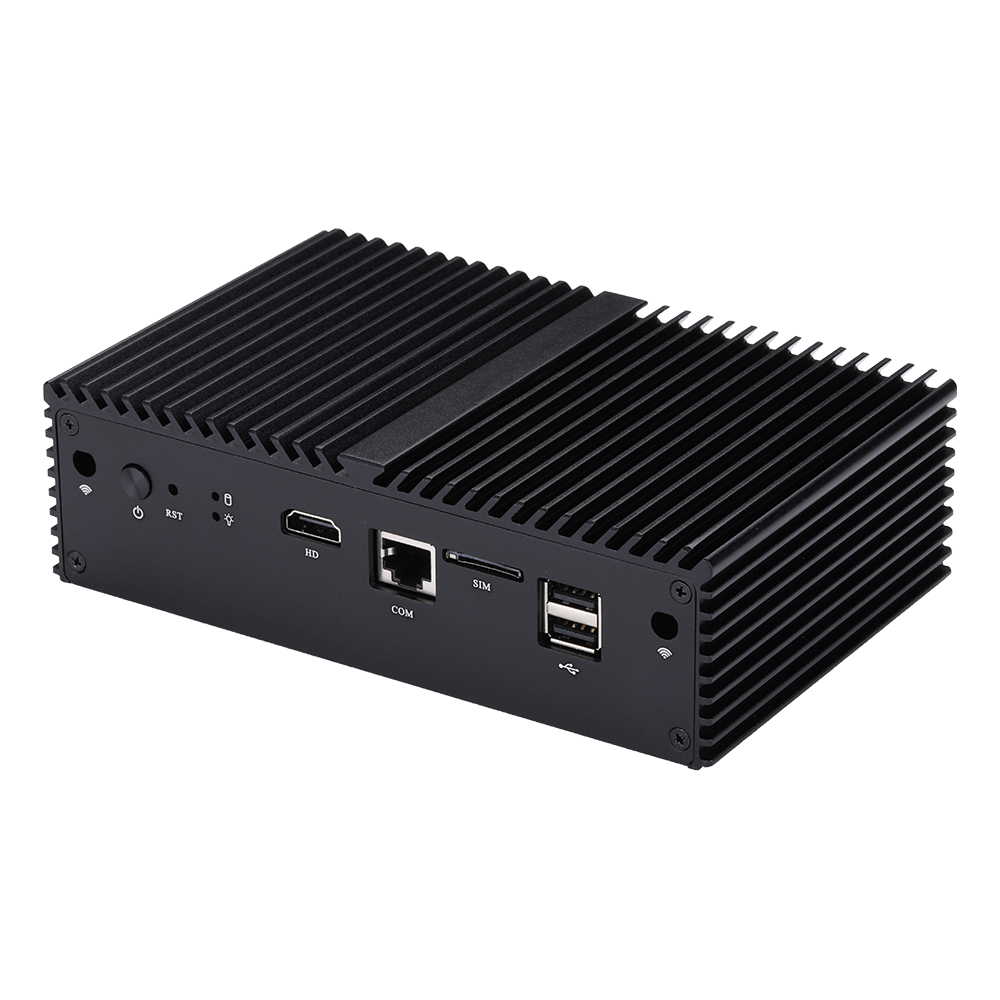

Front I/O

Power Button1 × Power Button,1 × Reset Button
LED1 × Power LED,1 × HDD LED
USB2 × USB 2.0
Serial Port1 × RS-232 (RJ-45)
Video Output1 × HDMI
SIM Slot1

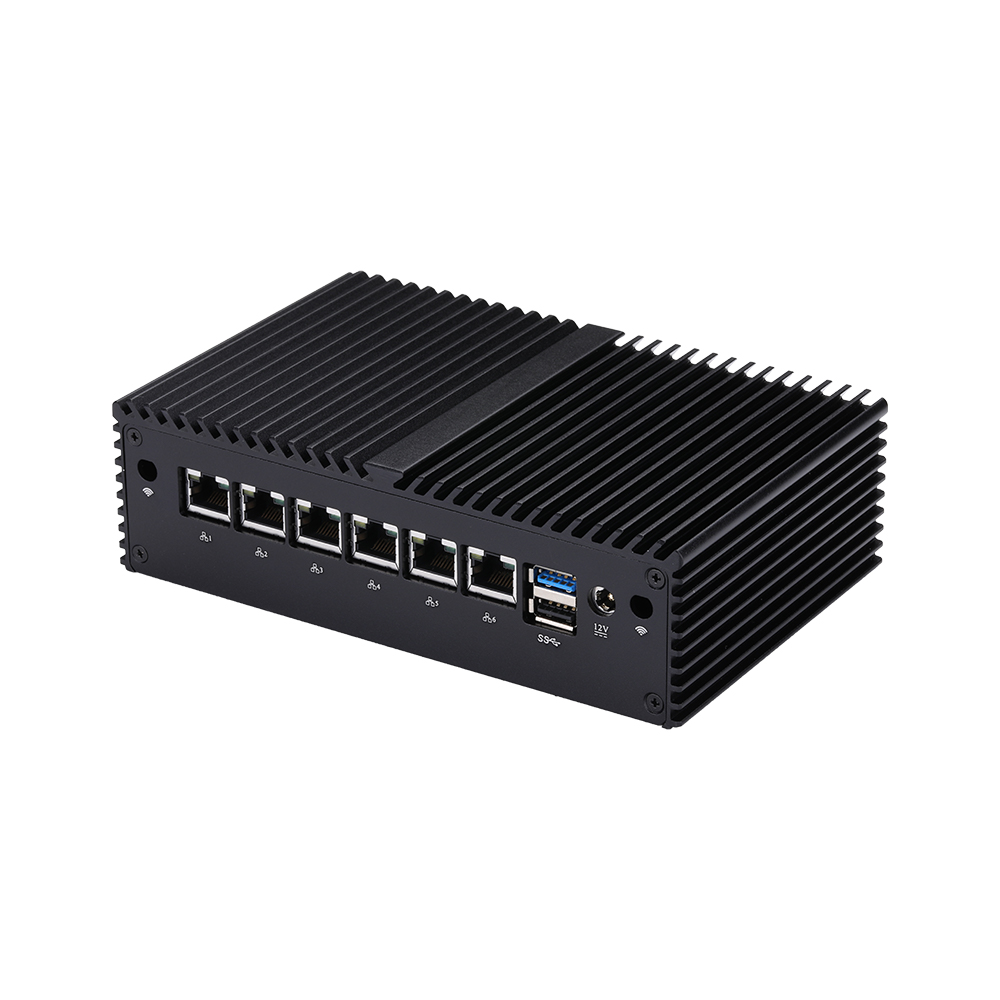

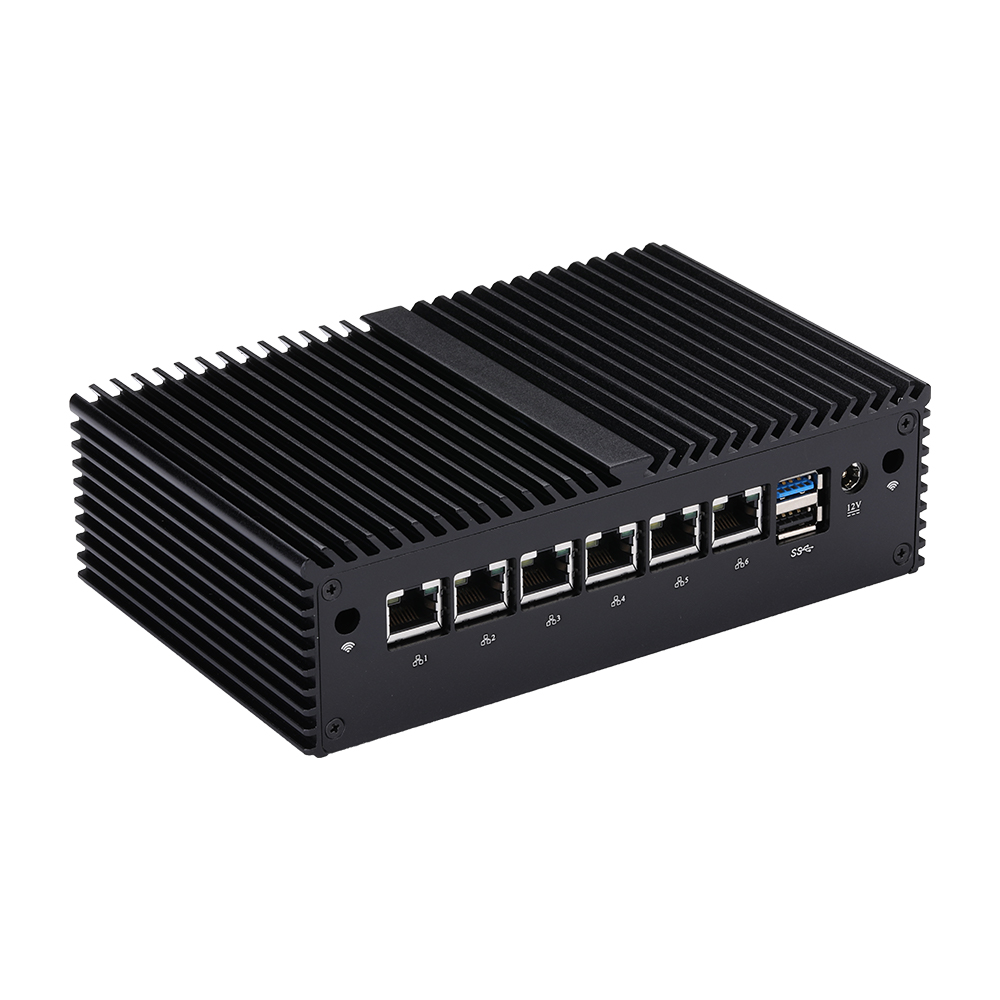

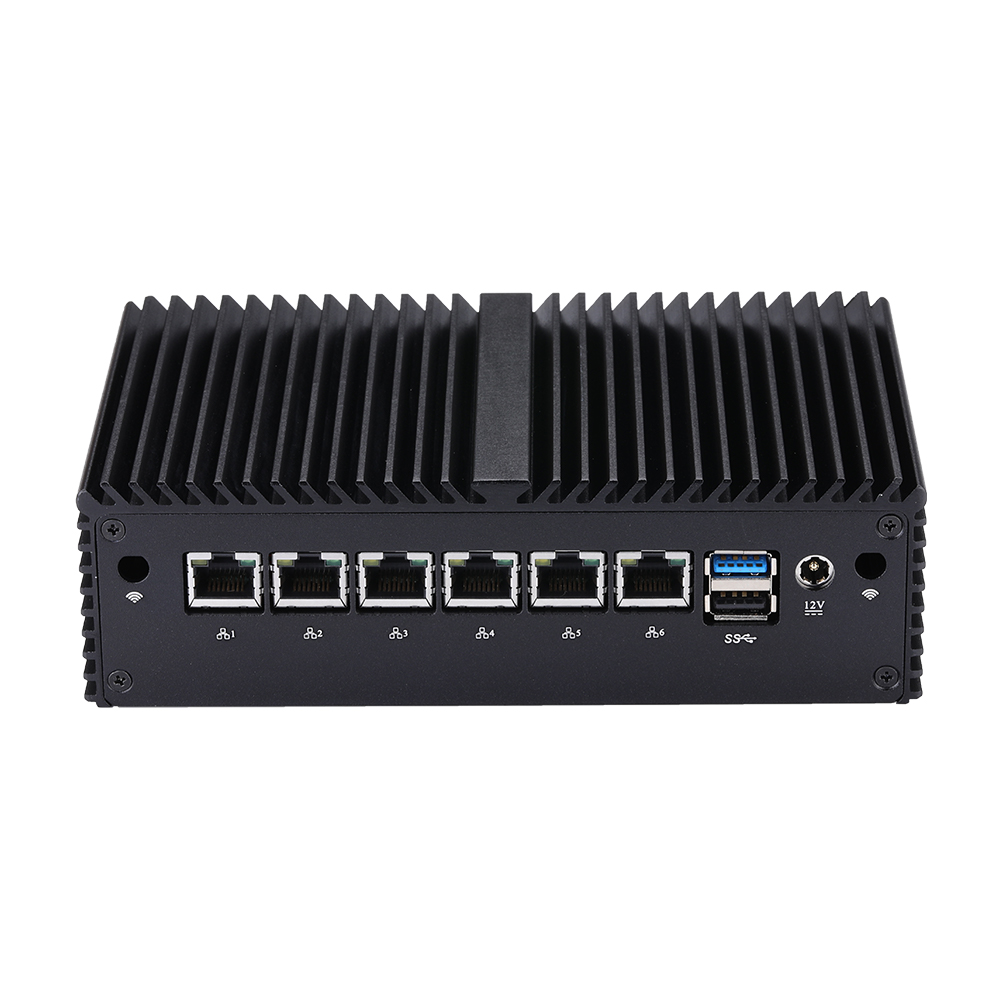

Rear I/O

Power1 × DC Jack
LAN6 × Intel I211-AT/I210-AT Gigabit LAN
LED1 × USB2.0,1 × USB3.0

Storage

Type1 × 2.5-inch HDD/SSD 1 × Mini PCIe for mSATA SSD

Expansion

mSATA1 × Full-length Mini PCIe for SSD
Mini PCIe1 × Mini PCIe Full-length for 4G, Half-length for Wi-Fi (Default Only Support USB Device)
M.21 × M.2 for Wi-Fi (E key, Type: 2230)
AutoStart JumperYes,1 × 3Pin, Pitch 2.54mm
GPIO1,2 × 5Pin, Pitch 2.0mm
Serial Port0
USB 2.01,2 × 5Pin, Pitch 2.54mm
Front Panel Header1,2 × 5Pin, Pitch 2.54mm

Power

Power Adapter12V3A
DC Jack5.5mm, 2.5mm

Environmental

Operating Temp0°C~50°C
Non-Operating Temp-20°C~80°C
Humidity10%~90%

Mechanical

MaterialAluminium Alloy
Dimension178 × 111 × 52mm
Weight0.78kg
MountingVESA Mounting Bracket
Packaging Dimension261 × 218 × 75mm
Kensington LockNo
Cooling ModeFanless Design

OS Support

OSWindows 7, Windows 10, Linux

Package Contents

  • Mini PC × 1
  • Power Adapter × 1
  • AC Power Cable × 1
  • VESA Mount × 1
  • SATA Combo Cable × 1
  • Screw Kit × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeLegacy ModelCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPDatasheet
Q10121G6-S04 Q190G6 Bay trail Celeron J1900 4 / 4 2.00Ghz ~ 2.42Ghz 2M Intel HD Graphics 10W
Q10122G6-S04 Q192G6 Bay trail Celeron N2920 4 / 4 1.86Ghz ~ 2.00Ghz 2M Intel HD Graphics 7.5W
