Mini PC Q10400G4 S05 Series

Model: Q10400G4-S05

Total LAN4
LAN Speed1G RJ45
Serial Ports1

Key Specs

CPU
Apollo Lake
Memory
DDR3L SO-DIMM · Max 8GB
LAN
4
Storage
mSATA, SATA

Compatible Motherboard

MB3J422-0400MB3J422-0400

This product is available via inquiry and OEM/ODM customization.

Send Inquiry
Q705G4Q710G4Q10411G4Q10421G4IntelApollo LakePentiumCeleronATOMJ3355J3455N3350N3450N4200J4205

Main Features

  • Intel Apollo Lake Processor
  • 1 × HDMI,1 × RS-232 (RJ-45)
  • 2 × USB 3.0,2 × USB 2.0,1 × SATA 3 0
  • 1 × Mini PCIe,1 × mSATA
  • 4 × Intel I211-AT/I210-AT Gigabit LAN (POE)

Processor System

CPUIntel Apollo Lake Processor
CPU TDPBy CPU
Memory1 × DDR3L SO-DIMM Socket (Up to 8G, 1600MHz)
ChipsetBy CPU
GraphicsBy CPU
LAN Chipset4 × Intel I211-AT/I210-AT Gigabit LAN (Support POE)
AudioNo
Watch DogYes

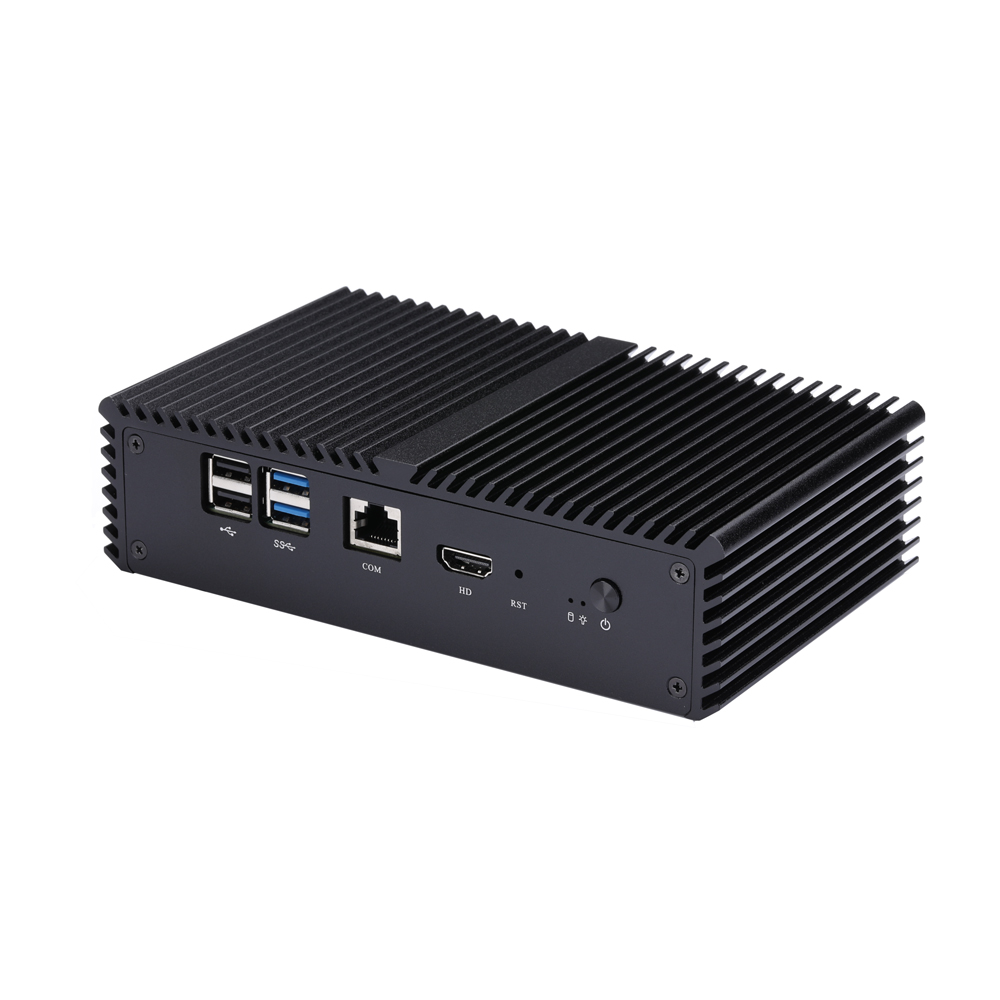

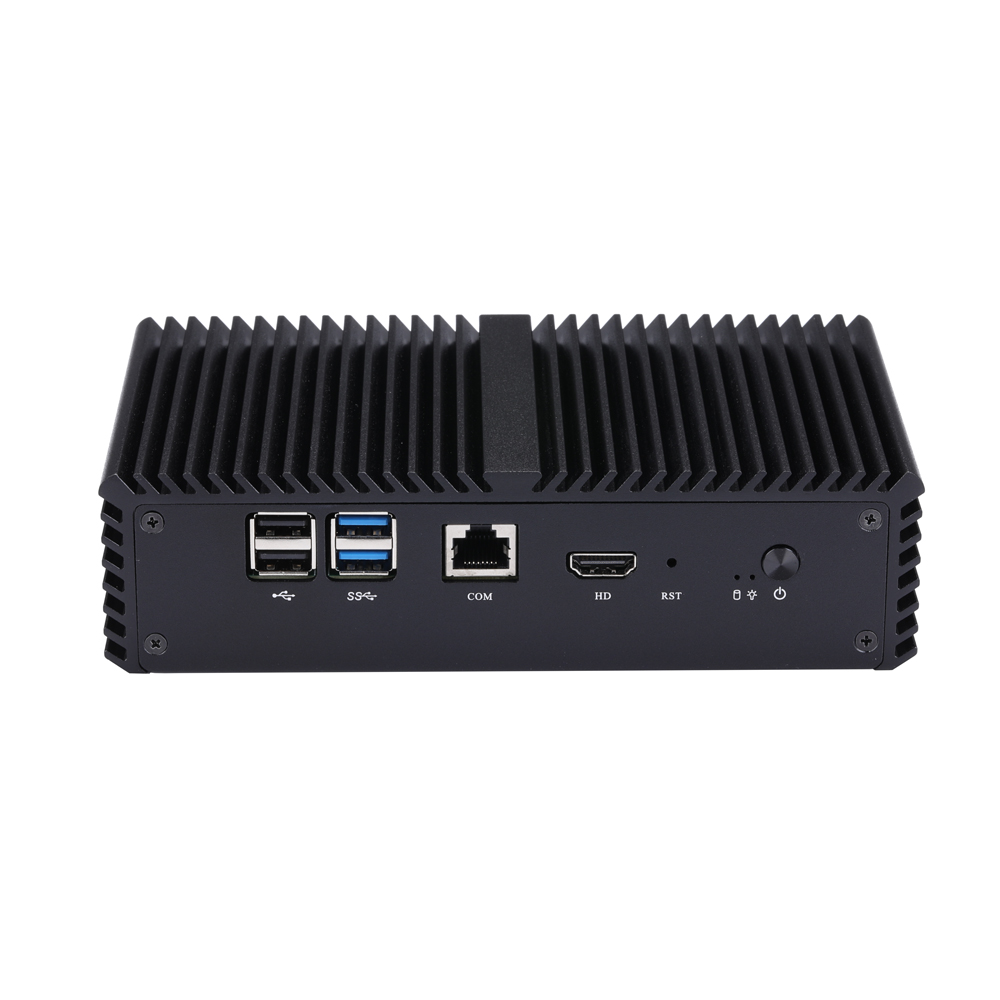

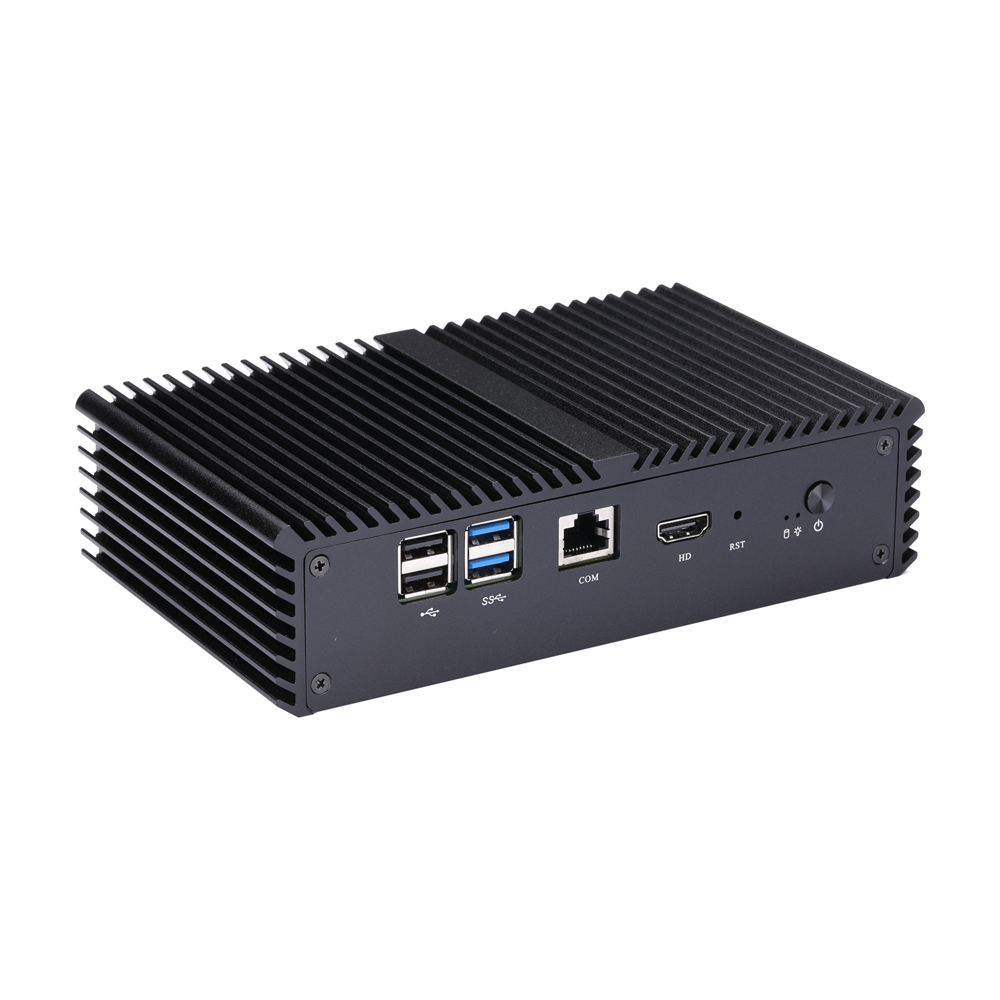

Front I/O

Power Button1 × Power Button,1 × Reset Button
LED1 × Power LED,1 × HDD LED
USB2 × USB 3.0,2 × USB 2.0
Serial Port1 × RS-232 (RJ-45)
Video Output1 × HDMI

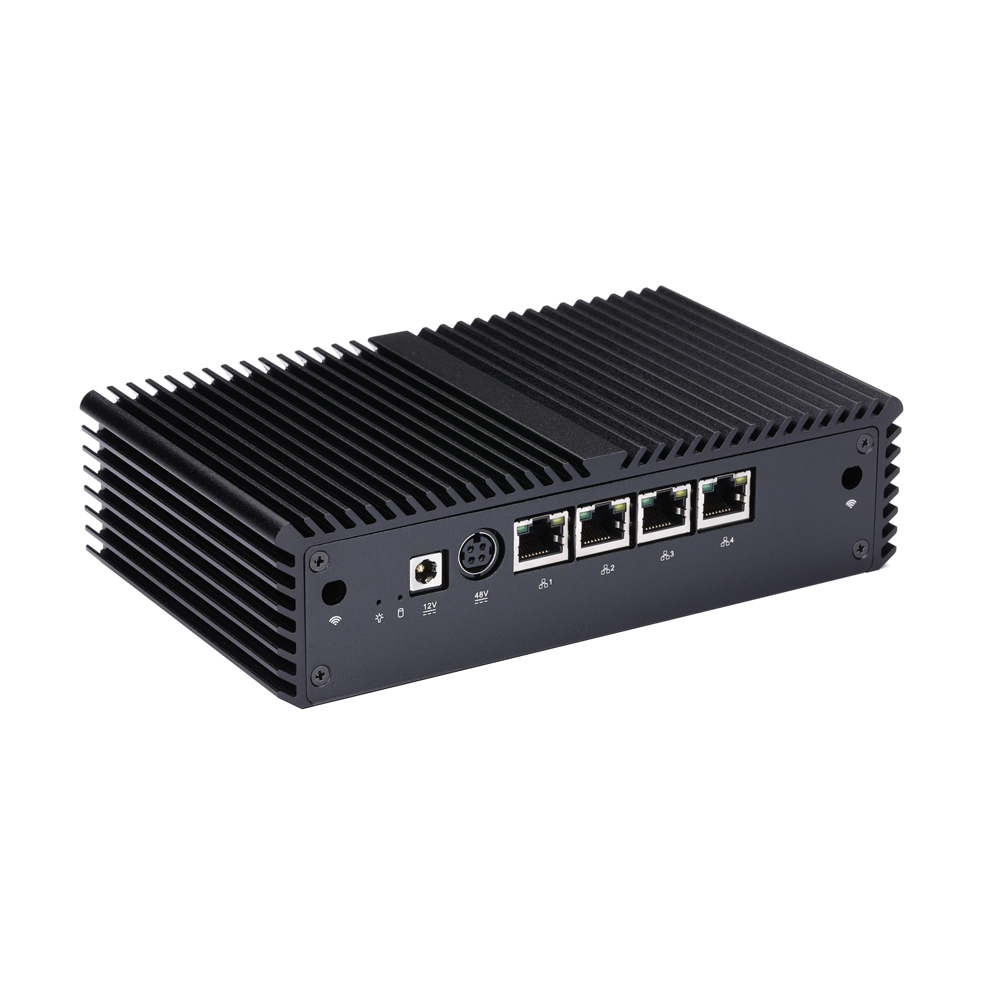

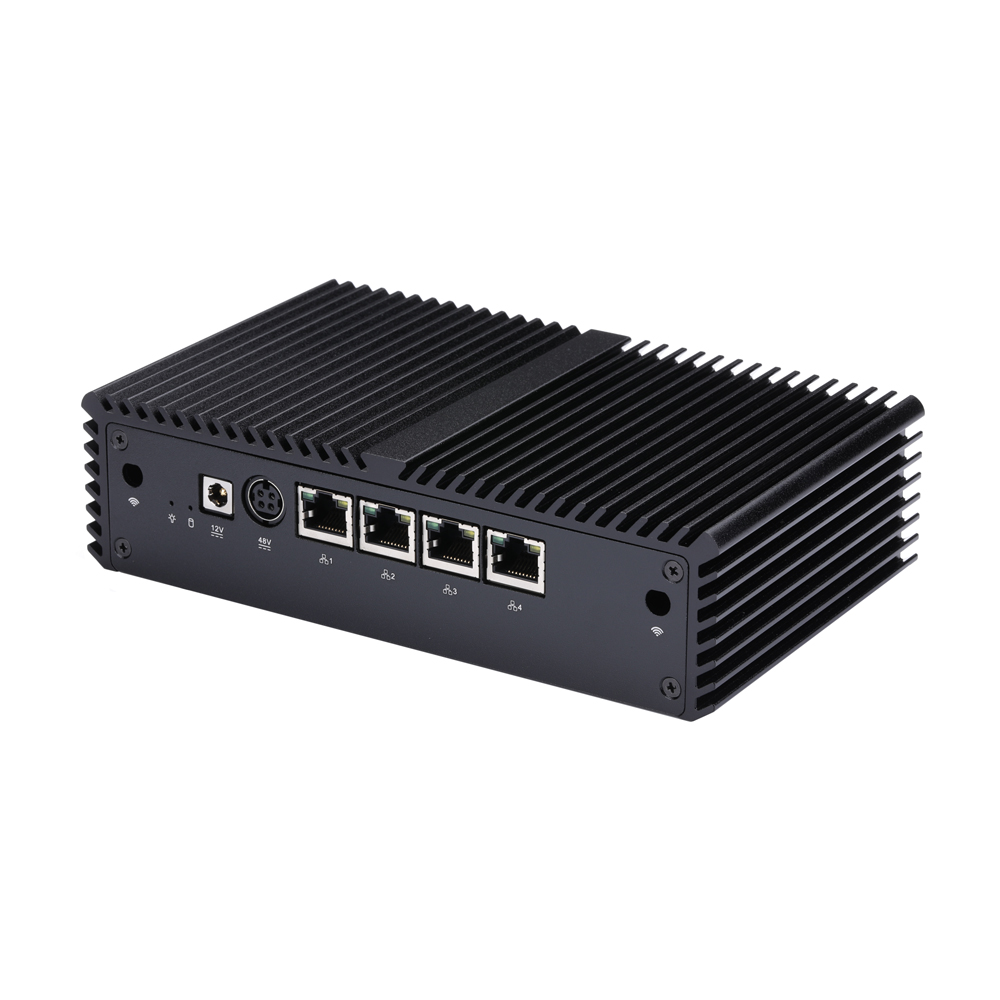

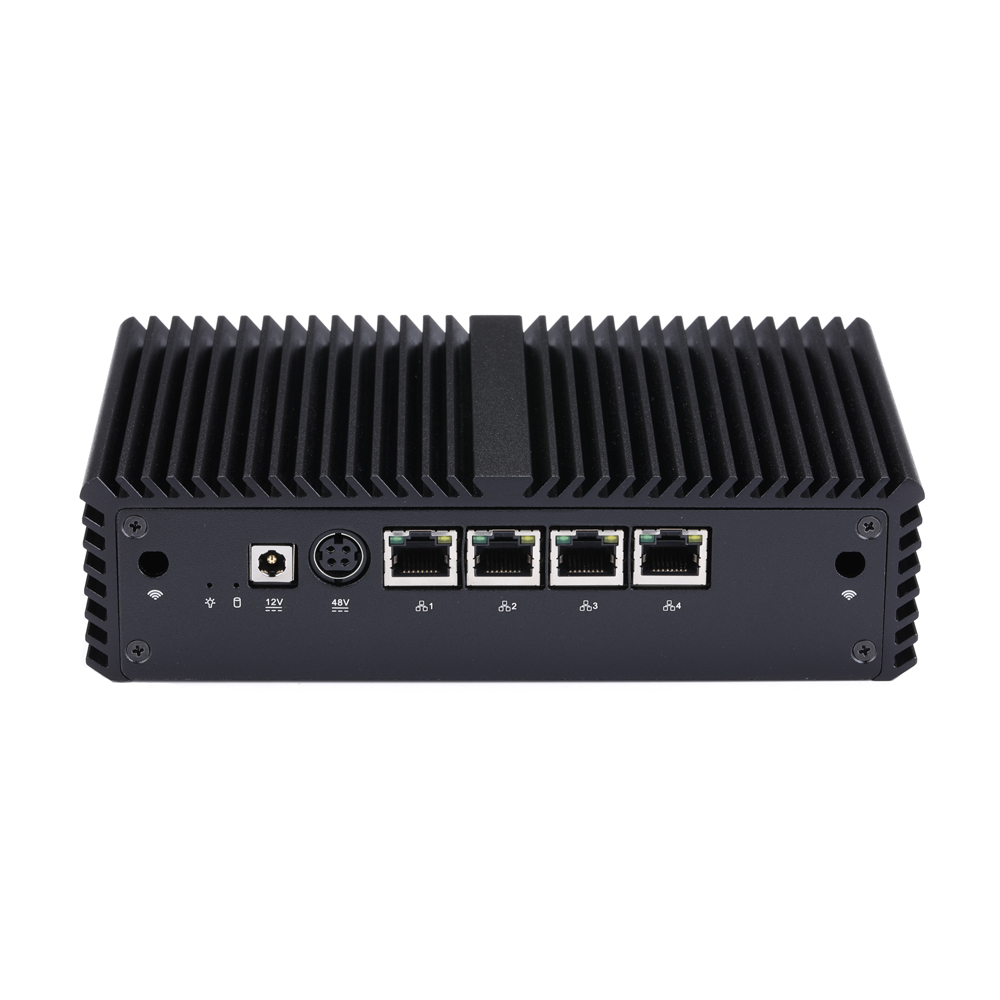

Rear I/O

Power1 × 12V DC Jack,1 × 48V DC Jack for POE
LAN4 × Intel I211-AT/I210-AT Gigabit LAN (Support POE)
AudioNo
LED1 × Power LED,1 × HDD LED

Storage

Type1 × 2.5-inch HDD/SSD 1 × Mini PCIe for mSATA SSD

Expansion

mSATA1 × Full-length Mini PCIe for SSD
Mini PCIe1 × Mini PCIe Full-length for 4G, Half-length for Wi-Fi (Default Only Support USB Device)
SIM Card Slot1
AutoStart JumperNo
DC-INNo
Clear CMOS JumperYes,1 × 3Pin, Pitch 2.0mm
GPIO1,2 × 5Pin, Pitch 2.0mm
RS-4850

Power

Power Adapter1 × 12V3A,DC Jack: 5.5mm/2.5mm
Power Adapter for POE1× 48V2A, DC Jack: Mini DIN

Environmental

Operating Temp0°C~50°C
Non-Operating Temp-20°C~80°C
Humidity10%~90%

Mechanical

MaterialAluminium Alloy
Dimension187 × 111 × 49mm
Weight1.00kg
MountingVESA Mounting Bracket
Packaging Dimension261 × 218 × 75mm
Kensington LockNo
Cooling ModeFanless Design

OS Support

OSUEFI Windows 10, Linux

Package Contents

  • Mini PC × 1
  • Power Adapter × 1
  • AC Power Cable × 1
  • VESA Mount × 1
  • SATA Combo Cable × 1
  • Screw Kit × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeLegacy ModelCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPDatasheet
Q10411G4-S05 Q705G4 Apollo Lake Celeron J3355 2 / 2 2.00Ghz ~ 2.50Ghz 2M Intel HD 500 10W
Q10421G4-S05 Q710G4 Apollo Lake Celeron J3455 4 / 4 1.50Ghz ~ 2.50Ghz 2M Intel HD 500 10W
