Mini PC Q20300S9 S10 Series

Model: Q20300S9-S10

Total LAN9
LAN Speed2.5G RJ45 / 10G SFP+
Serial Ports1

Key Specs

CPU
Denverton
Memory
DDR4 SO-DIMM · Max 64GB
LAN
9
Storage
M.2 Mkey, SATA, Mini SAS

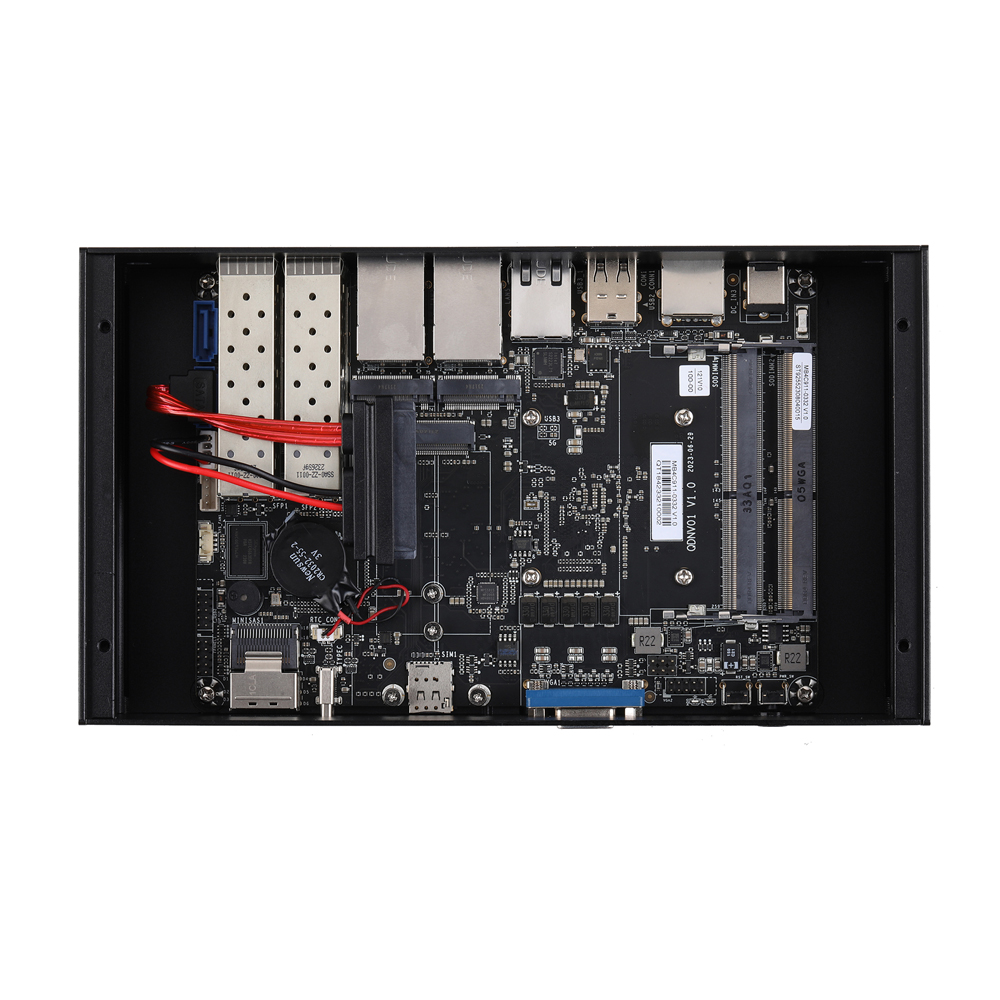

Compatible Motherboard

MB4C911-0300MB4C911-0300

This product is available via inquiry and OEM/ODM customization.

Send Inquiry
Q20311G9Q20321G9Q20322G9Q20331G9Q20332G9Q20342G9Q20351G9Q20352G9Q20311S9Q20321S9Q20322S9Q20331S9Q20332S9Q20342S9Q20351S9Q20352S9IntelDenvertonATOMC3338RC3558C3558RC3758C3758RC3808C3908C3958

Main Features

  • Intel Denverton Processor
  • 1 × VGA
  • 1 × USB 3.0, 1 × USB 2.0, 1 × Type C (USB 3.0)
  • 2 × M.2 (PCIe 3.0 × 2)
  • 1 × Mini SAS, 2 × SATA 3.0
  • 1 × RS-232 (RJ-45)
  • 4 × 10G SFP(+)
  • 5 × Intel I225-V/I226-V 2.5G LAN

Processor System

CPUIntel Denverton Processor
CPU TDPBy CPU
Memory2 × DDR 4 SO-DIMM Socket (Up to 64G,24 00MHz)
ChipsetBy CPU
GraphicsASPEED AST2400
LAN Chipset5 × Intel I225-V/I226-V 2.5G LAN 4, Intel X553 SFP(+) (10GbE/1GbE)
Watch DogYes

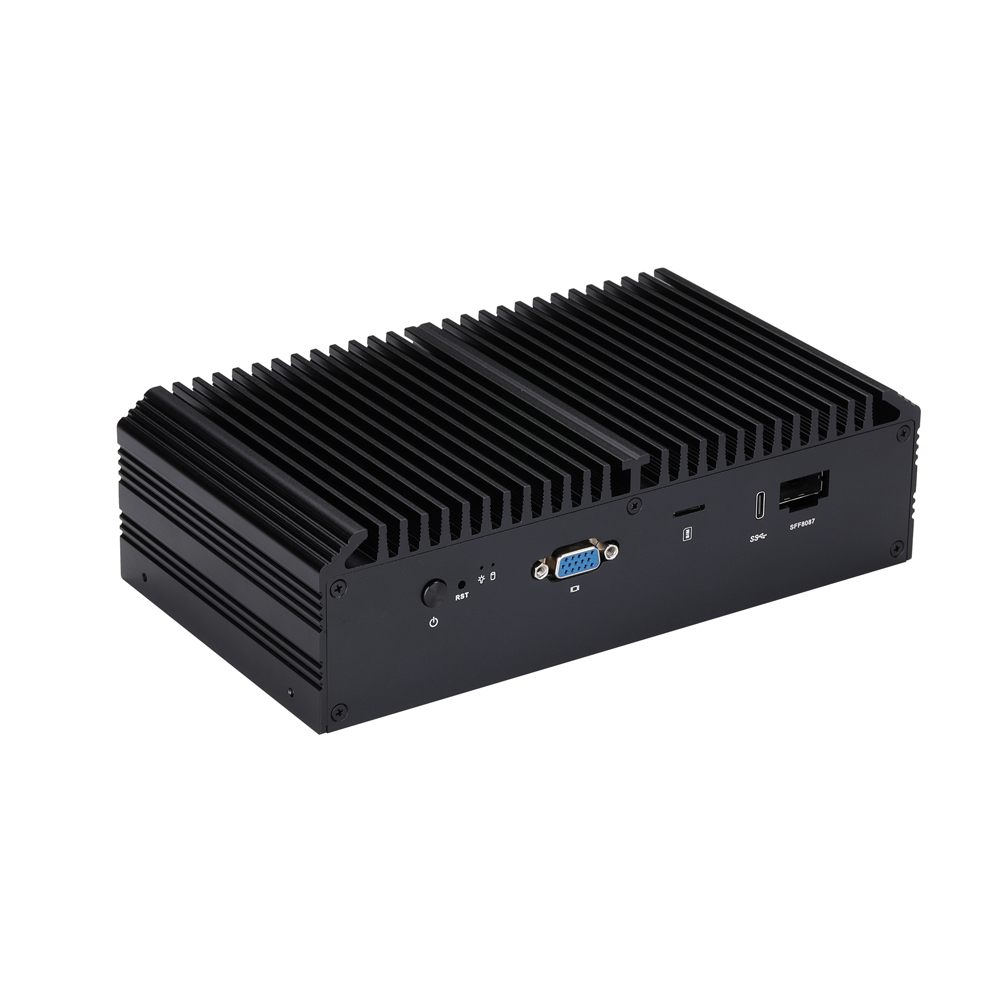

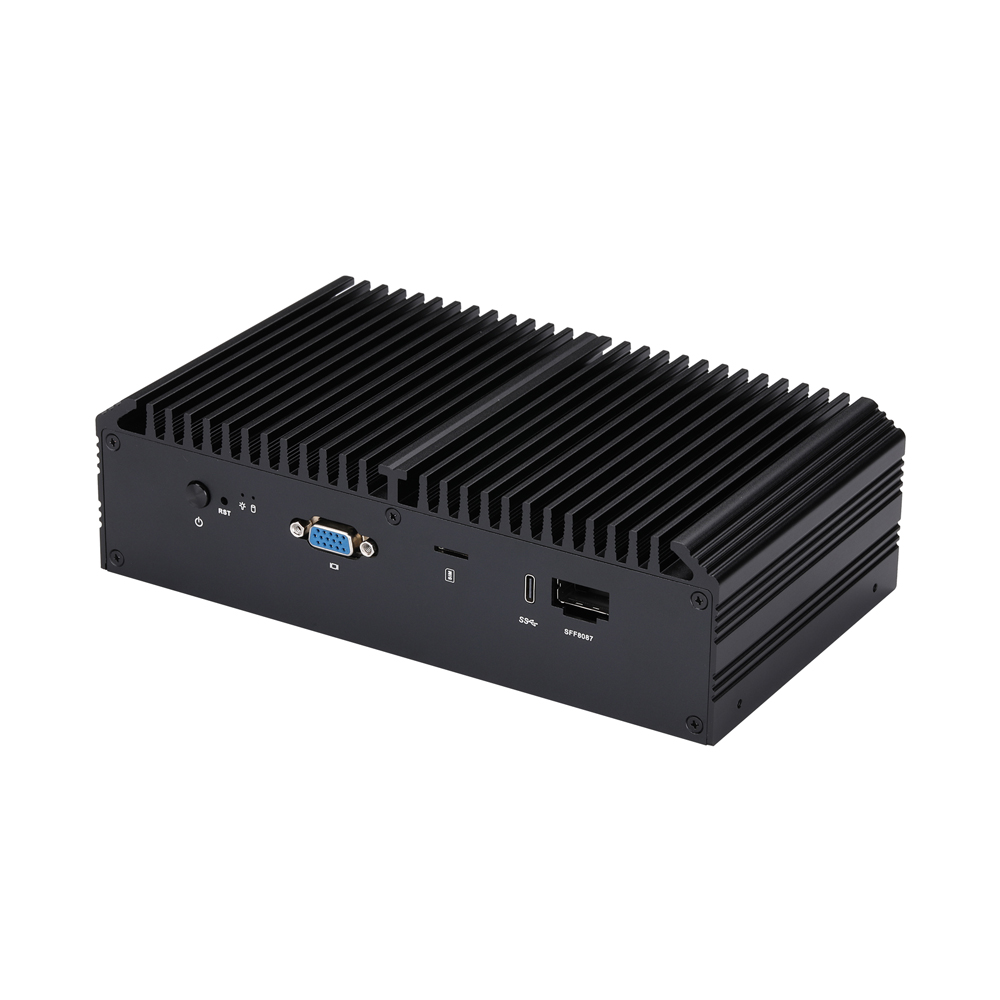

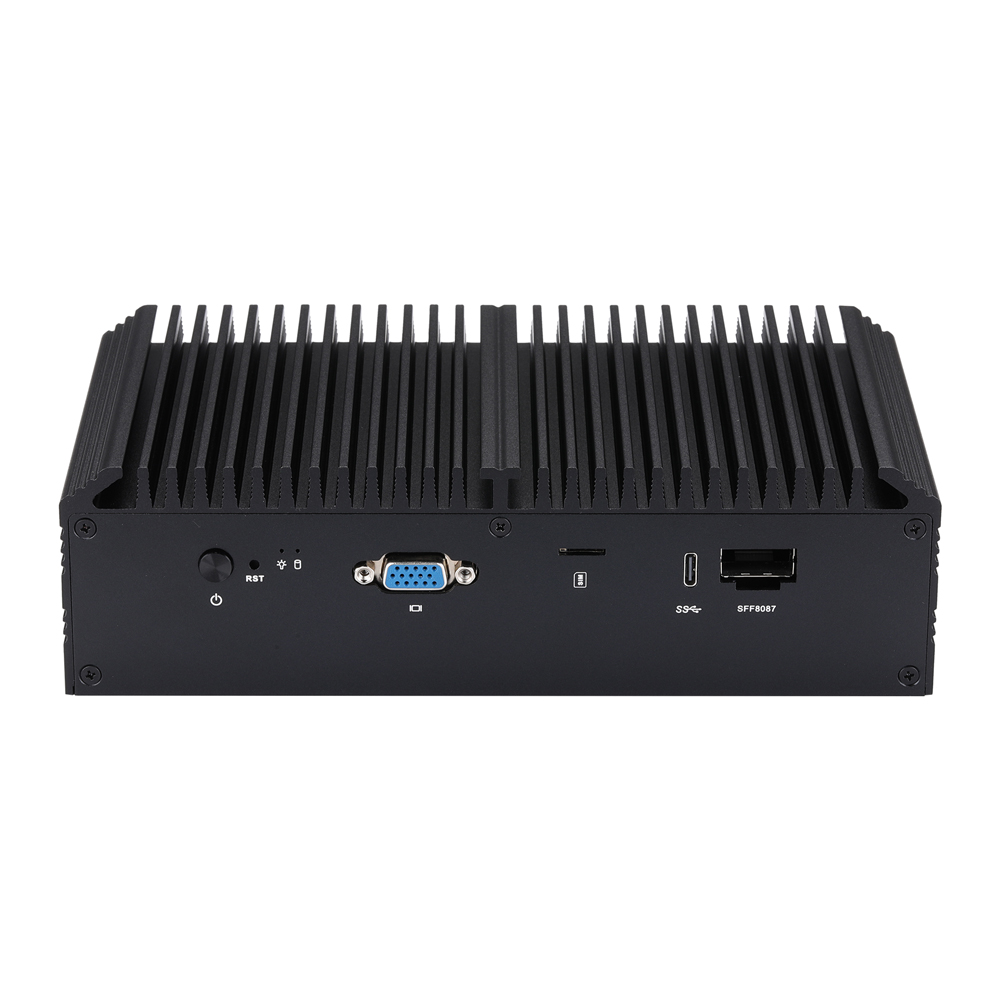

Front I/O

Power Button1 × Power Button,1 × Reset Button
LED1 × Power LED,1 × HDD LED
VGA1 × DB15
SIM Slot1 × Nano SIM Slot
Type C1 × Type C (USB 3.0)
Mini SAS1 × Mini SAS (SFF8087)

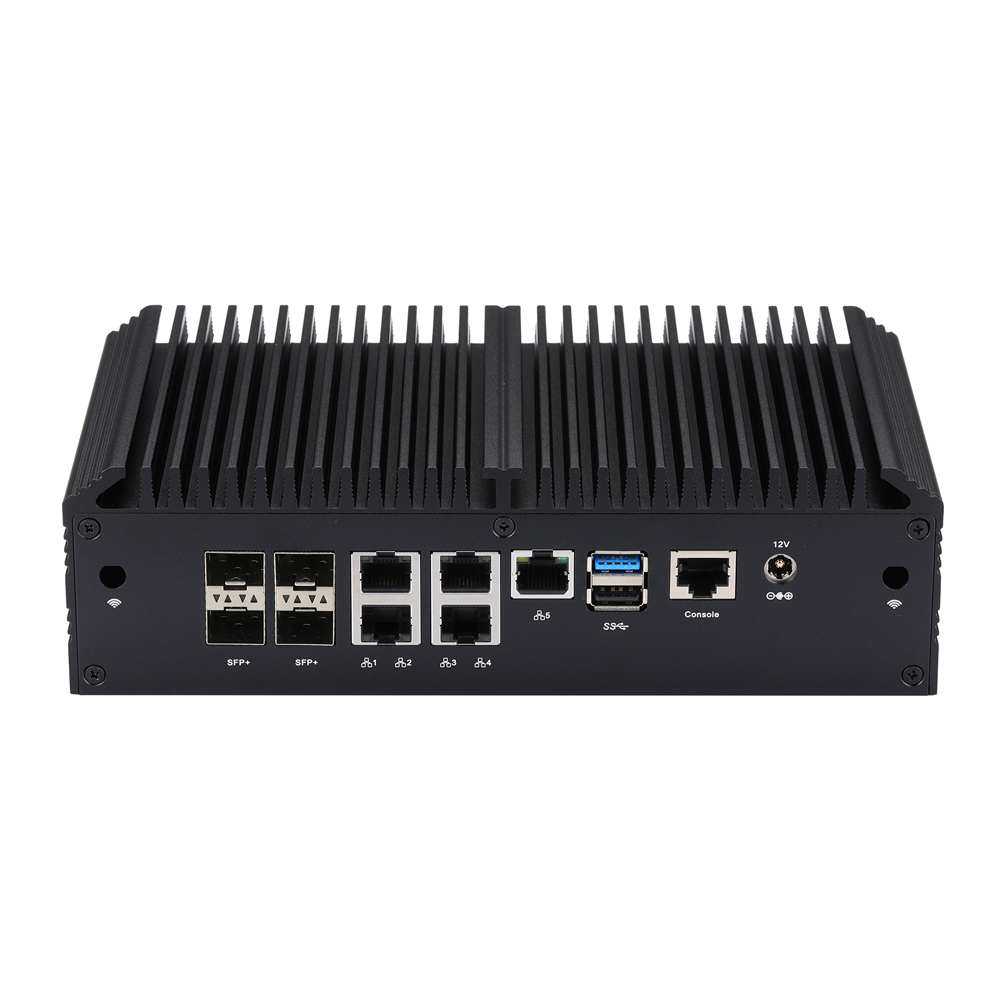

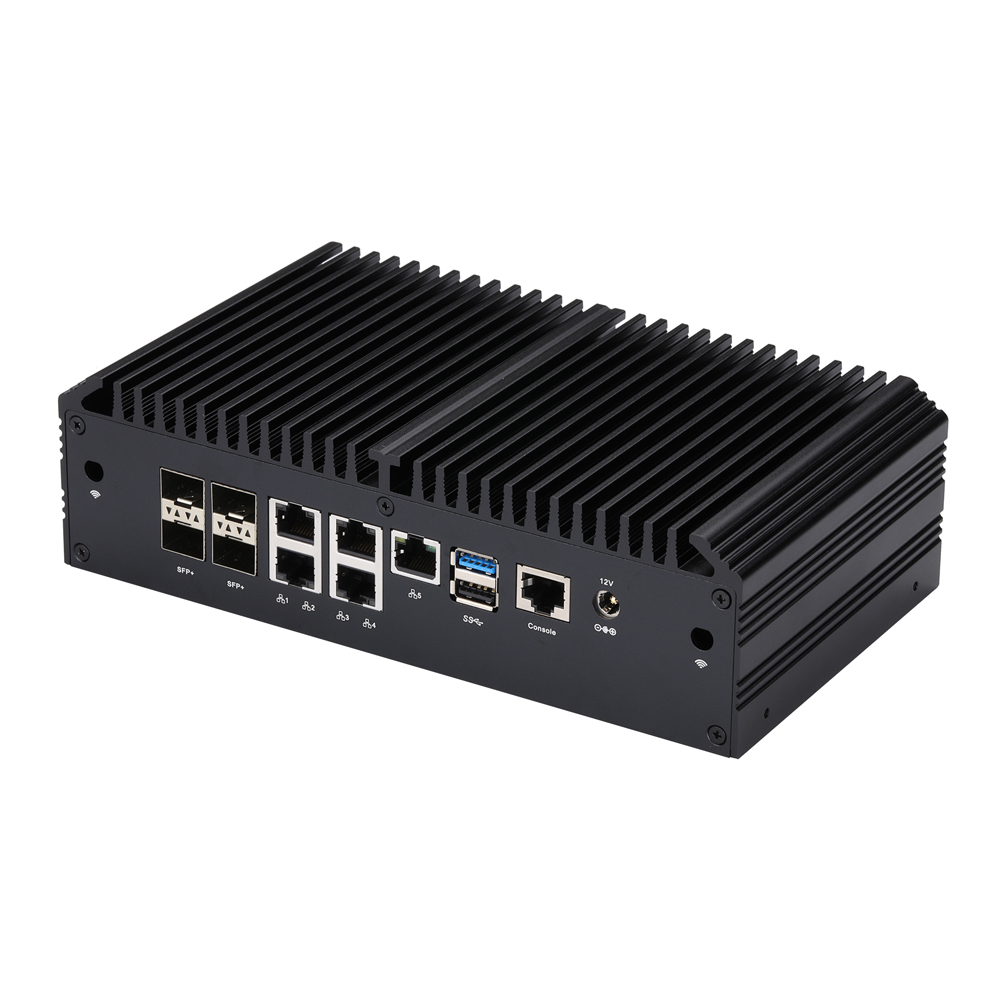

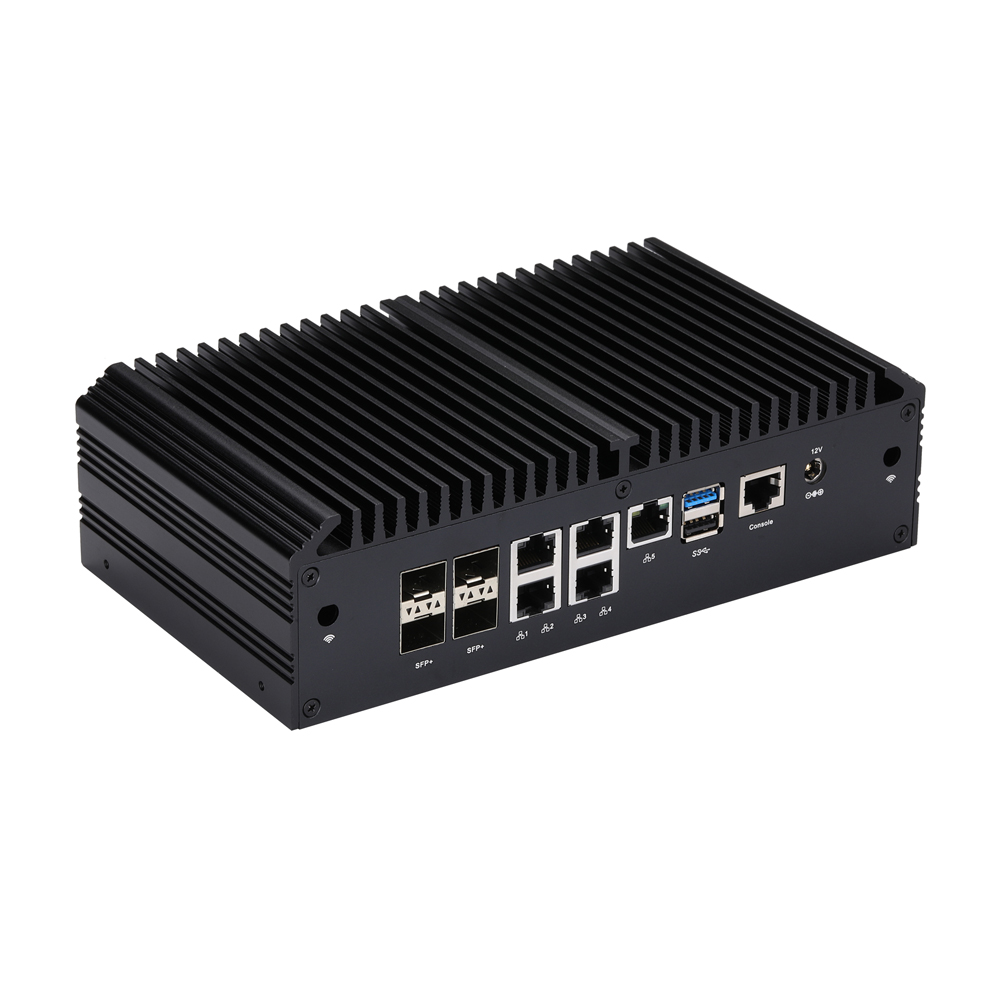

Rear I/O

Power1 × DC Jack
LAN5 × 2.5G LAN
USB1 × USB 3.0,1 × USB 2.0
Serial Port1 × RS-232 (RJ-45)
SFP+4 × 10G SFP(+)

Storage

Type2 × 2.5-inch HDD/SSD（Thickness: <10mm） 2 × M.2 for SSD (M key,Type: 2 280, PCIe 3.0 × 2)

Expansion

M.21 × M.2 for 4G/5G (B key,Type: 3042/3052)
M.22 × M.2 for SSD (M key,Type: 2 280, PCIe 3.0 × 2)
SIM Card Slot0
AutoStart JumperNo
DC-INNo
CMOS Clear JumperNo
GPIONo
RS-4850

Power

Power Adapter12V5A
DC Jack5.5mm, 2.5mm

Environmental

Operating Temp0°C~50°C
Non-Operating Temp-20°C~80°C
Humidity10%~90%

Mechanical

MaterialAluminium Alloy
Dimension217 × 122 × 62mm
Weight1.41kg
MountingN o
Packaging Dimension285 × 260 × 93mm
Kensington LockNo
Cooling ModeFanless Design

OS Support

OSWindows 10, Linux

Package Contents

  • Mini PC × 1
  • Power Adapter × 1
  • AC Power Cable × 1
  • VESA Mount × 1
  • SATA Combo Cable × 1
  • Screw Kit × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeLegacy ModelCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPMemory ChannelsDatasheet
Q20311S9-S10 Q20311G9 Denverton Atom C3338R 2 / 2 1.80Ghz ~ 2.20Ghz 4M - 10.5W -
Q20321S9-S10 Q20321G9 Denverton Atom C3558R 4 / 4 2.40Ghz 8M - 17W -
Q20322S9-S10 Q20322G9 Denverton Atom C3558 4 / 4 2.20Ghz 8M - 16W -
Q20331S9-S10 Q20331G9 Denverton Atom C3758R 8 / 8 2.40Ghz 16M - 26W -
Q20332S9-S10 Q20332G9 Denverton Atom C3758 8 / 8 2.2Ghz 16M - 25W -
Q20342S9-S10 Q20342G9 Denverton Atom C3808 12 / 12 2.00Ghz 12M - 25W -
Q20351S9-S10 Q20351G9 Denverton Atom C3958 16 / 16 2.00Ghz 16M - 31W -
Q20352S9-S10 Q20352G9 Denverton Atom C3908 16 / 16 2.00Ghz 16M - 31W -
Q20311S9-S10 Q20311G9 - - - - - - - - 1
Q20321S9-S10 Q20321G9 - - - - - - - - 2
Q20322S9-S10 Q20322G9 - - - - - - - - 2
Q20331S9-S10 Q20331G9 - - - - - - - - 2
Q20332S9-S10 Q20332G9 - - - - - - - - 2
Q20342S9-S10 Q20342G9 - - - - - - - - 2
Q20352S9-S10 Q20352G9 - - - - - - - - 2
